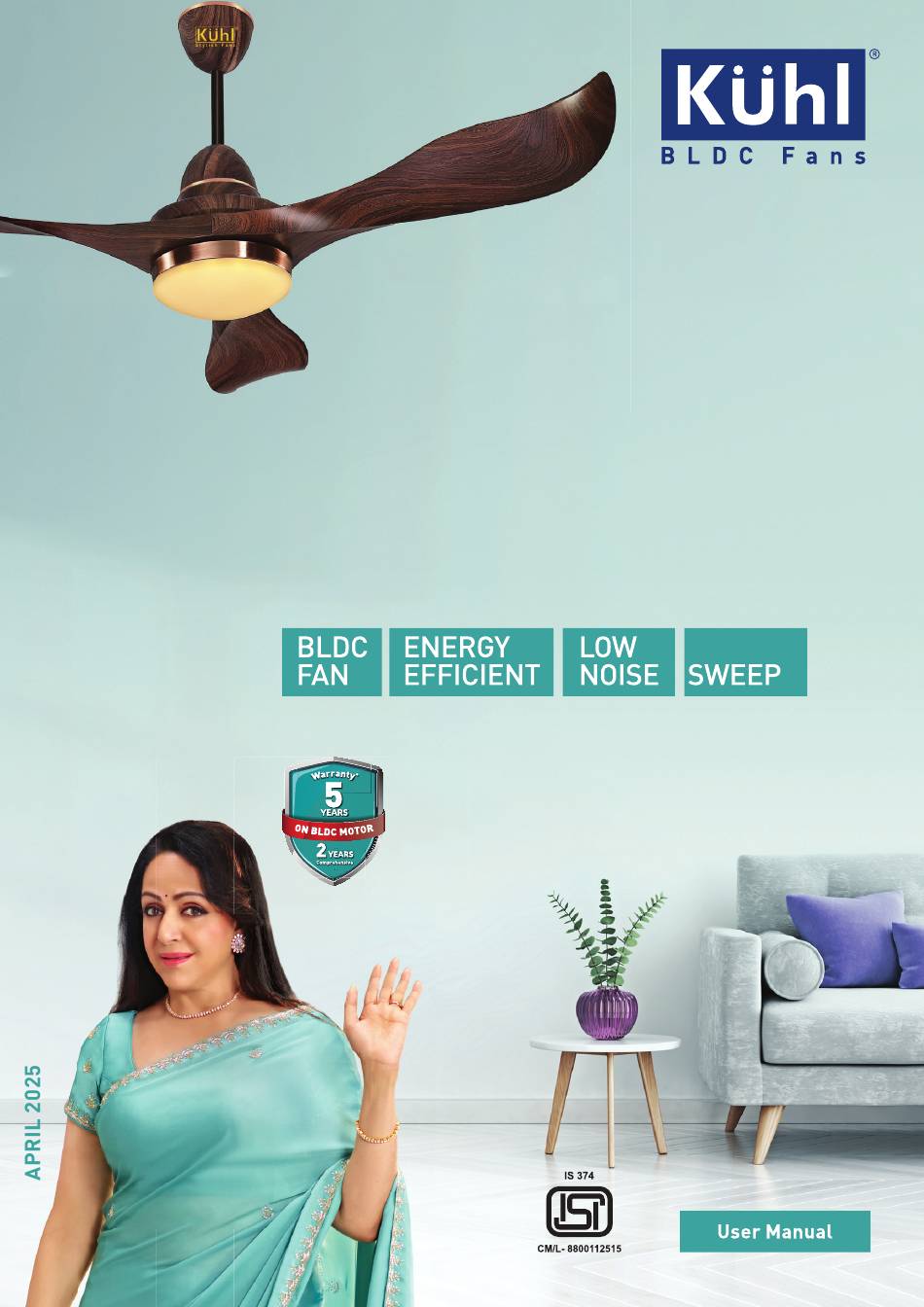

- Page 1 Kühl GLANZ STYLISH FANS FOR MODERN HOMES 1320 MM...
- Page 2 Dear Customer, Thank you for choosing Kühl BLDC Fans! It is indeed a wise decision as Kühl BLDC Fans are based on the New Technology named BLDC that offers energy efficient and low noise operation. This feature not only helps to keep the room cool but also keeps the electricity bill in check.
-
Page 3: Table Of Contents
5. Power Saving & Energy Efficient Guide ............04 6. Cost Saving Guide ..................04 7. Mounting Recommendation and Maintenance........04-05 8. Safety Guidelines ................... 05 9. Assembly Instruction ................05-16 10. How to Operate Kühl Glanz BLDC Fan ............17 11. How to Operate Remote Control Device ............17... -
Page 4: Introduction
Despite their stylish appearance, Kühl Glanz Fans work on 30 W power as against 80 W induction fans. Kühl Glanz Series is not just functionally powerful but also beautiful, making them a must to enhance the aesthetic appeal of your home. -
Page 5: Specification
9. 5 Star Rated: All Kühl BLDC Fans are 5-Star Rated that helps bring down the power consumption, thus, saving a lot of energy and money: Kühl SPECIFICATION Glanz F3 (1320 mm) Max Power (W) Sweep (MM) 1320 Air Delivery (CMM) -
Page 6: Know Your Remote Control Device
know your Remote Control Device • Remote 1. SPEED SETTINGS: Speed varies for five different levels, wherein S1 is the lowest fan speed and S5 is the highest. Press as per your requirement. 2. SLEEP MODE: Auto speed control for uninterrupted comfortable sleep. -
Page 7: Power Saving & Energy Efficient Guide
Kühl BLDC Fans run on just 30 W at full speed whereas ordinary induction fans run on approx. 80 W. Cost Saving Guide Ordinary Kiihl Glanz Series Fans (1320 mm) 30 W Power consumption... -
Page 8: Safety Guidelines
4. To prevent mishaps, it is advised to inspect the suspension system of the ceiling fan every six months to ensure that the fasteners are properly tight. Assembly Instructions Kühl Glanz Fans Step 1. Open Blade Screws Fix the 6 screws of the blades from... - Page 9 Step 2. Install First Blade Step 3. Install All Blade...
- Page 10 Step 4. Open Light Unit Step 5. Remove LED...
- Page 11 Step 6. Place Light Housing on Fixing Plate Step 7. Fix Light Housing on Fixing Plate...
- Page 12 Step 8. Reconnect LED on Light Housing Step 9. Connect Harness wire connector from Fan Unit into LED-disk Connectors...
- Page 13 Step 10. Assemble Down Rod and Canopies Step 11. Insert Supply Wire • Take the Supply wire (11) out from the slit-end of Down rod (3) • Raise the Canopies up and lock in place by tightening the lower canopy screw...
- Page 14 Step 12. Caution: Don’t move canopy while screw is tightened Step 13. Start Down Rod Assembly...
- Page 15 Step 14. Insert The Down Rod Bolt Step 15. Safety Screw Assembly...
- Page 16 Step 16. Check Output Wire Connections from Controller Step 17. Make Input Electrical Connection...
- Page 17 Step 18. Open Lower Bolt (A) from Shackle Step 19. Install Shackle and hang the Fan...
- Page 18 Step 20. Connect to Electric supply Step 21. Install Light Diffuser...
-
Page 20: How To Operate Kühl Glanz Bldc Fan
How to operate Kühl Glanz BLDC Fan Important Instructions regarding Regulator: • Fan regulator is not required for this BLOC fan because it is operated by remote. It also operates on Smart Phone, Alexa, & Voice-enabled devices. • You should ask your electrician to bypass the Regulator in Switch Board wiring. -
Page 21: Power On/Off Button
• It is recommended to Switch off the fan from wall mounted switch when going out of home. Speed Buttons • Kuhl BLDC Glanz fans comes with five different speed settings from slowest [1) to fastest [5). To vary speed, press SPEED button [1 to 5) on Remote. A beep will confirm the action. - Page 22 If Fan is Wobbling 1. Check that shackle is free and not touching the roof. Use Kuhl-supplied Shackle. 2. Check that Down Rod is vertical and not touching false ceiling. Enlarge false ceiling hole if needed.
- Page 23 Year KUHL GLANZ-F3-1320/2024 1320 mm 30 watts 225 cu m/min Kühl GLANZ F3 (1320 mm)
- Page 24 CONTACT US AT: E-6,7 & 8, Sector-59, Noida, U.P.-201 309, India. Call: 92-789-12345 E-mail: service kuhl.in or visit us at www.kuhl.in...
