Summary of Contents for KUHL INSPIRA W1

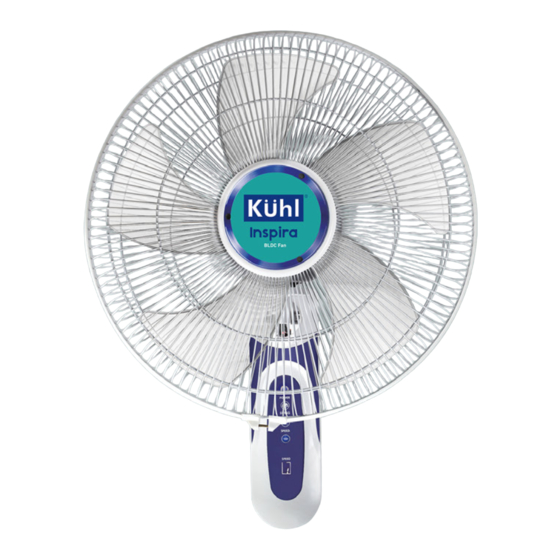

- Page 1 BLDC HIGH SAVES NOISE AIRFLOW ELECTRICITY Comprehensive Kühl INSPIRA BLDC Wall Fan...
- Page 2 Welcome to Kühl Dear Customer, Thank you for choosing Kühl Stylish Fans. These fans offer high speed fast cooling with low noise and low electricity bills, thanks to the cutting-edge BLDC technology. We prioritize customer satisfaction, ensuring each Kühl Stylish fan undergoes rigorous testing across all aspects of its operation, effectiveness, and efficiency.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ....................4 Features of Kuhl Inspira W1 BLDC Wall Fan..........4-5 Items in the Box .................... 5 Know your Remote Control Device ............... 6 Power Saving & Energy Efficient Guide ............6 Cost Saving Guide ..................7 Safety Guidelines .................. -
Page 4: Introduction
• Low Noise: A low noise operation without compromising speed limit is one of the most desired features of Kuhl Stylish Fans. They operate at low speeds while providing high air flow with low turbulence and minimal wind noise. •... -
Page 5: Items In The Box
• Attractive Design: Stylish enough to enhance the look of your place, Kuhl Stylish Fans feature decorative trims and a sleek surface that become the centre of attention in any space. Kühl Inspira W1 BLDC Wall Fan SPECIFICATION... -
Page 6: Know Your Remote Control Device
KNOW YOUR CONTROL DEVICE • SPEED SETTINGS: Speed varies for five different levels, wherein S1 is the lowest fan speed and S5 is the highest. Press as per your requirement. • SLEEP MODE: Auto speed control for uninterrupted comfortable sleep. Select this setting before going to bed, and the speed will automatically drop to the minimum pace as you specify. -
Page 7: Cost Saving Guide
COST SAVING GUIDE Ordinary Kühl Inspira W1 Wall Fans Wall Fan Assumed usage of 16 h 16 h fan per day (hours) Power consumption 75 W 28 W Power consumption 1.2 KWH 0.44 KWH – KWh Units per day Electricity bill 3.08... -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS KÜHL INSPIRA W1 BLDC WALL FAN Motor Assembly STEP 1: Blade Nut Guard Nut From Motor Assembly, unscrew out the Guard Nut and Blade Nut STEP 2: Motor Assemble the Rear Guard Assembly onto Motor Assembly, and tighten with Guard Nut... - Page 9 Motor Shaft STEP 3: Assemble the Blade onto Motor Shaft. Take care Blade Nut the slots in Blade Hub insert onto the Pin on Pin on Motor Shaft Motor Shaft. Finally Blade Rear Guard re-tighten the Blade Nut. STEP 4: Insert The Rubber Ring onto the Front Guard tightly...
- Page 10 STEP 5: Assemble the Front Guard onto Rear Guard by stretching and overlapping the Rubber Ring over Rear Guard Front Guard Rubber Ring STEP 6: Assembled Wall Fan...
-
Page 11: How To Operate Remote Control Device
Speed Buttons • Kühl Inspira W1 BLDC Wall Fan comes with five Speed different speed settings. You can control the speed, with the help of the (-) $ (+) buttons. For instance, to... - Page 12 CONTACT US AT: E-6,7 & 8, Sector-59, Noida, U.P.-201 309, India. Call: 92-789-12345 E-mail: service@kuhl.in or visit us at www.kuhl.in...
