Summary of Contents for KUHL INSPIRA P1

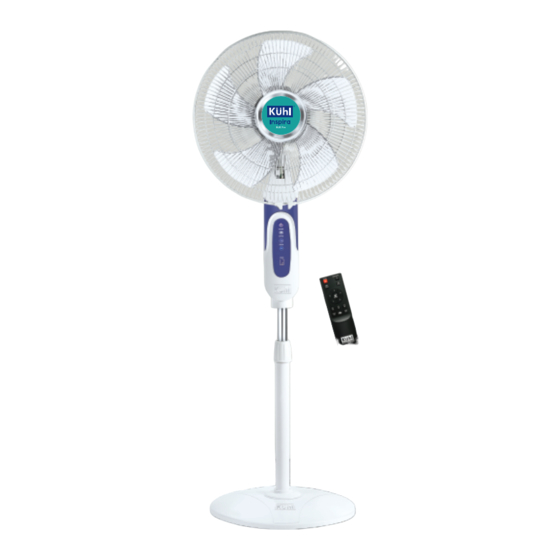

- Page 1 Kühl INSPIRA BLDC Pedestal Fan BLDC HIGH SAVES NOISE AIRFLOW ELECTRICITY User Manual...
- Page 2 Welcome Dear Customer, Thank you for choosing Kühl Stylish Fans! It is indeed a wise decision as Kühl Stylish Fans are based on the New Technology named BLDC that offers energy efficient and low noise operation. This feature not only helps to keep the room cool but also keeps the electricity bill in check.
-
Page 3: Table Of Contents
Power Saving & Energy Efficient Guide ............4 Cost Saving Guide ..................4 Mounting Recommendations & Maintenance ..........5 Safety Guidelines ..................5 Assembly Instructions ................6-14 How to operate Kuhl Inspira P1 BLDC Pedestal Fan ......... 14 How to Operate Remote Control Device ..........15-16... -
Page 4: Introduction
Height Adjustment: Kühl Inspira P1 lets you adjust the fan height according to your convenience. You can raise or lower the fan height. Oscillation: Kühl Inspira P1 swivels from side to side to spread air in each and every corner of the space. -
Page 5: Items In The Box
Tilt Mechanism: With the help of tilt mechanism you can adjust the fan up or down to fixate the desired setting. Attractive Design: Stylish enough to enhance the look of your place, Kuhl Stylish Fans feature decorative trims and a sleek surface that become the centre of attention in any space. -
Page 6: Know Your Remote Control Device
Know your Control Device SPEED SETTINGS: Speed varies for five different levels, wherein S1 is the lowest fan speed and S5 is the highest. Press as per your requirement. SLEEP MODE: Auto speed control for uninterrupted comfortable sleep. Select this setting before going to bed, and the speed will automatically drop to the minimum pace as you specify. -
Page 7: Cost Saving Guide
Cost Saving Guide Ordinary Kühl Inspira P1 Pedestal Fans Pedestal Fan Assumed usage of 16 h 16 h fan per day (hours) Power consumption* 75 W 28 W Power consumption – 1.2 kWh 0.44 kWh KWh Units per day Electricity bill Rs 8.4... -
Page 8: Assembly Instructions
Assembly Instructions Kuhl Inspira P1 BLDC Pedestal Fan Step 1. Assemble the Pole Assembly onto Base with help of 4 screws provided on Base. Pole Assembly Base Step 2. Insert the Motor & Panel Assembly onto Pole Assembly and tighten with Knob Motor &... - Page 9 Step 3. Take out the Guard Nut from Motor Assembly, assemble the Rear Guard onto Motor Assembly, and re-tighten the Guard Nut Motor Assembly Guard Nut Rear Guard Step 4. Take out the Blade Nut from Motor Shaft, then assemble the Blade onto Motor Shaft. Take care the slots in Blade Hub insert onto the Pin on Motor Shaft.
- Page 10 Step 5. Insert The Rubber Ring onto the Front Guard tightly Rubber Ring Front Guard Step 6. Assemble the Front Guard onto Rear Guard by stretching and overlapping the Rubber Ring over Rear Guard Front Guard Rear Guard...
- Page 11 Step 7. Assembled Pedestal Fan...
-
Page 12: How To Operate Remote Control Device
Speed Speed Buttons Kühl Inspira P1 BLDC Pedestal Fan comes with five different speed settings. You can control the speed, with the help of the (-) $ (+) buttons. For instance, to decrease the speed press (-) and vice-versa... - Page 13 CONTACT US AT: E-6,7 & 8, Sector-59, Noida, U.P.-201 309, India. Call: 92-789-12345 E-mail: service@kuhl.in or visit us at www.kuhl.in...
