• BLDC FAN
• LOW NOISE
• 1320 MM
• ENERGY
SWEEP
EFFICIENT
Kühl TWIST
STYLISH FANS FOR MODERN HOMES

Advertisement

loading
Need help?

Need help?

Do you have a question about the TWIST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KUHL TWIST

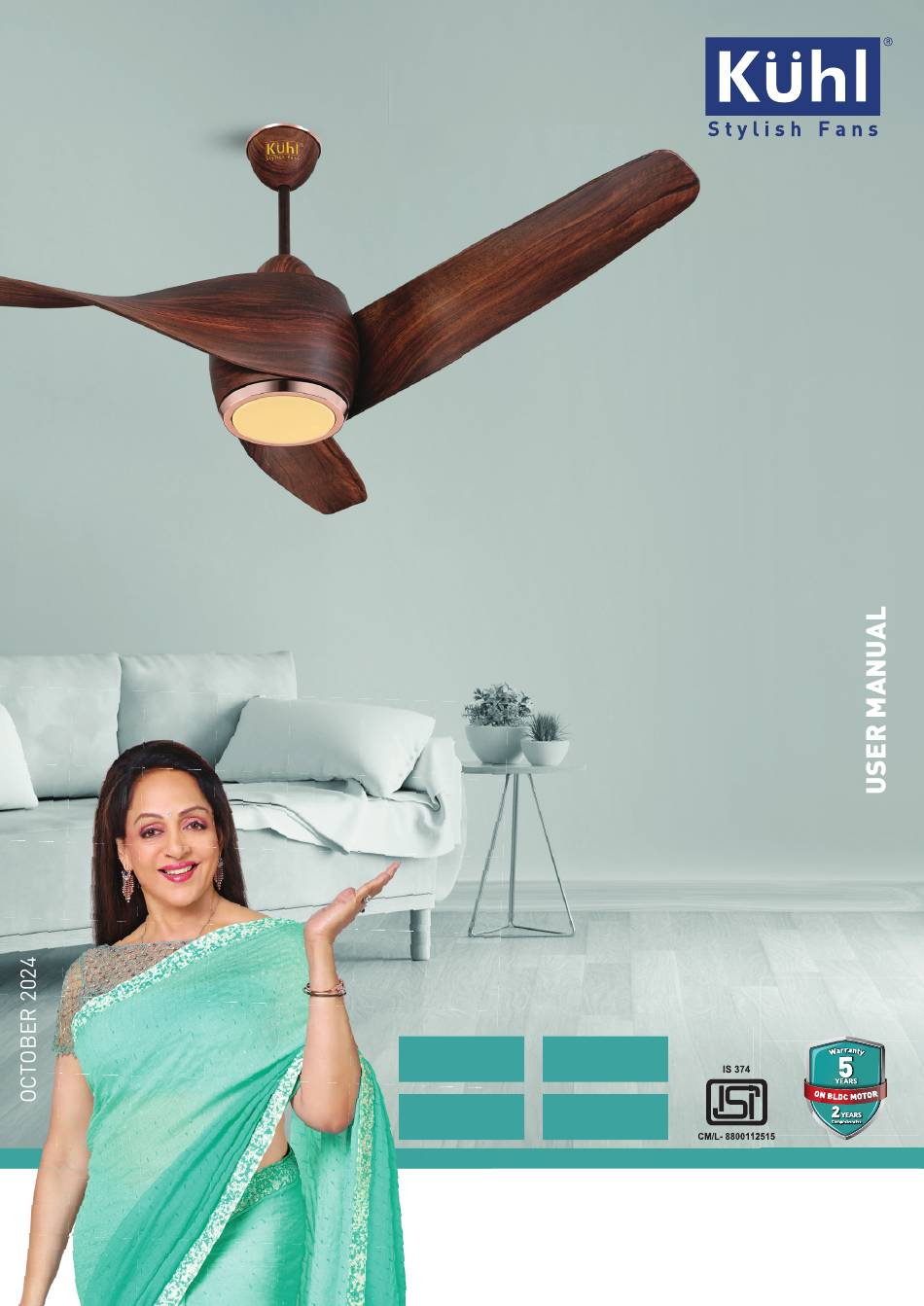

  • Page 1 • BLDC FAN • LOW NOISE • 1320 MM • ENERGY SWEEP EFFICIENT Kühl TWIST STYLISH FANS FOR MODERN HOMES...
  • Page 2 Welcome to Kühl Dear Customer, Thank you for choosing Kühl Stylish Fans! It is indeed a wise decision as Kühl Stylish Fans are based on the new BLDC technology that offers energy efficiency, high air-flow & low noise operation even at a high speed.
  • Page 3 Power Saving & Energy Efficient Guide..............7 Cost Saving Guide ....................7 Mounting Recommendations & Maintenance ............8 Safety Guidelines ....................8 Assembly Instructions ..................9-16 10. How to operate Kühl Twist BLDC Fan ….............. 17 11. How to Operate Remote Control Device ............18-19...
  • Page 4 Smartphone, Wi-Fi/loT, or Alexa. Not only summers, these fans allow you to stay cosy in winters with their reverse mode, efficiently circulating warm air. Elevate your living spaces with Kühl Twist Fans - a harmonious fusion of art and science.
  • Page 5 SPECIFICATION Kühl Twist L3 Max Power (W) 30 W Sweep (mm) 1320 mm Air Delivery 260 CMM Speed 175 RPM ITEMS IN THE BOX Items Images Quantity Motor Assembly Motor Assembly Canopies Canopies Down Rod Down Rod Shackle Shackle Down Rod Bolt...
  • Page 6 KNOW YOUR CONTROL DEVICE Remote Control • SPEED SETTINGS: Speed varies for five different levels, wherein S1 is the lowest fan speed and S5 is the highest. Press as per your requirement. • SLEEP MODE: Auto speed control for uninterrupted comfortable sleep.
  • Page 7 Kühl Stylish Fans run on just 30 W at full speed whereas induction fans run on approx. 80 W. COST SAVING GUIDE Kühl Ordinary Fans Twist Series 30 W Power consumption 75 W Assumed usage of fan...
  • Page 8 MOUNTING RECOMMENDATIONS & MAINTENANCE • A minimum height of 2.3 m above the ground is required for the fan's mounting. Allow enough room from the ceiling for the high-level cabinet doors to open. At least 0.25 m should separate the blade from the ceiling. •...
  • Page 9 ASSEMBLY INSTRUCTIONS Kühl TWIST SERIES FAN STEP 1. OPEN THE BLADE SCREWS Place the motor assembly as shown Turn the motor around and open 6 and remove all 6 blade screws blade screws (B) from top side also. (A) from bottom side of motor.
  • Page 10 STEP 3. OPEN THE LIGHT HOUSING Open the diffuser Take out the LED disk fro (A) from light unit. light housing. STEP 4. ASSEMBLE THE LIGHT HOUSING Remove 3 screws from LED fixing plate (1), place the light housing on it, and tighten with the same 3 screws (2).
  • Page 11 STEP 5. COMPLETE LIGHT UNIT ASSEMBLY Fasten the LED (1), make wire connections , and close with diffuser (2). STEP 6. ASSEMBLE FALSE COVER Remove 3 screws from false cover fing bracket (1), place the false cover on it, and tighten with the same 3 screws (2).
  • Page 12 STEP 7. ASSEMBLE DOWN ROD AND CANOPIES Insert top canopy also Insert supply wire provided Insert bottom canopy from top end from same end. through the lower one of the of down rod (no-slit end). top side holes in down rod. STEP 8.
  • Page 13 CAUTION : DON’T MOVE CANOPY WHILE SCREW IS TIGHTENED With screws (X) tightened, there can be scratches incurred on down rod on movement of canopy. Always loosen the screw before moving the canopy up / down, and re-tighten the screw after desired placement. STEP 9.
  • Page 14 STEP 10. INSERT THE DOWN ROD BOLT Take the down rod bolt Insert the down rod bolt with collared (A) from shackle kit. clamp through down rod and shaft holes. Assemble other bolt parts. STEP 11. SAFETY SCREW ASSEMBLY Re-insert the safety screw. Safety screw tightened.
  • Page 15 STEP 12. MAKE INPUT ELECTRIC CONNECTION INTO THE CONNECTOR COMING OUT OF FAN STEP 13. OPEN LOWER BOLT (A) FROM SHACKLE...
  • Page 16 STEP 14. INSTALL SHACKLE AND HANG THE FAN Insert shackle into ceiling hook. Raise fan to shackle. Re-insert lower bolt (A). Tighten with washer, nut, lock nut and cotter pin in sequence as written. STEP 15. CONNECT TO ELECTRIC SUPPLY Connect the wires from main supply Raise the canopy and tighten the (A) into fan connector (B).
  • Page 17 ASSEMBLED TWIST FAN HOW TO OPERATE Kühl TWIST BLDC FAN Important Instructions regarding Regulator: Fan regulator is not required for this BLDC fan because it is operated by remote. You should ask your electrician to bypass the regulator in switch board wiring.
  • Page 18 HOW TO OPERATE REMOTE CONTROL DEVICE Get the Remote ready. Insert 2 Nos. AAA batteries provided into the remote unit’s slot provided at back. Switch ON the fan from the switch board to operate it with the remote as explained hereafter pair the remote with fan, if not paired already.
  • Page 19 Speed Buttons Speed Kühl BLDC Fans come with five different speed settings. You can control the speed, with the help of the (-) & (+) buttons. For instance, to decrease the speed press (-) and vice – versa. Boost Button Boost If you want to run the BLDC fan at maximum speed press BOOST button on remote.
  • Page 20 ALL Kühl TWIST FANS ARE 5 STAR RATED BY BEE Label Period: 17 Jan, 2024 to 31 Dec, 2025 Year KUHL TWIST-L3-1320/2024 1320 mm 30 watts 260 cu m/min Kühl TWIST L3 (1320 mm)
  • Page 21 CONTACT US AT: E-6,7 & 8, Sector-59, Noida, U.P.-201 309, India. Call: 92-789-12345 E-mail: service kuhl.in or visit us at www.kuhl.in...
