Summary of Contents for KUHL WINDZZ K3

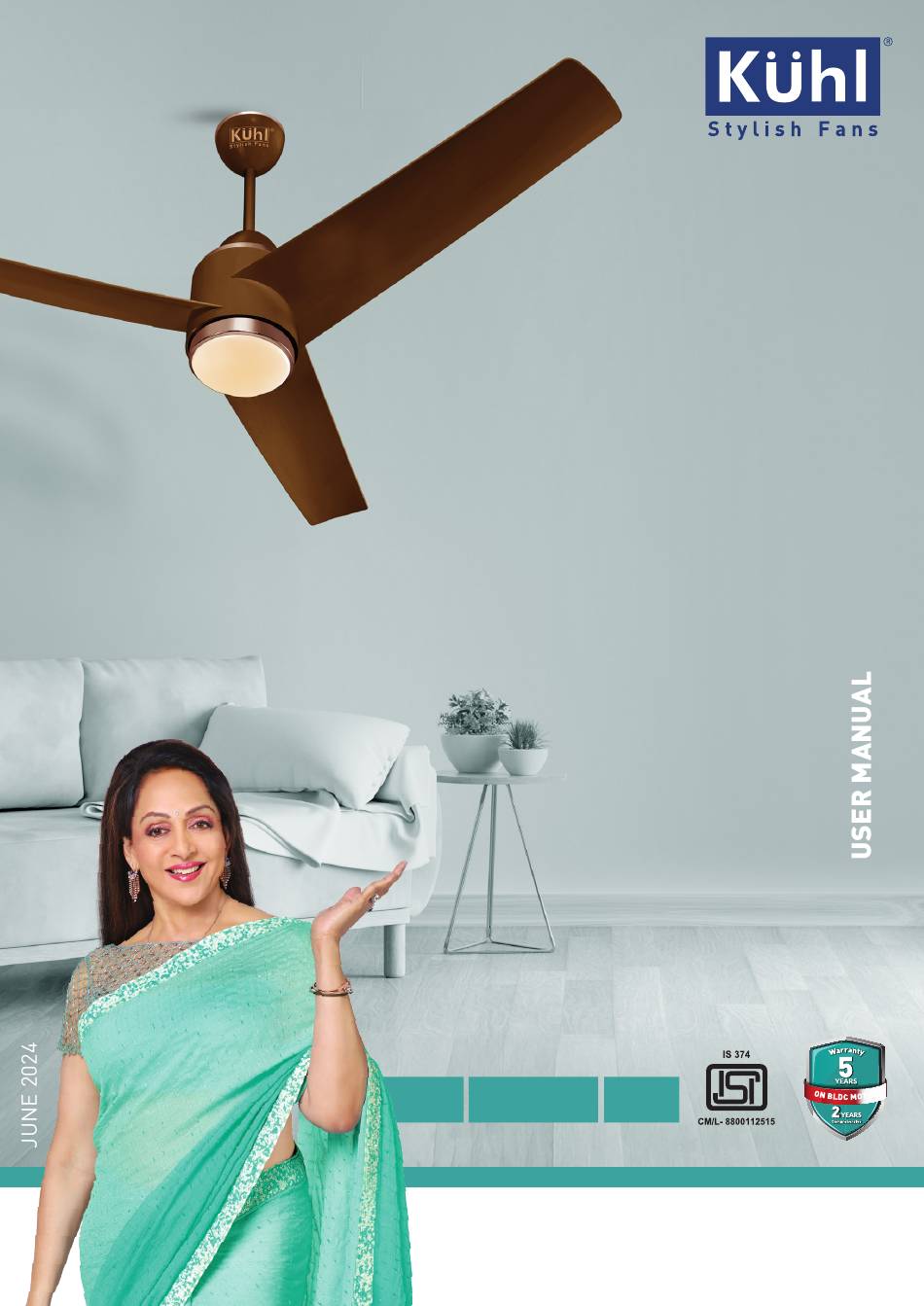

  • Page 1 BLDC ENERGY EFFICIENT NOISE KÜHL WINDZZ STYLISH FANS FOR MODERN HOMES...
  • Page 2 Welcome to Kühl Dear Customer, Thank you for choosing Kühl Stylish Fans! It is indeed a wise decision as Kühl Stylish Fans are based on the new BLDC technology that offers energy efficiency, high air-flow & low noise operation even at a high speed.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction......................4 Features of Kühl Windzz Stylish Fan ..............4-5 Items in the Box ....................6 Know your Remote Control Device ...............7 Power Saving & Energy Efficient Guide ..............8 Cost Saving Guide....................8 Mounting Recommendations & Maintenance ............9 Safety Guidelines ....................9 Assembly Instructions ...................10-19 10.
  • Page 4: Introduction

    Despite these fancy features, Kühl Windzz works on 38 Watt power, saving up to as much as 65% electricity. The series includes Kühl Windzz K3 that are not just functionally powerful but also beautiful, making them a must to enhance the aesthetic appeal of your home.
  • Page 5: Specification

    • One Fan Many Operations: Kühl Stylish Fans are IoT-enabled, making it efficient and easy to use. Conveniently set to adjust the fan speed, lighting preferences, different modes, set timer, and a lot more via: • Remote • Smart Phones •...
  • Page 6: Items In The Box

    Items in the box Fan Unit Assembly Canopies Down Rod Shackle Down Rod Bolt LED Light Assembly Blades Fan Remote Pencil Cell AAA Supply Wires...
  • Page 7: Know Your Remote Control Device

    Know your Control Device Remote • SPEED SETTINGS: Speed varies for five different levels, wherein S1 is the lowest fan speed and S5 is the highest. Press as per your requirement. • SLEEP MODE: Auto speed control for uninterrupted comfortable sleep. Select this setting before going to bed, and the speed will automatically drop to the minimum pace you specify.
  • Page 8: Power Saving & Energy Efficient Guide

    Power Saving & Energy Efficient Guide Kühl Stylish Fans come with revolutionary and super energy-efficient BLDC motor technology that consumes less energy. Our fans consume only 1/3rd of the power consumed by induction fans. Kühl Stylish Fans run on just 38/29 Watt at full speed whereas induction fans run on approx.
  • Page 9: Mounting Recommendations & Maintenance

    Mounting Recommendations & Maintenance • A minimum height of 2.3 meters above the ground is required for the fan's mounting. Allow enough room from the ceiling for the high-level cabinet doors to open. At least 0.25 meters should separate the blade from the ceiling. •...
  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS KÜHL WINDZZ SERIES FAN STEP 1 : PLACE FAN UNIT FOR ASSEMBLY Place Fan Unit Assembly (1) in Reverse on Packing Thermocol, as shown STEP 2 : OPEN THE BLADE SCREWS Place the Motor Assembly as shown Turn the motor around and open 6 and remove all 6 Blade screws (A) from blade screws (B) from Top side also.
  • Page 11: Step 3. Assemble Blade

    STEP 3. ASSEMBLE BLADE Place the Motor with Light side up, and install all blades with blade screws provided on Blade Housing STEP 4. SCREW THE 6 BLADE SCREWS ON TOP SIDE Turn the Fan over with Controller side up, fasten back with 6 blade screws (C)
  • Page 12 STEP 5. OPEN THE LIGHT HOUSING Open the Diffuser (A) from Light Take out the LED disk from Light housing Unit STEP 6. ASSEMBLE THE LIGHT HOUSING Remove 3 screws from LED fixing plate (1), place the Light Housing on it, and tighten with the same 3 screws (2)
  • Page 13 STEP 7. COMPLETE LIGHT UNIT ASSEMBLY Fasten the LED (1), make wire connections (2) , and close with diffuser (3) STEP 8. ASSEMBLE FALSE COVER Remove 3 screws from False Cover Fing Bracket (1), Place the False Cover on it, and tighten with the same 3 screws (2)
  • Page 14 STEP 9. ASSEMBLE DOWN ROD AND CANOPIES Insert Bottom (2)Canopy from Insert Supply Wire provided through Insert Top Canopy Top (3) end of Downrod the lower one of the Top side holes also from same end (no-slit end) in Downrod STEP 10.
  • Page 15 CAUTION : DON'T MOVE CANOPY WHILE SCREW IS TIGHTENED With screws X tightened, there can be scratches incurred on Down Rod on movement of canopy. Always loosen the screw before moving the canopy up / down, and re-tighten the screw after desired placement. STEP 11.
  • Page 16 STEP 12. INSERT THE DOWN ROD BOLT Take the Down Rod Bolt (A) Insert The Down Rod Bolt with Collared Clamp from Shackle kit through Down Rod and Shaft Holes. Assemble other bolt parts. STEP 13. SAFETY SCREW ASSEMBLY Reinsert the Safety screw Safety screw tightened...
  • Page 17 STEP 14. MAKE INPUT ELECTRIC CONNECTION INTO THE CONNECTOR COMING OUT OF FAN STEP 15. OPEN LOWER BOLT A FROM SHACKLE...
  • Page 18 STEP 16. INSERT THE DOWN ROD BOLT Tighten with Washer, Nut, Lock Nut and Cotter Pin in sequence as written Insert Shackle into Ceiling Hook Raise Fan to Shackle Re-insert Lower Bolt (A) STEP 17. CONNECT TO ELECTRIC SUPPLY Connect the wires from Main Supply (A) Raise the Canopy and tighten the into Fan connector (B) Canopy screw...
  • Page 19: How To Operate Kühl Windzz Bldc Fan

    ASSEMBLY AND INSTALLATION COMPLETE How to operate Kühl Windzz BLDC Fan Important Instructions regarding Regulator: Fan regulator is not required for this BLDC fan because it is operated by remote. You should ask your electrician to bypass the Regulator in Switch Board wiring, Otherwise fan may not operate properly.
  • Page 20: How To Operate Remote Controldevice

    How to operate Remote Control Device Get the Remote ready. Insert 2 Nos. AAA Batteries provided into the Remote Unit’s slot provided at back. Switch ON the fan from swich board to operate it with Remote as explained hereafter. Pair the Remote with Fan, if not paired already. Press POWER button on Remote to start BLDC Fan.
  • Page 21: Boost Button

    Speed Buttons Speed Kühl BLDC Fans comes with five different speed settings. You can control the speed, with the help of the (-) & (+) buttons. For instance, to decrease the speed press (-) and vice – versa. Boost Button Boost If you want to run the BLDC fan at maximum speed Press BOOST button on Remote.
  • Page 22 All Kühl WINDZZ Fans are 5-Star Rated By BEE KÜHL WINDZZ K3 (1320 mm)
  • Page 23 CONTACT US AT: E-6,7 & 8, Sector-59, Noida, U.P.-201 309, India. Call: 92-789-12345 E-mail: service kuhl.in or visit us at www.kuhl.in...
