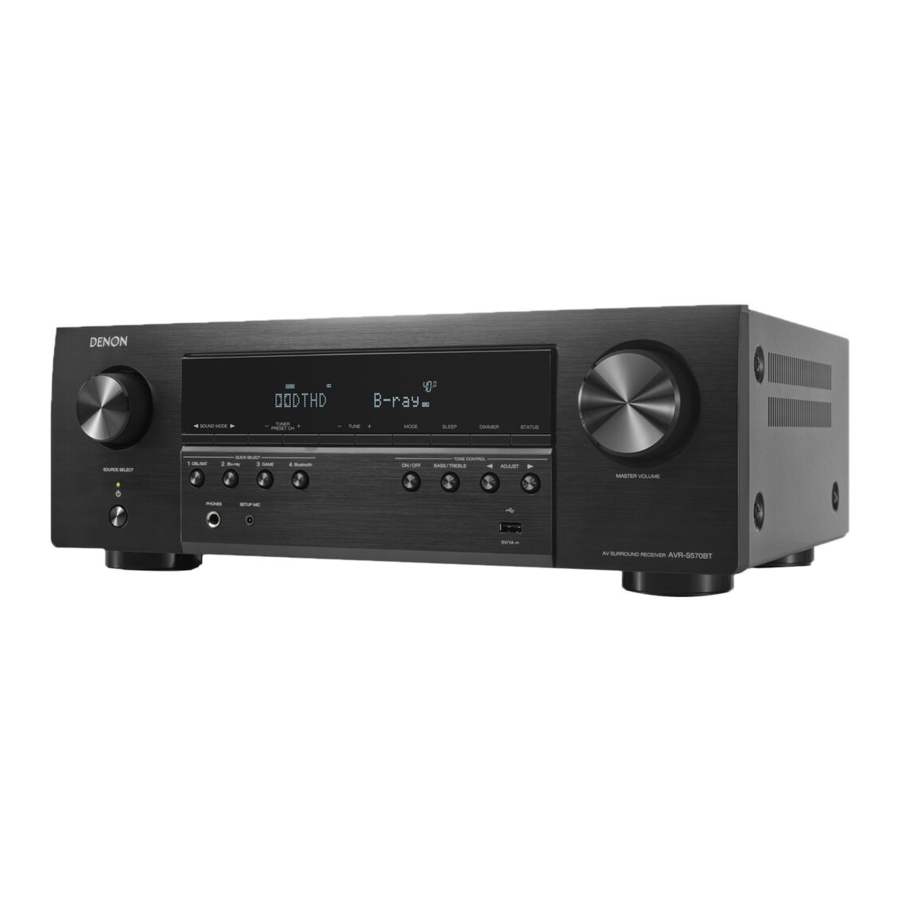

Denon AVR-S570BT Manual

Introduction

Use the Setup Assistant function to help configure the settings for this unit when you first set it up.
Follow the guidance displayed on the TV screen connected to this unit to configure the settings.
This manual describes the procedure up until starting the Setup Assistant.

Before you begin

Required for setup

• When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC functions, use a "High Speed HDMI cable with Ethernet" that displays the HDMI logo.
• When connecting this unit to a device that is compatible with the 8K and 4K 120Hz video, use a certified "Ultra High Speed HDMI cable". If you use a different HDMI cable, the video may not be displayed or other problems may occur.

What's in the box

• Using your own tripod enables settings to be automatically configured to the optimum listening environment, providing exceptionally high performance.

How to attach the cable labels

The supplied cable labels include labels for the speaker and HDMI cables.
Attach a cable label to each cable that matches the speakers and HDMI devices being connected, as shown above.
This makes it easy to identify and properly connect the cables between your components.

Setup

1. Connect the power cord
   Place the AVR near your TV and connect the power cord.

2. Connect the AVR to your TV
   Using a high quality HDMI cable*, connect one end to the HDMI port labeled "eARC" or "ARC" on your TV. Connect the other end to the HDMI OUT MONITOR port on your AVR.
   What is ARC and eARC?
   Audio Return Channel or "ARC" sends audio back to the AVR using the same HDMI cable that sends video from your AVR to your TV. This allows your AVR to process the sound from your TV's built-in tuner and apps. TVs with an Enhanced Audio Return Channel or "eARC" port will provide additional support for high bitrate multichannel audio (Dolby TrueHD and DTS- HD Master Audio). Please refer to your TV owner's manual for details about eARC support for your particular model.
   * For 4K TVs, we recommend using an HDMI cable labeled "High Speed" and "with Ethernet".
   * For 8K TVs, we recommend using an HDMI cable labeled "Ultra High Speed".

3. Turn on the TV

4. Select the appropriate HDMI input on your TV

5. Install batteries in the AVR remote control

   • Batteries can be taken out in reversed order.
6. Turn on the AVR
   • Press on the remote control.

7. Verify the connection
   • Verify that you can see this screen on your TV.
     If this screen is not displayed, please go back and retry the steps again in the recommended sequence.

8. Follow the on-screen Setup Assistant
   The TV is now connected to the AVR.
   The Setup Assistant will walk you through connecting and configuring your speakers and components to your Denon AVR. Use the remote control and follow the instructions on the TV screen to complete the AVR settings using the Setup Assistant.


Playing music via Bluetooth

1. Press and hold the Bluetooth button on the remote control for at least 3 seconds to go into pairing mode.

2. Activate the Bluetooth settings on your mobile device.

3. Select "Denon AVR-S570BT" from the Bluetooth device list on your mobile device.

4. When a number appears on the display of this unit, check that it is the same number as that shown on the screen of the Bluetooth device and then select "Pair" for both the Bluetooth device and the unit.
5. Play music using any app on your device.

To reconnect a previously paired Bluetooth device, Start at step 2.

Compatible with the Denon 500 Series Remote app

The "Denon 500 Series Remote" app allows you to remotely control the AVR-S570BT from your mobile device when connected via Bluetooth. It is available for free in the Apple App Store, Google Play or the Amazon Appstore. Make sure you search for "DENON 500 SERIES".

Please do not return this product to the store. If you need help...
Scan the QR code or visit support.denon.com/ for setup help, technical support, warranty assistance, or customer support contact information.
