Denon AVR-S750H Quick Start Guide

Before You Begin

Required for Setup

TV

Speaker cables

HDMI cable

Subwoofer cable

Speakers

Optional

LAN cable

Wi-Fi router

• When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC functions, use a "High Speed HDMI cable with Ethernet" that displays the HDMI logo.
• These drawings are for illustrative purposes only and may not represent the actual product(s).

What's In the Box

Quick Start Guide

Safety Instructions

Notes on radio

Warranty (for North America model only)

Cable labels

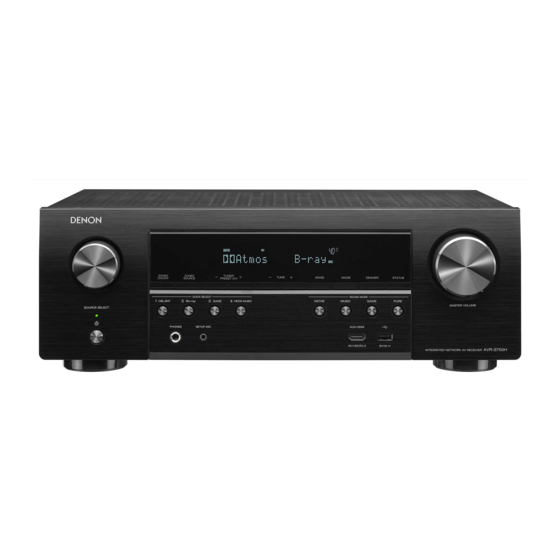

Receiver

FM indoor antenna

AM loop antenna

Sound calibration microphone

Sound calibration microphone stand

Remote control unit (RC-1227)

R03/AAA batteries

• The included sound calibration microphone stand is convenient for use when performing Speaker Calibration. Using your own tripod or the supplied Sound calibration microphone stand enables settings to be automatically configured to the optimum listening environment, providing exceptionally high performance.

Setup

There are four steps to the setup process.

1. Installing batteries in the remote control unit
2. Connecting the receiver
3. Following the On-Screen Setup Assistant
4. Downloading the Mobile Apps

Installing batteries in the remote control unit

Connecting the receiver

1. Place the receiver near your TV and connect the power cord

2. Connect the receiver to your home network
   Wired LAN
   Connect an Ethernet cable (not included) between your receiver and your network router.

   Wireless LAN
   Rotate the two antennas located on the back of the receiver upwards for maximum performance.

3. Connect the receiver to your TV with an HDMI cable

   ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel) support:
   If your TV supports ARC, your TV can send audio back to the AV receiver when you are using your TV's built-in video sources (TV tuner, Smart TV streaming services, etc.) ARC requires that you enable HDMI CEC on your TV. Please refer to your TV's Owner's Manual for instructions on how to setup HDMI CEC. In addition, if your TV supports eARC, it can also send back high bitrate audio formats such as Dolby TrueHD, Dolby Atmos, DTS HD Master Audio and DTS:X. Please refer to your TV's Owner's Manual for additional information about enabling the eARC function.
4. Turn on the TV

5. Select the appropriate HDMI input on your TV

6. Turn on the receiver
   • Press X to turn on the receiver.

7. Verify the connection
   • Verify that you can see this screen on your TV.

     If this screen is not displayed, please go back and retry the steps again in the recommended sequence.

Following the On-Screen Setup Assistant

Now TV is connected to the receiver. The Setup Assistant will walk you through connecting and confi guring your speakers and components to your Denon receiver. Please use the remote control and follow the on-screen instructions.

Downloading the Mobile Apps

Download both the "HEOS" App and the "Denon 2016 AVR Remote" App for the full home entertainment experience. The HEOS App is required to access online music through your AVR.

HEOS

The HEOS App allows you to explore, browse, and play music from many online streaming services or from your own music library.

Denon 2016 AVR Remote

Control your new AVR with the latest Denon 2016 AVR Remote App. Volume control, sound mode selection and advanced settings are always only a tap away.

Owner's Manual

• For more information, visit www.denon.com
• Refer to the Online Manual for other functions information and operation procedure details.
  manuals.denon.com/AVRS750H/NA/EN/

Please do not return this unit to the store. If you need help...

Check our AVR setup tips online
Usa.denon.com/SetupTips
Ca. Denon.com/SetupTips

Call for Assistance
1-855-MY.DENON (USA) 1-855-693-3666
1-800-668-0652 (Canada)
Monday – Friday 10:00AM to 10:00PM E.S.T
Saturday 12:00PM to 8:00PM E.S.T
