Elo TouchSystems WALLABY PRO Assembly Instructions Manual

Floor stand
Hide thumbs Also See for WALLABY PRO:

Advertisement

Quick Links

Download this manual

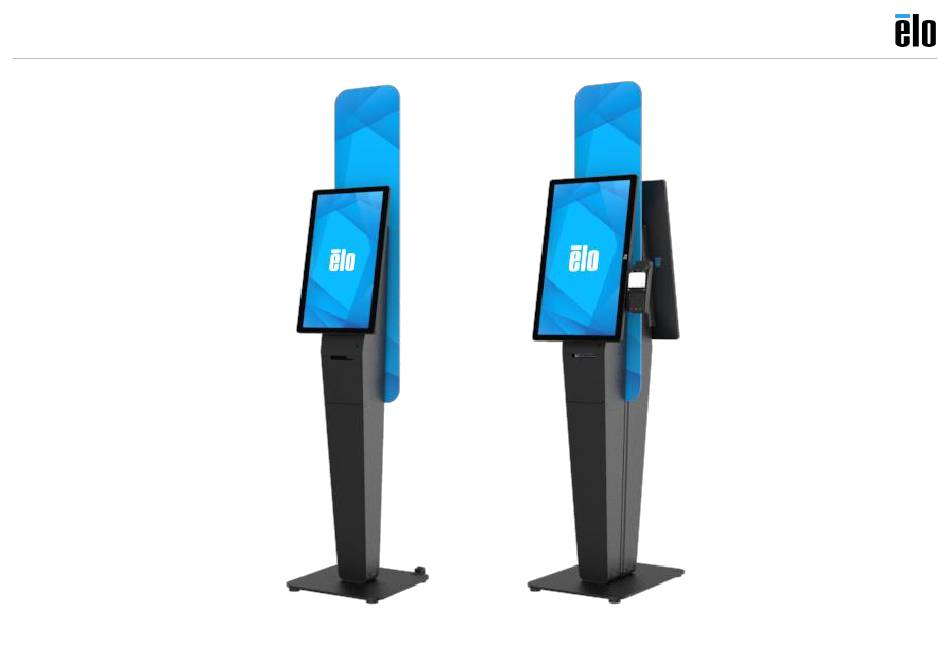

ASSEMBLY INSTRUCTIONS, WALLABY
PRO FLOOR STAND
TM
1
© Copyright 2023 Elo Touch Solutions, Inc.
UM600658
Revision D

Advertisement

loading
Need help?

Need help?

Do you have a question about the WALLABY PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Elo TouchSystems WALLABY PRO

Summary of Contents for Elo TouchSystems WALLABY PRO

  • Page 1 ASSEMBLY INSTRUCTIONS, WALLABY PRO FLOOR STAND © Copyright 2023 Elo Touch Solutions, Inc. UM600658 Revision D...
  • Page 2 Warning: Elo recommends using hand tools to assemble the Wallaby Pro. The use of power tools may result in damage to the product. Recommended Assembly Torque Thread Torque 6 in-lb (0.7 N-m) 12 in-lb (1.4 N-m) 26 in-lb (3.0 N-m) 46 in-lb (5.2 N-m) ©...
  • Page 3 Contents for Kits: E989314 / E534462, Wallaby Pro Self-Service Floor Stand Top Printer Door (ADA) Bag VESA Spacer and Screws Bag Qty. 1 Printer Door (ADA) Qty. 1 VESA Spacer Screw, M3x6, Pan AudioNav Qty. Head, Cross Screw, M4x6, Pan Head, Screws (Short) Qty.4...
  • Page 4 Contents for Kit: E989512, Wallaby Pro Self-Service Floor Stand Base Mounting Screws Bag Screw, M5x15, Socket Head, Custom, Qty.8 Stainless Screw, M5x10, Flat Head, Cross Qty.4 Recess, Black Wheel Kit Bag Qty.2 Wheel Assembly Screw, M5x6, Flat Head, Cross Qty.6...
  • Page 5 Contents for Kit: E989705, Wallaby Pro Self-Service Floor Stand Double Base Base Mounting Screws Bag Screw, M5x15, Socket Head, Custom, Qty.8 Stainless Screw, M5x10, Flat Head, Cross Qty.8 Recess, Black Spacer Screws Bag Screw, M4x10, Flat Head, Cross Qty.16 Recess, Black Double Floor Base Qty.
  • Page 6 Contents for Kit: Contents for Kit: E990151, Backer Board for Wallaby Pro Double-Sided Floor Stands E990854, Backer Board for Wallaby Pro Stands Backer Board Backer Board Qty. 1 Qty. 1 Hardware Screw, M4x12, Pan Head, Cross- Qty.8 Recess, Zinc Qty.8 Washer, M4, Zinc ©...
  • Page 7 Single-Sided Install (For Double-Sided Installs, skip to step 6) If installing wheel kit, attach wheels to base plate (P/N E989512). Flip base plate over. Slide wheels onto back edge of base plate, then fasten using six screws from “Wheel Kit” bag. Remove lower front panel by removing two side screws.
  • Page 8 Backer Board Install (Optional) Install stand to base plate as shown. Fasten by installing Install backer board (P/N E990854) to stand by removing eight screws twelve screws from “Base Mounting Screws” bag. Use L- on back cover (discard screws and back cover) and installing backer Key included with stand to tighten socket head screws.
  • Page 9 Double-Sided Install Unscrew display door thumbscrews. Open door and engage prop in hole. Remove lower front panel from 1 stand by removing two For Android I-Series displays, skip to step 12. side screws. Tilt out, lift up and remove panel. Repeat on For Windows I-Series 2.0 displays, skip to step 13.
  • Page 10 Install one spacer (included with double base) onto each stand by removing eight screws on back cover (discard back cover) and installing spacer using the same screws. Both Install 1 stand to double base plate (P/N E989705) as shown. Fasten spacers (1 per stand) are required if no backer board is by installing eight screws from “Base Mounting Screws”...
  • Page 11 Install 2 stand to double base plate as shown. Fasten by Unscrew display door thumbscrews on 1st stand. Open door installing eight screws from “Base Mounting Screws” bag. and engage props in hole. Repeat on 2 stand. Use L-Key included with stand to tighten socket head screws.
  • Page 12 Android I-Series Note Display Orientation Fasten stands together using screws from double base kit, “Upper Mounting Screws” bag. Install one screw from each direction. For Android I-Series displays, skip to step 12. For Windows I-Series 2.0 displays, skip to step 13. For I-Series 3.0 with Intel®...
  • Page 13 Windows I-Series 2.0 Display Cable Cover Note Display Orientation For Windows I-Series 2.0 displays, it is necessary to install the power Attach VESA Spacer to back of display using 22mm adapter to the display before attaching the VESA adapter. screws from “VESA Spacer and Screws” bag. Note display orientation and use correct mounting holes for Remove the display cable cover.
  • Page 14 I-Series 3.0 with Intel® 2402L/2403LM/2702L/2703LM Monitors Note Note Display Display Orientation Orientation Attach VESA Spacer to back of display using 18mm Remove cable cover doors from display. Attach VESA screws from “VESA Spacer and Screws” bag. Note Spacer to back of display using 18mm screws from “VESA display orientation and use correct mounting holes (“All Spacer and Screws”...
  • Page 15 2470L/2770L Monitors Note Display Orientation Remove mylar screw covers & four screws from back of Loosely install two pan head screws from display. Attach VESA Spacer to back of display using “VESA Spacer and Screws” bag in upper 14mm screws from “VESA Spacer and Screws” bag. Note threaded holes of VESA Spacer.
  • Page 16 Upper mounting holes (24”/27” displays) Lower mounting holes (22” displays) Assemble display to display door. Use upper set of keyholes for 24” or 27” For 2470L/2770L monitors, skip to the next step. displays. Use lower set of keyholes for 22” displays. Install two additional pan For displays with separate power supply, install power head screws from “VESA Spacer and Screws”...
  • Page 17 For 2470L/2770L monitors, an IEC C13-to-AC adapter For E534462 stand model, power strip is not included. is required to connect to the power strip. For North Mount power strip to bracket using included large cable America, StarTech P/N PAC100 is recommended. ties.
  • Page 18 If using monitor, connect HDMI cable to monitor and route into stand as shown, for connection to compute module later. Connect If using I-Series, route USB-A cable from USB hub to I- USB-A to USB-B cable to monitor and to USB hub. Use cable ties to Series.
  • Page 19 Disengage printer door latch by sliding upward. Pull Remove middle cover by loosening two screws, then printer door open. rotating cover out and pulling down. © Copyright 2023 Elo Touch Solutions, Inc.
  • Page 20 Note: If using ceiling pole kit (P/N E989893), STOP and follow UM600659 before proceeding. For E534462 model, power cable is not included. Purchase a 1.8m to 5m (depending on length needed) C13-style power cable for your region. For E989314 model, choose correct 4.5-5.0m power cable (NA/EU/UK) from the included cables.
  • Page 21 M4 screw Remove marked M4 screw, and fixed 1.0m ground cable Grounding cable through internal and out from base hole © Copyright 2023 Elo Touch Solutions, Inc.
  • Page 22 Storm AudioNav or Assist Button Kit Installation I-Series Monitor (if not installing either, skip to step 36) Remove door cover screw shown. Slide printer door cover out and down to remove. For Assist Button Kit, skip to step 34. Install AudioNav Printer Door by guiding tabs into If routing LAN cable from wall source, route cable through base,...
  • Page 23 Note: This stand supports AudioNav 6-key keypads (not included). MiniUSB cable required (StarTech USB2HABM6LA suggested). Install Assist Button Kit (Elo P/N E284334) by guiding tabs into holes in door, then sliding inwards. Reinstall screw as shown. Connect USB cable to AudioNav. For AudioNav –ALT or –ALTP part numbers, install the AudioNav device using screws from “AudioNav Screws (Long)”...
  • Page 24 Route USB cable under lower bracket, up to USB hub. Tie off cable using cable ties, where indicated by blue arrows. © Copyright 2023 Elo Touch Solutions, Inc.
  • Page 25 Printer Installation (If not installing printer, skip to step 50) Bracket 4 Bracket 5 Bracket 2 Bracket 3 Bracket 1 Each printer requires a different bracket configuration. Brackets 1 and 2 are shipped installed in the printer cage. Brackets 3 and 4 can be found in the “Printer Hardware”...
  • Page 26 Epson M30/Epson EU-M30 Installation Remove rear cable cover from printer. Slide printer into cage. For M30ii or EU-M30, fasten printer using two T2.5x8 screws from No changes are required to the printer cage. “Printer Hardware” bag. Skip to step 50. For earlier M30 models, fasten printer using two T3x6 screws from “Printer Hardware”...
  • Page 27 Star mC-Print3 Installation Bracket 1 Bracket 4 Remove rear cable cover from printer. Slide printer into Remove Bracket 1 from cage by removing four screws, cage. and replace with Bracket 4 from “Printer Hardware” bag, Fasten printer using two T3x6 screws from “Printer using the same four screws.
  • Page 28 Star TSP100/Star TSP654 Installation Bracket 1 Bracket 3 Bracket 2 Remove Brackets 1 and 2 from cage by removing eight Assemble printer to cage and install two T3x12mm screws screws. Assemble Bracket 3 (from “Printer Hardware” from “Printer Hardware” bag into screw holes marked “1”. bag), using screw position “A”...
  • Page 29 Bixolon SRP-350/ Bixolon SRP-350/Epson TM-T88 Installation Bracket 1 Bracket 3 Bracket 2 Remove Brackets 1 and 2 from cage by removing eight screws. Assemble Bracket 3 (from “Printer Hardware” Assemble printer to cage and install four T3x6mm screws bag), using screw position “B” and four of the screws. from “Printer Hardware”...
  • Page 30 Epson L90/TM30iii Installation Epson TM-T88 Bracket 2 Assemble printer to cage and install four T3x6mm screws Remove Bracket 2 from cage by removing four screws. from “Printer Hardware” bag, using screw holes marked “2”. Skip to step 46. © Copyright 2023 Elo Touch Solutions, Inc.
  • Page 31 Epson L90 Installation Epson M30iii Installation Assemble printer to cage and install four T3x6mm screws Remove bracket-1 and assembly bracket-4 by four screws, from “Printer Hardware” bag. Assemble printer to cage and install two T2.5X8mm screws from “Printer Hardware” bag. ©...
  • Page 32 Bixolon SRP-350 PLUS V Installation If printer includes a DC power supply, remove AC cable from power supply, and install power supply in middle bay as shown. Secure power supply with velcro strap. Use the included 0.3m power cable (either C5 or C13, depending on the printer power supply) to connect the power supply to the power strip.
  • Page 33 Depending on printer type, route USB cable from printer Reinstall printer cage by inserting tabs in cage into slots in to USB hub, or route LAN cable to printer from bracket, and tilting cage into position, ensuring that wall/ceiling. Depending on power cable, route DC power cables are not pinched.
  • Page 34 Printer Paper Chute Configuration Bracket Hook Configure printer paper chute by removing two screws, replacing chute, and reinstalling screws. Chute 1 is pre- installed from the factory. Other chutes are included in “Printer Hardware” bag. Reinstall middle cover. First slide hooks on left and right sides Epson TM-T88, M30, EU-m30, L90: No change needed.
  • Page 35 (Optional, if not installing skip to step 62) Note: Only one of the above options can be installed at a time. For Wallaby Pro EMV Cradle (P/Ns E990468, E996512, E990654, E990282) installation, remove side cover plate by removing two Remove backpack bracket by removing three screws.
  • Page 36 NUC mounting holes Fasten Android Backpack to bracket using four screws from “Android Backpack Screws” bag. Remove AC power cable from Android For NUC, attach using two M3x8 screws (not included), at Backpack/NUC/Android Expansion Module power supply. circled locations. Install power supply in left bay. Use the included 0.3m C5 or C13 power cable to connect the power supply to the For Android Expansion Module, attach using screws power strip.
  • Page 37 Android Backpack only: For Wi-Fi signal improvement, remove 2 Make the following connections for Android Backpack: rubber plugs circled. -DC cable from power supply Install male threaded end of one SMA extension cable into each -USB-A cable from USB hub hole and tighten nut to secure cable to stand.
  • Page 38 Wallaby EMV Cradle Installation (Optional, if not installing skip to step 68) Note: Wallaby EMV Cradle kit P/Ns listed below are not compatible with ECMG4. 22” 24” 27” 22” 24” 27” For Wallaby EMV Cradle kits (P/Ns E352169, E458797, E458992, Reinstall backpack bracket by sliding left side of bracket E920661), add two screws to backpack bracket from EMV kit bag onto pins and tilting into position.
  • Page 39 ECMG4 Installation (Optional) Assemble EMV Arm to backpack bracket. Add two screws from EMV kit bag “P” at rightmost position, and tighten Discard backpack bracket. Attach ECMG4 Bracket by two left screws to secure EMV Arm to backpack bracket. partially unscrewing two screws shown, sliding bracket Complete EMV assembly starting at step 5 of EMV Cradle into position, then tightening screws.
  • Page 40 ECMG4 Installation (Optional) For Wi-Fi signal improvement, remove 2 rubber plugs circled. Connect ECMG4 power cable and LAN cable to ECMG4. Install male threaded end of one SMA extension cable into each hole and tighten nut to secure cable to stand. Slide ECMG4 down, behind ECMG4 bracket.
  • Page 41 Make the following connections to ECMG4: Push up on prop to disengage. -USB-A cable from USB hub Close display door and tighten thumbscrews. -HDMI cable from display. Lock display door using key if access control is required. © Copyright 2023 Elo Touch Solutions, Inc.
  • Page 42 Reattach front panel by dropping hooks at bottom of panel into slots on lower bracket. Tilt panel in at top edge, then resecure with screws from step 1. For double-sided install, repeat steps 12-69 for 2 stand. Assembly is complete. ©...
  • Page 43 Learn more about Elo at EloTouch.com. Americas Europe (EMEA) Asia Pacific Tel +1 408 597 8000 Tel +32 16 930 136 Tel +86 (21) 3329 1385 EloSales.NA@elotouch.com EMEA.sales@elotouch.com EloAsia@elotouch.com The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
