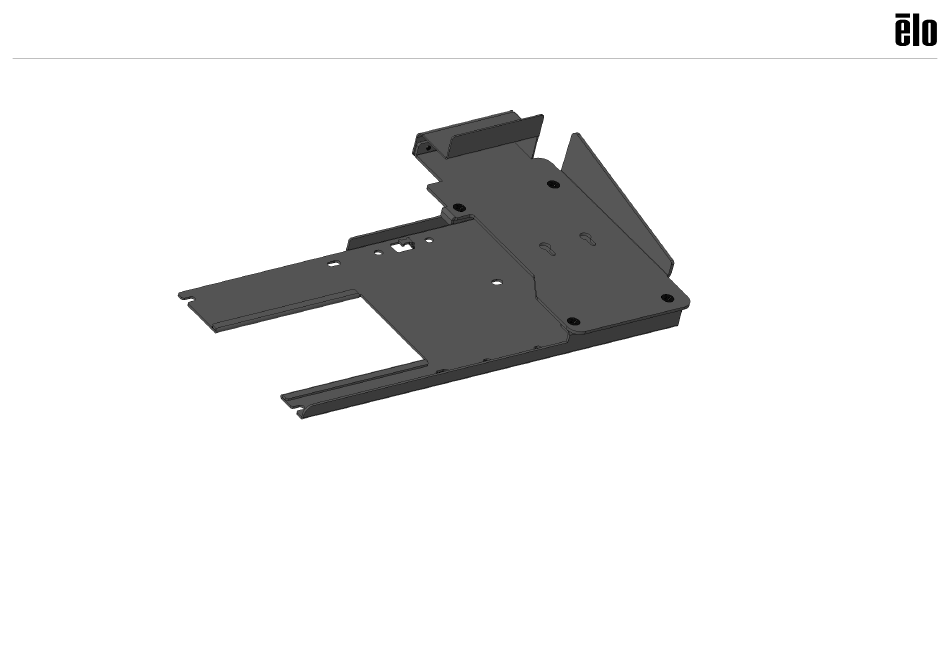

ASSEMBLY INSTRUCTIONS, ELO P400 EMV BRACKET KIT
E906829 EMV-SELF-SERV-VF-P400
FOR USE ON:
E796783 ELO-STAND-SELF-SERVICE-15-22-COUNTERTOP
E796965 ELO-STAND-SELF-SERVICE-15-22-FLOOR-TOP
© Copyright 2021 Elo Touch Solutions, Inc.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P400 EMV BRACKET KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elo TouchSystems P400 EMV BRACKET KIT

Summary of Contents for Elo TouchSystems P400 EMV BRACKET KIT

  • Page 1 ASSEMBLY INSTRUCTIONS, ELO P400 EMV BRACKET KIT E906829 EMV-SELF-SERV-VF-P400 FOR USE ON: E796783 ELO-STAND-SELF-SERVICE-15-22-COUNTERTOP E796965 ELO-STAND-SELF-SERVICE-15-22-FLOOR-TOP © Copyright 2021 Elo Touch Solutions, Inc.
  • Page 2 Contents for Kit: E906829, EMV-SELF-SERV-VF-P400 Screws SCREW, M3X8, PAN-HEAD, Qty.2 CROSS-RECESS SCREW, M4X10, PAN-HEAD, Qty.1 CROSS-RECESS SCREW, M4X5, PAN-HEAD, Qty.4 CROSS-RECESS SCREW, M4X6, FLAT-HEAD, Qty.4 CROSS-RECESS EMV Arm Assembly SCREW, M3X6, PAN-HEAD, Qty. 1 Qty.2 CROSS-RECESS EMV Edge Bracket, 22 Android 4.0 Tie-wrap EMV Mount Plate, Long (bag label “22 A4”)
  • Page 3 Add the EMV Mount Plate to the Remove Fill Plate on Display Bracket. Display Bracket using (4) screws from bag “R”. © Copyright 2021 Elo Touch Solutions, Inc.
  • Page 4 Add (2) screws to EMV Mount Plate from bag “P” Assemble EMV Arm to Display Bracket. Add at position 1, 2,3 or 4. Leave ~3mm (1/8”) gap (2) screws from bag “P” at right most position (for EMV Arm). “A” to secure EMV Arm to Display Bracket. Position “1”...
  • Page 5 Attach Cover Plate Cover Plate and screws. Remove and save EMV Cover Plate and screws. Route EMV terminal cable and tie-wrap. Add (2) screws for mounting EMV terminal from bag “Q”. Don’t tighten screws completely. Leave For portrait installations, setup is complete. approximately 3/32”...
  • Page 6 Remove plastic cover from right edge of display. Add Edge Bracket using (2) screws from bag “C”. Use Edge Bracket “15 A” for Android 15” Use Edge Bracket “22 A” for Android 22” 2.0/3.0 Use Edge Bracket “22 A4” for Android 22” 4.0 Use Edge Bracket “15 W”...
  • Page 7 Learn more about Elo at EloTouch.com. Americas Europe (EMEA) Asia Pacific Tel +1 408 597 8000 Tel +32 16 930 136 Tel +86 (21) 3329 1385 EloSales.NA@elotouch.com EMEA.sales@elotouch.com EloAsia@elotouch.com The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
