ASSEMBLY INSTRUCTIONS, E798125 EMV-SELF-SERV-15-22-VF-MX915-ING-ISC250
E798125 EMV-SELF-SERV-15-22-VF-MX915-ING-ISC250
FOR USE ON:
E796783 ELO-STAND-SELF-SERVICE-15-22-COUNTERTOP
E796965 ELO-STAND-SELF-SERVICE-15-22-FLOOR-TOP
1
© Copyright 2021 Elo Touch Solutions, Inc.
Advertisement
Related Manuals for Elo TouchSystems E798125 EMV-SELF-SERV-15-22-VF-MX915-ING-ISC250
Summary of Contents for Elo TouchSystems E798125 EMV-SELF-SERV-15-22-VF-MX915-ING-ISC250
- Page 1 ASSEMBLY INSTRUCTIONS, E798125 EMV-SELF-SERV-15-22-VF-MX915-ING-ISC250 E798125 EMV-SELF-SERV-15-22-VF-MX915-ING-ISC250 FOR USE ON: E796783 ELO-STAND-SELF-SERVICE-15-22-COUNTERTOP E796965 ELO-STAND-SELF-SERVICE-15-22-FLOOR-TOP © Copyright 2021 Elo Touch Solutions, Inc.
- Page 2 ASSEMBLY INSTRUCTIONS, E798125 EMV-SELF-SERV-15-22-VF-MX915-ING-ISC250 Contents for Kit: Screws SCREW, M3X8, PAN-HEAD, EMV Arm Assembly EMV Edge Bracket, 22 Windows Qty.2 CROSS-RECESS Qty. 1 (bag label “22 W”) Qty. 1 SCREW, M4X6, FLAT-HEAD, Qty. 4 CROSS-RECESS SCREW, M4X5, PAN-HEAD, Qty.8 CROSS-RECESS SCREW_M4X10_SPECIAL Qty.

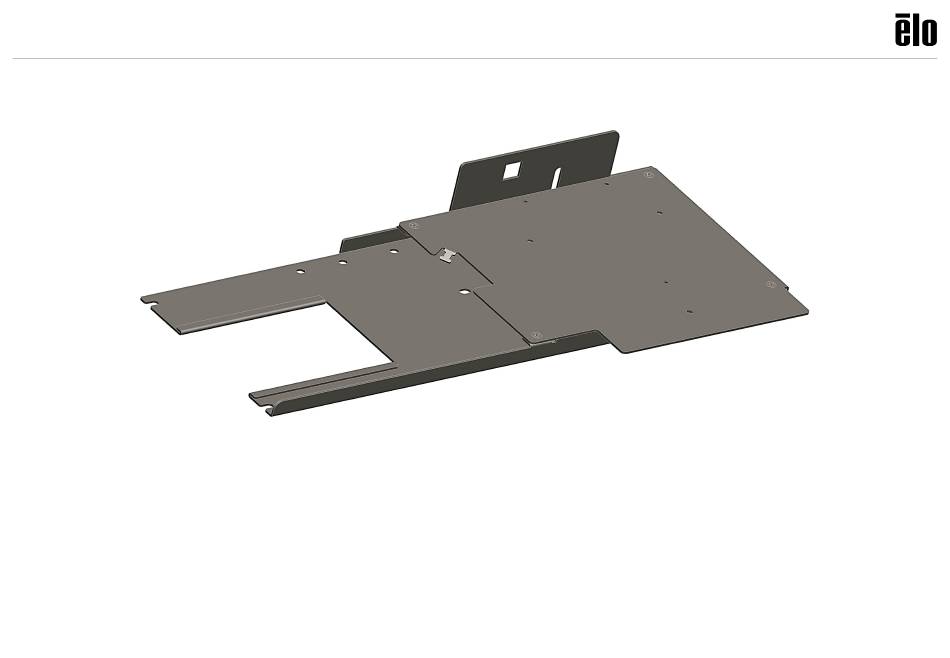

- Page 3 Add the EMV Mount Plate to the Remove Fill Plate on Display Bracket. Display Bracket using (4) screws from bag “R”. © Copyright 2021 Elo Touch Solutions, Inc.
- Page 4 Assemble EMV Arm to Display Bracket. Add Add (2) screws to EMV Mount Plate from bag “P” (2) screws from bag “P” at right most at position 1, 2,3 or 4. Leave ~3mm (1/8”) gap (for position “A” to secure EMV Arm to Display EMV Arm).
- Page 5 Cover Plate Attach EMV Cover Plate and screws. Remove and save EMV Cover Plate and screws. Add (3) screws for mounting EMV terminal: Route EMV terminal - Use bag “G” for Ingenico iSC250 cable and tie-wrap. - Use bag ”H” for Verifone MX915 Attach EMV terminal cable to terminal and slide terminal onto (3) Arm Assembly screws.
- Page 6 Remove plastic cover from right edge of display. Add Edge Bracket using (2) screws from bag “C”. Use Edge Bracket “15 A” for Android 15” Use Edge Bracket “22 A” for Android 22” 2.0/3.0 Use Edge Bracket “22 A4” for Android 22” 4.0 Use Edge Bracket “15 W”...
- Page 7 Learn more about Elo at EloTouch.com. Americas Europe (EMEA) Asia Pacific Tel +1 408 597 8000 Tel +32 16 930 136 Tel +86 (21) 3329 1385 EloSales.NA@elotouch.com EMEA.sales@elotouch.com EloAsia@elotouch.com The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
