SMART OPS PC modules
PCM11
|
PCM8
Guide
PCM11-i5 (PCM11-1)
|
PCM11-i7v (PCM11-2)
|
PCM8-i5 (PCM8-1)
|
PCM8-i7v (PCM8-2)
Was this document helpful?
smarttech.com/docfeedback/171747

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMART PCM11

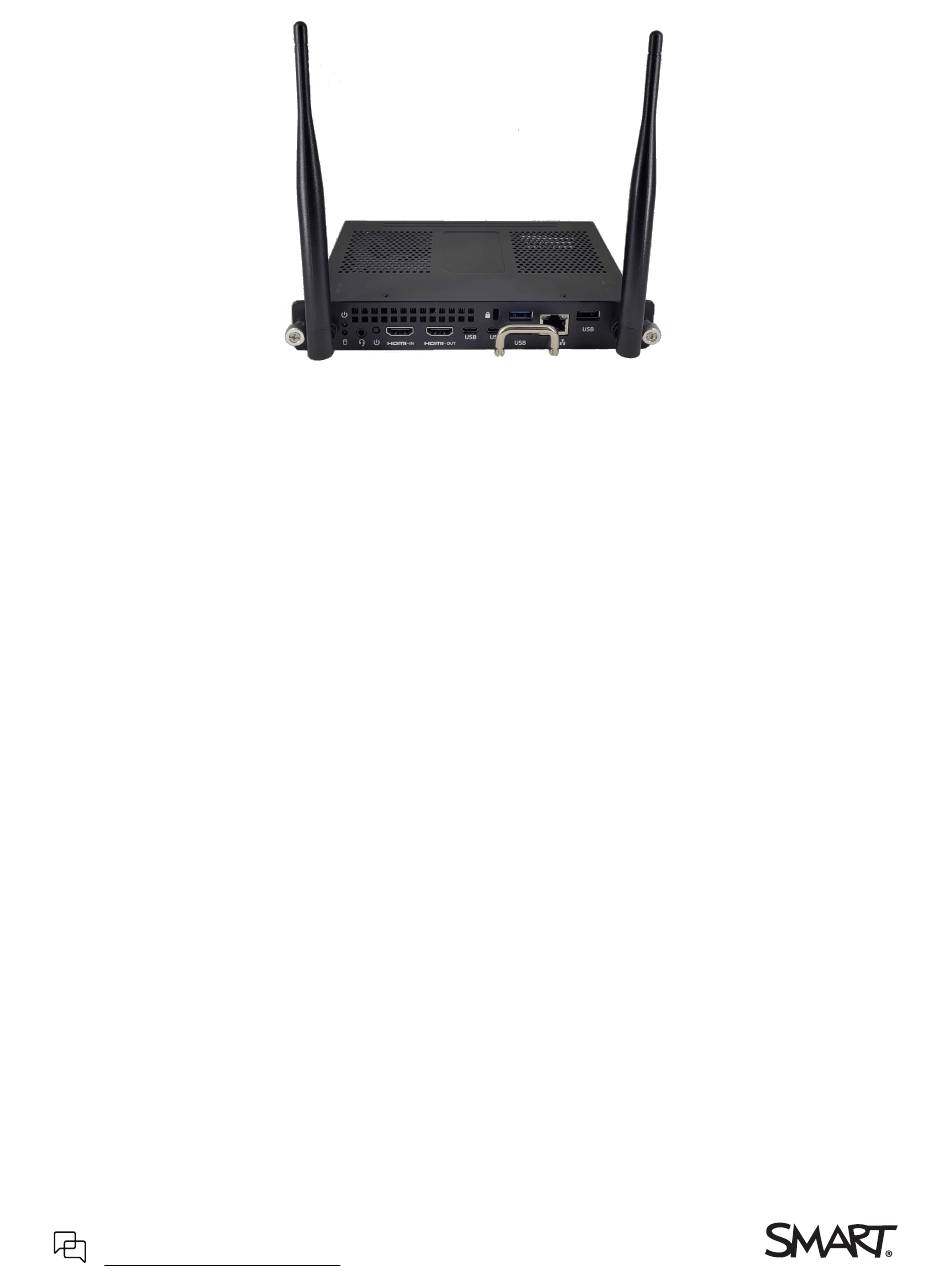

  • Page 1 SMART OPS PC modules PCM11 PCM8 Guide PCM11-i5 (PCM11-1) PCM11-i7v (PCM11-2) PCM8-i5 (PCM8-1) PCM8-i7v (PCM8-2) Was this document helpful? smarttech.com/docfeedback/171747...
  • Page 2: Learn More

    © 2021–2025  SMART  Technologies  ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART  Technologies  ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.
  • Page 3: Table Of Contents

    Viewing the OPS PC module input Connecting USB drives, peripherals, and other  devices Connecting external displays Connecting the OPS PC module to a second SMART Board interactive display Chapter 3 Troubleshooting Troubleshooting the SMART OPS PC module Contacting your reseller for additional support...
  • Page 4: Chapter 1 Welcome

    Windows Hardware Quality Labs (WHQL) certified and fully licensed with Windows 11 Pro out of the box. Install the OPS PC module in a SMART Board interactive display’s OPS slot to provide a complete 4K UHD Windows 11 installation at your fingertips, without the need for an external device or additional cables.
  • Page 5: Features

    Chapter 1 Welcome Features Key features of SMART OPS PC modules include: Windows Autopilot Easily set up new devices, save time, and deliver a standardized user experience. enabled For added convenience, use the PKID printed on the packaging label. SeeOverview of Windows Autopilot Integrated Wi-Fi Easily and securely connect up to eight devices with the OPS PC module’s mobile...
  • Page 6: Chapter 2 Installing And Using The Smart Ops Pc Module

    Connecting the OPS PC module to a second SMART Board interactive display You or your organization’s installers can install the SMART OPS PC module in a supported SMART Board interactive display’s accessory slot following the OPS PC module’s installation instructions.
  • Page 7: Viewing The Ops Pc Module Input

    Chapter 2 Installing and using the SMART OPS PC module Tip  You can install the SMART software that is included with the display on the OPS PC module. For more information about installing software, see the software’s installation documentation. Viewing the OPS PC module input Seesupport.smarttech.com/docs/opspcinput...
  • Page 8: Connecting External Displays

    Chapter 2 Installing and using the SMART OPS PC module Note  For PCM11 and PCM8 series, the maximum number of devices you can charge at a time depends on the series: Series Maximum number of devices PCM11 PCM8 Connecting external displays You can connect an external display to the HDMI out connector on the OPS PC module (rather than the HDMI out connector on the display).
  • Page 9: Connecting The Ops Pc Module To A Second Smart Board Interactive Display

    Connecting the OPS PC module to a second SMART Board interactive display You can connect an OPS PC module installed in one SMART Board interactive display to a second interactive display by connecting an HDMI cable from the module’s HDMI out connector to one of the second display’s HDMI in connectors.
  • Page 10 Chapter 2 Installing and using the SMART OPS PC module PCM8 series PCM11 series docs.smarttech.com/kb/171747...
  • Page 11 Chapter 2 Installing and using the SMART OPS PC module Alternatively, if the second interactive display has a USB Type-C input, you can connect a USB cable from one of the module’s USB Type-C receptacles to one of the second display’s USB Type-C receptacles.
  • Page 12: Chapter 3 Troubleshooting

    Your reseller might ask you for the serial number of the OPS PC module. Finding the PCM11 series serial number   The serial number for the PCM11 series is located on the top side of the module (the side with the vent holes). docs.smarttech.com/kb/171747...
  • Page 13 Note  You will need to remove the OPS  PC module from the display to find the serial number on the label. See SMART OPS PC modules (PCM11 series) illustrated installation instructions (docs.smarttech.com/kb/171775) Finding the PCM8 series serial number   The serial number for the PCM8 series is located on the top side of the module (the side with the vent holes).
  • Page 14: Appendix A Connectors

    Appendix A Connectors PCM11 series PCM8 series PCM11 series The following diagram and table present the connectors on the PCM11 series of SMART OPS PC modules: Connector Connects to Notes 1  Stereo 3.5 mm Headphones or headsets 2  HDMI in External video source 3 ...
  • Page 15: Pcm8 Series

    Connecting USB drives, peripherals, and other peripherals, and other  devices on devices page  7 PCM8 series The following diagram and table present the connectors on the PCM8 series of SMART OPS PC modules: Connector Connects to Notes Connecting USB drives, 1 ...
  • Page 16 Appendix A Connectors Connector Connects to Notes 4  RJ45 The OPS PC module uses the SMART Board interactive display’s network connection (if available), so you typically don’t need to connect the OPS PC module directly to a network. 5  HDMI out External display See...
  • Page 17: Certification And Compliance

    Hereby, SMART Technologies ULC declares that the radio of this equipment in a residential area is likely to cause equipment type OPS PCM8 and PCM11 are in compliance with harmful interference, in which case users will be required to Directive 2014/53/EU and UK Radio Equipment Regulations correct the interference at their own expense.
  • Page 18: Innovation, Science And Economic Development Canada Statement

    Certification and compliance Innovation, Science et Développement Transmitting Band (MHz) Maximum Transmit Power (conducted dBm) économique Déclaration du Canada 5150–5350 Cet appareil est conforme à la norme ISED CNR-247 pour les appareils radio agréés.Son fonctionnement est soumis aux 5470–5725 deux conditions suivantes: 5475–5875  ...
  • Page 19: Hardware Environmental Compliance

    Equipment Name: Intel Wi-Fi 6 AX201 Model: AX201NGW Hardware environmental compliance SMART  Technologies supports global efforts to ensure that electronic equipment is manufactured, sold, and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment (WEEE)
