Summary of Contents for SMART PCM13

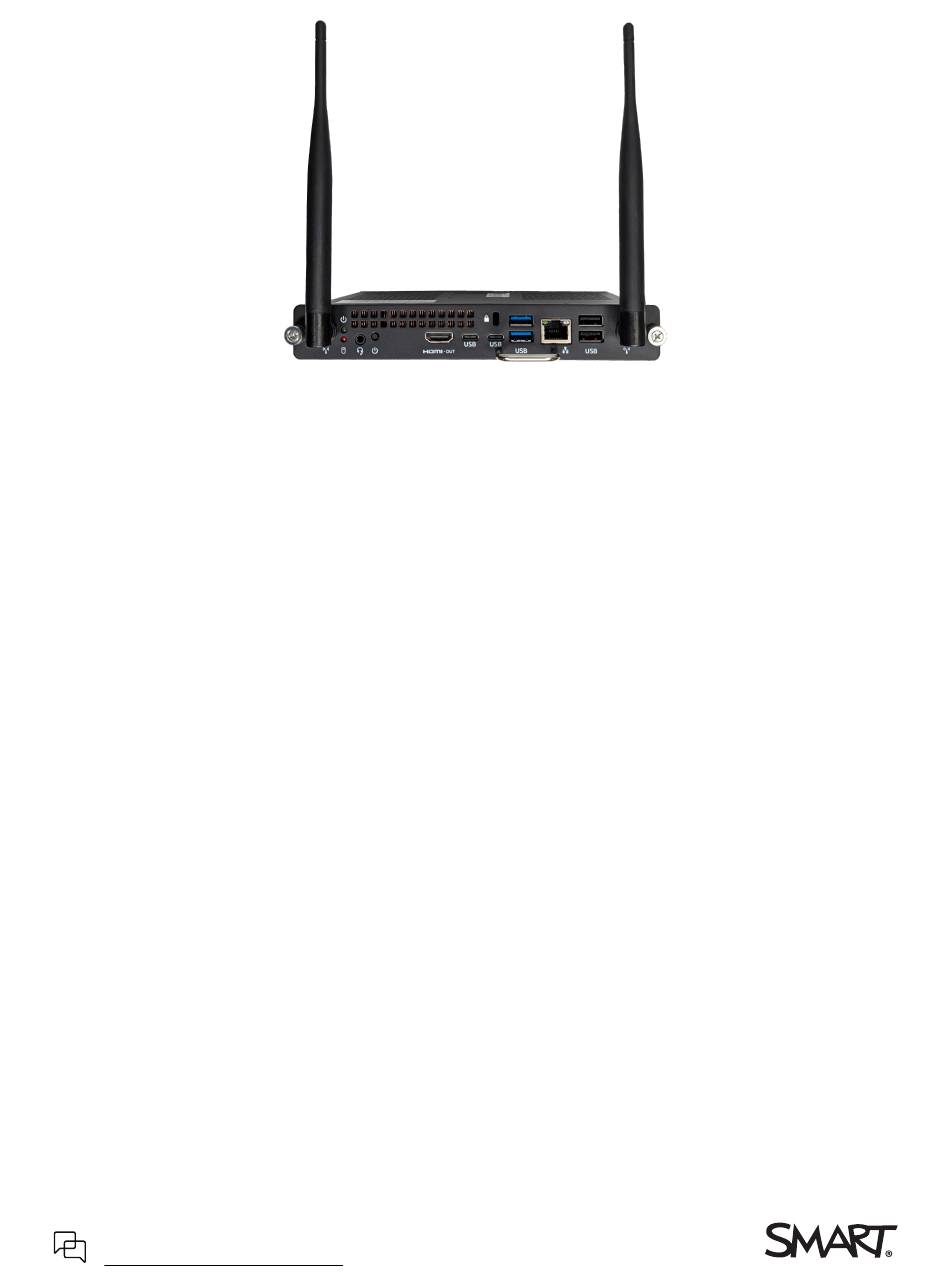

- Page 1 SMART OPS PC modules PCM13 Guide PCM13-i5 (PCM13-1, PCM13-3) Was this document helpful? smarttech.com/docfeedback/171998...
-
Page 2: Learn More
© 2021–2025 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART. -
Page 3: Table Of Contents
Viewing the OPS PC module input Connecting USB drives, peripherals, and other devices Connecting external displays Connecting the OPS PC module to a second SMART Board interactive display Chapter 3 Troubleshooting Troubleshooting the SMART OPS PC module Contacting your reseller for additional support... -
Page 4: Chapter 1 Welcome
Windows Hardware Quality Labs (WHQL) certified and fully licensed with Windows 11 Pro out of the box. Install the OPS PC module in a SMART Board interactive display’s OPS slot to provide a complete 4K UHD Windows 11 installation at your fingertips, without the need for an external device or additional cables. -
Page 5: Features
Chapter 1 Welcome Features Key features of SMART OPS PC modules include: Windows Autopilot Easily set up new devices, save time, and deliver a standardized user experience. enabled For added convenience, use the PKID printed on the packaging label. SeeOverview of Windows Autopilot Integrated Wi-Fi Easily and securely connect up to eight devices with the OPS PC module’s mobile... -
Page 6: Chapter 2 Installing And Using The Smart Ops Pc Module
Connecting the OPS PC module to a second SMART Board interactive display You or your organization’s installers can install the SMART OPS PC module in a supported SMART Board interactive display’s accessory slot following the OPS PC module’s installation instructions. -
Page 7: Viewing The Ops Pc Module Input
Chapter 2 Installing and using the SMART OPS PC module Tip You can install the SMART software that is included with the display on the OPS PC module. For more information about installing software, see the software’s installation documentation. Viewing the OPS PC module input Seesupport.smarttech.com/docs/opspcinput... -
Page 8: Connecting External Displays
Chapter 2 Installing and using the SMART OPS PC module Connecting external displays You can connect an external display to the HDMI out connector on the OPS PC module (rather than the HDMI out connector on the display). This allows you to duplicate or extend the OPS PC module’s desktop to the external display. -
Page 9: Connecting The Ops Pc Module To A Second Smart Board Interactive Display
Connecting the OPS PC module to a second SMART Board interactive display You can connect an OPS PC module installed in one SMART Board interactive display to a second interactive display by connecting an HDMI cable from the module’s HDMI out connector to one of the second display’s HDMI in connectors. - Page 10 Chapter 2 Installing and using the SMART OPS PC module Alternatively, if the second interactive display has a USB Type-C input, you can connect a USB cable from one of the module’s USB Type-C receptacles to one of the second display’s USB Type-C receptacles.
-
Page 11: Chapter 3 Troubleshooting
SMART website, contact your authorized SMART reseller (smarttech.com/where) for support. Your reseller might ask you for the serial number of the OPS PC module. The serial number for the PCM13 series is located on the top side of the module (the side with the vent holes). docs.smarttech.com/kb/171998... - Page 12 The serial number is found on the label, after SN . Note You will need to remove the OPS PC module from the display to find the serial number on the label. See SMART OPS PC modules (PCM13 series) illustrated installation instructions (docs.smarttech.com/kb/171990) docs.smarttech.com/kb/171998...
-
Page 13: Appendix A Connectors
Appendix A Connectors The following diagram and table present the connectors on the PCM13 series of SMART OPS PC modules: Connector Connects to Notes 1 Stereo 3.5 mm Headphones or headsets 2 HDMI out External display See Connecting external displays on page ... -
Page 14: Certification And Compliance
Hereby, SMART Technologies ULC declares that the radio the user’s authority to operate this equipment. equipment type OPS PCM13-1 and PCM13-3 are in compliance with Directive 2014/53/EU and UK Radio Equipment Regulations 2017. The full text of the EU and UK declaration of conformity is available at the following internet address: www.smarttech.com/compliance... -
Page 15: Innovation, Science And Economic Development Canada Statement
Certification and compliance Warning (iv) Users should also be advised that high-power radars are allocated as primary users (i.e., priority users) of the Operation of this equipment in a residential environment bands 5250-5350 MHz and 5650-5850 MHz and that these could cause radio interference. -
Page 16: Hardware Environmental Compliance
émetteur. Hardware environmental compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold, and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment (WEEE) - Page 17 SMART Technologies smarttech.com/support smarttech.com/contactsupport docs.smarttech.com/kb/171998...
