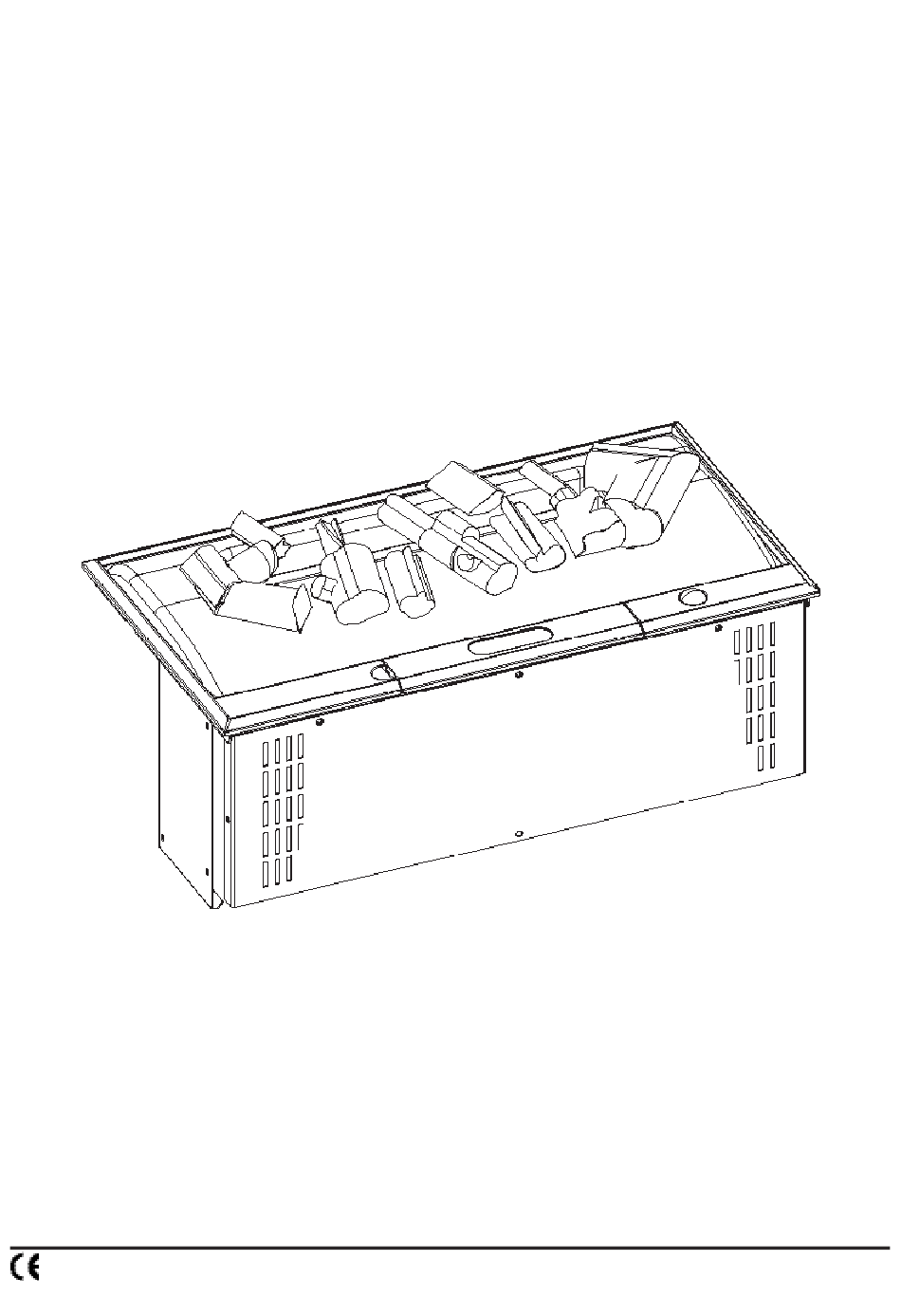

  • Page 1 CAS600H E This product is only suitable for well insulated rooms or occasional use. The product complies with the European Safety Standards and the European Standard Electromagnetic Compatibility (EMC) These cover the essential requirements of EEC Directives 08/54273/0 ISSUE 1 OCN -----...
  • Page 2 Introduction Please read this information guide carefully to be able to safely install, use and maintain your product. Important Safety Advice CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR GUARANTEE Important Safety Advice When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: If the appliance is damaged, check with the supplier before installation and operation.

  • Page 3: General Information

    Caution: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. Warning: In order to avoid overheating, do not cover the appliance. Do not place material or garments on the appliance, or obstruct the air circulation around the appliance, for instance by curtains or furniture, as this could cause overheating and a fire risk.

  • Page 4: Operating The Product

    Connecting the Transducer Unit + Lamps 1. Release the two red tabs by turning them by 90 degrees (Fig 2) 2. Lift out the Sump Nozzle (Fig 3) 3. Insert lamps into lamp holders (Fig 4), carefully locating the pins into the holes (Fig 4a) 4.
  • Page 5 Press ‘Button 6’ to complete the pairing process. The product will go into standby mode. Switching on the appliance Press and hold the ENTER button for 3 seconds to activate the remote control. FIRE will be displayed and ON will be blinking.
  • Page 6 Modes of Remote Operation User Timer: Provides greatest flexibility to the user. Four times slots are available throughout the day and these can be customised for each day of the week. See “How to adjust the timer modes” for instructions on adjusting these from the factory default time periods &...
  • Page 7 Manual Mode - To choose a constant heat mode. This mode ignores the User Timer and maintains the displayed temperature. • Press Menu Button • Press ^ twice to highlight the Hand icon • Press Enter to Confirm • Use v and ^ to adjust to the desired temperature Frost protect - Frost protect mode maintains a room temperature of 7°C throughout a 24 hour period.

  • Page 8: Remote Control

    Adaptive Start The built-in electronics in this appliance hava a learning function with regards to how long it takes to heat up a room. Having learnt how quickly it can heat up your room, the appliance is able to turn on at just the right time in order to get the room up to a comfortable temperature when you want it.

  • Page 9: Additional Information

    1. Leaving the flame effect on, lift out the fuelbed and water tank. 2. It should be possible to view the lamps with the nozzle in place and observe which one needs to be changed. 3. Put Switch ‘A’ in the ‘OFF’ position, and unplug the fire from the mains. 4.

  • Page 10: Troubleshooting

    PATENT / PATENT APPLICATION Products within the Optimyst range are protected by one or more of the following patents and patent applications: Great Britain GB 2402206, GB 2460259, GB 2460453, GB 2418014, GB 2465738, GB 2449925, GB 2465537, GB 2455277, GB1020534.2, GB1020537.5, GB1110987.3 United States US 7967690, US 2010299980, US 2011062250, US 2008028648, US 13/167,042 Russia RU2008140317 European EP 2029941, EP 2201301, EP 2315976, EP 1787063, EP07723217.1, EP11170434.2, EP 11170435.9...
  • Page 11 Fig. 1 MODEL ‘H’ ‘W’ ‘X’ ‘Y’ 700mm 490mm 413mm 395mm ENG56-400 823mm 490mm 413mm 517mm ENG68- 700mm 646mm 569mm 395mm ENG56- Fig. 2 Fig. 3 Fig. 4a Fig. 4...
  • Page 12 Fig. 5 Fig. 5a Fig. 5b Fig. 6 Fig. 7 Fig. 8...
  • Page 13 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14...
  • Page 14 Fig. 15 Fig. 16 Fig. 17...
  • Page 15 Fig. 18 Fig. 19 >100cm ENG56-400 A=440mm B=386mm ENG68-400 A=440mm B=509mm ENG56-600 A=566mm B=386mm Fig. 20 Fig. 21...
  • Page 16 Fig. 22 >100cm >100cm >100cm Fig. 22 Fig. 23...
