Aegis AVP-DE User Manual

1080p hdmi over ip encoder/decoder
Hide thumbs

Advertisement

Table of Contents

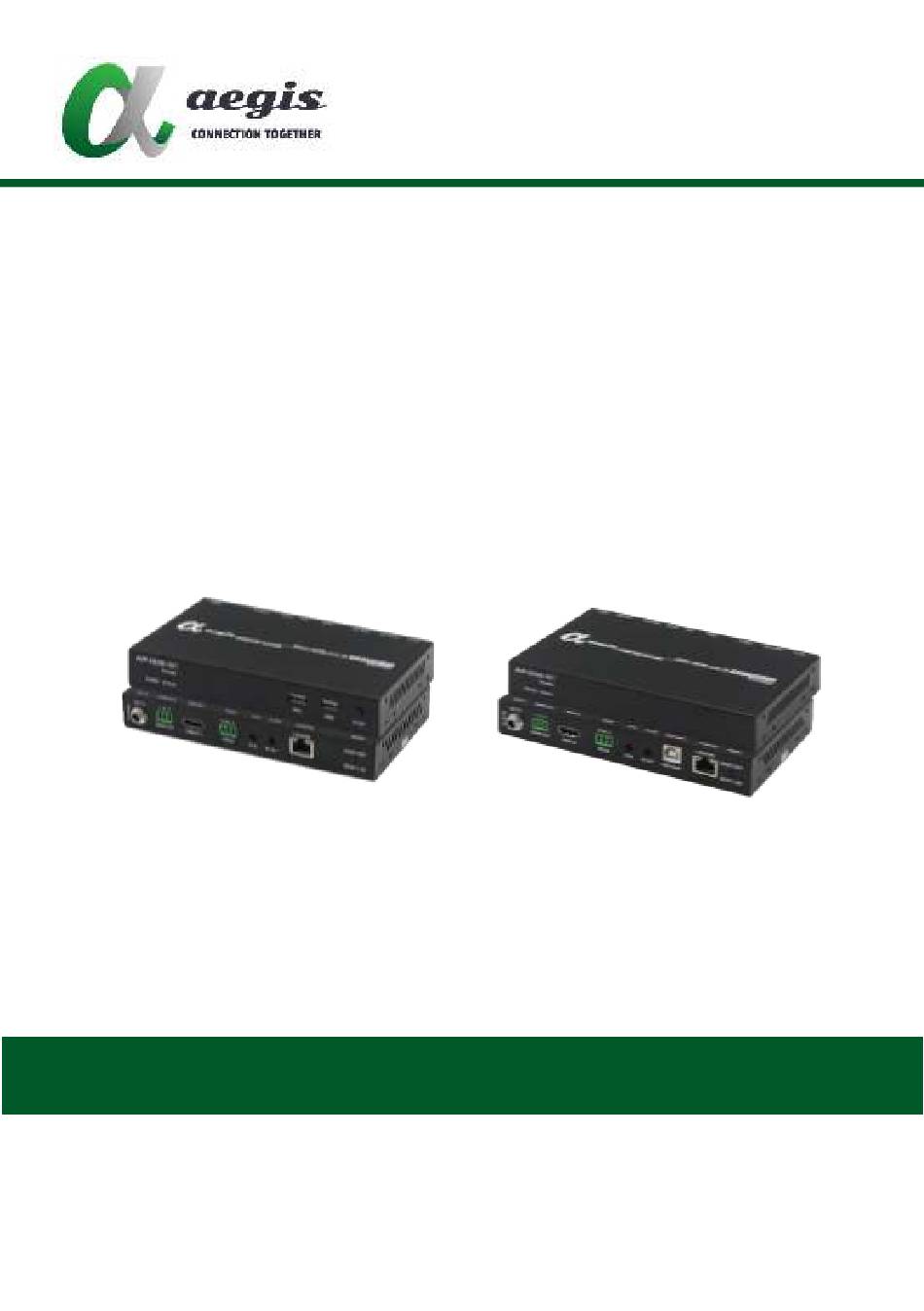

AVP-DE/EN2K-101
1080P HDMI over IP Encoder/Decoder
User Manual
Version: 20250220

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVP-DE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aegis AVP-DE

Summary of Contents for Aegis AVP-DE

  • Page 1 AVP-DE/EN2K-101 1080P HDMI over IP Encoder/Decoder User Manual Version: 20250220...
  • Page 2 Introduction aegis 1080P over IP includesH.264 IP Encoder (AVP-EN2K-101) and Decoder (AVP-DE2K-101) can work together to provide complete end-to-end streaming systems. Video, audio, IR, USB and RS232 signals can be routed together or separately throughout the matrix system. They can also function video wall up to the dimensions of 16 x 16 with input and output HDMI resolutions supported up to 1920 x 1080@60Hz.
  • Page 3 Features  Stream HDMI/RS232/IR/USB/ HID signal over IP networks.  Encoder supports resolutions up to 1920 x 1080@60Hz.  Decoder offers auto scaler with output resolutions supported from 480p@60Hz to 1920 x 1080@60Hz scaling based on the EDID of display. ...
  • Page 4  Can work at multicast mode or unicast*mode (configuration on network switch is not required in unicast mode).  Support EDID import to encoder and EDID export from display to decoder.  Support CEC one-touch-play and standby commands to power on and off the display. ...

  • Page 5: Package Contents

    PACKAGE CONTENTS Encoder 1 x AVP-EN2K-101Encoder 1 x Power Adapter (12 VDC 1A) 1 x Exchangeable US Plug 2 x Phoenix Male Connectors (3.5 mm, 3Pins) 2 x Mounting Ears (with Screws) 1 x IR Emitter Cable (1.2m) Decoder 1 x AVP-DE2K-101Decoder 1 x Power Adapter (12 VDC 1A) 1 x Exchangeable US Plug 2 x Phoenix Male Connectors (3.5 mm, 3Pins)

  • Page 6: Device Function

    DEVICE FUNCTION Encoder Front Panel Name Description Power LED On: The device is powered on. Off: The device is powered off. Status LED On: The device detects valid signal input. Blinking: The device detects no signal input. Off: The device is powered off or in the boot process.

  • Page 7: Rear Panel

    Rear Panel Name Description DC 12V Connect to the power adapter provided. Audio Out Connect to an audio decoder such as an amplifier for audio de- embedding output from HDMI source. HDMI In Connect to an HDMI source device. RS232 Connect this port to a RS232 device such as a computer to bi- directionally communicate with a RS232 device at the IP control box or decoder side.
  • Page 8 Decoder Front Panel Name Description Power LED On: The device is powered on. Off: The device is powered off. Status LED On: The devices receiving IP stream. Blinking: The device doesn’t receive IP stream. Off: The device is powered off or in the boot process.
  • Page 9 Rear Panel Name Description DC 12V Connect to the power adapter provided. Audio Out Connect to an audio decoder such as an amplifier for audio de-embedding output from HDMI source. HDMI Out Connect to an HDMI displaydevice. RS232 Connect this port to a computer or other RS232 device to enable bidirectional communication with the RS232 equipment of an IP control box or decoder.

  • Page 10: Specifications

    default. Specifications Encoder Video Input Video Port 1 x HDMI Input Video Type HDMI 1.3, HDCP 1.4 Input Resolution 640 x 480@60Hz, 480p@60Hz,576i@50Hz, 576p@50Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz, 1366 x 768@60Hz, 1400 x 1050@60Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 540@60Hz, 1080i@50Hz, 1080i@60Hz,...
  • Page 11 End-to-End Time When works with the AVP-DE2K-101 decoder: Latency About 80 ms (Low latency mode, from TX to RX) About 250 ms (High quality mode, from TX to RX) Video Video Impendence 100 Ω Input DDC Signal 5 V p-p (TTL) Audio Input Audio Port 1 x HDMI...
  • Page 12 Decoder Video Input Video Port 1 x LAN Input Video Type H.264 Input Resolution From 480p@60Hz to 1920x1080@60Hz Output Video Port 1 x HDMI Output Video Type HDMI 1.3, HDCP 1.4 Output Resolution 480p@60Hz, 576P@50Hz, 800 x 600@60Hz, 1024x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz, 1366 x 768@60Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 540@60Hz,...
  • Page 13 Control Control Method Front panel button, IP Control Box (AVP-CBS2K- 101), Windows Software (HDMI over IP Console), iPad software AGS-i Touch - 12 -...

  • Page 14: Installation

    Installation Note: Before installation, please ensure the device is disconnected from the power source. Steps to install the device in a suitable location: 1. Attach the mounting bracket to the enclosure using the screws provided in the package separately. The bracket is attached to the enclosure as shown. 2.

  • Page 15: Device Control

    Device Control The encoder and decoder allow you to use PC configurator (HDMI over IP Console), AGS-i Touch and IP control box for controlling them. This section briefly introduces how to route the video from source to the display using these tools.

This manual is also suitable for:

En2k-101
