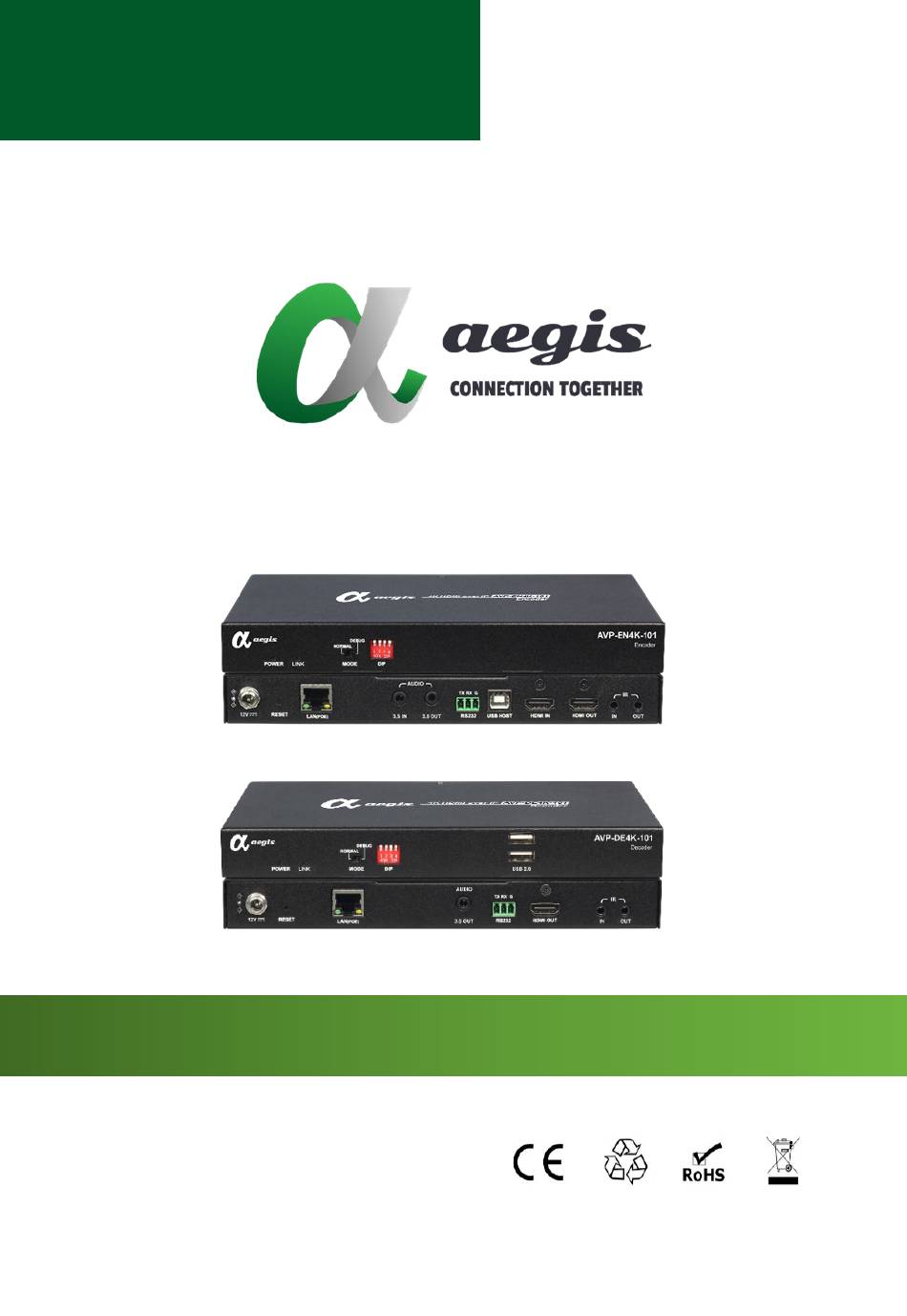

- Page 1 User Manual AVP-EN4K-101 AVP-DE4K-101 AVP-4K30 Series 4K UHD Video over IP Encoders and Decoders User Manaual Version: V1.0.4...
- Page 2 Important Safety Instructions 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 7. Unplug this apparatus 2.
- Page 3 Warnings of FCC This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
AVP-EN4K-101 ................- 8 - AVP-DE4K-101 ................- 11 - Panel Description ................- 13 - AVP-EN4K-101 ................- 13 - AVP-DE4K-101 ................- 18 - Warranty Terms and Conditions....- 23 - - 2 - All rights reserved by aegis Multimedia Inc. -
Page 5: Introduction
IR, and independent analog audio input/output are included. The codecs allow USB extensions to take place to control a keyboard and a mouse. AVP-4K30 series offer integration- friendly control features——the front panel link DIP switch, Windows PC... -
Page 6: Features
RS232 devices between encoders/decoders and IP controller, or between encoders and decoders. Supports bi-directional IR pass-through, allowing control of remote source and display devices between encoders and decoders. - 4 - All rights reserved by aegis Multimedia Inc. - Page 7 Windows PC configurator, AGS-i TOUCH on iPad, and IP controller for device control, device management, and device upgrade. Supports communications protocols used on the Ethernet such as TCP/IP, ARP, DHCP, ICMP (ping), IGMP, and UDP. - 5 - All rights reserved by aegis Multimedia Inc.
-
Page 8: Package Contents
1 x Phoenix Port (Male, 3.5 mm, 3 pins) 1 x IR Emitter (3.9ft/1.2m) 1 x Broadband IR Receiver (3.9 ft/1.2m, 30 kHz ~ 50 kHz) 2 x Mounting Ears - 6 - All rights reserved by aegis Multimedia Inc. -
Page 9: Specifications
3840 x 2160@50Hz and 60Hz. Chroma Sampling 4:4:4: or 4:2:0 Color Bit Depth 8 bits per color Signal Type HDMI Max. HDMI Video Data Rate 8.91 Gbps (2.97 Gbps per channel) - 7 - All rights reserved by aegis Multimedia Inc. -
Page 10: Avp-En4K-101
Rate 1080p@60Hz: about 150 Mbps End-to-End Time Latency 1 ~ 2 fps Input Video Signal 0.5~1.2 V p-p Input DDC Signal 5 V p-p (TTL) Video Impendence 100 Ω - 8 - All rights reserved by aegis Multimedia Inc. - Page 11 (L), ring (R), sleeve (ground) Signal Format Analog Impedance >10k ohms, AC coupled Nominal Level -4.2 dBV (617 mVrms) Output Audio Digital audio output: HDMI loop-through: (local output) Output Audio Port - 9 - All rights reserved by aegis Multimedia Inc.
- Page 12 (12.2'' x 3.0'' x 7.1'') Unit Dimensions 220 mm x 25 mm x 130.2 mm (W x H x D) (8.7'' x 1.0'' x 5.1'') Unit Weight 0.74 Kg (1.63 lbs.) (without accessories) - 10 - All rights reserved by aegis Multimedia Inc.
-
Page 13: Avp-De4K-101
LPCM 2.0/2.1/5.1/ 7.1; Signal Format Dolby 5.1/7.1/Atmos; DTS 5.1/7.1/DTS:X Output Audio Digital audio output: Output Audio Port 1 x female HDMI type A (19 pins) LPCM 2.0/2.1/5.1/ 7.1; Signal Format Dolby 5.1/7.1/Atmos; - 11 - All rights reserved by aegis Multimedia Inc. - Page 14 (12.2'' x 3.0'' x 7.1'') Unit Dimensions 220 mm x 25 mm x 130.2 mm (W x H x D) (8.7'' x 1.0'' x 5.1'') Unit Weight 0.74 Kg (1.63 lbs.) (without accessories) - 12 - All rights reserved by aegis Multimedia Inc.
-
Page 15: Panel Description
Mode (Default) directional serial communication with Switch a RS232 device on the IP controller side. In this mode, you can connect the DEBUG rear panel RS232 port to a RS232 - 13 - All rights reserved by aegis Multimedia Inc. - Page 16 Reset Button will reboot and restore to its factory defaults. (Recessed) Note: When the settings are restored, your custom data is lost. Therefore, exercise caution when using the RESET button. - 14 - All rights reserved by aegis Multimedia Inc.
- Page 17 AUDIO IN: connect this 3.5 mm stereo tip-ring- sleeve port to an audio input device such as a Audio Input computer to accept unbalanced, stereo audio signals. - 15 - All rights reserved by aegis Multimedia Inc.
- Page 18 "DEBUG" position, connect this port to a RS232 device such as a computer for debugging AVP-EN4K-101. USB Port for PC USB HOST: connect a type A male to a type B - 16 - All rights reserved by aegis Multimedia Inc.
- Page 19 IR OUT: connect this 3.5 mm tip-sleeve port to an IR emitter for IR communication with an IR receiver in the AVP-DE4K-101 side of the network. IR Emitter: IR Output Tip - VCC 3.3V Sleeve - IR Signal - 17 - All rights reserved by aegis Multimedia Inc.
-
Page 20: Avp-De4K-101
(Default) directional serial communication with Mode a RS232 device on the IP controller Switch side. In this mode, you can connect the DEBUG rear panel RS232 port to a RS232 - 18 - All rights reserved by aegis Multimedia Inc. - Page 21 This device supports most standard keyboard Peripheral keys and mouses, including standard 84/101/104 keyboard keys and most multimedia or system control keys. Wired keyboards and mouses are recommended for optimal performance. - 19 - All rights reserved by aegis Multimedia Inc.
- Page 22 LAN (POE): 10/100/1000 Base-T port, connect this port to a gigabit Ethernet switch for IP stream input, device control, and device management. IP Stream Input Default protocol: IP address: 169.254.x.x - 20 - All rights reserved by aegis Multimedia Inc.
- Page 23 AVP-EN4K-101 side of the network. IR OUT: connect this 3.5 mm tip-sleeve port to an IR Output IR emitter for IR communication with an IR receiver in the AVP-EN4K-101 side of the - 21 - All rights reserved by aegis Multimedia Inc.
- Page 24 Name Description network. - 22 - All rights reserved by aegis Multimedia Inc.
-
Page 25: Warranty Terms And Conditions
Actions Distribution Limited reserves the right to interpretation of these cases above and to make changes to them at any time without notice. - 23 - All rights reserved by aegis Multimedia Inc.
