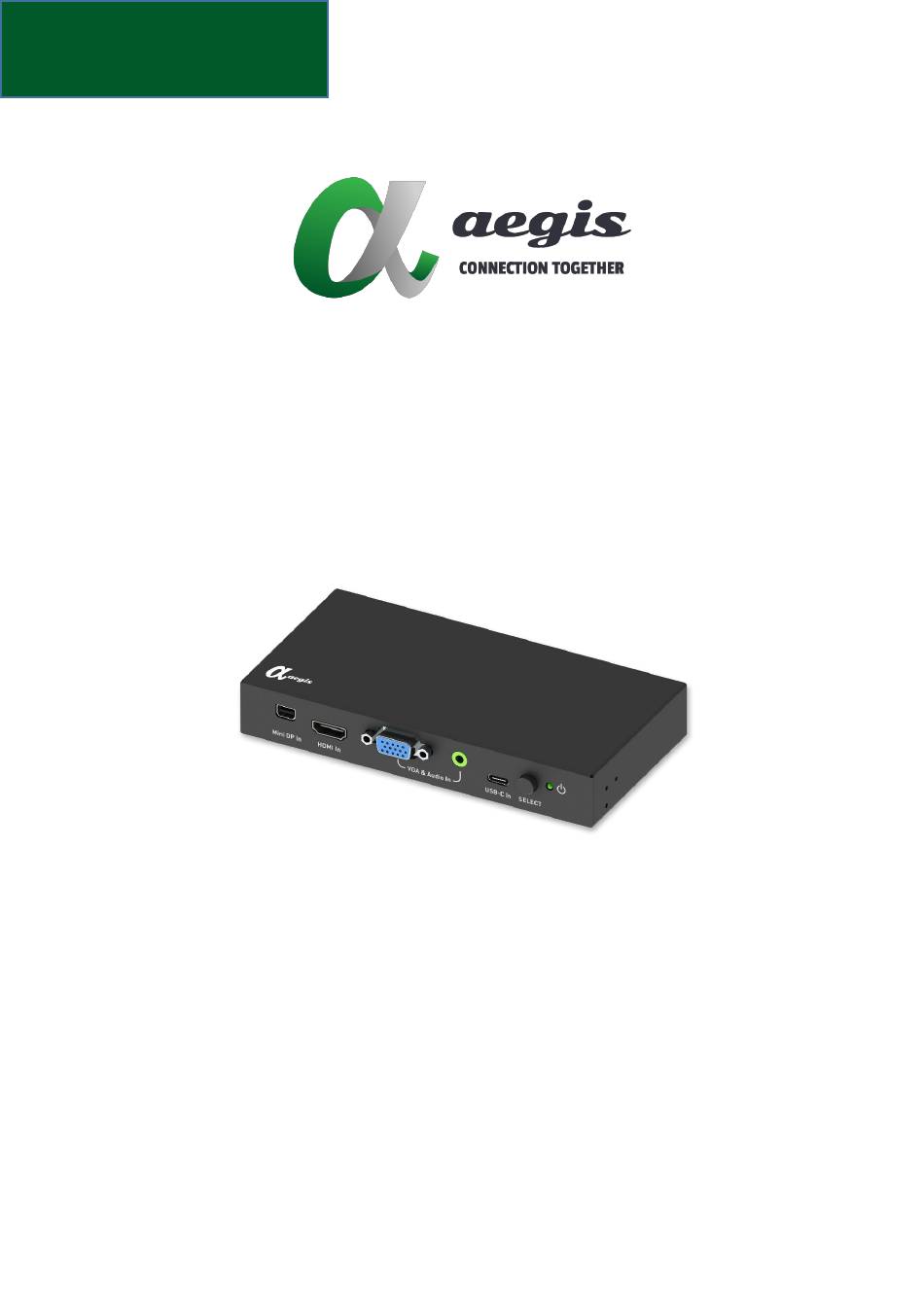

- Page 1 User Manual TAP-AV-1004 4K MULTI INPUT CONVERTER All Rights Reserved Version: TAP-AV-1004_2021V.1.1.0...
-
Page 2: General Safety Instructions
Lightning: For protection from lightning or when the product is left unattended for a long period, disconnect it from the power source. ESD: Handle the product with proper ESD care. Failure to do so can result in failure. Trademarks All trademarks in this document are the properties of aegis Multimedia Inc. -
Page 3: Table Of Contents
TAP-AV-1004 Table of Content GENERAL SAFETY INSTRUCTIONS ........................2 INTRODUCTION ............................4 FEATURES..............................4 PACKAGE CONTENTS ..........................4 SYSTEM REQUIREMENTS ........................... 4 CONNECTION DIAGRAM ..........................5 DEVICE FUNCTION ............................6 CONNECTION AND OPERATION ........................7 TECHNICAL SPECIFICATION ........................... 8 Resolution Specifications .......................... 9 Cable Specifications .......................... -
Page 4: Introduction
TAP-AV-1004 INTRODUCTION aegis’ TAP-AV-1004 is a 4 inputs to HDMI Converter Box allows 4 different sources, Analog video & audio, VGA+3.5mm audio, mini Displayport & HDMI signal & USB-C in input and convert to HDMI signal output. This model has source auto detect function, so the user can switch the input source without press the button. -
Page 5: Connection Diagram
TAP-AV-1004 CONNECTION DIAGRAM... -
Page 6: Device Function
HDMI signal and show video on the HDMI Display. It displays the last source plug in. TAP-AV-1004 also design a select button to switch 4 different AV input sources .You just press select button to switch one of... -
Page 7: Connection And Operation
TAP-AV-1004 CONNECTION AND OPERATION Connect 5V DC power supply to the power port of the converter box. 2. Connect one HDMI Cable between the HDMI input port of converter box and source device. 3. Connect one VGA+3.5mm Cable between the VGA+3.5mm input port of converter box and source device. -
Page 8: Technical Specification
TAP-AV-1004 TECHNICAL SPECIFICATION HDMI Bandwidth 600MHz / 18.0Gbps HDMI Resolution 480P,720P,1080P/24,30,50,60Hz, 4Kx2K/24,30,60Hz. Mini DisplayPort Resolution 800x600, 1024x768, 10280x1024,1600x900, 1600x1200, 1920x1080, 1920x1200, 2560x1440, 3840x2160, 4096x2160 VGA Resolution 1024x768, 1280x1024, 1600x900, 1600x1200, 1920x1080 USB 3.1 C Resolution 1024x768, 10280x1024,1600x900, 1600x1200, 1920x1080, 1920x1200, 2560x1440, 3840x2160,... -
Page 9: Resolution Specifications
TAP-AV-1004 Resolution Specifications Mini DisplayPort Port Resolution Supported Resolutions (Hz) Mini DisplayPortInput 800x600p@60 75 1024x768p@60 75 1152x864p@75 1280x720p@60 1280x768p@60 1280x800p@60 1280x960p@60 1280x1024p@60 75 1360x768p@60 1366x768p@60 1600x900p@60 1600x1200p@50 60 1680x1050p@60 1920x1080p@60 1920x1200p@60 1920x1440p@60 2560x1440p@60 2560x1600p@60 3840x2160p@60... - Page 10 TAP-AV-1004 HDMI Port Resolution Supported Resolutions (Hz) HDMI Input 720x400p@70 85 640x480p@60 72 75 85 720x480i@60 720x480p@60 720x576i@50 720x576p@50 800x600p@56 60 72 75 85 848x480p@60 1024x768p@60 70 75 85 1152x864p@75 1280x720p@50 60 1280x768p@60RB/60 75 85 1280x800p@60RB/60 75 85 1280x960p@60 85...
- Page 11 TAP-AV-1004 VGA Port Resolution Supported Resolutions (Hz) VGA Input 800x600p@60 75 1024x768p@60 75 1280x720p@60 1280x800p@60 1280x960p@60 1280x1024p@60 75 1360x768p@60 1440x900@60 1600x900p@60 1600x1200p@60 1680x1050p@60 1920x1080p@60...
-
Page 12: Cable Specifications
TAP-AV-1004 USB 3.1C Port Resolution Supported Resolutions (Hz) USB 3.1C Input 800x600p@60 75 1024x768p@60 75 1152x864p@75 1280x720p@60 1280x768p@60 1280x800p@60 1280x960p@60 1280x1024p@60 75 1360x768p@60 1366x768p@60 1600x900p@60 1600x1200p@50 60 1680x1050p@60 1920x1080p@60 1920x1200p@60 1920x1440p@60 2560x1440p@60 2560x1600p@60 3840x2160p@60 Cable Specifications 1080p/60Hz 4K/30Hz 4K/60Hz Cable Length-Input... -
Page 13: Acronyms
TAP-AV-1004 ACRONYMS ACRONYM DESCRIPTION Audio/Video EDID Extended Display Identification Data HDMI High Definition Multimedia Interface Cable HDCP High Bandwidth Digital Content Protection Universal Serial Bus Video Graphics Array Mini DisplayPort Liquid-Crystal Display Light-Emitting Diode Ultra High Definition... -
Page 14: Warranty
TAP-AV-1004 WARRANTY Limited 3 Year Warranty aegis Multimedia INC. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. This Limited Warranty covers products purchased in the year 2021 and after.
