Summary of Contents for Aegis TAP-AV-1003

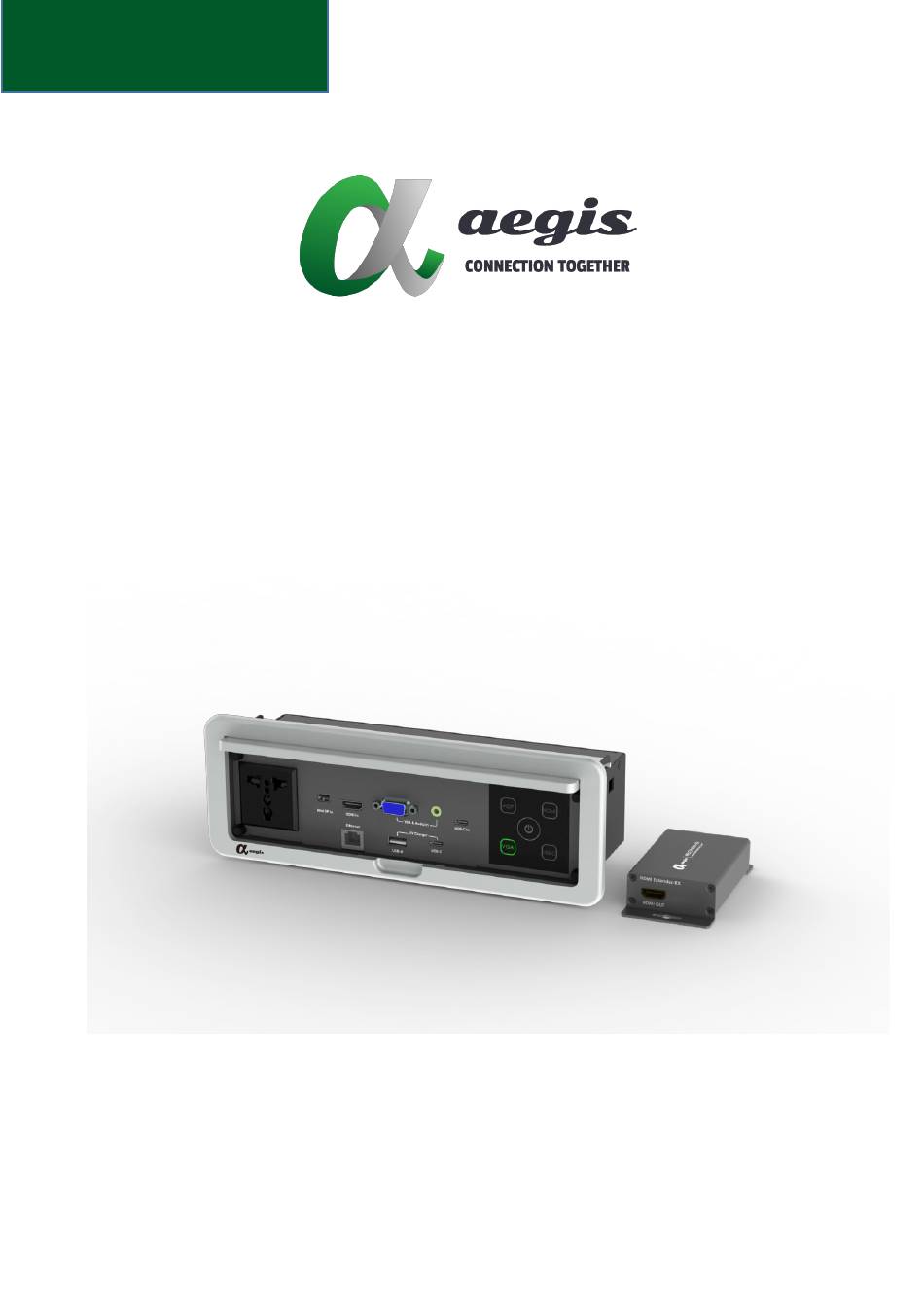

- Page 1 User Manual TAP-AV-1003 4K MULTI INPUT CONVERTER BOX with 60M EXTENDER All Rights Reserved Version :TAP-AV-1003-210107V1.1...
-
Page 2: General Safety Instructions
Power outlet: To prevent electric shock, be sure the electrical plug used on the product power cord matches the electrical outlet used to supply power to the AEGIS product. Use only the power adapter and power connection cables designed for this unit. -
Page 3: Table Of Contents
TAP-AV-1003 Table of Content GENERAL SAFETY INSTRUCTIONS ........................ 1 INTRODUCTION ............................3 FEATURES ............................3 PACKAGE INCLUDES ..........................3 PANEL LAYOUT ............................4 Main Unit ..............................4 PANEL DESCRIPTION ........................... 4 Extender Unit : ............................6 PANEL DESCRIPTION ........................... 6 CONNECTING AND OPERATING ........................ -
Page 4: Introduction
TAP-AV-1003 INTRODUCTION aegis 4 inputs to HDMI Converter Box allows 4 different sources, VGA+3.5mm audio, mini DisplayPort & HDMI signal & USB-C input convert to TX-RJ45 link to RX. This converter box is very convenient for user to have different audio/video devices to connect to TV/Monitor with HDMI port and support distance up to 60M. -
Page 5: Panel Layout
TAP-AV-1003 PANEL LAYOUT Main Unit PANEL DESCRIPTION 1. 110V – 240V Power Socket Universal Power Socket for supplying power to user’s device. 2. Mini DP Input Connect mini DP between user’s source devices. 3. HDMI Input Connect HDMI cable between this port and user’s source device. - Page 6 9. USB-C Charger Connect USB Type-C cable to this port. This port is for charging only.5V2A 10. HDMI Local Out TAP-AV-1003 supports one HDMI local output for monitoring. 11. RJ45 Out for Extension Connect RJ45 to Extender 60M with Cat6 cable.
-
Page 7: Extender Unit
LED Green indicates the power is ON 3. LINK: LED Orange blinks indicate Rx is linked with TAP-AV-1003 LED Orange always on indicates HDMI is sync with input source. 4. RJ45 Input: Connect Cat6 cable between this port and TAP-AV-1003 RJ45 output port. -
Page 8: Connecting And Operating
All Sources can be auto-detect, or you can press the switch button for manually operation. Connect Cat6 cable between TAP-AV-1003 RJ45 out port and the RJ45 port of Receiver to extend the distance up to 60M. 8. Connect one HDMI cable between output port of Receiver and Display device. -
Page 9: Specifications
<3ms Output cable length 4K/AWG 30 ≤2m Transmission distance 4K /Cat-6@60M Power adapter AC 100~240V / DC24V 1.5A Specification Max operation current TAP-AV-1003 ≤0.91mA@24V Operation -5 ~ +40℃ temperature range Operation humidity 5 to 85%RH（No Condensation） range Storage temperature -15 to 55℃... -
Page 10: Resolution
TAP-AV-1003 RESOLUTION HDMI input / TPYE-C input / Mini DP input VGA input 3840 x 2160 1920 x 1080 2560 x 1600 1600 x 1200 2560 x 1440 1600 x 900 1920 x 1200 1280 x 720 1920 x 1080... -
Page 11: Warranty
TAP-AV-1003 WARRANTY Limited 3 Year Warranty aegis Multimedia INC. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. This Limited Warranty covers products purchased in the year 2021 and after.
