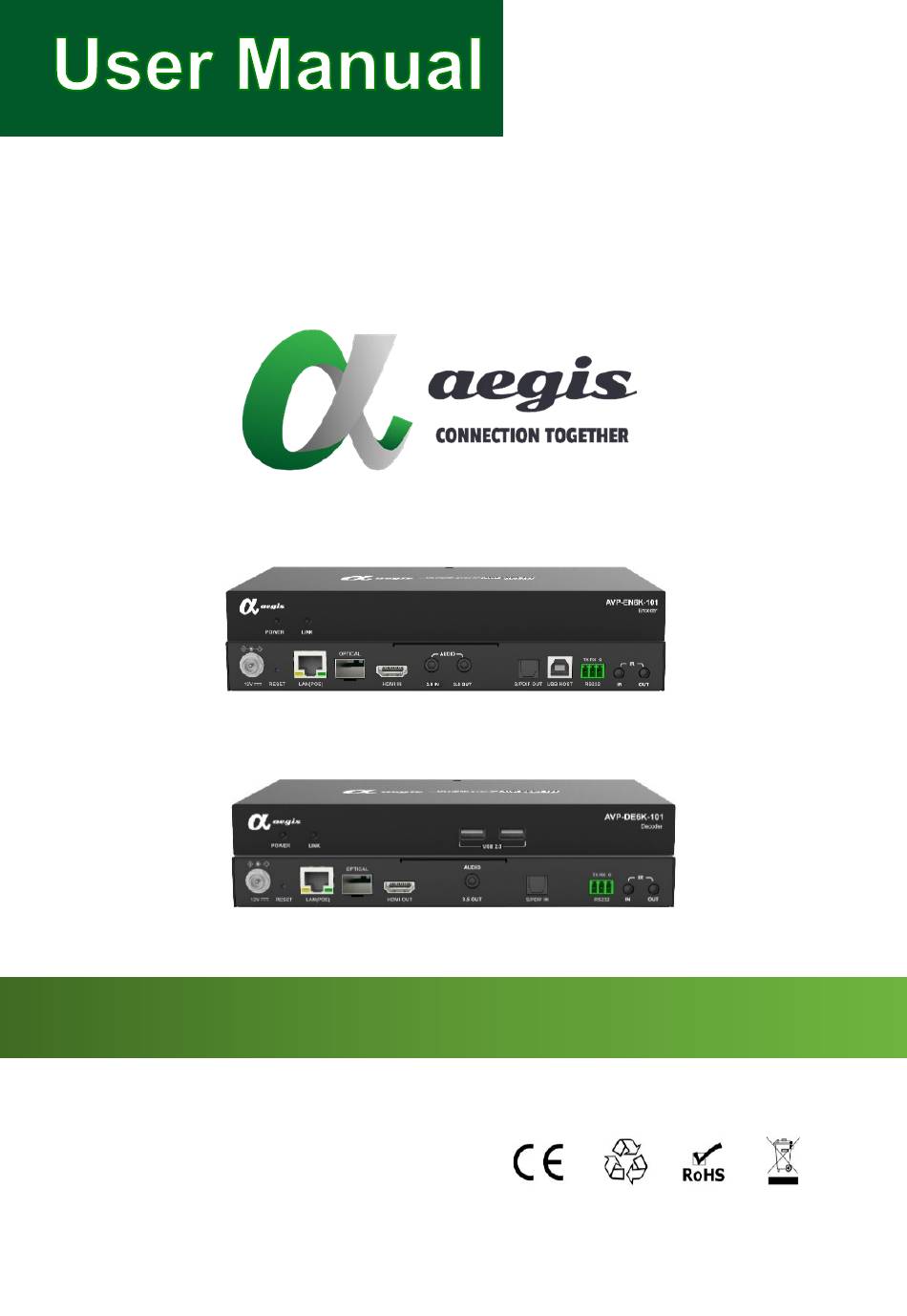

- Page 1 AVP-EN6K-101 AVP-DE6K-101 AVP-4K60 Series 4K UHD Video over IP Encoders and Decoders User Manual Version: V1.0.2...
- Page 2 (including amplifiers) that produce heat. 5. Do not place sources of naked 10. Refer all servicing to flames, such as lighted candles, qualified service on the unit. personnel. - 2 - All rights reserved by aegis Multimedia Inc.
-
Page 3: Table Of Contents
AVP-EN6K-101 (Encoder) ............. - 8 - AVP-DE6K-101 (Decoder) ............- 10 - Panel Description ................- 12 - AVP-EN6K-101 (Encoder) ............- 12 - AVP-DE6K-101 (Decoder) ............- 14 - Warranty ..............- 17 - - 3 - All rights reserved by aegis Multimedia Inc. -
Page 4: Introduction
Introduction Overview AVP-4K60 series encoders and decoders provide the flexible, powerful, and scalable solution at resolutions up to 3840 x 2160@60Hz 4:4:4. They allow 4K UHD media to be switched and distributed over standard gigabit Ethernet networks, providing complete end-to-end streaming systems. Audio, video together with IR, and USB signals can be routed separately or as a whole throughout the matrix system. -
Page 5: Features
100m/328ft over a single Cat 5e cable or above. 1 frame latency. Supports bi-directional serial communication, allowing control of remote RS232 devices between encoders/decoders and AVP- CBS2K-101 (AVP-CBS2K-101), or between encoders and - 5 - All rights reserved by aegis Multimedia Inc. - Page 6 Supports DHCP by default, and will fall back to AutoIP if there’s no DHCP server in the system. Flexible control options - AGS-i TOUCH app on iPad and AVP- CBS2K-101. Supports communications protocols of Telnet, SSH, HTTP, HTTPS. - 6 - All rights reserved by aegis Multimedia Inc.
-
Page 7: Package Contents
1 x 3.5mm 3-Pin Phoenix Male Connector 1 x IR Emitter (1.2m /3.9ft) 1 x Broadband IR Receiver (1.2m /3.9ft, 30 kHz ~ 50 kHz) 2 x Wall Brackets - 7 - All rights reserved by aegis Multimedia Inc. -
Page 8: Specifications
Input/Output Video 0.5~1.2 V p-p Signal Input/Output DDC Signal 5 V p-p (TTL) Video Impendence 100 Ω Maximum Data Rate 18 Gbps (6 Gbps per channel) Maximum Pixel Clock 600 MHz - 8 - All rights reserved by aegis Multimedia Inc. - Page 9 ±4 kV (contact discharge) Dimensions 215 mm x 25 mm x 120 mm (8.46'' x 0.98'' x 4.72'') (W x H x D) Net Weight 0.74 kg (1.63 lbs) - 9 - All rights reserved by aegis Multimedia Inc.
-
Page 10: Avp-De6K-101 (Decoder)
Input Audio Port 1 x S/PDIF IN; 1 x LAN/Optical S/PDIF In: digital audio Input Audio Signal LAN/Optical: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby - 10 - All rights reserved by aegis Multimedia Inc. - Page 11 ±4 kV (contact discharge) Dimensions 215 mm x 25 mm x 120 mm (8.46'' x 0.98'' x 4.72'') (W x H x D) Net Weight 0.74 kg (1.63 lbs) - 11 - All rights reserved by aegis Multimedia Inc.
-
Page 12: Panel Description
Connect this port to the 12 V 2 A power adapter. When the device is powered on, use a pointed RESET stylus to hold down the RESET button for five or - 12 - All rights reserved by aegis Multimedia Inc. - Page 13 USB port of a computer USB Host for transmitting USB 2.0 data, or for KMoIP HID seamless switching and roaming. RS232 serial port for bidirectional serial RS-232 communication. - 13 - All rights reserved by aegis Multimedia Inc.
-
Page 14: Avp-De6K-101 (Decoder)
Connect to USB devices like a mouse and a keyboard for KMoIP HID seamless switching and DEVICE 1 roaming. Connect to a USB device for transmitting USB 2.0 DEVICE 2 data. - 14 - All rights reserved by aegis Multimedia Inc. - Page 15 Connect this port to an HDMI display device. Connect this 3.5 mm stereo tip-ring-sleeve port to an AUDIO OUT audio receiver for unbalanced stereo audio output. S/PDIF IN Optical S/PDIF connector for digital audio input (for - 15 - All rights reserved by aegis Multimedia Inc.
- Page 16 IR emitter at the decoder side on the network. Connect this port to an IR emitter for IR IR OUT communication with an IR receiver at the decoder side on the network. - 16 - All rights reserved by aegis Multimedia Inc.
-
Page 17: Warranty
Warranty For the following cases, if the product is still repairable and the warranty becomes unenforceable or inapplicable, Aegis Inc. will charge for the service of the defective product. The original serial number (assigned by Aegis Multimedia Inc.) marked on the product has been removed, erased, replaced, defaced or illegible.
