Aegis 4KCHANGER-TC1 User Manual

4k multi input converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

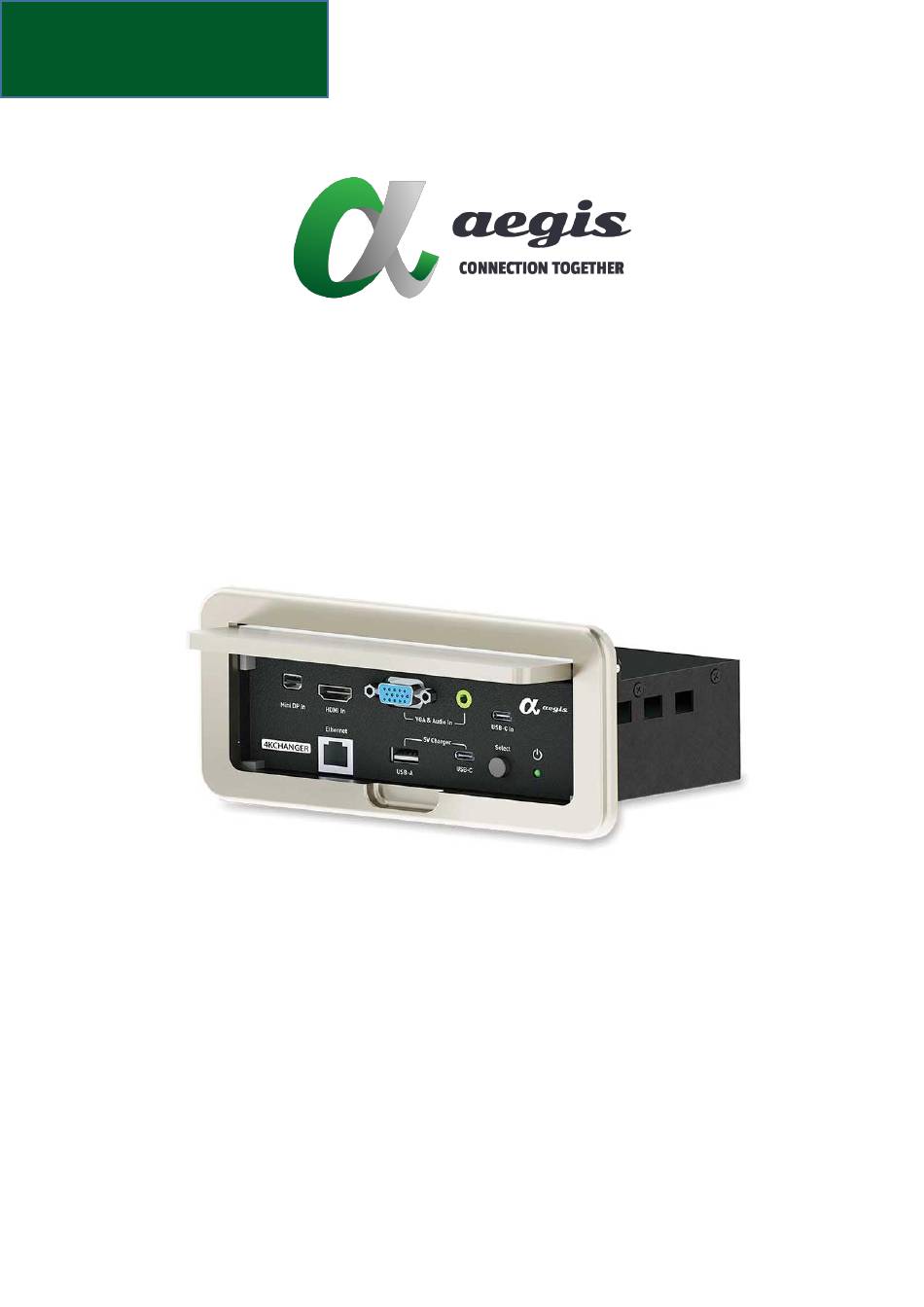

User Manual
4KCHANGER-TC1
4K MULTI INPUT CONVERTER
All Rights Reserved
Version :4KCHANGER-TC1_2019V.1.6.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4KCHANGER-TC1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aegis 4KCHANGER-TC1

Summary of Contents for Aegis 4KCHANGER-TC1

  • Page 1 User Manual 4KCHANGER-TC1 4K MULTI INPUT CONVERTER All Rights Reserved Version :4KCHANGER-TC1_2019V.1.6.1...

  • Page 2: General Safety Instructions

    4KCHANGER-TC1 GENERAL SAFETY INSTRUCTIONS When using electronic products, please review the following safety precautions before installing or using the products. i. Read these instructions. ii. Keep these instructions. iii. Follow all instructions. iv. Heed all warnings. v. Be sure all cables and equipment are connected to the unit as described in the manual.

  • Page 3: Table Of Contents

    4KCHANGER-TC1 Table of Content GENERAL SAFETY INSTRUCTIONS ..................2 INTRODUCTION ......................... 4 PACKAGE CONTENTS ......................4 SYSTEM REQUIREMENTS ....................4 CONNECTION DIAGRAM ....................5 DEVICE FUNCTION ......................6 Front Panel ......................... 6 Rear Panel ........................... 7 TECHNICAL SPECIFICATION ....................8 Converter Specification .......................

  • Page 4: Introduction

    4KCHANGER-TC1 INTRODUCTION 4KCHANGER-TC1 is a multi-format connectivity box that provides AV , Networking and USB charging connectivity in a conference room or classroom. 4KCHANGER-TC1 with Auto-detect source function to switching proper AV signal input. You also can press select button to switching four different AV input sources.

  • Page 5: Connection Diagram

    4KCHANGER-TC1 CONNECTION DIAGRAM...

  • Page 6: Device Function

    4KCHANGER-TC1 DEVICE FUNCTION Front Panel 1. Mini DP In: Connect to Mini DisplayPort source device, such as Computer, Laptop and Tablet. 2. HDMI In: Connect to HDMI sink devices, such as LED/LCD Monitor, LED/LCD TVs, Projector and AV Receiver. 3. VGA & Audio In: Connect to VGA & Audio source device, such as Computer and Laptop.

  • Page 7: Rear Panel

    HDMI cable to 4KCHANGER-TC1 from HDMI device, 4KCHANGER-TC1 will automatically connect HDMI signal and show video on the HDMI Display. When HDMI cable plug in 4KCHANGER-TC1 from HDMI device by first end-user, second end-user can plug in USB 3.1C cable to 4KCHANGER-TC1 from Mobile Phone, 4KCHANGER-TC1 will automatically connect USB 3.1C signal and show...

  • Page 8: Technical Specification

    4KCHANGER-TC1 TECHNICAL SPECIFICATION Converter Specification HDMI Bandwidth 600MHz / 18.0Gbps HDMI Resolution 480P,720P,1080P/24,30,50,60Hz, 4Kx2K/24,30,60Hz. Mini DisplayPort Resolution 800x600, 1024x768, 10280x1024,1600x900, 1600x1200, 1920x1080, 1920x1200, 2560x1440, 3840x2160, 4096x2160 VGA Resolution 1024x768, 1280x1024, 1600x900, 1600x1200, 1920x1080 USB 3.1 C Resolution 1024x768, 10280x1024,1600x900, 1600x1200, 1920x1080...

  • Page 9: Resolution Specifications

    4KCHANGER-TC1 Resolution Specifications Mini DisplayPort Port Resolution Supported Resolutions (Hz) Mini DisplayPortInput 800x600p@60 75 1024x768p@60 75 1152x864p@75 1280x720p@60 1280x768p@60 1280x800p@60 1280x960p@60 1280x1024p@60 75 1360x768p@60 1366x768p@60 1600x900p@60 1600x1200p@50 60 1680x1050p@60 1920x1080p@60 1920x1200p@60 1920x1440p@60 2560x1440p@60 2560x1600p@60 3840x2160p@60 4096x2160p@60...
  • Page 10 4KCHANGER-TC1 HDMI Port Resolution Supported Resolutions (Hz) HDMI Input 720x400p@70 85 640x480p@60 72 75 85 720x480i@60 720x480p@60 720x576i@50 720x576p@50 800x600p@56 60 72 75 85 848x480p@60 1024x768p@60 70 75 85 1152x864p@75 1280x720p@50 60 1280x768p@60RB/60 75 85 1280x800p@60RB/60 75 85 1280x960p@60 85...
  • Page 11 4KCHANGER-TC1 3840x2160p@24 25 30 3840x2160p@50 60 ( 4:2:0 ) 3840x2160p@24 25 30 HDR10 3840x2160p@50 60 ( 4:2:0 ) HDR10 3840x2160p@50 60 4096x2160p@24 25 30 4096x2160p@50 60 ( 4:2:0 ) 4096x2160p@24 25 30 HDR10 4096x2160p@50 60 ( 4:2:0 ) HDR10 4096x2160p@50 60...
  • Page 12 4KCHANGER-TC1 USB 3.1C Port Resolution Supported Resolutions (Hz) USB 3.1C Input 800x600p@60 75 1024x768p@60 75 1152x864p@75 1280x720p@60 1280x768p@60 1280x800p@60 1280x960p@60 1280x1024p@60 75 1360x768p@60 1366x768p@60 1600x900p@60 1600x1200p@50 60 1680x1050p@60 1920x1080p@60 1920x1200p@60 1920x1440p@60 2560x1440p@60 2560x1600p@60 3840x2160p@60 4096x2160p@60...

  • Page 13: Cable Specifications

    4KCHANGER-TC1 Cable Specifications 1080p/60Hz 4K/30Hz 4K/60Hz Cable Length-Input 8 bit 8 bit 4:4:4 8 bit 4:4:4 HDMI High Speed Cable Mini DisplayPort Cable VGA Cable USB 3.1 Type C Cable 1080p/60Hz 4K/30Hz 4K/60Hz Cable Length-Output 8 bit 8 bit 4:4:4...

  • Page 14: Installation

    Note: aegis Multimedia Inc. is not responsible for damage of your table surface. Be ensure to the following instruction, when cutting your table surface. 1. Using the Template card to trace the inner rectangle on the table surface in your location.

  • Page 15: Acronyms

    5. Twist the mounting screw in a counterclockwise direction. Be ensure the head of screw are fixed tightly. Please do not overtighten the screw. 6. From HDMI output port of 4KCHANGER-TC1 box to connect your HDMI display by single HDMI cable (Sold separately).

  • Page 16: Warranty

    Limited 1 Year Warranty aegis Multimedia INC. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 1 years as defined herein for parts and labor from date of purchase. This Limited Warranty covers products purchased in the year 2019 and after.
