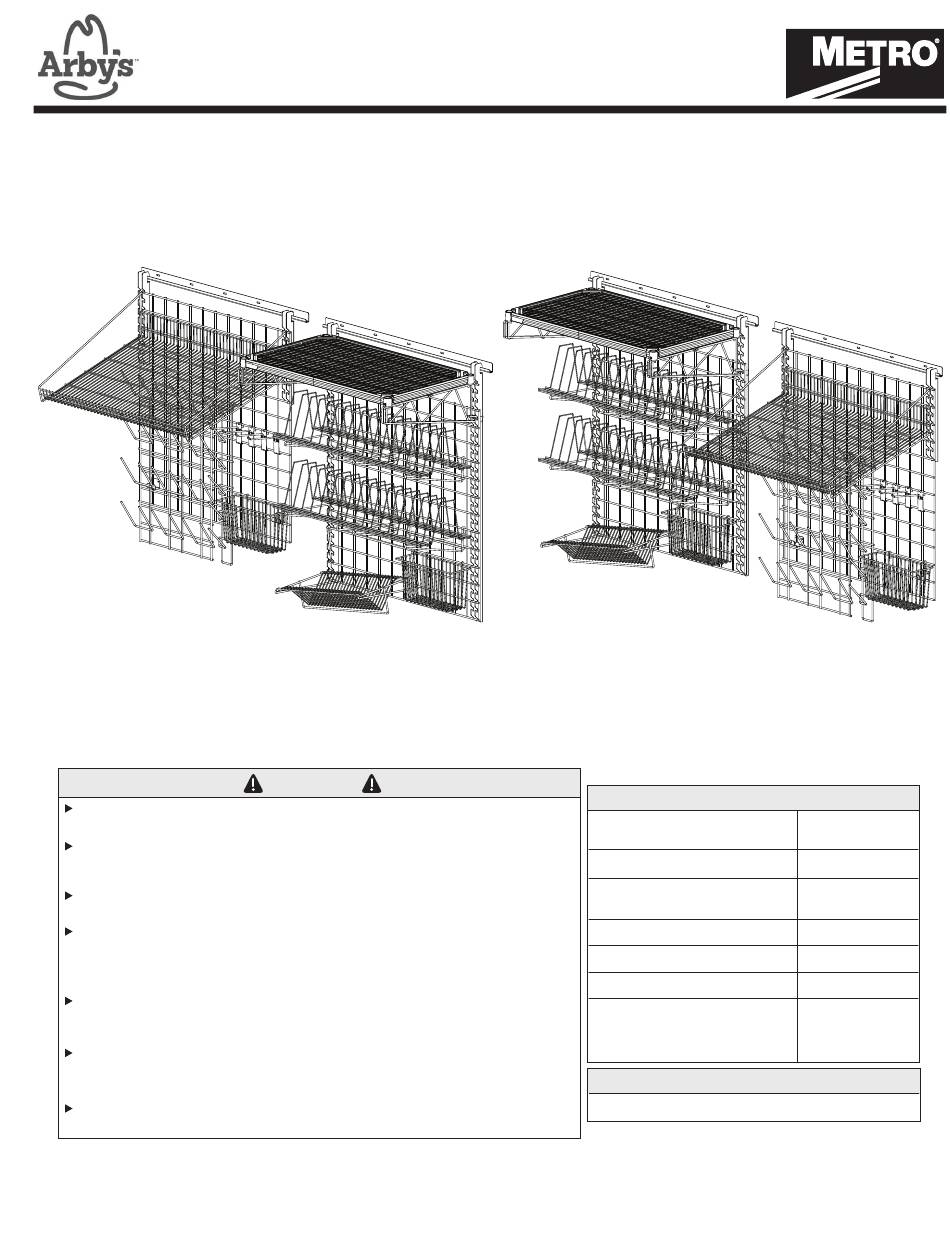

LEFT-SIDE
INSTALLATION SHOWN
The first and last holes in a run of continuous wall track MUST be installed into a wood
stud or appropriate reinforcement (blocking) with appropriate hardware.
In the situation where 12" (300mm) of the track overhangs beyond a stud, that
section of wall between studs MUST be appropriately blocked to provide the wall track
with a secure surface to which to attach.
Appropriate hardware MUST be installed at least every 16" (400mm) (on each stud)
along the track.
When installing uprights with no track, first and last holes in each upright MUST be
installed into a wood stud or appropriate reinforcement (blocking) with appropriate
hardware. Appropriate hardware MUST be installed at least every 12" (300mm)
(on each stud) along the upright.
Wall tracks, uprights, and grid brackets are not designed to replace additional
structural support for walls. Installers should use discretion and properly reinforce
walls before attaching wall tracks, uprights and grid brackets.
The system is designed to allow tracks and uprights to be positioned to mount to
appropriate wall support structures. Due to the low and inconsistent strength of
drywall, mounting of this product solely to dry wall is not recommended.
Notice: Regularly inspect this product. Tighten loose fasteners and replace worn or
damaged parts with new InterMetro approved parts.
FOR ADDITIONAL INFORMATION, REFER TO ASSEMBLY AND
USE INSTRUCTIONS PACKAGED WITH COMPONENTS.
INSTRUCTIONS FOR USE
ARBSWDM
Arby's Smart Wall Unit
CAUTION
INSTALLATION SHOWN
Structures into which wall
tracks are mounted
Wood Studs
Woods Studs with cross-stud
reinforcement
Concrete
Plywood (1/2")
Metal Studs
Environmental room and
walk-in cooler walls
(appropriately reinforced)
1
RIGHT-SIDE
SHELVING WEIGHT CAPACITY
per system
400 lb. (180kg)
400 lb. (180kg)
200 lb. (90kg)
400 lb. (180kg)
100 lb. (45kg)
consult your Metro
representative
GRID WEIGHT CAPACITY
total unit: 250 lb. (113kg)
INSTR-ARBSWDM
04/2018
