Metro DataVac SMARTLEVER Instructions For Use Manual

Advertisement

Quick Links

INSTRUCTIONS FOR USE
MODE D'EMPLOI
INSTRUCCIONES DE USO
SMARTLEVER
SmartLever Shelving Assembly
Smartlever Montage de rayonnage
Smartlever montaje de la estantería
DESCRIPTION/ DESCRIPTION/ DESCRIPCIÓN

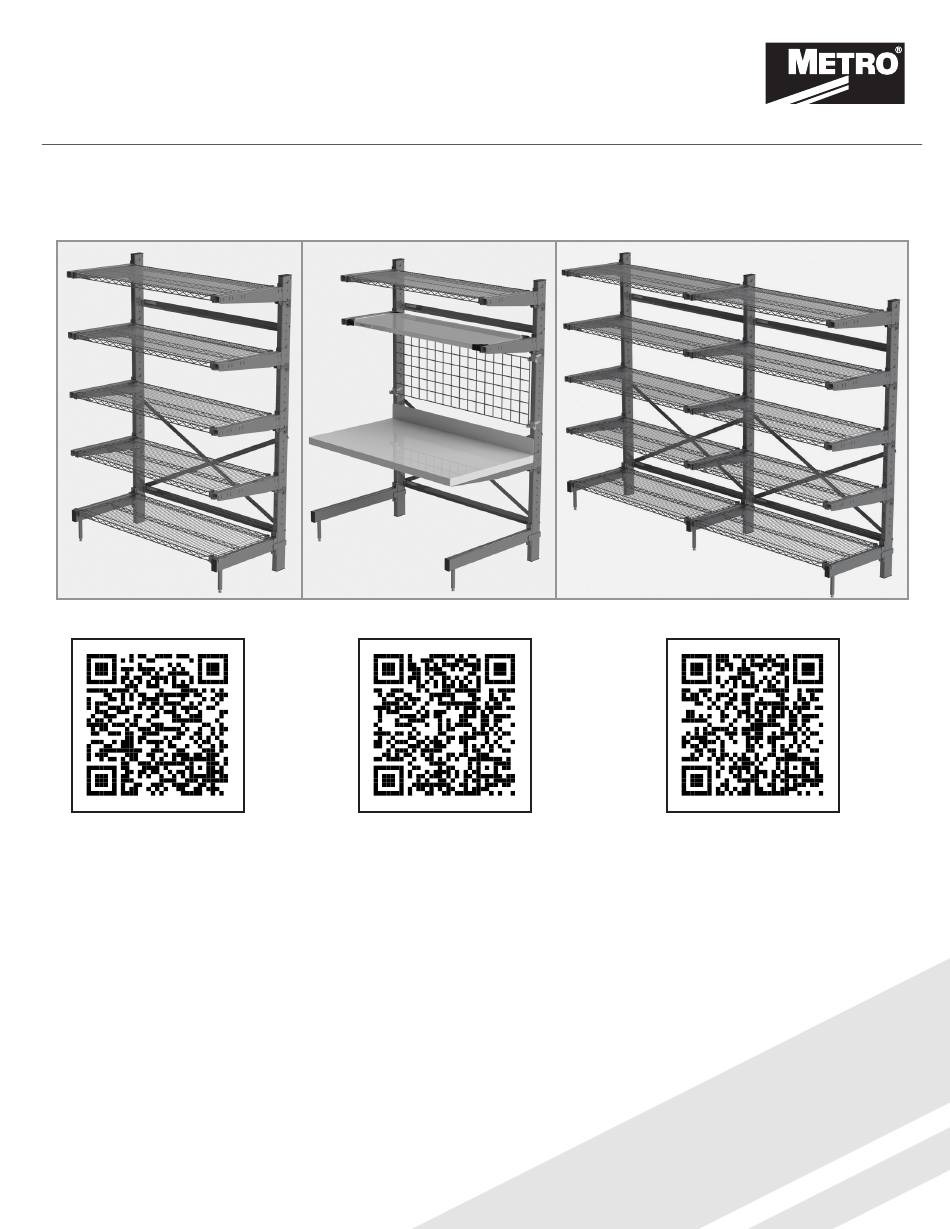

SmartLever – This document covers assembly procedures of various configurations.
SmartLever – Ce document couvre les procédures de montage pour différentes configurations.
SmartLever – En este documento, se cubren los procedimientos de ensamblaje de diferentes configuraciones
SmartLever Workstation Assembly
Smartlever Montage de la station de travail
Smartlever montaje de la estatión de trabajo
SmartLever Double Wide Assembly
Smartlever Montage double largeur
Smartlever montaje estantería doble

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMARTLEVER and is the answer not in the manual?

Questions and answers

Summary of Contents for Metro DataVac SMARTLEVER

  • Page 1 Smartlever montaje estantería doble DESCRIPTION/ DESCRIPTION/ DESCRIPCIÓN SmartLever – This document covers assembly procedures of various configurations. SmartLever – Ce document couvre les procédures de montage pour différentes configurations. SmartLever – En este documento, se cubren los procedimientos de ensamblaje de diferentes configuraciones...
  • Page 2 SMARTLEVER — INSTRUCTIONS FOR USE/ MODE D’EMPLOI/ INSTRUCCIONES DE USO SAFETY INFORMATION/ INFORMATIONS RELATIVES À LA SÉCURITÉ/ INFORMACIÓN DE SEGURIDAD CAUTION: Weight Capacity • Maximum capacities are based on evenly distributed load. • Each Super Erecta, Super Erecta-PRO and Solid Shelf can hold up to 600 lbs. (270kg).
  • Page 3 SMARTLEVER — INSTRUCTIONS FOR USE/ MODE D’EMPLOI/ INSTRUCCIONES DE USO For Stand-alone instructions see 'E', if assembling multiple units together see 'L' / Pour les instructions autonomes, voir 'E', si vous assemblez plusieurs unités ensemble, voir 'L' / Para instrucciones autónomas, consulte 'E', si ensambla varias unidades juntas, consulte 'L'...
  • Page 4 SMARTLEVER — INSTRUCTIONS FOR USE/ MODE D’EMPLOI/ INSTRUCCIONES DE USO WEDGE S-FITTING BRACKET INSTALLATION INSTALLATION DU SUPPORT DE FIXATION EN S DE LA CALE INSTALACIÓN DEL SOPORTE DE ACCESORIOS S DE LA CUÑA Wedge S-Fitting Bracket Support de fixation en S de la cale Soporte de accesorios S de cuña...
  • Page 5 SMARTLEVER — INSTRUCTIONS FOR USE/ MODE D’EMPLOI/ INSTRUCCIONES DE USO DOUBLE CONFIGURATION/ CONFIGURATION DOUBLE/ CONFIGURACIÓN DOBLE Two People Required to Assemble Unit. Deux personnes sont requises pour monter cette unité. Se necesitan dos personas para ensamblar la unidad. Common Upright/ Montant commun/ Vertical común...
  • Page 6 SMARTLEVER — INSTRUCTIONS FOR USE/ MODE D’EMPLOI/ INSTRUCCIONES DE USO Nut (x1) Écrou (x1) Tuerca (x1) 1/4" Bolt (x1) 1/4" Bolt (x1) Boulon 1/4 po (x1) 1/4" Bolt (x2) Boulon 1/4 po (x1) 1/4" Bolt (x2) Tornillo de 1/4 in (x1) Boulon 1/4 po (x2) Tornillo de 1/4 in (x1)
  • Page 7 SMARTLEVER — INSTRUCTIONS FOR USE/ MODE D’EMPLOI/ INSTRUCCIONES DE USO Workstation and SmartWall grid assembly continue to Q-R Le poste de travail et l'assemblage de la grille SmartWall continuent à Q-R SmartWall Grid Bracket (x4) La estación de trabajo y el ensamblaje de la rejilla SmartWall continúan en Q-R...
  • Page 8 NOTE : BASED ON FLOOR CONSTRUCTION FOOT PLATE (P/N 9993Z OR 9993S) MAY BE USED FOR BETTER LOAD DISTRIBUTION. REMARQUE : SELON LA CONSTRUCTION DU PLANCHER, UNE PLAQUE-PIED (RÉF. 9993Z OU 9993S) PEUT ÊTRE UTILISÉE POUR OPTIMISER LA RÉPARTITION DE LA CHARGE. NOTA : SEGÚN LA CONSTRUCCIÓN DEL PISO, ES POSIBLE QUE TENGA QUE UTILIZAR UNA BASE PARA APOYAR LOS PIES (N.º...
