INSTRUCTIONS FOR USE
MODE D'EMPLOI
INSTRUCCIONES DE USO
TM
qwikSIGHT
DESCRIPTION / DESCRIPTION / DESCRIPCIÓN

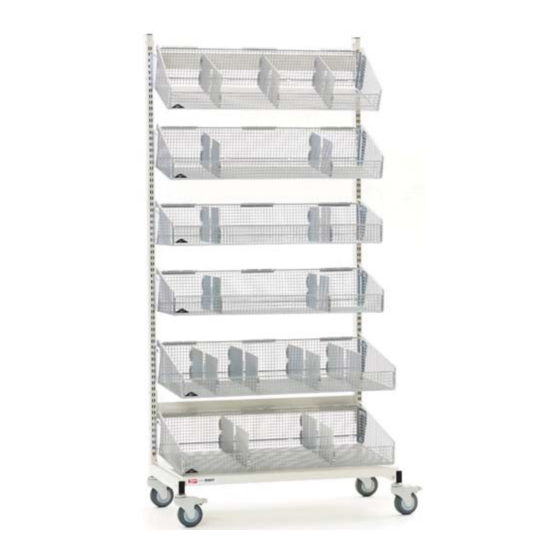

Metro qwikSIGHT
¯ 1BSU %FTDSJQUJPOT 8FJHIU $BQBDJUJFT $BTUFS .BJOUFOBODF 4JOHMF 4UBSUFS $PO»HVSBUJPO 1SFQBSJOH #BTLFU
TM
"TTFNCMZ *OTUBMMBUJPO PG #BTLFU "TTFNCMZ PO 'SBNF *OTUBMMBUJPO PG 4MBOUFE #BTLFU "TTFNCMZ GSPN
)PSJ[POUBM 1PTJUJPO %PVCMF 4UBSUFS $PO»HVSBUJPO "EEPO $PO»HVSBUJPO BOE "DDFTTPSJFT
Part No.

Description

QB74L
74" Height L-Frame, Single Side
QB74T
74" Height T-Frame, Double Side
QB18F
18" Long Frame Bar with Hardware
QB36F
36" Long Frame Bar with Hardware
QB48F
48" Long Frame Bar with Hardware
QB1818C
18" Bottom Cover
QB1836C
36" Bottom Cover
QB1848C
48" Bottom Cover
QB4B
4" Diameter Brake Caster
C05-1198
Metro qwikSIGHT Branding Label
QB1236B
12" Depth x 36" Long Basket with Brackets
QB1836B
18" Depth x 36" Long Basket with Brackets
BASKET SUPPLY SYSTEM
Part No.
Description
QB03D
3" Long Divider (hook)
QB06D
6" Long Divider (hook)
QB18D
18" Long Divider (snap)
QB36LHC
36" Long Label Holder, Clear
QB03LHBL
3" Long Label Holder, Blue
QB03LHCL
3" Long Label Holder, Clear
QB03LHGR
3" Long Label Holder, Green
QB03LHOR
3" Long Label Holder, Orange
QB03LHPK
3" Long Label Holder, Pink
QB03LHRD
3" Long Label Holder, Red
QB03LHYL
3" Long Label Holder, Yellow
© 2016 InterMetro Industries Corporation, Wilkes-Barre, PA 18705
L01-602
Rev.A
09/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the qwikSIGHT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metro DataVac qwikSIGHT

  • Page 1 3" Long Label Holder, Orange QB4B 4" Diameter Brake Caster QB03LHPK 3" Long Label Holder, Pink C05-1198 Metro qwikSIGHT Branding Label QB03LHRD 3" Long Label Holder, Red QB1236B 12" Depth x 36" Long Basket with Brackets QB03LHYL 3" Long Label Holder, Yellow QB1836B 18"...
  • Page 2 CAUTION: WEIGHT CAPACITY MISE EN GARDE : CAPACITÉ DE POIDS MISE EN GARDE : CAPACITÉ DE POIDS Maximum capacities are based on evenly distributed load. Shelf can hold up to 100 lbs. (45kg) evenly distributed. NEVER exceed 500 lbs. (227kg) of evenly distributed load on any stationary unit.
  • Page 3 PREPARING BASKET ASSEMBLY (12" and 18" Depth) Horizontal Basket - Position 1 Left Hanging Plate NOTE: Adjust square bracket to properly seat its four flanges on wires. Wire Basket RIGHT SIDE VIEW LEFT SIDE VIEW Top screw mounting Right...
  • Page 4 INSTALLATION OF BASKET ASSEMBLY ON FRAME Groove #6 Dust Groove #5 Cover Groove #1 NOTE: Refer to Page-5, Step-F for position 2 and 3 hole locations. SIDE VIEW NOTE: Configurations shown in Step-E is for reference only. Various combinations can be attained with 12"x36"...
  • Page 5 INSTALLATION OF SLANTED BASKET ASSEMBLY FROM HORIZONTAL POSITION CAUTION: Empty basket before changing the position. Position-2 NOTE: For position 2 - locate grooves 9, 8, 4 to install 18" baskets on frame AND - locate grooves 8, 7, 3 to install 12"...
  • Page 6 DOUBLE STARTER CONFIGURATION NOTE: Configurations shown below are for reference only. Various combinations can be attained with 12"x36" and 18"x36" basket assemblies. 12" x 36" Basket Assembly 18" x 36" Basket Assembly 18" x 36" Basket Assembly ADD-ON CONFIGURATION...
  • Page 7 ACCESSORIES 12"/18" Long Divider SIDE SECTIONAL VIEW Push on Top Divider 3"/6" Long Divider SIDE SECTIONAL VIEW 18" Long Divider -...
  • Page 8 3" Long Label Holder SIDE VIEW 3"/6" Long Label Holder (Clear) SIDE SECTIONAL VIEW * Save this document for future application, load rating and/or safety reference. * Conserver ce document pour une utilisation ultérieure, pour vérifier la capacité de charge et pour consulter la référence de sécurité.
