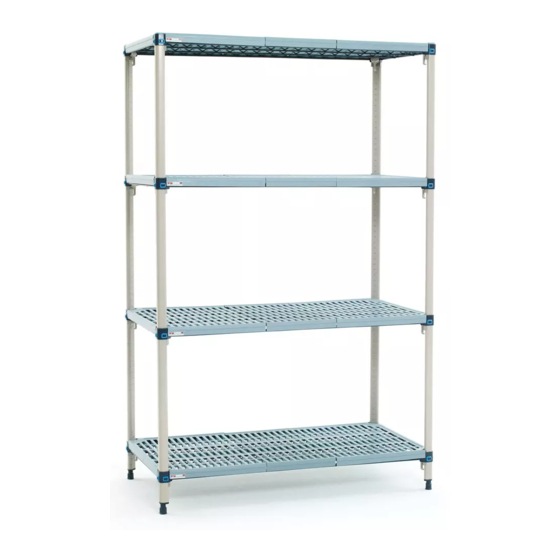

Metro DataVac MetroMaxQ ESD Shelving Assembly Instructions

1. Construct the ESD shelving unit
following the steps listed in the
accompanying instruction sheet.
2. Should you experience difficulty
adjusting a MetroMax Q ESD
shelf, follow the alternate method
listed below:
a. Please unload all items from the
shelf to be adjusted. Also, remove
all items from either the shelf
immediately above or below the
shelf being moved.

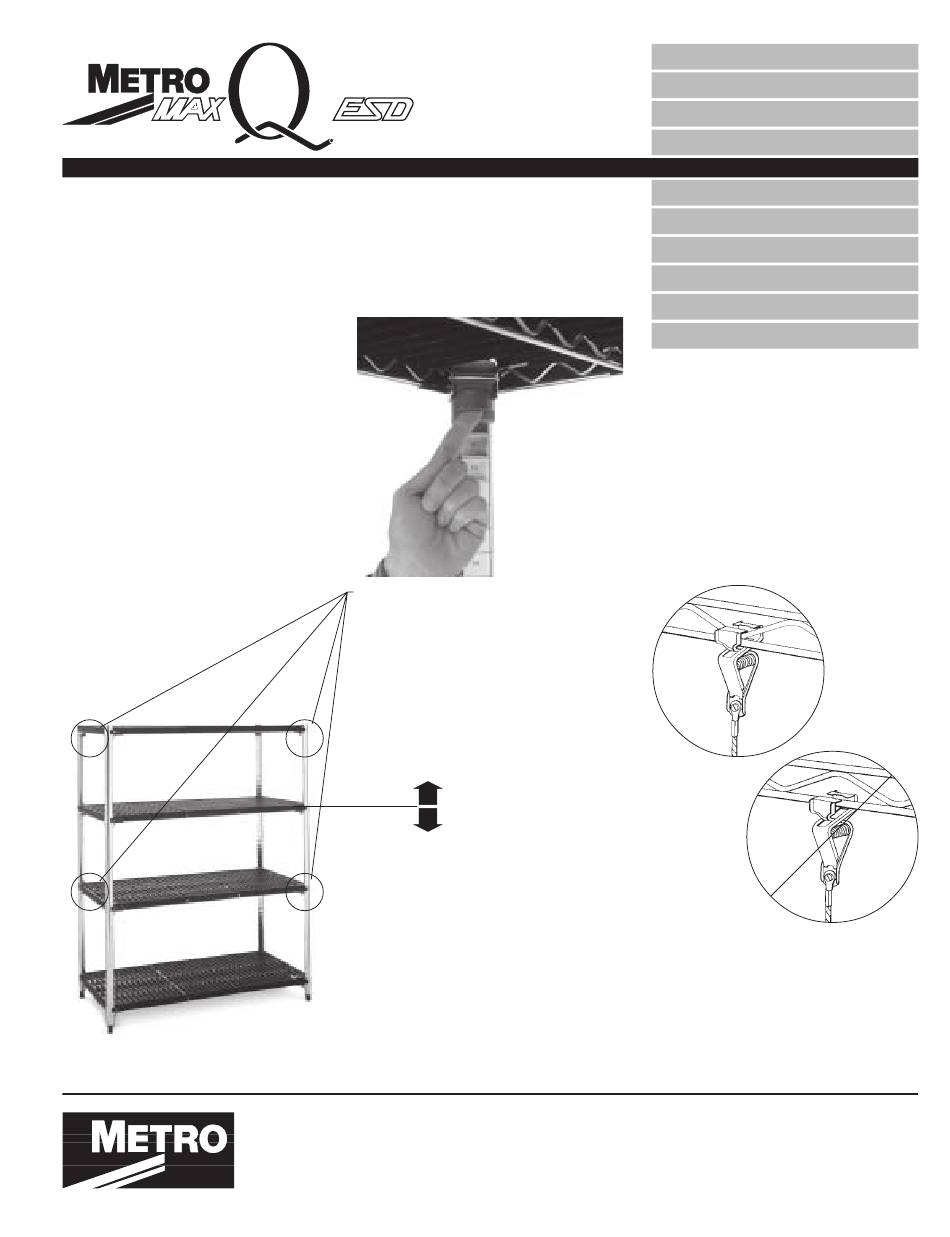

b. Unlock opposite corner
releases of the shelf above or
below the shelf being adjusted as
shown in the drawing below.
®
®
SHELVING
c. Adjust the shelf to the desired
location. Be sure to RE-LOCK ALL
CORNER RELEASES.
3. For grounding and cleaning
instructions, see below.
Unlock opposite corner releases of
the shelf above or below the shelf
being adjusted.
InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA 18705
For Product Information Call: 1-800-433-2232
Visit Our Web Site: www.metro.com
To adjust shelf
ASSEMBLY
INSTRUCTIONS
GROUNDING
INSTRUCTIONS
For all mobile MetroMax Q ESD
applications, conductive casters
and/or a grounding cable (Catalog
No. ASK16S) must be used. To insure
conductivity, grounding cable must
be attached to the bottom shelf
center snake as shown below.
Incorrect
CLEANING
INSTRUCTIONS
Mats can be cleaned using a 70%
solution of Isopropyl alcohol to
remove dust and oils.
ASSEMBLY
INSTRUCTIONS
For MetroMaxQ ESD Shelving
