LIONVILLE SYSTEMS MEDICATION CART
M400LS DRAWER CHANGE
1. Remove storage drawers and patient drawers from left side of cart.

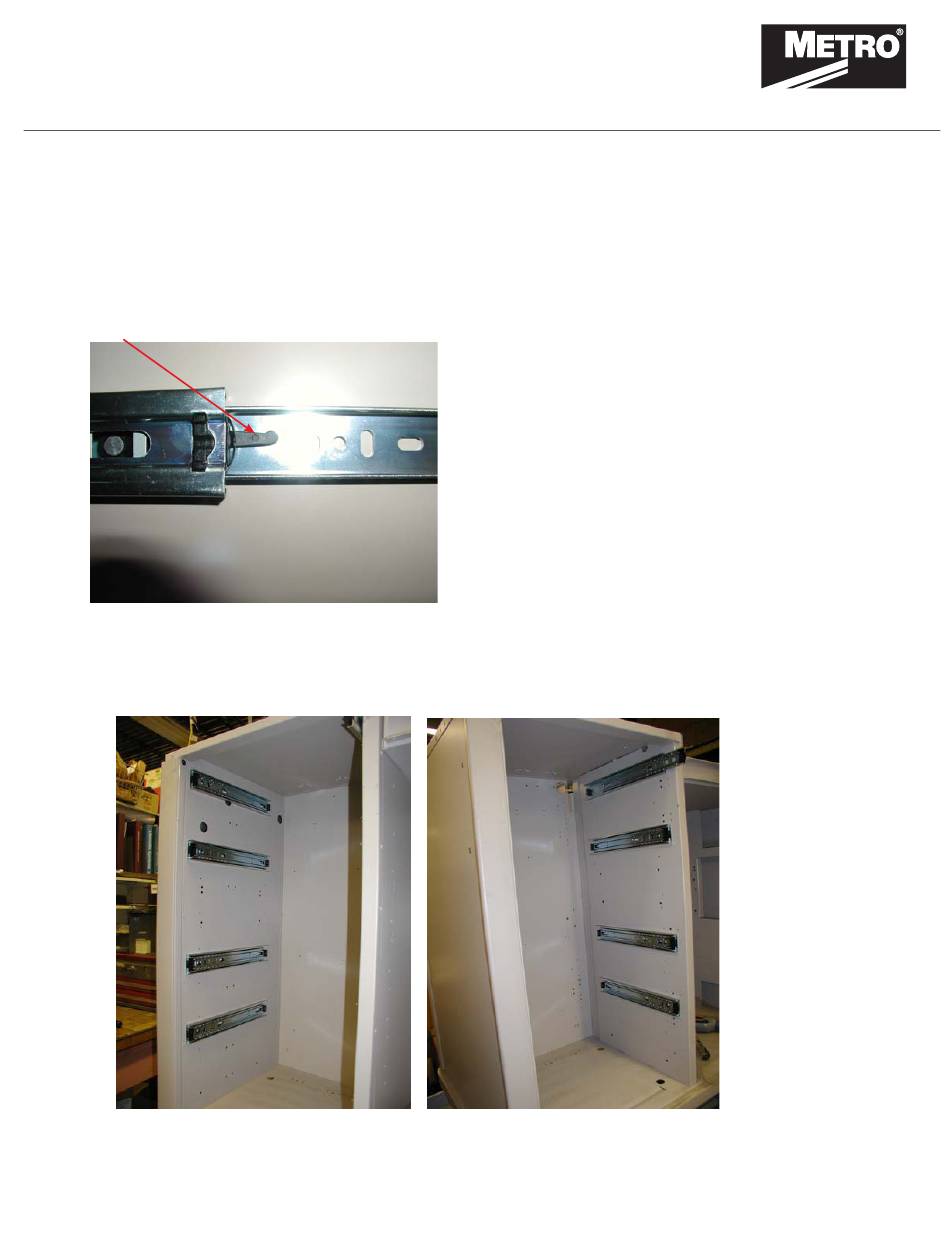

a. Remove storage drawer by pulling the drawer out then locate the release lever on each side
of the drawer slide. Push down on one side and pull up on the opposite side of the release
lever. Pull with a slight tug and remove the drawer from the slide.
b. Remove shelf if there is one.
2. Install slide pairs onto side of cart body as shown in photo. Fasten with 8-32 x ¼ round head
screw.
Advertisement
Table of Contents
Related Manuals for Metro DataVac M400LS
Summary of Contents for Metro DataVac M400LS
- Page 1 LIONVILLE SYSTEMS MEDICATION CART M400LS DRAWER CHANGE 1. Remove storage drawers and patient drawers from left side of cart. a. Remove storage drawer by pulling the drawer out then locate the release lever on each side of the drawer slide. Push down on one side and pull up on the opposite side of the release lever.
- Page 2 M400LS DRAWER CHANGE— LIONVILLE SYSTEMS MEDICATION CART a. Fasten top slide pair in the 1st slide position. b. Fasten 2nd drawer slide in the 3rd slide position. Use upper set of holes. drawer slide use upper set of holes Detent block...
- Page 3 M400LS DRAWER CHANGE — LIONVILLE SYSTEMS MEDICATION CART 4. Install detent block left side wall for all storage drawers. a. If there are no preexisting holes. I. Using template provided. Mark and drill two holes for the detent block with a #29 drill bit.
- Page 4 d. Install 3 tier storage drawer in the 9th slide position . The catch for this drawer will need to be in the upper set of mounting holes. 7. Check manual lock operation of cart. CS drawers will unlock after the cart is unlocked. 8.
- Page 5 Machine Translated by Google CHARIOT À M ÉDICAMENTS L IONVILLE S YSTEMS CHANGEMENT D E T IROIR M 400LS 1. R etirez l es t iroirs d e r angement e t l es t iroirs p atient d u c ôté g auche d u c hariot. un. ...
- Page 6 Machine Translated by Google CHANGEMENT D E T IROIR M 400LS — C HARIOT À M ÉDICAMENTS L IONVILLE S YSTEMS un. F ixez l a p aire d e g lissières s upérieures d ans l a 1 ère p osition d e g lissière. b. ...
- Page 7 Machine Translated by Google CHANGEMENT D E T IROIR M 400LS — C HARIOT À M ÉDICAMENTS L IONVILLE S YSTEMS 4. I nstallez l e b loc d e v errouillage s ur l a p aroi l atérale g auche p our t ous l es t iroirs d e r angement. un. ...
- Page 8 Machine Translated by Google d. I nstallez u n t iroir d e r angement à 3 n iveaux d ans l a 9 ème p osition c oulissante. L e l oquet d e c e t iroir d evra ê tre dans ...
