Summary of Contents for Dyson v11
-
Page 1: Table Of Contents

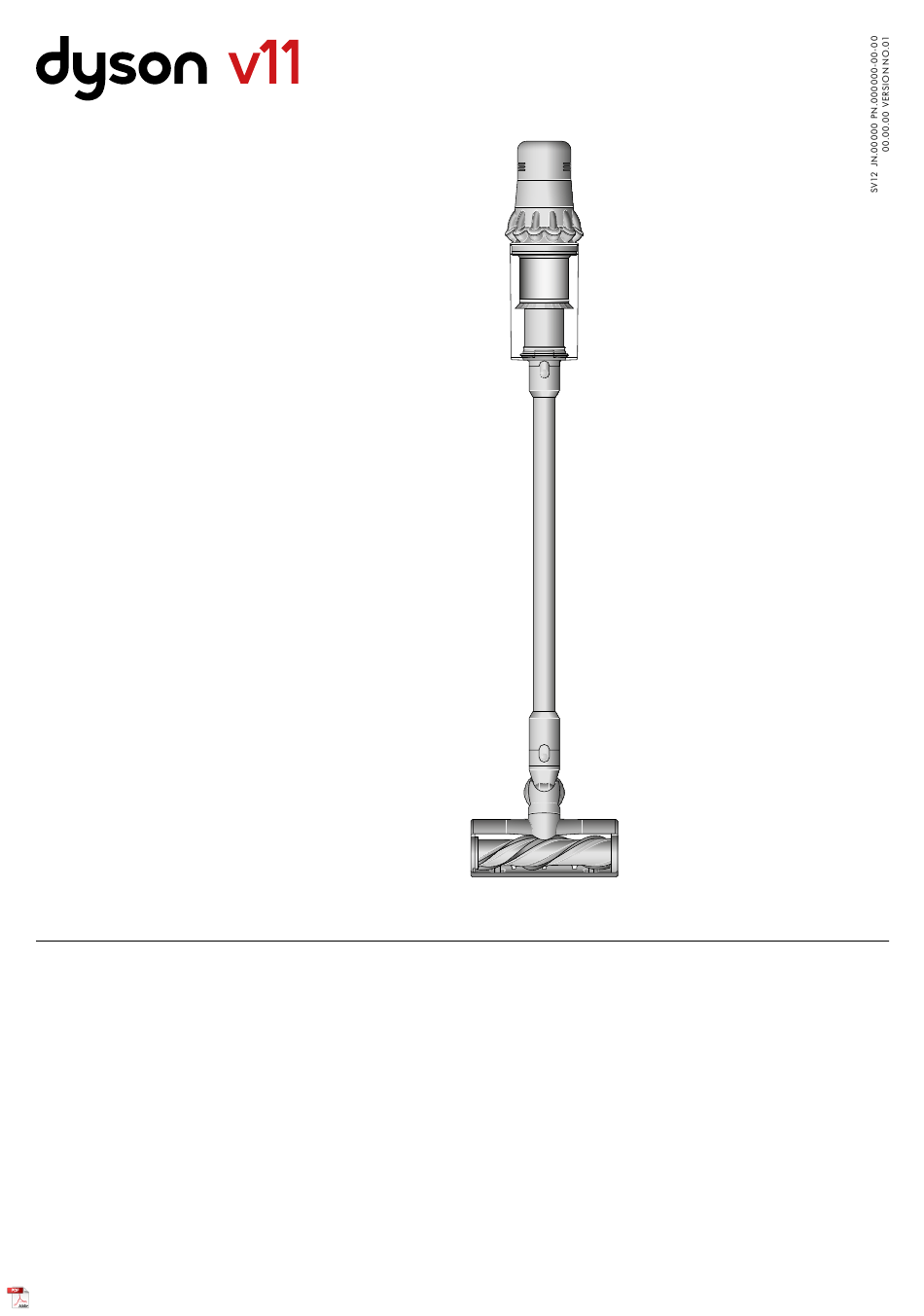

Dyson V11 logo User manual Top view of the Dyson V11 machine, showing cleaner head, wand, bin and main body. Contents Clearing obstructions from your In the box Motorbar™ cleaner head Getting started Clearing blockages from your The LCD screen... -
Page 2: In The Box
Some tools may not be included. A small cleaner head with an angled body You can buy additional tools at www.dyson.com. housing the motor and an electrical connector This tool has a combination... -
Page 3: Getting Started
Getting started Location of the Selection button on the screen on the filter end of the machine. Power modes Your machine has three power modes for different tasks. Change power modes quickly using a single button. The screen showing the machine set to Diagram showing the connection of Eco mode with a full battery in green the wand onto the main body, with... -
Page 4: The Lcd Screen
The LCD screen The LCD screen shows performance, including the cleaning mode selected, remaining run time, filter maintenance and blockage information. Settings menu Control the settings on your machine using the Selection button. To enter the settings menu, press and hold the button until the menu screen The Selection button appears. - Page 5 Run time countdown When the battery needs charging, your machine will pulse three times and a low run time icon will appear on the screen. When your battery is empty, a red warning icon will appear on the screen. 4:50 The screen with a A red screen with an icon battery time remaining...
-
Page 6: Caring For Your Floors
Caring for your floors Check that the underside of the cleaner head or tool is clean and free from any objects that may cause damage. Before vacuuming your flooring, rugs, and carpets, check the manufacturer’s recommended cleaning instructions. The brush bar on your machine can damage certain carpet types and floors. Some carpets will fuzz if a rotating brush bar is used when vacuuming. -
Page 7: Emptying Your Bin
Emptying your bin Empty as soon as the dirt reaches the MAX level – don’t overfill. Using your machine when the dirt is above the MAX line may affect the performance and require more frequent filter washing. The MAX mark on the bin of the machine, showing that the dirt should not be filled over the Max mark when... -
Page 8: Clearing Blockages
Clearing blockages Disconnect your machine from the charger before looking for blockages. Be careful not to touch the trigger and be aware of sharp objects. With the bin removed, Leave your machine to cool down before looking for blockages. check for blockages, paying particular attention to the air Don't use your machine when looking for blockages as this could inlet, located at on the right–... -
Page 9: Clearing Obstructions From Your
Clearing obstructions from your Motorbar™ cleaner head Your Motorbar™ cleaner head doesn’t have a washable brush bar. To maintain optimum performance, check your brush bar regularly and clear any obstructions. Make sure your machine is disconnected from the charger and make sure your machine power is turned off. -
Page 10: Clearing Blockages From Your
Clearing blockages from your Hair screw tool Your Hair screw tool doesn't have a washable brush bar. To maintain optimum performance, check your brush bar regularly and clear any obstructions. Make sure your machine is disconnected from the charger and take care not to touch the trigger. -
Page 11: Washing Your Filter
Wash your filter at least once a month to maintain optimum suction power. For more information and support videos for your machine go online: www.dyson.com/support Twist off your filter Twist your filter counter-clockwise and pull it away from your machine. -
Page 12: Cleaning Your Tools
Cleaning your tools Don’t put any part of your machine in a dishwasher or use detergents, polishes or air fresheners. Wipe with a damp, lint-free cloth, without touching the connector end. Make sure your tools are completely dry before using. Combination tool Crevice tool Extension hose... -
Page 13: Looking After Your Machine
This is designed to protect both the motor and battery. Your serial numbers You can find your serial numbers on your machine, battery and charger. Use your serial number to register. For more information and support videos for your machine go online: www.dyson.com/support...
