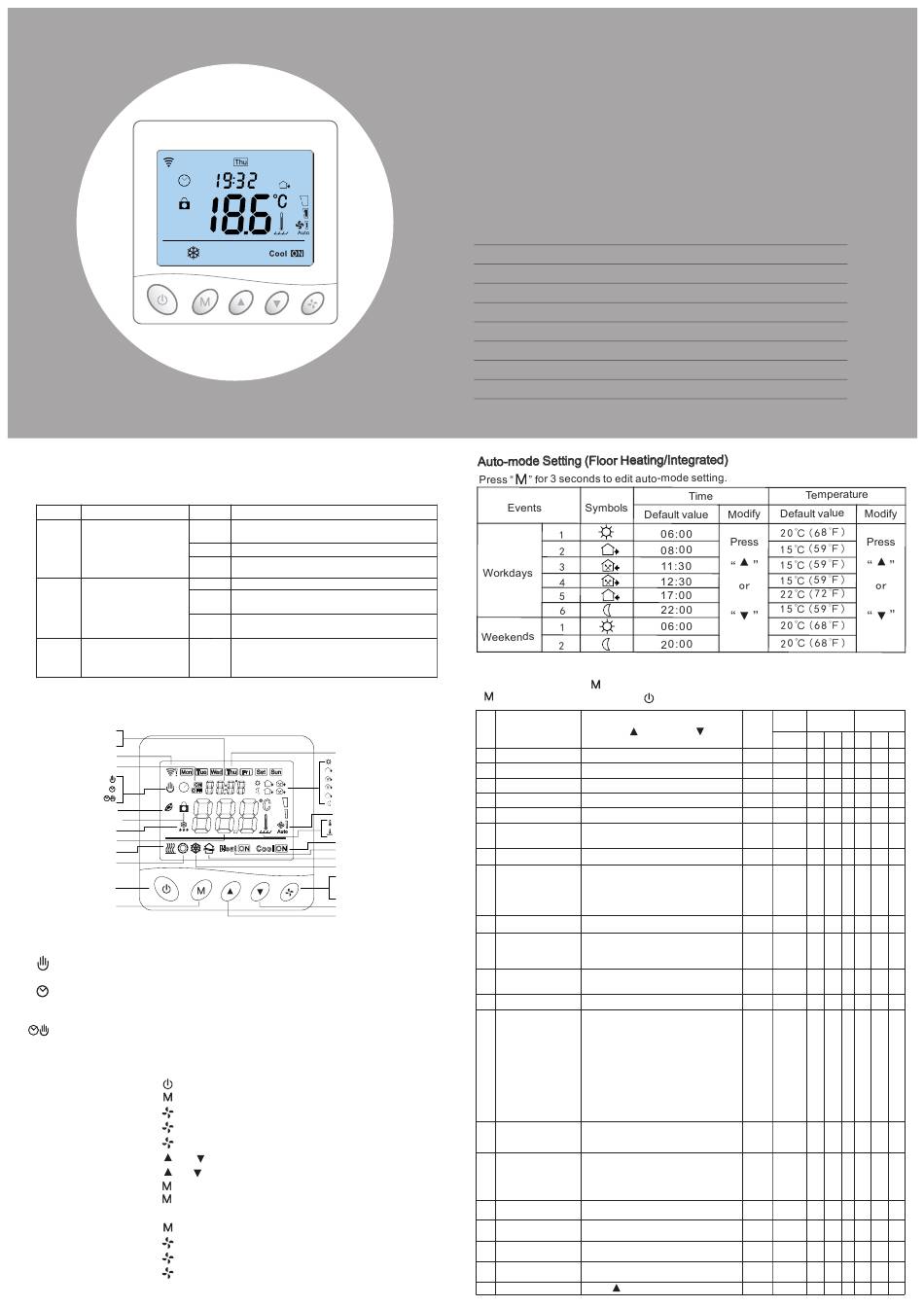

Beok Controls TR33-WIFI-WPB Installation Instructions

Product Overview
This series of thermostat has Floor Heating, Fan Coil, and Integrated version, meeting the
requirements under different scenarios.
Version System mode Model
Floor
Floor heating
heating
WPB
Heating /Cooling /
Fan Coil
AC2-485
Ventilation
Heating / Cooling /
Integrated Ventilation/Floor heating /
AWY
Floor heating + Heating
Display Symbols
Setting temp.
Time Display
Wi- Fi
Timer Task
Manual Mode
Auto Mode
Temporary Mode
ECO Mode
ECO
Child-lock
Frost Protection
Room Temp.
Floor Heating Mode
Fan-Coil Heating Mode
Power on/off
Mode
Temperature Control Mode(Floor Heating/Integrated)
Manual Mode
Thermostat works based on manually-set temperature, disconnecting from auto mode.
Auto Mode
Weekly-circled programme, up to 6 heating events can be set per day. Heating events,
workdays and temperature can be separately customized based on personal routines.
Temporary Mode
Thermostat works based on manually-set temperature temporarily and then shifts
back to auto mode till next event.
User Operation
Power on/off : Press " " shortly to turn on/off the thermostat.
Auto-mode : Press " " for 3 seconds to edit auto-mode settings.
Timer task: Press " " for 3 seconds to edit timer task.
Time setting: Press " " for 3 seconds to set time.
Press " " twice for 3 seconds to set time.
Temp setting: Press " " or " " shortly to change setting temperature by 0.5°C.
Child-lock: Press " " + " " for 3 seconds to activate child-lock.
System mode: Press " " shortly to switch cooling/heating/ventilation
Press " " shortly to switch cooling/heating/ventilation/floor heating/floor
heating + heating.
Temp control mode: Press " " shortly to switch manual/auto mode.
Press " " shortly to switch manual/auto mode.
Fan speed setting: Press " " shortly to adjust fan speed.
ECO mode: Press"
"shortly to set to ECO mode 18°C(65°F).
Version:TR33 1.6(12/2023)
Application
Built-in & floor sensor, floor limit sensor +
EP
Weekly programming
A NC/NO dual-output + Weekly programming
WP
A NC/NO dual-output + Weekly programming+
Potential-free output
AC2 Timer task + 2-pipe system
Timer task + 2-pipe system + 485Modbus (optional) +
Potential-free output + Room card (optional)
Timer task + 4-pipe system + 485Modbus (optional) +
AC4
Potential-free output + Room card (optional)
Floor heating & fan coil, weekly programming +
Potential-free output + Timer task +
485Modbus (optional) + Room card (optional)
Week Display
Wake up; Event 1
Leave (am); Event 2
Return (am); Event 3
Leave (pm); Event 4
Return (pm); Event 5
Sleep; Event 6
Fan Speed Display
Room Temp.
Floor Temp.
Cooling on
Heating on
Fan-Coil Ventilation Mode
Fan-Coil Cooling Mode
Fan(Integrated)
ECO(Floor heating)
Down
Up
(Floor Heating/Integrated)
(Integrated)
(Floor Heating)
(Automatic time synch for Wi-Fi version)
(Fan Coil/Integrated)
(Integrated)
(Floor heating)
(Integrated, floor heating)
(Integrated)
(Floor heating)
Large LCD screen smart thermostat
√
Customized exclusive temperature plan - up to 6 events allowed
to set per day
√
Sail shape design-delicate and elegant
√
Large LCD screen-better user experience
√
485 modbus and room card linkage - customized equipment (optional)
Parameter
Supply voltage AC100~240V; 50/60Hz
Power consumption 1W Max (Wi-Fi 3W Max)
Temp. setting range 5~95℃（41~99℉）
Floor limited range
20~90℃（68~99℉）
0.5~10℃（1~10℉）, Factory setting ±1℃
Temp. Dif.
-5~50℃（23~99℉）
Ambient temperature
IP20
Protection level
Shell material Anti-Flammable PC
Advanced Setting (Usually for Professional Technicians)
Under power-off, press " " for 3 seconds to enter advanced setting mode, then re-press
" " to switch to next mode. Press " " to save and exit advanced setting mode.
" "or"
Meaning
Code
Postal address (optional) Adjustment range 0x00~0xFA
00
-9.9~9.9℃(-9~9℉)
01 Temp. calibration
0.5~10℃(1~10℉)
02 Temp. Dif.
5~95℃(41~99℉)
03 Temp. upper limit
5~47℃(41~99℉)
Temp. lower limit
04
ON: frost protection on
Frost protection
05
OFF: frost protection off
℃/℉
Temperature unit
06
IN: Controlled by built-in sensor
OUT: Limited by floor sensor
07
Sensor selection
ALL: Controlled by built-in sensor and
limited by floor sensor
20~90℃(68~99℉)
08 Floor limited Value
12345: 5/2 week mode
Weekly programming
09
123456: 6/1 week mode
setting
1234567: 7/0 week mode
00: Fan speed controllable
10 Fan control settings
01: Fan speed uncontrollable
11 Delay time of outputs 0~5min
00: Child-lock inactivate when screen off;
lock all when child-lock activate
01: Child-lock activate when screen off;
lock all when child-lock activate
02: Child-lock activate when screen off;
12 Child-lock
lock all except Fan Speed, Up and
Down when child-lock activate
03: Child-lock activate when screen off;
lock all except Power on/off when
child-lock activate
00: Power OFF
01: Power ON
13
Boot Status
02: The last status before power loss
00: turn off room card function
01: set to ECO temp. after pulling room
card out
14 Room card status
02: stay power-off after pulling room
card out
Room card heating
10~21℃(50-69℉)
15
ECO temp.
Room card cooling
22~32℃(72-89℉)
16
ECO temp.
00: Cooling and heating
Fan coil mode setting
17
01: Cooling only
Weekly programming 00: turn on
18
01: turn off
for Integrated
19 Reset Press " "for 3 seconds to reset
Floor
Integrated
Fan Coil
Heating
Default
"
Value
AC2-
AC4 AC2 EP WP WPB
AWY
485
00 √ √ √ × √ √
-3℃ √ √ √ √ √ √
√ √ √ √
±1℃ √ √
50℃ √ √ √ √
√ √
5℃ √ √ √ √
√ √
√ √ √ √
√ √
OFF
℃ √ √ √ √
√ √
√ × √ √
IN × ×
35℃ √ × √ √ √
× ×
×
12345 √ × × √ √
00 √ √ √ √ × × ×
0 √ × × × √ √
00 √ √ √ √
√ √
02 √ √ √ √ √ √
00 √ √ × × × ×
18℃ √ √ × × × ×
26℃ √ √ × × × ×
00 √ √ √ √
× ×
01 √ × × × × ×
/
√ √ √ √ √ √
√
√
√
√
√
√
√
√
√
√
√
√
×
×
×
×
×
√
