EVM User's Guide: TPS561300EVM
TPS561300 Step-Down Converter Evaluation Module
Description
The TPS561300 evaluation module (EVM) is
a simple, easy-to-use, 1A synchronous step-
down converter in an SOT236 package. The
TPS561300EVM is a fully assembled and tested
circuit for evaluating the TPS561300 step-down
converter. The TPS561300EVM operates from 5V to
30V input, 24V nominal, and provides a 5V output
at 1A. The EVM also includes Alternating Current
(AC) signal injection terminals for feedback loop
measurements.
SLUUD95 – FEBRUARY 2025
Submit Document Feedback
Features
•
4.5V to 30V input voltage range
•
Adjustable output voltage
•
1A continuous output current capability
•
Supports low drop out
•
Eco-mode at light load
Applications
•
12V, 24V distributed power-bus supply
•
Industrial applications
–
•
Consumer application
–
–
–

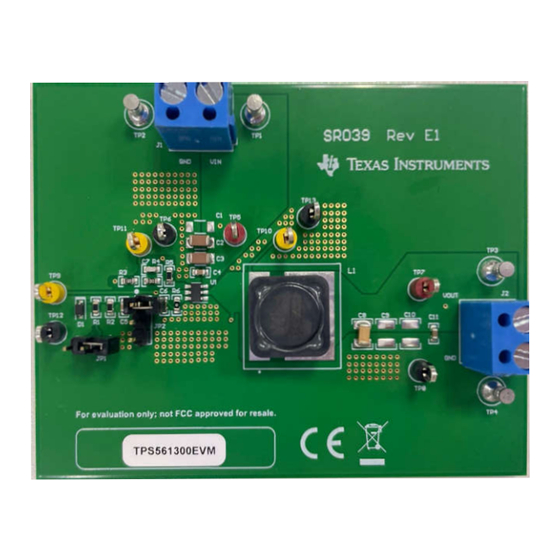

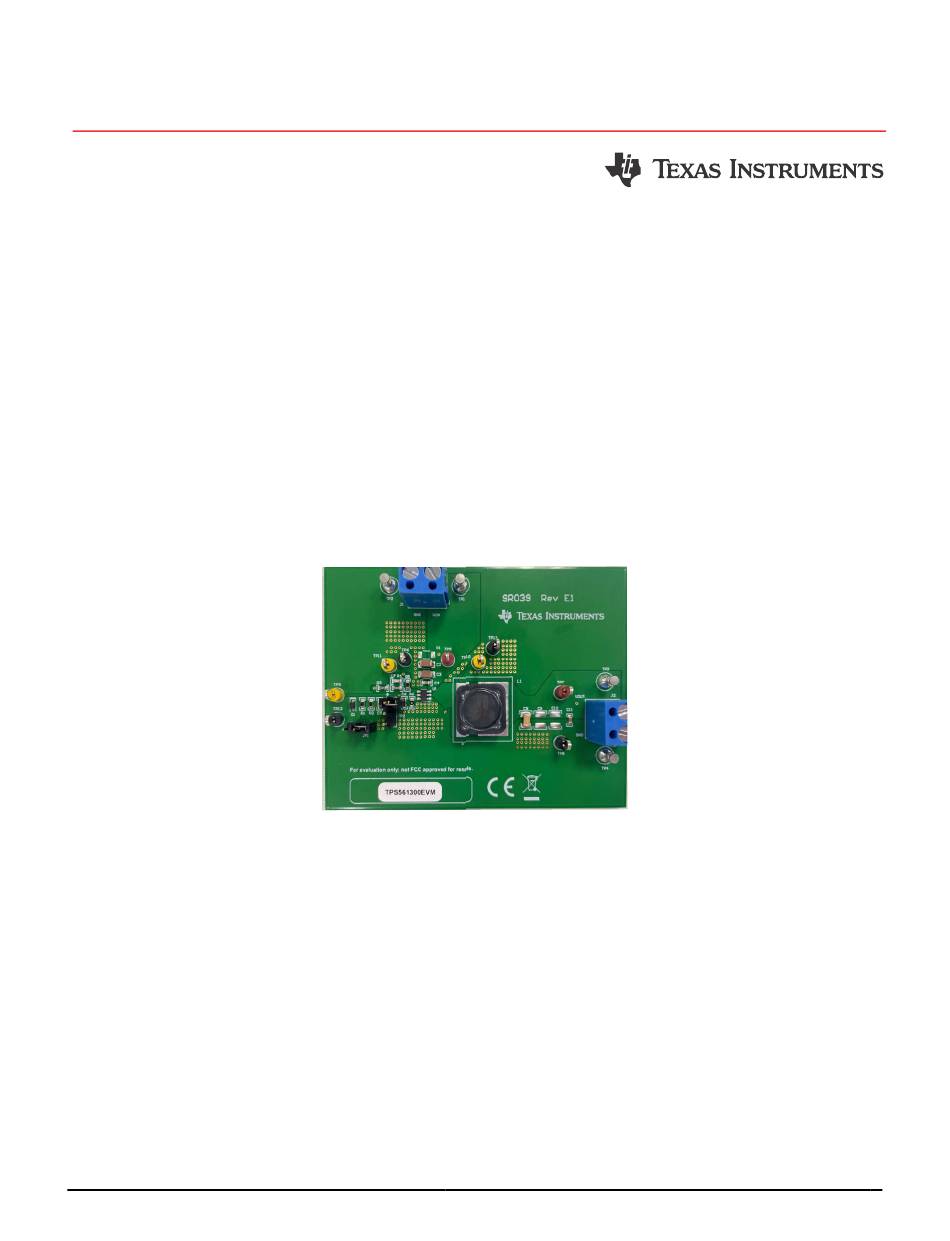

TPS561300EVM (Top View)
Copyright © 2025 Texas Instruments Incorporated
Appliances
Audio
Set-Top Box (STB), Digital Telivision (DTV)
Printer
TPS561300 Step-Down Converter Evaluation Module
Description
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPS561300
Summary of Contents for Texas Instruments TPS561300
- Page 1 Description EVM User's Guide: TPS561300EVM TPS561300 Step-Down Converter Evaluation Module Description Features The TPS561300 evaluation module (EVM) is • 4.5V to 30V input voltage range a simple, easy-to-use, 1A synchronous step- • Adjustable output voltage down converter in an SOT236 package. The •...
-
Page 2: Kit Contents
The TPS561300 is a high efficiency, easy-to-use, synchronous buck converter. With the wide input voltage range of 4.5V to 30V, the TPS561300 is an excellent choice for systems powered from 5V, 12V, 19V, 24V power bus rails. The device supports up to 1A continuous output current. The device employs fixed frequency peak current control mode for fast transient response and good line and load regulation. - Page 3 TP6, TP8, TP12, TP13 GND monitor point TP10 Switch node test point EN test point TP11 Test point for loop response measurements SLUUD95 – FEBRUARY 2025 TPS561300 Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 4 Figure 3-1. TPS561300EVM Load Transient Response, 0.2A to 0.8A Load Step VOUT = 50mV/div (AC coupled) IOUT = 0.5A/div 100us/div Figure 3-2. TPS561300EVM Load Transient Response, 0.5A to 1A Load Step TPS561300 Step-Down Converter Evaluation Module SLUUD95 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 5 . The load is 1A. VIN = 10V/div VOUT = 5V/div SW = 10V/div IL = 1A/div 20ms/div Figure 3-4. TPS561300EVM Shutdown Relative to V SLUUD95 – FEBRUARY 2025 TPS561300 Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 6 Figure 3-5. TPS561300EVM Output Voltage Ripple, I = 1A VOUT = 10mV/div (AC coupled) IL = 0.5A/div 1us/div Figure 3-6. TPS561300EVM Output Voltage Ripple, I = 0.1A TPS561300 Step-Down Converter Evaluation Module SLUUD95 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 7 R 5 × V out − 0 . 596V = 0 . 596V SLUUD95 – FEBRUARY 2025 TPS561300 Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 8 TPS561300EVM. The top layer contains the main power traces for VIN, VOUT, and ground. Connections for the pins of the TPS561300 and a large area filled with ground are also on the top layer. Most of the signal traces are also located on the top side. The input decoupling capacitors C2, C3, and C4 are located as close to the IC as possible.
- Page 9 Hardware Design Files Figure 4-3. TPS561300EVM Top Layer Figure 4-4. TPS561300EVM Bottom Layer SLUUD95 – FEBRUARY 2025 TPS561300 Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
-
Page 10: Additional Information
5.1 Trademarks All trademarks are the property of their respective owners. 6 Reference Texas Instruments, TPS561300 4.5V to 30V, 1A, EMI Friendly, Synchronous Step-Down Converter data sheet TPS561300 Step-Down Converter Evaluation Module SLUUD95 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated... - Page 11 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 12 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 13 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 14 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 15 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
-
Page 16: Important Notice
TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2025, Texas Instruments Incorporated...
