EVM User's Guide: TPS568236EVM
TPS568236 Step-Down Converter Evaluation Module
Description
The TPS568236 is a single, D-CAP3
synchronous buck converter requiring a very low
external component count. TPS568236EVM is a
fully assembled and tested circuit for evaluating the
TPS568236 converter. This EVM operates typical 12-
V input, and provides a 5.1-V output at 8-A.
SLUUCX4 – AUGUST 2023
Submit Document Feedback
Features
™
control mode,
•
4.5-V to 18-V input voltage range
•
0.6-V to 5.5-V output voltage range
•
Support 8-A continuous output current
•
Selectable PSM and FCCM mode under light load
•
Fast load transient response
Applications
•
Digital TV, set-top box, gaming consoles
•
Server, storage and networking point-of-load
•
Industrial PC and factory automation applications
•
Distributed power systems with typical 5-V, 12-V,
15-V input

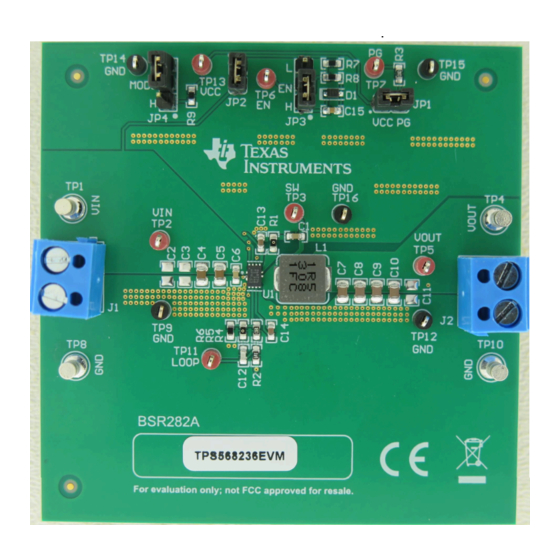

Top View of TPS568236EVM
Copyright © 2023 Texas Instruments Incorporated
TPS568236 Step-Down Converter Evaluation Module
Description
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPS568236
Summary of Contents for Texas Instruments TPS568236
- Page 1 Support 8-A continuous output current fully assembled and tested circuit for evaluating the • Selectable PSM and FCCM mode under light load TPS568236 converter. This EVM operates typical 12- • Fast load transient response V input, and provides a 5.1-V output at 8-A.
-
Page 2: Kit Contents
1 Evaluation Module Overview 1.1 Introduction The TPS568236 evaluation module (EVM) is a single, synchronous buck converter providing 5.1-V at 8-A from a 6-V to 18-V input. This user’s guide describes the TPS568236EVM performance. Table 1-1. Input Voltage and Output Current Summary... -
Page 3: Mode Selection
R4 and R6 for a specific output voltage can be calculated using Equation UPPER LOWER 2.2.2 Mode Selection TPS568236 has a MODE pin that can offer two different options of light load performance, as shown in Table 2-2. Table 2-2. MODE Pin Settings MODE Pin... -
Page 4: Test Setup And Results
The following figures show the TPS568236EVM start-up waveform relative to EN. EN=5V/div VOUT=2V/div PG=5V/div IL=2A/div Figure 3-1. Start-Up Relative to EN, I = 0.1 A (2ms/div) TPS568236 Step-Down Converter Evaluation Module SLUUCX4 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 5 Figure 3-3. Shutdown Relative to EN, I = 0.1 A (2ms/div) EN=5V/div VOUT=2V/div PG=5V/div IL=5A/div Figure 3-4. Shutdown Relative to EN, I = 8 A (2ms/div) SLUUCX4 – AUGUST 2023 TPS568236 Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 6 Figure 3-6. TPS568236EVM Output Voltage Ripple, I = 10 mA, FCCM Mode (1us/div) VOUT=20mV/div (AC coupled) SW=5V/div Figure 3-7. TPS568236EVM Output Voltage Ripple, I = 8 A (1us/div) TPS568236 Step-Down Converter Evaluation Module SLUUCX4 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 7 Hardware Design Files 4 Hardware Design Files 4.1 Schematic The following image shows the schematic for the TPS568236EVM. Figure 4-1. TPS568236EVM Schematic Diagram SLUUCX4 – AUGUST 2023 TPS568236 Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 8: Pcb Layout
VIN, VOUT, and GND. Also on the top layer are connections for the pins of the TPS568236 and a large area filled with ground. Most of the signal traces are also located on the top side. - Page 9 Hardware Design Files Figure 4-4. Inner1 Layer Figure 4-5. Inner2 Layer Figure 4-6. Bottom Layer SLUUCX4 – AUGUST 2023 TPS568236 Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 10: Bill Of Materials
CAP, CERM, 22 μF, 10 V, ±20%, X5R, 0805 GRM21BR61A226ME44L MuRata Unless otherwise noted in the Alternate Part Number or Alternate Manufacturer columns, all parts can be substituted with equivalents. TPS568236 Step-Down Converter Evaluation Module SLUUCX4 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 11 All trademarks are the property of their respective owners. 6 References For related documentation, see the following: Texas Instruments, TPS568236 4.5-V to 18-V Input, 8-A Synchronous Buck Converter data sheet SLUUCX4 – AUGUST 2023 TPS568236 Step-Down Converter Evaluation Module Submit Document Feedback...
