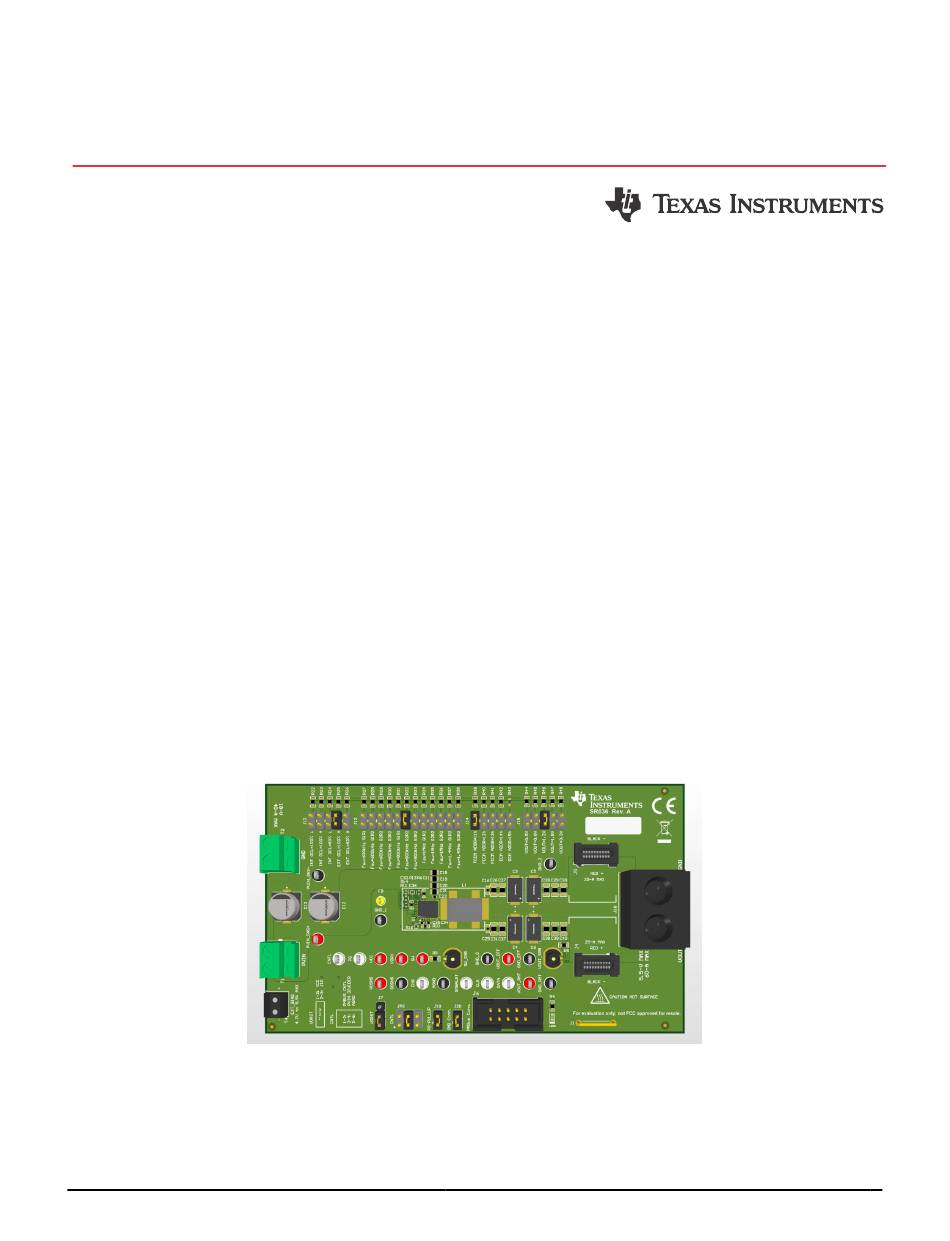

EVM User's Guide: TPS546E25EVM-1PH
TPS546E25EVM-1PH SWIFT
Evaluation Module
Description
The TPS546E25EVM-1PH is a single-phase
buck design using the TPS546E25 device. The
TPS546E25EVM-1PH is designed for a nominal 12V
bus and to produce a regulated 1.2V output at up
to 50A of load current. The TPS546E25EVM-1PH is
designed to demonstrate stacking operation of the
TPS546E25 in a single-phase, low-output voltage
application while providing a number of test points
to evaluate the performance of the devices. The
TPS546E25EVM-1PH can be modified to single-
phase buck converters by changing the components
assembled. See
Tip and Barrel Measurement
more information on single-phase configuration.
Get Started
1. Order the TPS546E25EVM-1PH on ti.com.
2. Download the Fusion GUI software on
FUSION_DIGITAL_POWER_DESIGNER.
3. Download the
TPS546E25
Features
Regulated 1.2V output up to 50A
output current
SLUUCZ3 – JULY 2024
Submit Document Feedback
for
data sheet.
steady-state
DC

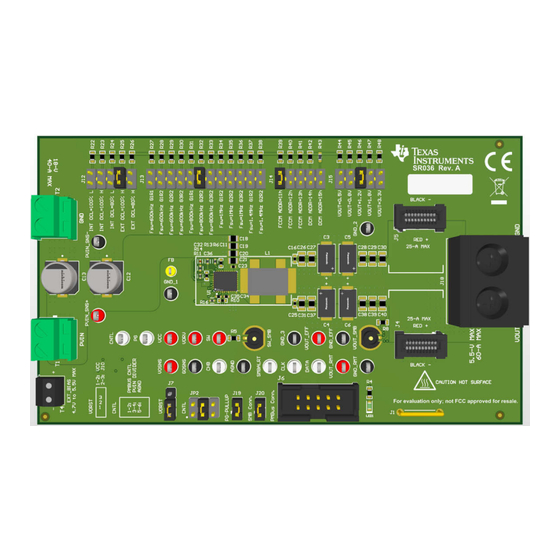

TPS546E25EVM-1PH (Top View)
Copyright © 2024 Texas Instruments Incorporated
Step-Down Converter
The output voltage is marginable and trimmable
using the PMBus interface
– Programmable under-voltage lockout (UVLO),
soft start, and enable through the power
management bus (PMBus) interface
– Programmable overcurrent warning and fault
limits and programmable response to faults via
the PMBus interface
– Programmable overvoltage and undervoltage
warning and fault limits and response to faults
through the PMBus interface
– Programmable turn-on and turn-off delays
Convenient test points for probing critical
waveforms
Applications
Server and cloud-computing point of load (POLs)
Hardware accelerator
Network interface card
TPS546E25EVM-1PH SWIFT
Step-Down Converter Evaluation Module
Description
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SWIFT TPS546E25EVM-1PH and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments SWIFT TPS546E25EVM-1PH

  • Page 1 3. Download the TPS546E25 data sheet. Features • Regulated 1.2V output up to 50A steady-state output current TPS546E25EVM-1PH (Top View) SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 2 The PMBus interface with a 1MHz clock support gives a convenient, standardized digital interface for configuration, as well as telemetry of key parameters including output voltage, output current, and internal TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 3 A communications adapter is required between the EVM and the host computer. This EVM is designed to use TI's USB-to-GPIO or USB-to-GPIO2 adapter. Purchase this adapter at http://www.ti.com/tool/usb-to-gpio2. SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 Connection to VOSNS pin and BODE-CH1 GND_EFF T-H Loop GND_EFF Kelvin connection to GND for efficiency measurement Table 2-2 lists the EVM jumpers. TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 1. Connect external supply to T4 and set external supply to between 4.5V to 5.5V. 2. Power up the external supply to overdrive VDRV, then power up the PVIN . SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 EVM. Be aware that the computer is referenced to the battery potential of the EVM. TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 TPS546E25 family devices to illustrate the use of the FUSION GUI with the TPS546E25EVM-1PH when those functions are similar. Figure 3-1. Select Device Scanning Mode SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 TPS546E25 is configured to CONTROL Pin Only. This pin functions as the EN/UVLO pin with resistors. Figure 3-2. Configure – ON_OFF_CONFIG TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 The sources of the SMBALERT are found and configured on the SMBALERT # Mask tab (Figure 3-3). Figure 3-3. Configure – SMBALERT # Mask SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 To set up the configurable parameter, see the All Config tab (Figure 3-4), which also shows other details like Hex encoding. Figure 3-4. Configure – All Config TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 3-5) to aid in selecting external pin strapping resistors used to program some of the PMBus commands at power-up. Figure 3-5. Configure – Pin Strapping SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 Control pin activation and OPERATION command • Margin control • Clear Fault: Selecting Clear Faults clears any prior fault flags Figure 3-6. Monitor Screen TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 Selecting the Status screen from the lower left corner (Figure 3-7) shows the status of the device. Figure 3-7. Status Screen SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 This pair of test points are connected to VOUT and GND near the output inductor for U1 and U1 PGND . Output voltage measurement GND_EFF GND_EFF point for PGND TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 12Vin, 1.2Vout, 800kHz, FCCM Output Current (A) Figure 4-1. Efficiency, V Measured Using VO_EFF, GND_EFF, PVIN_SNS, and PGND_SNS Test Points SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 5000 10000 20000 50000 100000200000 1000000 Frequency (Hz) Figure 4-3. Bode Plot at 1.2V Output at 12V Input, 50A Load, 800kHz TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 0A and 25A load. Figure 4-4. Output Ripple With 0A Load Figure 4-5. Output Ripple With 25A Load SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18 Figure 4-6. Start-Up From Control, 0A Load 4.2.6 Control Off Figure 4-7 illustrates the control off waveform at 0A. Figure 4-7. Shutdown From Control, 0A Load TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19 4.2.8 Thermal Image Figure 4-9 shows the TPS546E25EVM-1PH thermal image. = 12V, V = 1.2V, I = 50A Figure 4-9. Thermal Image SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 20 9-10: Primary Device - 1 Phase Stack, DCM, Common PMB_ADDR = 15h 9-10: VOUT = 3.3V, VOSL = 0.125, NRSA = 8, VOUT_MIN = 2V, VOUT_MAX = 5.75V SR036_Hardware.SchDoc TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 21 Figure 5-4. TPS546E25EVM-1PH Internal Layer 1 Figure 5-5. TPS546E25EVM-1PH Internal Layer 2 (Top View) (Top View) Figure 5-6. TPS546E25EVM-1PH Bottom Copper Layer (Top View) SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™ Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 22 Terminal Block, 60A, 10.16mm Pitch, 2-Pos, TH 21.8x30x19mm 399100102 Molex J19, J20 Header, 2.54mm, 2x1, Gold, TH Header, 2.54mm, 2x1, TH TSW-102-08-G-S Samtec TPS546E25EVM-1PH SWIFT Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 23 RES, 174 k, 1%, 0.1 W, 0603 RC0603FR-07174KL Yageo 4.02k 4.02 kOhms ±1% 0.1W, 1/10W Chip Resistor 0603 RC0603FR-074K02L Yageo (1608 Metric) Moisture Resistant Thick Film SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 24 Yageo 100ppm/°C RES Thick Film, 0Ω, 0.2W, 0402 CRCW04020000Z0EDHP Vishay Dale Unless otherwise noted, all parts can be substituted with equivalents. TPS546E25EVM-1PH SWIFT Step-Down Converter Evaluation Module SLUUCZ3 – JULY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 25 Additional Information 6 Additional Information Trademarks SWIFT ™ is a trademark of Texas Instruments. PMBus ® is a registered trademark of System Management Interface Forum. All trademarks are the property of their respective owners. SLUUCZ3 – JULY 2024 TPS546E25EVM-1PH SWIFT ™...
  • Page 26 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 27 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 28 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 29 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 30 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 31 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
  • Page 32 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments TPS546E25EVM-1PH...
