EVM User's Guide: TPS544E27EVM

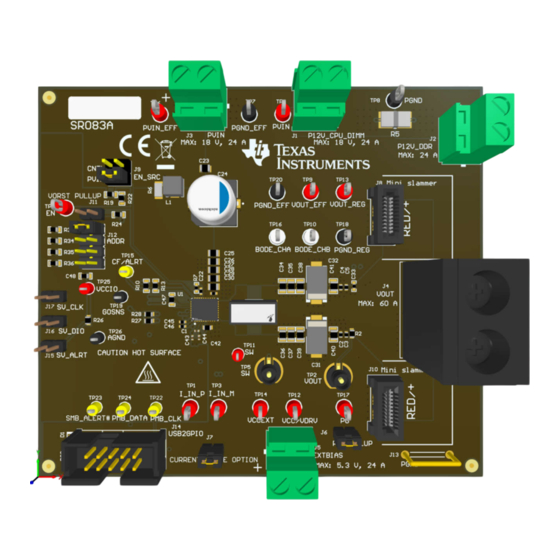

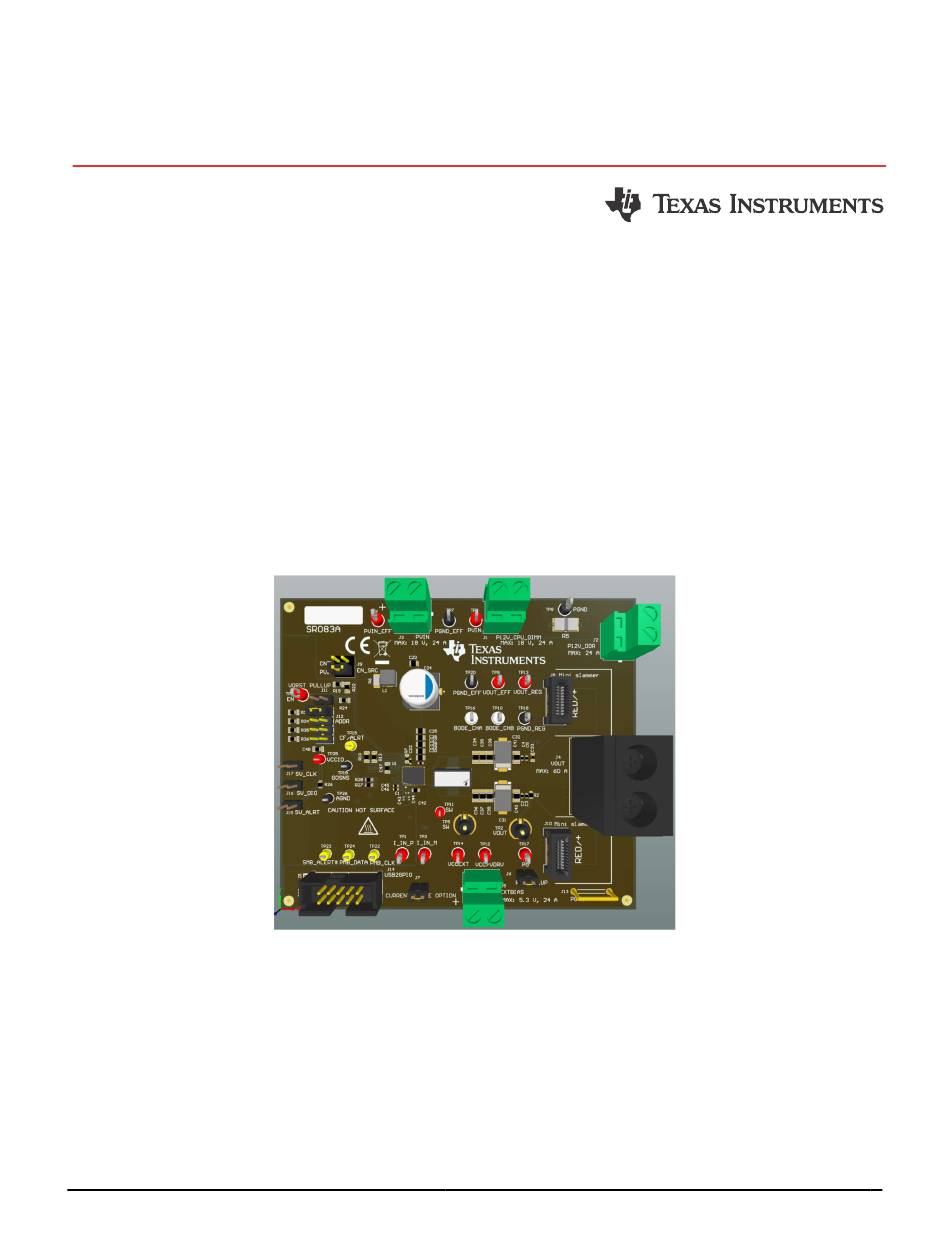

TPS544E27EVM 4V to 18V, 40A Step-Down Converter
Evaluation Module
Description
The TPS544E27EVM is an evaluation module for the
TPS544E27 DC/DC synchronous buck converter with
a digital PMBus
®
and a series voltage identification
(SVID) interface to accommodate Intel
The evaluation module accepts an 8V to 16V input
and can deliver an output current up to 40A. The
converter uses D-CAP+
™
transient response, using less output capacitance to
save board space.
Get Started
1. Order the TPS544E27EVM on ti.com.
2. Download the Fusion GUI software on
FUSION_DIGITAL_POWER_DESIGNER.
SLUUD52 – AUGUST 2024
Submit Document Feedback
®
processors.
control scheme for fast
EVM User Interface
Copyright © 2024 Texas Instruments Incorporated
Features
•
Evaluate TPS544E27 device using the provided
test points on the EVM
•
Evaluate TPS544E27 device configuration and
monitoring using Fusion GUI
Applications
•
Sever and cloud-computing POLs
•
Hardware accelerator
•
Network interface card
•
Broadband,
networking
•
Wireless infrastructure
TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module
Description
and
optical
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS544E27EVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments TPS544E27EVM

Summary of Contents for Texas Instruments TPS544E27EVM

  • Page 1 Wireless infrastructure 1. Order the TPS544E27EVM on ti.com. 2. Download the Fusion GUI software on FUSION_DIGITAL_POWER_DESIGNER. EVM User Interface SLUUD52 – AUGUST 2024 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...

  • Page 2: Kit Contents

    1 Evaluation Module Overview 1.1 Introduction The TPS544E27EVM is a configurable, single output, buck converter module. The TPS544E27EVM uses a nominal 12V bus to produce a regulated 1V output up to 40A of load current. This user's guide describes the characteristics, operation and using of TPS544E27EVM.

  • Page 3: Specifications

    TPS544E27 device in a buck design. TPS544E27 is designed from a nominal 12V bus to produce a regulated 1V output up to 40A of load current. The TPS544E27EVM provides a number of test points to evaluate the performance of device.
  • Page 4 1 feet (1/2 foot output, 1/2 foot return). A thicker wire gauge can be required to minimize the voltage drop the wires. TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module SLUUD52 – AUGUST 2024 Submit Document Feedback...
  • Page 5 Shunt short pin1 and pin2 to set PMBus address 0x7Bh All others Jumper No shunt short Table 2-3 lists the EVM connector functions. SLUUD52 – AUGUST 2024 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 2-pin header for SVID ALERT# line SV_DIO 2-pin header for SVID bi-directional data line SV_CLK 2-pin header for SVID CLK line TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module SLUUD52 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 VOUT– (GND) 2.4 Control Loop Gain and Phase Measurement The TPS544E27EVM includes a R11 10Ω series resistor in the feedback loop for V . The resistor is accessible at the test points TP16 (BODE_CHA) and TP10 (VOUT/BODE_CHB) for loop response analysis.
  • Page 8 EN signal goes high. 2.6 Input Current Measurement TPS544E27EVM default setting is that input current measurement feature is not used with IN_IN_P and I_IN_M shorted together then shorts to PVIN through J7 shunt on. To test I_IN_P and I_IN_M feature, remove the shunt from J7, connect pin2 of J2 (P12V_DDR) to pin2 of J3 (PVIN) with a short 10-AWG wires or better.
  • Page 9 Open the PMBus GUI shortcut on the desktop directly as shown in the following figure. Figure 3-1. PMBus® GUI SLUUD52 – AUGUST 2024 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...

  • Page 10: Monitor Page

    Control pin activation and OPERATION command • Margin control • Clear Fault: selecting Clear Faults clears any prior fault flags TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module SLUUD52 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...

  • Page 11: Status Page

    Selecting the status screen from the lower left corner, shown in the following figure, shows the status of the device. Figure 3-4. Status Screen SLUUD52 – AUGUST 2024 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 4.1 Performance Data and Typical Characteristics Curves Figure 4-1 through Figure 4-28 present typical performance curves for TPS544E27EVM. The input voltage is 12V, output voltage is 1V, unless otherwise noted. Figure 4-1. Efficiency, FCCM, Internal LDO Figure 4-2. Power Dissipation, FCCM, Internal LDO Figure 4-3.
  • Page 13 Figure 4-10. Load Regulation, FCCM, External 5V Bias Figure 4-11. Load Regulation, DCM, Internal VCC Figure 4-12. Load Regulation, DCM, External 5V Bias SLUUD52 – AUGUST 2024 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 Figure 4-17. Output Voltage Ripple, FCCM, 800kHz, Figure 4-18. Output Voltage Ripple, DCM, 800kHz, 0.5A Load 0.5A Load TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module SLUUD52 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 FCCM, Internal LDO, 40A Load, No Airflow, Soak FCCM, External 5V Bias, 40A Load, no Airflow, 10 Minutes Soak 10 Minutes SLUUD52 – AUGUST 2024 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 FCCM, Internal LDO, 40A Load, No Airflow, Soak FCCM, External 5V Bias, 40A Load, No Airflow, 10 Minutes Soak 10 Minutes TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module SLUUD52 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 J 17 P GND S V_CLK S VID_CLK_R AGND S V_CLK P GND P GND Figure 5-1. TPS544E27EVM Schematic SLUUD52 – AUGUST 2024 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...

  • Page 18: Pcb Layout

    Figure 5-4. TPS544E27EVM Top Layer Figure 5-5. TPS544E27EVM Layer 2 Figure 5-6. TPS544E27EVM Layer 3 Figure 5-7. TPS544E27EVM Layer 4 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module SLUUD52 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19 Hardware Design Files Figure 5-8. TPS544E27EVM Layer 5 Figure 5-9. TPS544E27EVM Bottom Layer SLUUD52 – AUGUST 2024 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...

  • Page 20: Bill Of Materials

    Header, 2.54mm, 4x2, Gold, TH TSW-104-08-L-D Samtec 4x2, TH Shorting Plug, 1mm Uninsulated Shorting Plug, 10.16mm spacing, D3082-05 Harwin 10.16mm spacing, TH TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module SLUUD52 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 21 5004 TP23, TP24 Testpoint0603 Electronics Black Miniature Keystone TP19, TP26 Test Point, Miniature, Black, TH 5001 Testpoint Electronics SLUUD52 – AUGUST 2024 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 22 Part Number Manufacturer 4V to 18V Input, 40A Buck Texas Converter with SVID and PMBus, WQFN-FCRLF37 TPS544E27RXXR Instruments WQFN-FCRLF37 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module SLUUD52 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...

  • Page 23: Additional Information

    System Management Interface Forum, Inc. Intel ® is a registered trademark of Intel. All trademarks are the property of their respective owners. SLUUD52 – AUGUST 2024 TPS544E27EVM 4V to 18V, 40A Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 24 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 25 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 26 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 27 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 28 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 29 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
