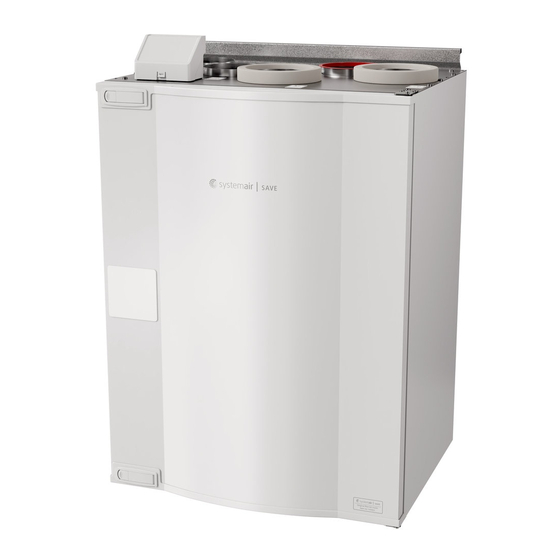

SAVE VTR 250/B
GB
User Manual
Document in original language | 254495 · v01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAVE VTR 250/B and is the answer not in the manual?

Questions and answers

Related Manuals for SystemAir SAVE VTR 250/B

Summary of Contents for SystemAir SAVE VTR 250/B

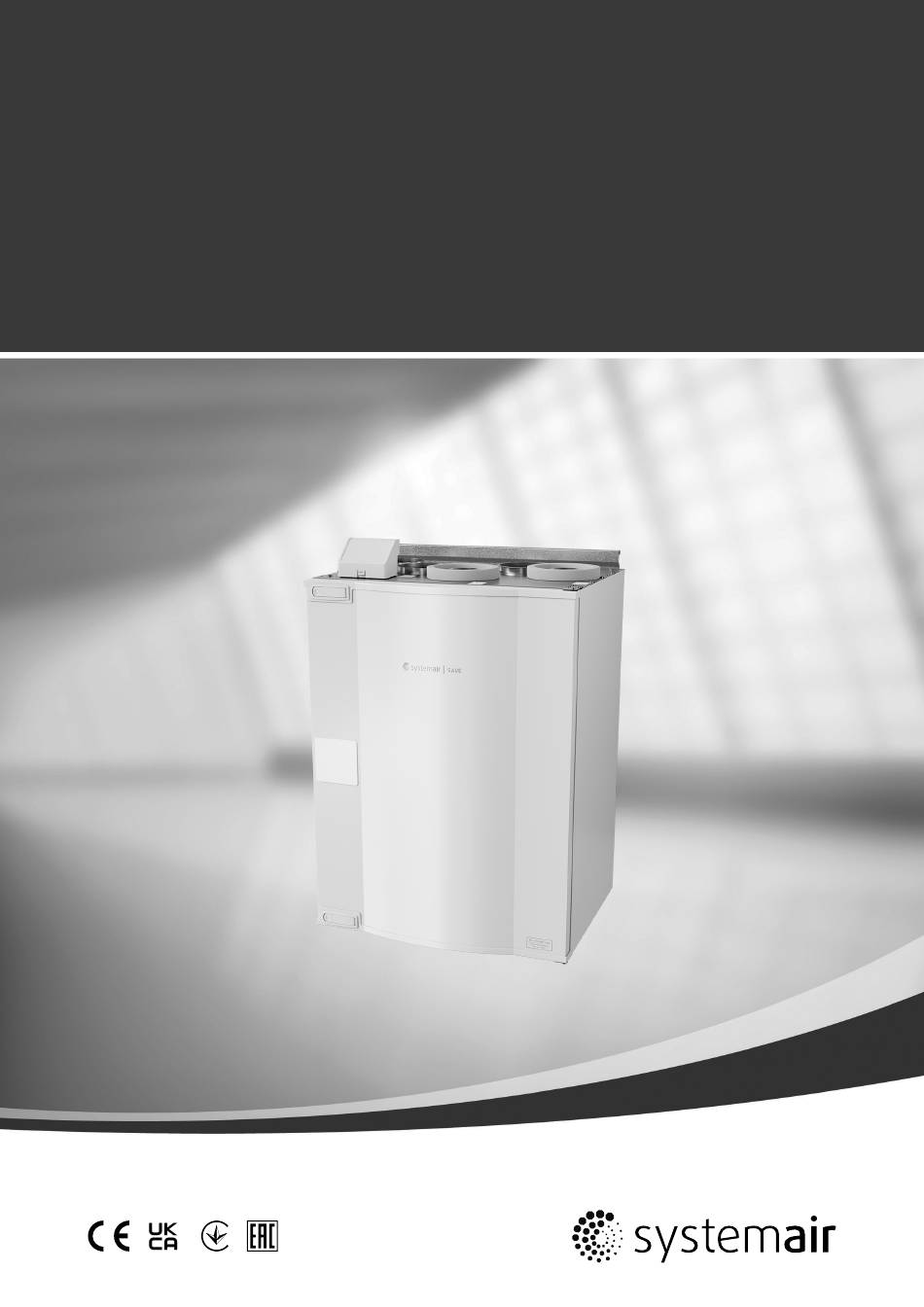

  • Page 1 SAVE VTR 250/B User Manual Document in original language | 254495 · v01...
  • Page 2 © Copyright Systemair UAB All rights reserved E&OE Systemair UAB reserves the rights to change their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. 254495 | v01...

  • Page 3: Table Of Contents

    Contents Overview ............1 4.7.2 Checking the outdoor air intake ........14 General Description ........1 4.7.3 Checking the roof cowl (if Warranty ..........1 fitted)........14 Type label..........1 4.7.4 Checking and cleaning the Warnings............1 duct system ......14 Operation ............2 Troubleshooting..........14 SAVE LIGHT control panel ......2 Electrical data ..........

  • Page 5: Overview

    For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found next to the external connections and inside of the unit.

  • Page 6: Operation

    | Operation Warning • This product is not intended to be used by children or people with reduced physical or mental ability or lack of experience and knowledge, if no instruction concerning the use has been given by the person responsible for their safety or that this person is supervising the operation.

  • Page 7: To Cancel Sleep Mode

    Operation | Refresh Auto — flashing High Normal (Minimum) (Maximum) slowly Automatic The fan can be Fan speed – 25% Fan speed – 45% Fan speed – 70% Sets speed of airflow control. set to Off by both supply and activating extract air fans Available only...

  • Page 8: Common Symbols

    | Operation SAVE CONNECT solution (mobile application and Internet access module) has a similar menu structure and functionality as SAVE TOUCH control panel, so this section can also be used as a guide for the mobile application. 3.2.1 Common symbols The following selection symbols are common and are present in most menu pages: On and Off slider to activate or Back button to return to a previous...

  • Page 9: Quick Information Screen

    Operation | Touch HELP button to know more about the alarm. To clear the alarm, touch ACKNOWLEDGE button. Note: The underlying cause of the alarm must be resolved first otherwise the alarm will appear again. If the problem continues contact your installation company or place of purchase. 3.2.4 Quick Information screen Quick information screen can be shown instead of a sleep...
  • Page 10 | Operation Duration have to be set for temporary user modes. SAVE VTR 250/B will return to its previous working mode after the set time expires. Note: AUTO mode is available for selection only if the optional Demand Control, Week Schedule and/or external fan control functions are activated.

  • Page 11: To Change The Temperature

    Operation | Icon Text Description Sets speed of both supply and extract air fans to Maximum levels to replace Refresh indoor air with a fresh air in a short period of time. Set duration in minutes. Sets speed of supply air fan to High level and extract air fan to Low level to increase air pressure within the apartment for better smoke extraction through Fireplace the chimney.

  • Page 12: To Set A Week Schedule

    | Operation 3.2.8 To set a week schedule While in home screen, touch menu icon and select Week Schedule. The menu is locked by default. Enter a password (default password is 1111). Touch icon at the bottom left corner of the screen to add a new schedule or press EDIT button to modify already added schedule.

  • Page 13: Maintenance

    1. It is recommended to do this every 5 years and is normally carried out by authorized companies specialized in this area. • Use original spare parts from Systemair only. • Scan the code on the type label to find a spare part list.

  • Page 14: To Reset The Filter Change Time

    | Maintenance 1 Stop the unit by disconnecting the mains. 2 Open the front hatch. See chapter 4.2. 3 To remove the supply air filter loosen the knobs to remove the filter lock (image shows when filter is hidden). Only one of the filter locks needs to be removed.

  • Page 15: To Select A Different Filter Kit

    Maintenance | 4.3.2 To select a different filter kit Standard filters are designed for good outdoor air quality. It is possible to se- lect and order filter kits for poorer air quality environment. To change filter kit type 1. Touch Select different filter kit button in the alarm menu. Alternatively, go to Filter menu (3.2.2 Home screen overview, page 4, pos.

  • Page 16: To Clean Fans

    | Maintenance To clean fans Danger • Make sure that the mains supply to the unit is disconnected before performing any maintenance or electrical work! Warning • Risk of injury due to rotating parts that have not come to a complete standstill after mains supply to the unit have been disconnected.

  • Page 17: Duct System Maintenance

    Maintenance | 4.6.1.1 Heat exchanger mounted 1. Stop the unit by disconnecting the mains. 2. Open the front hatch. 3. Remove the broken drive belt. 4. Use tape to attach the drive belt to the rotating heat exchanger, and rotate the exchanger by hand to get hold of the drive belt.

  • Page 18: Checking The Outdoor Air Intake

    | Troubleshooting 4.7.2 Checking the outdoor air intake Leaves and pollution could plug up the air intake grille and reduce the capacity. Check the air intake grille, and clean as necessary. It is recommended to do this at least twice a year. 4.7.3 Checking the roof cowl (if fitted) The roof cowl (if fitted) connected to the exhaust air duct needs to be checked at least twice a year and cleaned if...

  • Page 19: Electrical Data

    3. Check that the anti vibration lists are fitted to the mounting bracket and to the back of the unit. 4. Check that the rotor belt is not slipping if the unit has rotating heat exchanger. Electrical data SAVE VTR 250/B come with 500 W or 1000 W installed re-heater battery. 500 W 1000 W...
  • Page 20 Systemair UAB Linų st. 101 LT–20174 Ukmergė, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.com...
