SAVE VSR 150/B
A Wall Mounting Kit
Installation instructions
209386-EN_GB
Document in original language
2014-11-04 A001

Advertisement

loading
Need help?

Need help?

Do you have a question about the SAVE VSR 150/B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SystemAir SAVE VSR 150/B

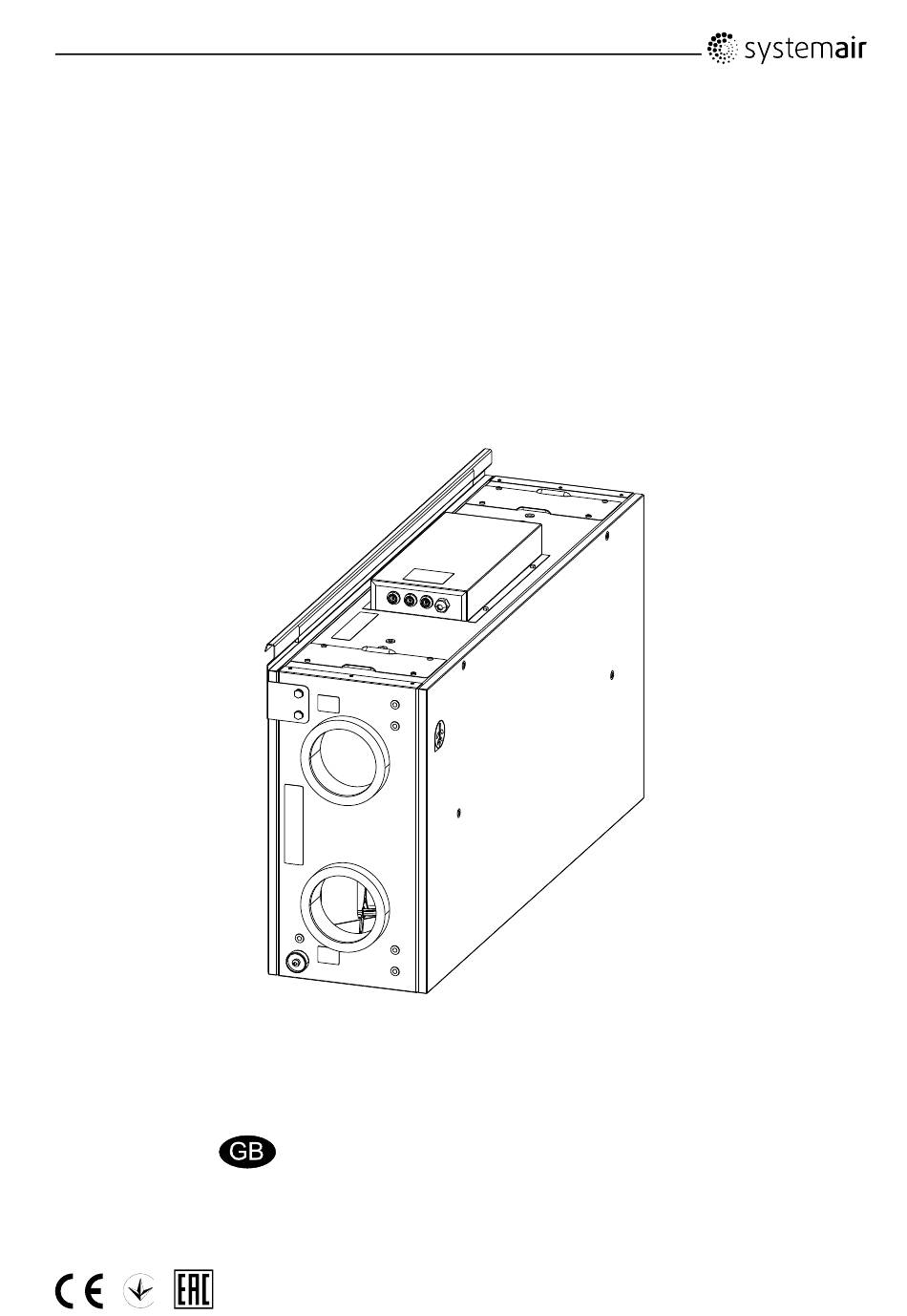

  • Page 1 SAVE VSR 150/B A Wall Mounting Kit Installation instructions 209386-EN_GB Document in original language 2014-11-04 A001...
  • Page 2 Contents 1 Warnings........................... 1 2 Installation procedure ......................... 1...
  • Page 3: Installation Procedure

    • Consider the unit weight when mounting! Fit the wall bracket (pos. 1) with the anti vibration pad (pos. 2) to the wall with enclosed screws. Use appropriate holes to screw the bracket firmly to the wall. SAVE VSR 150/B Installation instructions Systemair AB...
  • Page 4 Attach the mounting bracket to the unit (pos. 1). Tighten previously removed door screws (pos. 2). Then tighten four screws (pos. 3) with washers (pos. 4) that were supplied to secure the mounting bracket in place. SAVE VSR 150/B Installation instructions Systemair AB...
  • Page 5 Make sure the unit is positioned correctly with the electrical connection box at the top. Incorrect position with connection box at the Correct position with connection box at the top bottom Add the anti vibration strip (pos. 1) on the lower half of the unit backside. SAVE VSR 150/B Installation instructions Systemair AB 209386...
  • Page 6 Lift the unit and position it over the mounting bracket and then slide the unit downward to set it in place (pos. 1). Note: Assure that the unit is completely vertical once mounted on the wall. SAVE VSR 150/B Installation instructions Systemair AB 209386...
  • Page 7 SAVE VSR 150/B Installation instructions Systemair AB 209386...
  • Page 8 Systemair AB reserves the right to make changes and improvements to the contents of this manual without prior notice. Systemair AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 209386...
