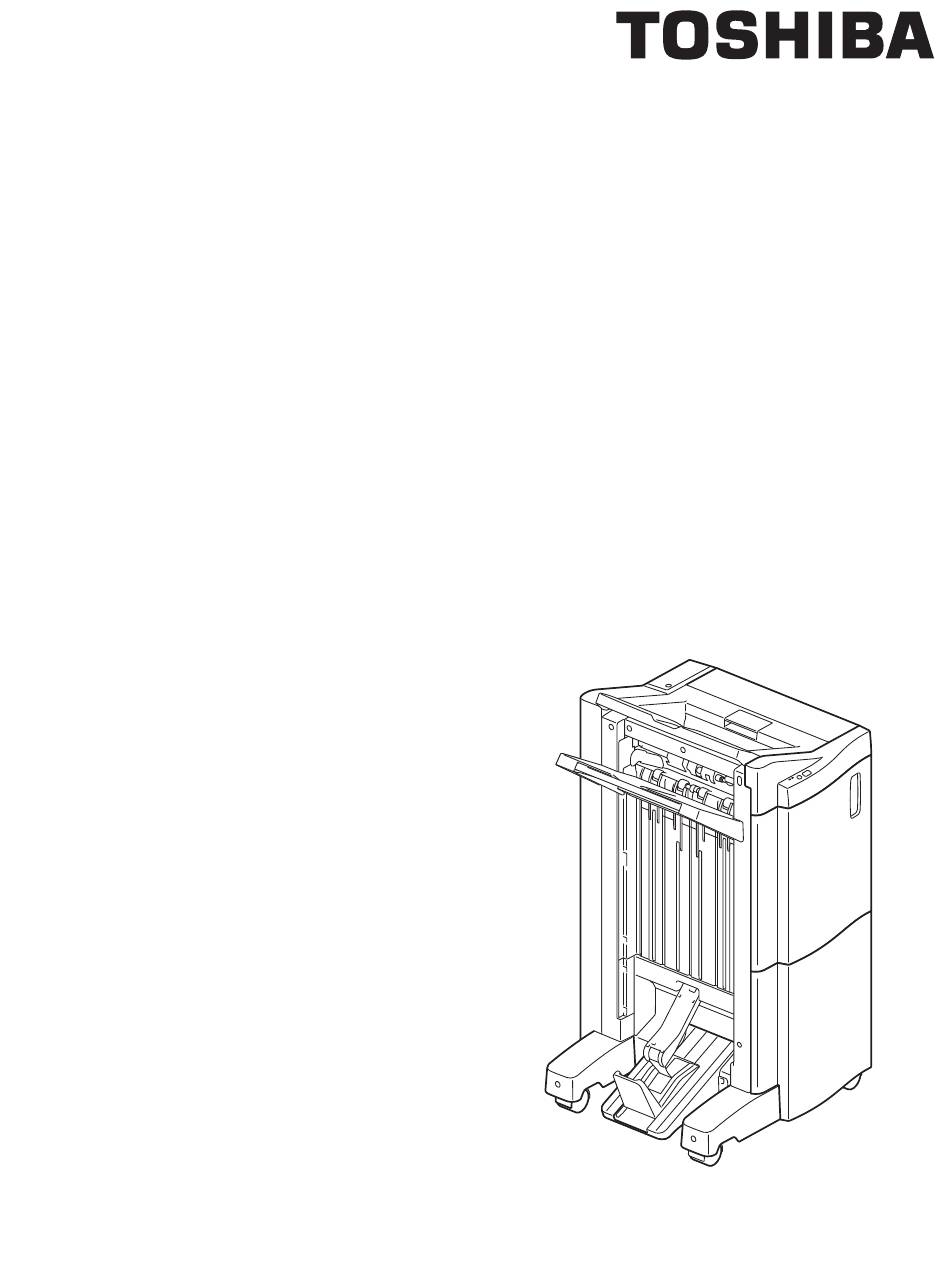

Page 1 SERVICE MANUAL FINISHER MJ-1110 Model: MJ-1110 Publish Date: March, 2016 File No. SME150029C0 R150921R5203-TTEC Ver03 F_2018-06...
Page 2 Other company names and product names in this manual are the trademarks of their respective companies. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved Under the copyright laws, this manual cannot be reproduced in any form without prior written permission...
Page 3 General Precautions for Installation/Servicing/Maintenance for this equipment The installation and service shall be done by a qualified service technician. 1. When installing this equipment to the MFP, be sure to follow the instructions described in the “Unpacking/Set-Up Procedure for this equipment” booklet which comes with each unit of this equipment.
Page 4 15.During servicing or maintenance work, be sure to check the rating plate and other cautionary labels (if any) to see if they are clean and firmly fixed. If not, take appropriate actions. [1] Cautionary label for the paper exit section [2] Rating plate 16.The PC board must be stored in antistatic envelope and handled carefully using a wristband, because the ICs on it may be damaged due to static electricity.
Page 5 21.Unplug the power cable and clean the area around the prongs of the plug and socket outlet once a year or more. A fire may occur when dust lies on this area. 22.When you remove the finisher and then lift the equipment, do not hold its studs. This could cause injury since the studs may break off and make the equipment fall.
Page 7: Table Of Contents
Paper jam in saddle stitcher section ..............6-15 6.2.4 Paper jam in puncher unit ................6-18 6.2.5 Other paper jam ....................6-19 6.2.6 Finisher related service call ................6-31 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 CONTENTS...
Page 8 Maintenance and Inspection Points .................. 7-1 Firmware Update....................... 7-8 8. ELECTRIC CIRCUIT ..................... 8-1 Harness Diagram ......................8-1 Circuit Diagram ......................... 8-4 PC board ......................... 8-24 REVISION RECORD....................... 1 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved CONTENTS...
Page 9: Specifications, Accessory And Consumables
DC24V+10/-5% and DC5.1V±4% supplied from the main equipment.. • Power Consumption DC24V Average 3.2A or less (Peak:10.0A or less) DC5.1V 1.0A or less © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 SPECIFICATIONS, ACCESSORY AND CONSUMABLES 1 - 1...
Page 10: Finisher Section
“Full” status is defined as when the number of paper whose maximum stacking height is 350 mm has reached 3,000 or when the number of paper in other sizes has reached 1,500. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved SPECIFICATIONS, ACCESSORY AND CONSUMABLES 1 - 2...
Page 11 1,000. Reused Paper • Stapling Position Front single position Rear single position 4.5 ±3.0 mm 4.5 ±3.0 mm Fig. 1-1 Fig. 1-2 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 SPECIFICATIONS, ACCESSORY AND CONSUMABLES 1 - 3...
Page 12 * Two sheets of cover sheet (200 - 256 g/m ) can be included. • Staple Loading exclusive cartridge (5,000 staples) • Manual Stapling available MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved SPECIFICATIONS, ACCESSORY AND CONSUMABLES 1 - 4...
Page 13: Saddle Stitch Section
Number of sheets Reused Paper 60 - 90g/m Paper 91 - 105g/m Paper Under 5 sheets/books Under 10 sheets/books Under 15 sheets/books © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 SPECIFICATIONS, ACCESSORY AND CONSUMABLES 1 - 5...
Page 14: Accessory
(STAPLE-2400: 5,000staples X 3 cartridges /box) • Staple cartridge for the saddle stitch section exclusive cartridge (STAPLE-3100: 2,000staples X 4 cartridges /box) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved SPECIFICATIONS, ACCESSORY AND CONSUMABLES 1 - 6...
Page 15: Rating Label (Comparison Of Mj-1110 And Mj-1110-B)
Black dot mark and “-B” applied The 2nd digit of the serial number differs Notes Purchasing this is not possible after June, 2019. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 SPECIFICATIONS, ACCESSORY AND CONSUMABLES 1 - 7...
Page 17: General Description
Stationary Tray Sub Tray Movable Tray Rght upper cover Relay Guide Rear cover Metal shield plate Board access cover Saddle access cover Fig. 2-1 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 GENERAL DESCRIPTION 2 - 1...
Page 18: Sectional View
Movable tray shift motor unit Switchback unit Stacker unit Paper holding unit Side alignment unit Saddle stapler unit Additional folding unit Folding drive unit MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved GENERAL DESCRIPTION 2 - 2...
Page 19 Stack transport roller-2 Stack transport roller-1 Gate flap Entrance roller Exit roller Entrance motor Stack transport motor CLT2 Paper exit guide clutch SOL4 Gate solenoid © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 GENERAL DESCRIPTION 2 - 3...
Page 20 Feeding roller Junction roller Paddle Buffer tray guide motor Paddle motor Transport motor Exit motor Movable tray shift motor SOL5 Transport path switching solenoid MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved GENERAL DESCRIPTION 2 - 4...
Page 21 Folding roller Saddle exit roller Folding blade cam Folding blade Assisting roller Ejecting roller Side alignment motor Additional folding motor SOL6 Assisting roller solenoid © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 GENERAL DESCRIPTION 2 - 5...
Page 22 Transport roller Paper holding damper Paper holding cam Stacker carrier Stacker motor saddle transport motor Folding motor CLT3 Folding blade clutch CLT4 Paper holding clutch MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved GENERAL DESCRIPTION 2 - 6...
Page 25: Symbols And Functions Of Various Components
P.2-8 "Fig. 2-8" Additional folding motor Adds another fold on paper already 24-4 P.2-8 "Fig. 2-8" folded. Catching motor Catching the paper 6-19 P.2-8 "Fig. 2-8" © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 GENERAL DESCRIPTION 2 - 9...
Page 26: Sensors And Switches
4-15 P.2-7 "Fig. 2-7" sensor Movable tray paper-full Detects the upper surface of paper set 4-15 P.2-7 "Fig. 2-7" sensor on the movable tray. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved GENERAL DESCRIPTION 2 - 10...
Page 27 Front saddle stapler cartridge Detects the presence/absence of the 22-5 P.2-8 "Fig. 2-8" sensor stapler cartridge in the front stapler. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 GENERAL DESCRIPTION 2 - 11...
Page 28 Controls the Finisher 3-37 P.2-7 "Fig. 2-7" (FIN board) Saddle control PC board Controls the Saddle Stitch Finisher. 18-49 P.2-7 "Fig. 2-7" (SDL board) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved GENERAL DESCRIPTION 2 - 12...
Page 29: Diagram Of Signal Blocks
Catching home position sensor ( S52 ) Front cover switch (SW1) Power Stationary tray opening/closing switch (SW2) control Stapler Interference switch (SW3) circuit DC24V Fig. 2-9 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 GENERAL DESCRIPTION 2 - 13...
Page 30 Front saddle staple top position sensor (S47) Rear saddle staple top position sensor (S48) Front saddle staple cartridge sensor (S49) Rear saddle staple cartridge sensor (S50) Fig. 2-10 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved GENERAL DESCRIPTION 2 - 14...
Page 33: Description Of Operations
A stack mode available in the saddle stitch section is the center-binding mode which binds a stack of paper at its center by stapling at two positions and then folds in half again to exit it to the saddle tray. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110...
Page 34 Paper is aligned and stapled (only when in stapling stack mode) , and then the bundled paper is output to the movable tray. Movable tray Buffer tray Junction box Finishing tray Stapler unit Fig. 3-2 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 2...
Page 35 The paper is exited to the saddle tray. Junction box Side alignment Unit Stapler unit Fold unit EFS unit Saddle tray Stacker Fig. 3-3 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DESCRIPTION OF OPERATIONS 3 - 3...
Page 36 The paper is exited to the saddle tray. Junction box Side alignment Unit Stapler unit Fold unit EFS unit Saddle tray Stacker Fig. 3-4 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 4...
Page 37: Junction Box
The feeding roller and the junction roller are driven by the entrance motor (M1) of the Finisher section. Transport path switching solenoid Entrance motor Flapper Entrance motor Feeding roller Feeding sensor Junction roller Junction box paper detection sensor Fig. 3-5 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DESCRIPTION OF OPERATIONS 3 - 5...
Page 38: Paper Exit To The Stationary Tray
The paper transport is detected by the entrance sensor (S1). Gate flap Entrance sensor Gate solenoid Entrance roller Entrance motor Fig. 3-6 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 6...
Page 39 The stationary tray paper-full sensor (S18) detects the overload of paper on the stationary tray. Stationary tray roller Stationary tray paper-full sensor Entrance sensor Exit motor Fig. 3-7 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DESCRIPTION OF OPERATIONS 3 - 7...
Page 40: Paper Exit To The Movable Tray
Buffer roller lift solenoid Buffer roller Buffer roller Buffer tray Buffer tray home position sensor Catching motor Buffer tray Catching pad Fig. 3-8 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 8...
Page 41 Buffer tray Buffer roller guide motor Buffer roller lift solenoid Buffer roller Assist guide motor Buffer tray Assist guide Buffer tray Fig. 3-9 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DESCRIPTION OF OPERATIONS 3 - 9...
Page 42 The home position of the paddles is detected by the paddle home position sensor (S3). Stack transport roller-2 Paddle motor Finishing tray paper Paddle home position sensor detection sensor Stack transport roller-1 Transport motor Fig. 3-10 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 10...
Page 43 ON to prevent the stapler from interfering with other mechanical sections in the equipment. Stapler interference switch Stapler interference sensor Stapler unit shift motor Stapler unit home position sensor Fig. 3-12 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DESCRIPTION OF OPERATIONS 3 - 11...
Page 44 Paper exit guide clutch Stack transport roller-2 Stack transport roller-1 Paper exit guide stack transport motor Stack exit belt home position sensor Fig. 3-13 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 12...
Page 46 * ON: The sensor signal is interrupted by the rib of the sensor rail. OFF: The sensor signal is not interrupted by the rib of the sensor rail. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 14...
Page 47 Movable tray paper-full sensor Movable tray shift motor Movable tray position-A sensor Movable tray Movable tray position-B sensor position-C sensor Fig. 3-15 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DESCRIPTION OF OPERATIONS 3 - 15...
Page 48: Operation In The Saddle Stitch Section
Assisting roller Assisting roller solenoid Ejecting roller Ejecting roller Ejecting roller sensor sensor Assisting roller Assisting roller solenoid Ejecting roller Fig. 3-16 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 16...
Page 49 The home position of the jog is detected by the side alignment home position sensor (S36). Side alignment home position sensor Side alignment motor Fig. 3-18 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DESCRIPTION OF OPERATIONS 3 - 17...
Page 50 [E] Stapling Stacks of paper aligned and fixed at the stapling position are stapled with two stapler units on the front and rear sides. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 18...
Page 51 Folding motor encoder sensor Folding motor Folding blade clutch Folding blade cam Folding blade Folding blade cam Folding blade home position sensor Fig. 3-20 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DESCRIPTION OF OPERATIONS 3 - 19...
Page 52 After this, the stack of paper is folded as it passes the folding roller driven by the folding motor (M17). Folding motor encoder sensor Folding motor Folding blade clutch Exit transport sensor Folding roller Fig. 3-21 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 20...
Page 53 Exit transport sensor home position sensor Additional folding carrier Additional folding carrier roller Additional folding Additional motor encoder sensor folding motor Fig. 3-22 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DESCRIPTION OF OPERATIONS 3 - 21...
Page 54 The presence of paper on the saddle tray is detected by the saddle tray paper detection sensor (S32). Folding motor Exit sensor Saddle exit roller Folding roller Saddle tray paper Saddle tray detection sensor Fig. 3-23 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 22...
Page 55: Disassembly And Installation
Before installing the stationary tray, adjust the installing positions of the 4 pins [5] of the buffer unit-1 [4] to the center position. [ 4 ] [ 5 ] Fig. 4-2 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 1...
Page 56 ON, "Movable tray paper-full detection error" (CB31) will occur. The movable tray [1] must be moved lower than the sensor [2]. Fig. 4-5 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 2...
Page 57 When installing, hang the 2 hooks of the saddle tray [3] on the hole of the main unit. [ 3 ] Fig. 4-8 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 3...
Page 58 [E] Front cover / Front upper cover / Front lower cover [E-1] Front upper cover Remove 1 screw on the upper side of the front rail cover [1]. [ 1 ] Fig. 4-11 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 4...
Page 59 Remove 1 screw, and then take off the cover lock bracket [3]. [ 1 ] [ 2 ] [ 3 ] Fig. 4-14 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 5...
Page 60 Saddle access cover Remove 1 screw, and then take off the saddle access cover [1] by sliding it downward. [ 1 ] Fig. 4-17 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 6...
Page 61 Remove 1 screw, and then take off the blind cover [1]. Fig. 4-19 Remove 2 screws and take off the guide feed plate [2]. Fig. 4-20 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 7...
Page 62 Remove 4 screws. While sliding the upper side of the rear rail cover [2] toward you, take off the left upper cover [1]. Fig. 4-22 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 8...
Page 63 After the front and rear rail covers were installed, check that the movable tray does not touch with the rail covers by moving it up and down.  P. 4-145 "4.12 Procedure for lowering the movable tray" © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION...
Page 64 If the shutter [5] is raised, move the frame downward. [ 4 ] [ 3 ] Lock Unlock [ 5 ] Fig. 4-26 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 10...
Page 65 [ 6 ] [ 8 ] Fig. 4-28 Notes: When installing the grate-shaped guide, install the harness [9] as shown in the figure. Fig. 4-29 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 11...
Page 66 Remove 1 screw, and then take off the rear foot cover [2] by sliding it in the direction of the arrow. [ 2 ] Fig. 4-32 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 12...
Page 67: Units (Finisher Section)
Remove the spring [5], and then loosen 2 screws to free the belt [6] tension. And take off the belt [6]. [ 5 ] [ 6 ] Fig. 4-34 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 13...
Page 68 (11) Remove 2 screws and take off the front holder [9]. Fig. 4-36 (12) Remove 1 screw and take off the rear holder [10]. Fig. 4-37 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 14...
Page 69 (10) Remove 2 screws, and then take off the front rail guide [1]. (11) Remove 2 screws, and then take off the rear rail guide [2]. [ 2 ] [ 1 ] Fig. 4-39 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 15...
Page 70 (18) Release the harness [16] of the connector (CN14) of the finisher control PC board from 2 harness clamps [17]. Notes: When installing, wire the harness [16] as shown in the right-hand figure. Fig. 4-41 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 16...
Page 71 Be sure to support the buffer unit-1 with your hand since the frames [26] of the buffer unit are moved in the direction indicated by the arrow to close them when you remove the springs [25]. Fig. 4-44 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION...
Page 72 Disconnect 1 connector [10] from the buffer tray guide motor [9]. Disconnect 1 connector [14] from the movable tray shift motor sensor [13]. Release the harness from 4 harness clamps [15]. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 18...
Page 73 Be sure to support the buffer unit-1 with your hand since the frames [19] of the buffer unit are moved in the direction indicated by the arrow to close them when you remove the springs [18]. Fig. 4-49 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION...
Page 74 (16) Pull out the harness [29] through the window [30] of the frame. (17) Release the harness [29] from 1 harness clamp [31]. Fig. 4-52 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 20...
Page 75 (Loosen the belt tension.) [ 33 ] Fig. 4-54 (21) Remove 5 screws and lift the buffer unit-1 [34] upward to take it off. Fig. 4-55 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 21...
Page 76 [7] of the frame. Notes: When installing, wire the harnesses [4] and [5] as shown in the right-hand figure. Fig. 4-57 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 22...
Page 77 Pay full attention not to lose the pin [15] for fixing the pulley. • Pay full attention not to lose the belt [12]. Fig. 4-60 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 23...
Page 78 [22] to take it off. Notes: Be sure not to deform the finishing tray guide [26]. [22] [23] [17] Fig. 4-62 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 24...
Page 79 Do not remove the polyslider [4]. If it is removed unintentionally, make sure not to lose it. Fig. 4-63 2. Clean the shaft and the hook of the spring. (Properly wipe off the applied grease.) Fig. 4-64 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 25...
Page 80 4. Apply the grease (EM-30L) to the shaft. (Amount of grease: 0.3cc) Notes: Pay attention not to let the grease adhere to the rollers around the shaft. Fig. 4-66 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 26...
Page 81 D (Spring tip) Amount of grease: 0.015cc Fig. 4-68 7. Attach the cap by inserting the arm of the spring into its groove. Fig. 4-69 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 27...
Page 82 9. By aligning to the D-cut dimension of the shaft, insert the cap to the end. Notes: Do not insert the cap to the end by turning it just half a turn. Fig. 4-71 10.Attach the clip. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 28...
Page 83 Remove 2 screws of the rear side. Fig. 4-73 Remove 2 screws of the front side. Slide the stapler unit [6] toward you to take it off. Fig. 4-74 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 29...
Page 84 Staple carrier Fig. 4-76 Remove 2 screws, and then disconnect 2 connectors of the stapler to take off the stapler. Staple Fig. 4-77 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 30...
Page 86 Disconnect the connector [3] of the movable tray shift motor sensor. Remove 1 screw. Take off the metal plate [4] and remove the bushing [5]. Fig. 4-83 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 32...
Page 87 Remove 2 screws, and then take off the movable tray shift motor unit [6]. [ 6 ] Fig. 4-84 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 33...
Page 88: Units (Saddle Stitch Section)
Remove 8 screws and store the right and left rails. Take off the saddle stitch unit from the equipment. [ 6 ] [ 7 ] Fig. 4-86 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 34...
Page 89 Fig. 4-88 Adjustment required Any of 4 sections is not contacted Finisher side plate Saddle stitch unit side plate Fig. 4-89 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 35...
Page 90 Disconnect 2 connectors [3] (CN3 and CN5) on the saddle control PC board and release the harness from 1 harness clamp [4]. Fig. 4-92 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 36...
Page 91 When installing, engage the clutch shaft bushing [2] with the frame of the paper holding unit [1] securely. [ 2 ] [ 1 ] Fig. 4-94 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 37...
Page 92 Disconnect 1 connector [1] (CN4) on the saddle control PC board and release the harness from 4 harness clamps [2]. Fig. 4-96 Fig. 4-97 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 38...
Page 93 Remove 4 screws and take off the side alignment unit [4] by lifting it upward. [ 3 ] [ 4 ] Fig. 4-98 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 39...
Page 94 [ 3 ] [ 2 ] Fig. 4-99 Remove 4 screws and take off the upper stapler frame assembly [1]. [ 1 ] Fig. 4-100 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 40...
Page 95 6. Adjust the position of the rear saddle stapler clinch unit following the same procedure. [ 3 ] [ 2 ] [ 1 ] Fig. 4-102 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 41...
Page 96 Replace the front saddle stapler drive unit [2] and the front saddle stapler clinch unit [3] together. Do the same when replacing the rear ones. [ 3 ] [ 2 ] [ 1 ] Fig. 4-104 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 42...
Page 97 4 positions and release the harness from 7 clamps [3] of the folding drive unit. [ 2 ] [ 3 ] [ 1 ] Fig. 4-107 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 43...
Page 98 When installing, hang the 2 hooks of the folding drive unit on the holes of frame. [ 1 ] [ 2 ] Fig. 4-110 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 44...
Page 99 [2] of the stacker motor. Disconnect the relay connector [2] of the saddle tray paper detection sensor. [ 3 ] [ 3 ] [ 1 ] [ 2 ] Fig. 4-112 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 45...
Page 100  P. 4-45 "[G] EFS unit" Remove 2 screws, and then take off the stacker unit [1] by sliding it upward. Hook Hook Fig. 4-115 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 46...
Page 101 When installing, hang the 2 hooks of the stacker unit on the holes of frame. [ 2 ] [ 3 ] [ 1 ] Fig. 4-116 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 47...
Page 102: Rollers (Finisher Section)
Remove the spring [4], and then loosen 2 screws to free the belt [5] tension. Take off the belt [5]. [ 4 ] [ 5 ] Fig. 4-118 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 48...
Page 103 (12) Remove one clip [3], and then take off the bushing [4]. [ 3 ] [ 4 ] [ 2 ] [ 1 ] Fig. 4-121 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 49...
Page 104 Remove one clip [3], and then take off the bushing [2] and junction roller [1]. [ 2 ] [ 3 ] [ 1 ] Fig. 4-124 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 50...
Page 105 Disconnect 1 connector [12] from the transport motor [11]. (10) Disconnect 1 connector [14] from the movable tray shift motor sensor [13]. (11) Release the harness from 6 harness clamps [15]. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION...
Page 106 (15) Remove the belts [22] and [23], the part assembled [24] and the bearing. Notes: Pay full attention not to lose the bearing while taking off the part assembled [24]. Fig. 4-129 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 52...
Page 107 (17) Remove 3 screws, and then take off the transport guide. Transport guide Fig. 4-131 (18) Move each of the buffer guides to each side. Buffer guide Buffer guide Shutter Fig. 4-132 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 53...
Page 108 B of the jig so that the gap between the front and rear finishing tray covers is more than adjustment area A and less than C. 6LB10056000 JIG-GID-PDL-2 Adjustment area Fig. 4-135 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 54...
Page 109 Fig. 4-136 Fig. 4-137 (21) Remove 1 E-ring [5] at the front side of the transport roller and 1 bearing [6]. Fig. 4-138 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 55...
Page 110  P. 4-13 "[A] Junction box unit" Close the buffer unit-1 [25] halfway and leave it. Then remove 1 screw. [25] Fig. 4-141 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 56...
Page 111 Remove 1 E-ring [1] and 1 bushing [2]. Fig. 4-143 Remove the belt [3]. Slide the entrance roller [4] to take it off. Fig. 4-144 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 57...
Page 112 Turn over the finishing tray unit. Slide the front finishing tray cover [1] to outside and lift it up. Release the link portion [2] inside the front finishing tray cover to take it off. Fig. 4-147 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 58...
Page 113 Fig. 4-149 Disconnect the connector from the finishing tray paper detection sensor [5] and take off the rear finishing tray cover [3]. Fig. 4-150 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 59...
Page 114 Turn over the finishing tray unit. Slide the front finishing tray cover [1] to outside and lift it up. Release the link portion [2] inside the front finishing tray cover to take it off. Fig. 4-153 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 60...
Page 115 Fig. 4-155 Disconnect the connector from the finishing tray paper detection sensor [5] and take off the rear finishing tray cover [3]. Fig. 4-156 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 61...
Page 116 Disconnect 1 relay connector [7] and release the harness [8] from 7 harness clamps [9]. Pull out the harness [8] through the window [6] of the frame. Fig. 4-159 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 62...
Page 117 (11) Loosen 1 screw. Push the metal plate [14] in the direction indicated by the arrow to loosen the belt tension and tighten the screw. Fig. 4-162 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION...
Page 118 (12) Remove 5 screws and lift the buffer unit-1 [34] upward to take it off. Fig. 4-163 Fig. 4-164 (13) Remove the spring [35]. Fig. 4-165 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 64...
Page 119 (14) Remove 2 screws and take off 2 assist guide cam guides [36]. Fig. 4-166 (15) Remove 2 screws, take off 2 assist guide adjustment plates [37] and the assist guide [38]. Fig. 4-167 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 65...
Page 120 Fig. 4-168 Fig. 4-169 (16) Remove 1 screw. Take off the metal plate [43] and remove the spring [45]. Fig. 4-170 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 66...
Page 121 When installing, hook the spring [51] of the pinch roller arm [50] to the frame as shown in the right-hand figure. Fig. 4-172 (19) Remove 2 E-rings [52] and 2 pins. Take off 2 buffer rollers [53]. Fig. 4-173 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 67...
Page 122 Remove 2 screws, and then take off the front and rear stays and 2 spacers. Notes: Be careful not to damage the harness connected to the stationary tray transport guides. Spacer Stay Stay Spacer Fig. 4-175 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 68...
Page 123 Stationary tray transport guide Fig. 4-177 Remove 4 screws of the upper exit roller guide. Upper exit roller guide Fig. 4-178 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 69...
Page 124 Fig. 4-179 (10) Take off the upper exit roller and the upper exit roller guide. Upper exit roller guide Upper exit roller Fig. 4-180 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 70...
Page 125: Rollers (Saddle Stitch Section)
Remove 4 screws and take off the transport guide [1] and switchback transport roller [2]. [ 2 ] [ 1 ] Fig. 4-183 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 71...
Page 126  P. 4-72 "[B] Assisting roller" Remove the spring [1], and then loosen 1 screw to free the belt tension. [ 1 ] Fig. 4-186 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 72...
Page 128 [ 1 ] Fig. 4-191 Remove 2 E-rings and take off the 2 bearing [1]. [ 1 ] [ 1 ] Fig. 4-192 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 74...
Page 129 Remove 2 E-rings and take off the 2 bearing [1]. Remove 1 clip [2] of the rear jam release lever. [ 1 ] [ 1 ] [ 2 ] Fig. 4-195 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 75...
Page 130 Remove 1 clip [1] and take off the bushing [2] and exit roller [3]. [ 1 ] [ 3 ] [ 2 ] [ 1 ] Fig. 4-198 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 76...
Page 131: Motor (Finisher Section)
Close the buffer unit-1 [25] halfway and remove 1 screw. [25] Fig. 4-199 Remove 3 screws, and then take off the transport guide. Transport guide Fig. 4-200 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 77...
Page 132 (13) Remove the belt [6] from the pulley of entrance motor. (14) Remove 2 screws. Then disconnect the connector [7] to take off the entrance motor [5]. Fig. 4-203 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 78...
Page 133 Take off the junction box unit.  P. 4-13 "[A] Junction box unit" Close the buffer unit-1 [25] halfway and remove 1 screw. [25] Fig. 4-205 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 79...
Page 134 (11) Disconnect all the connectors on the finisher control PC board and release the harness from the harness clamp. (12) Remove 3 screws and take off the bracket [4] of the finisher control PC board. Fig. 4-208 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 80...
Page 135 Remove 2 screws, and then take off the front alignment motor [3]. [ 1 ] [ 2 ] [ 3 ] Fig. 4-211 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 81...
Page 136 When installing, be sure to apply tension to the belt. Remove 2 screws, and then disconnect the connector and remove the belt to take off the transport motor [2]. Fig. 4-213 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 82...
Page 137 Disconnect the connector and remove the belt [1]. Then remove 2 screws to take off the stack transport motor [2]. [ 2 ] [ 1 ] Fig. 4-215 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 83...
Page 138 Close the buffer unit-1 [25] halfway and remove 1 screw. [25] Fig. 4-216 Remove 3 screws, and then take off the transport guide. Transport guide Fig. 4-217 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 84...
Page 139 Fig. 4-219 (13) Remove 2 screws, and then disconnect the connector [5] to take off the stapler unit shift motor [6]. Fig. 4-220 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 85...
Page 140 Disconnect 1 connector [12] from the transport motor [11]. Disconnect 1 connector [14] from the movable tray shift motor sensor [13]. (10) Release the harness from 6 harness clamps [15]. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 86...
Page 141 (14) Remove the belts [22] and [23], the part assembled [24] and the bearing. Notes: Pay full attention not to lose the bearing while taking off the part assembled [24]. Fig. 4-225 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 87...
Page 142 (Be sure to hold the movable tray gear frame with your hands because it may fall when the gear is pushed.) Fig. 4-227 Fig. 4-228 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 88...
Page 143 Fig. 4-230 Release the harness from 3 harness clamps [1]. Disconnect the connector [2] (CN19) on the finisher control PC board. Fig. 4-231 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 89...
Page 144 Take off the junction box unit.  P. 4-13 "[A] Junction box unit" Close the buffer unit-1 [25] halfway and remove 1 screw. [25] Fig. 4-233 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 90...
Page 145 (11) Disconnect all the connectors on the finisher control PC board and release the harness from the harness clamp. (12) Remove 3 screws and take off the bracket [4] of the finisher control PC board. Fig. 4-236 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 91...
Page 146 (14) Release the harness from 3 harness clamps [6]. Fig. 4-237 (15) Remove 2 screws and take off the catching motor [7]. Fig. 4-238 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 92...
Page 147: Motor (Saddle Stitch Section)
Remove 3 screws, and then take off the motor bracket [1]. Notes: Do not lose the removed gear [2] of the motor bracket [1]. [ 1 ] [ 2 ] Fig. 4-241 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 93...
Page 148 Remove 2 screws, and then disconnect the relay connector [1] to take off the side alignment motor [2]. [ 1 ] [ 2 ] Fig. 4-244 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 94...
Page 149 [ 1 ] Fig. 4-246 Remove 2 screws and take off the saddle transport motor [2] from the motor bracket [1]. Fig. 4-247 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 95...
Page 150 Release the harness from 2 harness clamps [1]. Disconnect the connector [2] (CN19) on the saddle control PC board. Fig. 4-249 Take off the belt [1] of folding motor. [ 1 ] Fig. 4-250 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 96...
Page 151 Remove 2 screws and take off the gear bracket [2] and pulley [3]. [ 1 ] [ 3 ] [ 2 ] Fig. 4-253 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 97...
Page 152 Remove 2 screws and take off the belt [1] and additional folding motor [2]. [ 1 ] [ 2 ] Fig. 4-254 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 98...
Page 153: Clutch / Solenoid
Be sure not to lose the belt. • When installing the paper exit guide clutch, attach a rotation protection. rotation protection Fig. 4-257 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 99...
Page 154 [3]. Notes: When installing the folding blade clutch, attach a rotation protection. [ 2 ] [ 3 ] [ 1 ] Fig. 4-260 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 100...
Page 155 Close the buffer unit-1. Remove the 2 springs [1]. Disconnect 2 relay connectors [3] and release the harness from 5 harness clamps [2]. Fig. 4-262 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 101...
Page 156 When installing, while the solenoid is turned ON, align the buffer roller and the buffer tray so that their gap will be within 2.0 to 3.5 mm and fix them. Fig. 4-265 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 102...
Page 157  P. 4-7 "[K] Metal shield plate" Remove 2 screws, and then take off the front bracket [1]. Remove 2 screws, and then take off the rear bracket [2]. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION...
Page 158 Close the buffer unit-1 [25] halfway and leave it. Then remove 1 screw. [25] Fig. 4-269 Remove 3 screws, and then take off the . Transport guide Fig. 4-270 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 104...
Page 159 When installing the gate solenoid, adjust the edge of the bracket to come at the mark on the scale one step left from the center as shown in the figure and fix it with 2 screws. Scale Bracket Fig. 4-273 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 105...
Page 160 Remove 2 screws, and then take off the junction box upper transport guide [3]. [ 1 ] [ 3 ] [ 2 ] Fig. 4-276 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 106...
Page 161 (10) Remove 2 screws, and remove the arm [1] to take off the transport path switching solenoid [2]. [ 1 ] [ 2 ] Fig. 4-279 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 107...
Page 162 [2] edge must fall within 2.3 mm to 2.9 mm. Fix the solenoid with 2 screws. 2.3mm ~ 2.9mm Fig. 4-281 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 108...
Page 163 Take off the spring [1]. Remove 2 screws, and then take off the assisting roller solenoid [2]. [ 1 ] [ 2 ] Fig. 4-284 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 109...
Page 164: Sensors / Switches (Finisher Section)
Then remove 1 screw. Disconnect the connector and take off the sensor bracket [1]. [ 1 ] Fig. 4-285 Release the latch, and then take off the entrance sensor [1]. [ 1 ] Fig. 4-286 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 110...
Page 165 Take off the metal shield plate.  P. 4-7 "[K] Metal shield plate" Take off the junction box unit.  P. 4-13 "[A] Junction box unit" © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 111...
Page 166 Remove 1 screw and take off the grounding wire [1]. (10) Release the PC board cover [2] from 2 harness clamps [3]. Fig. 4-291 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 112...
Page 167 (13) Remove 1 screw, and then disconnect the connector and take off the sensor bracket [5]. Fig. 4-293 (14) Release the latch, and then take off the paddle home position sensor. Paddle home position sensor Fig. 4-294 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 113...
Page 168 Move each buffer guide [1]. Fig. 4-295 Disconnect the connector, and then release the latch to take off the buffer tray home position sensor [1]. Fig. 4-296 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 114...
Page 169 Release the latch, and then disconnect the connector to take off the front alignment plate home position sensor. Front alignment plate home position sensor Fig. 4-298 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 115...
Page 170 Turn over the finishing tray unit. Slide the front finishing tray cover [1] to outside and lift it up. Release the link portion [2] inside the front finishing tray cover. Fig. 4-301 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 116...
Page 171 Release the latch, and then disconnect the connector to take off the stapler unit home position sensor. Stapler unit home position sensor Fig. 4-304 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 117...
Page 172 Remove the spring, and then remove the clip to take off the actuator. Notes: When installing the actuator, be sure to insert the clip from the side of the actuator. Clip Actuator Spring Fig. 4-307 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 118...
Page 173 Fig. 4-309 Disconnect the connector from the finishing tray paper detection sensor [5] and take off the rear finishing tray cover [3]. Fig. 4-310 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 119...
Page 174 (Be sure to hold the movable tray gear frame with your hands because it may fall when the gear is pushed.) Fig. 4-313 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 120...
Page 176 Disconnect the connector of the movable tray paper exist sensor. Release the latch, and then take off the movable tray paper exist sensor [1]. [ 1 ] Fig. 4-319 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 122...
Page 177 Remove 1 screw, and then take off the actuator and the spacer. Spacer Actuator Fig. 4-321 Release the latch, and then take off the stationary tray paper-full sensor. Stationary tray paper-full sensor Fig. 4-322 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 123...
Page 178  P. 4-6 "[G] Rear cover" Remove 1 screw, and then disconnect the connector and take off the sensor bracket [1]. [ 1 ] Fig. 4-325 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 124...
Page 179 Remove 2 screws, and then take off the sensor plate [1]. Fig. 4-327 Remove 2 screws, and then disconnect the connector [2] and then take off the switch bracket [3]. Fig. 4-328 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 125...
Page 180 Disconnect all the connectors on the finisher control PC board and release the harness from the harness clamp. Remove 3 screws and take off the bracket [4] of the finisher control PC board. Fig. 4-331 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 126...
Page 181 Pay full attention not to lose the bearing while taking off the part assembled [12]. Fig. 4-333 (10) Remove 1 E-ring [13], bearing [14] and take off the shaft [15]. Fig. 4-334 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 127...
Page 182  P. 4-29 "[E] Stapler unit" Disconnect the connector [1]. Remove 2 screws and take off the stapler interference switch [2]. Fig. 4-337 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 128...
Page 183: Sensors / Switches (Saddle Stitch Section)
Open the front upper cover and then pull out the saddle stitch unit. Remove 4 screws, and then take off the upper safety cover [1]. Fig. 4-340 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION...
Page 184 Open the transport guide of right side. Remove 1 screw, and then disconnect the connector and take off the sensor bracket [1]. [ 1 ] Fig. 4-343 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 130...
Page 185 Remove 1 screw, and then disconnect the connector and take off the sensor bracket [1]. [ 1 ] Fig. 4-345 Release the latch, and then take off the ejecting roller sensor [1]. [ 1 ] Fig. 4-346 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 131...
Page 186 [ 2 ] Fig. 4-348 Release the latch, and then take off the stacker paper detection sensor [1]. [ 1 ] Fig. 4-349 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 132...
Page 187 When the sensor was installed, be sure to adjust the position of the sensor bracket [1].  P. 4-34 "[A] Saddle stitch unit" [ 1 ] Fig. 4-352 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 133...
Page 188 Remove 1 screw, and then disconnect the connector and take off the folding motor encoder sensor [1]. Stacker guide [ 1 ] Fig. 4-355 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 134...
Page 189 Disconnect the connector, and release the latch, and then take off the side alignment home position sensor [2]. [ 2 ] [ 1 ] Stacker guide Fig. 4-358 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 135...
Page 190 Disconnect the connector, and release the latch, and then take off the additional folding home position sensor [3]. [ 2 ] [ 3 ] [ 1 ] Fig. 4-361 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 136...
Page 191 [ 1 ] Fig. 4-363 Release the latch, and then take off the additional folding motor encoder sensor [1]. [ 1 ] Fig. 4-364 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 137...
Page 192 [ 1 ] Fig. 4-365 Remove 2 screws, and then take off the saddle stitch unit opening/closing switch [1]. [ 1 ] Fig. 4-366 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 138...
Page 193: 4.11 Pc Boards / Discharge Brush
Fig. 4-367 Disconnect all connectors connecting to the FIN board [4]. Remove 4 screws, and then take off the FIN board [4]. Fig. 4-368 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 139...
Page 194 Remove 2 screws and take off the saddle control PC board cover [6]. Notes: When installing, be sure to secure the holes [7] on the cover with 3 hooks on the frame. Fig. 4-370 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 140...
Page 195 When installing the flat cable, carefully insert it straight. • Pay attention not to apply a load to the tip of the flat cable or not to damage it. Fig. 4-372 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 141...
Page 196 Fig. 4-374 Remove 2 screws of the rear side. Slide the bracket [6] to the paper inlet side to take it off. Fig. 4-375 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 142...
Page 197 Loosen 1 side screw. Remove 2 screws, and then take off the front stationary tray discharge brush. Front stationary tray discharge brush Fig. 4-378 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 143...
Page 198 Loosen 1 side screw. Remove 2 screws, and then take off the rear stationary tray discharge brush. Rear stationary tray discharge brush Fig. 4-379 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 144...
Page 199: 4.12 Procedure For Lowering The Movable Tray
If the screwdriver is taken out, the movable tray [1] will stop in that particular position. [ 1 ] Fig. 4-381 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 DISASSEMBLY AND INSTALLATION 4 - 145...
Page 200 ON, "Movable tray paper-full detection error" (CB31) will occur. The movable tray must be moved lower than the sensor. Sensor Movable tray Fig. 4-382 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND INSTALLATION 4 - 146...
Page 201: Adjustments
Adjusting for A4 size paper: Turn ON pins 2 and 4. Adjusting for LT size paper: Turn ON pins1, 2, and 4. [ 1 ] Fig.5-1 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ADJUSTMENTS 5 - 1...
Page 202 B5 paper [4] beneath the adjustment sheet [1] on the vertical alignment roller [3]. • Confirm the gap between paper and the alignment plate [2] by moving the adjustment sheet [1] forward and backward. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENTS 5 - 2...
Page 203 Turn OFF the power of the equipment. Turn OFF all bits of the SW1 on the Finisher control board. (10) Install the board access cover. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ADJUSTMENTS 5 - 3...
Page 204: Adjusting The Stapling Position
Although there are four setting types for the SW1 as shown above, perform only one of them since the adjustment values are used in common. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENTS 5 - 4...
Page 205 +2.16 Turn OFF the power of the equipment. Turn OFF all bits of the SW1 on the Finisher control board. Install the board access cover. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ADJUSTMENTS 5 - 5...
Page 206: Stapling/Folding Position Adjustment In Saddle Stitch Unit
When the staples are bent Staple Staple Do not include the width of the staples -0.5mm - +0.5mm -0.5mm - +0.5mm Folding line Folding line Fig.5-7 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENTS 5 - 6...
Page 207 (the position of the Stapling position stacker hooks) of the stacker upward.  P. 5-8 "5.3.2 Stapling position adjustment" Stacker hook Fig.5-11 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ADJUSTMENTS 5 - 7...
Page 208: Folding Position Adjustment
1: -2.8mm 2: -2.4mm 3: -2.0mm 4: -1.6mm 5: -1.2mm 6: -0.8mm 7: -0.4mm 8: 0.0mm 9: +0.4mm 10: +0.8mm 11: +1.2mm 12: +1.6mm 13: +2.0mm 14: +2.4mm 15: +2.8mm MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENTS 5 - 8...
Page 209: Saddle Stitch Skew Adjustment
Open the cover, pull out the saddle stitch section, and then loosen the 2 screws. Fig.5-12 Rotate the adjustment screw slightly. Tighten the 2 screws, return the saddle stitch section, and then close the cover. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ADJUSTMENTS 5 - 9...
Page 211: Troubleshooting
EA24 Finisher jam Paper Jam in Paper stopping jam P. 6-10 (Finisher Finisher - Please (between the section) Clear Paper Path. entrance and transport sensors): © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 1...
Page 212 (paper Clear Paper Path. jam) EAFD Finisher jam Paper Jam in Movable tray P. 6-34 Finisher - Please movement error Clear Paper Path. (paper jam) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 2...
Page 213 Paper Jam in Folding blade P. 6-29 (Saddle Finisher - Please home position Stitcher Clear Paper Path. detection error in section) the saddle stitch unit © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 3...
Page 214: Service Call
Backup RAM data P. 6-36 service call Error. abnormality CB81 Finisher related Fatal Error - Please Flash ROM P. 6-37 service call Contact Service abnormality Technician. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 4...
Page 215 Contact Service ROM checksum Technician. error CC72 Finisher related Fatal Error - Please [MJ-6105] Punch P. 6-43 service call Contact Service RAM read/write Technician. error © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 5...
Page 216 Contact Service Communication Technician. error between the finisher and the punch unit CF10 Finisher related Printer Output Communication P. 6-45 service call Error. module writing failure MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 6...
Page 217: Diagnosis And Prescription For Each Error Code
Connector check (CN1, CN17) Harness check Parts to be replaced Remark Feeding sensor (S22) Transport path switching solenoid (SOL5) Entrance motor (M1) Finisher control PC board (FIN) © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 7...
Page 218 Finisher control PC board (FIN) Board check Connector check (CN8) Harness check Parts to be replaced Remark Entrance sensor (S1) Transport sensor (S2) Finisher control PC board (FIN) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 8...
Page 219 Finisher control PC board (FIN) Board check Connector check (CN8) Harness check Parts to be replaced Remark Transport sensor (S2) Finisher control PC board (FIN) © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 9...
Page 220 Harness check Finisher control PC board (FIN) Board check Connector check (CN25) Harness check Parts to be replaced Remark Finishing tray paper detection sensor (S12) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 10...
Page 221 Finisher control PC board (FIN) [EA29] Paper transport stop jam (stack transport delay) Classification Error content Paper jam in finisher section Paper transport stop jam (stack transport delay) © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 11...
Page 222 Parts to be replaced Remark Entrance sensor (S1) Feeding sensor (S22) Paper position sensor (S6-1, S6-2) Hole punch unit Transport sensor (S2) Finisher control PC board (FIN) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 12...
Page 223 Front cover switch (SW1) Stationary tray opening/closing switch (SW2) Finisher control PC board (FIN) [EA50] Stapling jam Classification Error content Paper jam in finisher section Stapling jam © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 13...
Page 224 Check if the connector (CN18) on the finisher controller PC board is disconnected from the stack transport motor (M8) and the harnesses are open circuited. Correct if any. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 14...
Page 225: Paper Jam In Saddle Stitcher Section
Sensor check(S27) Connector check(CN3) Harness check Transport path-3 sensor (S28) Sensor check(S28) Connector check (CN3) Harness check Ejecting roller sensor(S29) Sensor check(S29) Connector check(CN3) Harness check © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 15...
Page 226 Check if the harness between the transport path switching solenoid (SOL5) and the CN1 of the finisher controller PC board (FIN) is disconnected or open circuited. Correct if so. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 16...
Page 227 Sensor check(S27) Connector check(CN3) Harness check Transport path-3 sensor (S28) Sensor check(S28) Connector check (CN3) Harness check Ejecting roller sensor(S29) Sensor check(S29) Connector check(CN3) Harness check © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 17...
Page 228: Paper Jam In Puncher Unit
Connector check Harness check Parts to be replaced Remark Punch motor (M3) Punch HP sensor (S4) Punch sensor (S5) Hole punch control PC board (HP) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 18...
Page 229: Other Paper Jam
Hole punch control PC board (HP) Correct if any. Parts to be replaced Remark Sideways adjustment motor (M2) Sideways deviation HP sensor (S3) Hole punch control PC board (HP) © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 19...
Page 230 (S8) Rear alignment motor (M6) Finisher controller PC board (FIN) [ED15] Paddle home position error Classification Error content Other paper jam Paddle home position error MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 20...
Page 231 Check the paper size, paper type, or number of pages for stapling. Change them if they are unsupported. [EF11] Saddle Stitch Finisher stapling error (front) Classification Error content Finisher jam (Saddle stitch section) Front stapling is not correctly done. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 21...
Page 232 (CLT4) is disconnected or open circuited. Correct if so. (Replace the harness if open circuited. Reconnect the connector securely if there is any disconnection.) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 22...
Page 233 Finisher control PC board (FIN) Board check Connector check (CN21) Harness check Saddle control PC board (SDL) Connector check (CN6, CN7) Board check © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 23...
Page 234 (S41) [9]. If there is, reinstall the sensor correctly or replace it. Move the bracket [10] in the direction of the arrow and secure it with the screw MJ-1110 © 2016-2019 Toshiba Tec Corporation All rights reserved TROUBLESHOOTING 6-23a...
Page 235 If they are warped or deformed, replace them. For the removal procedure of the leaf springs [1] and the assist leaf springs [2], refer to the following figures. Fig.6-2 Fig.6-3 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 24...
Page 236 [1] and the assist leaf springs [2] of the transport pinch roller (for the saddle), remove them and put them on a flat place. Fig.6-5 Fig.6-6 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 25...
Page 237 [5] does not rotate.) When OK: The ratchet [5] rotates while sliding, but the gear [4] is stopped. (The gear [4] is engaged.) Fig.6-8 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 26...
Page 238 [7] is attached and add its marking in order to install the post-change one in the same place. Fig.6-9 • For the removal procedure of the bracket [7], refer to the following figures. Fig.6-10 Fig.6-11 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 27...
Page 239 Connector check (CN4) Board check Parts to be replaced Remark Side alignment home position sensor (S36) Side alignment motor (M15) Saddle control PC board (SDL) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 28...
Page 240 [EF18] Saddle Stitch Finisher additional folding roller home position detection abnormality Classification Error content Finisher jam (Saddle stitch section) The additional folding roller home position cannot be detected. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 29...
Page 241 Saddle control PC board (SDL) Connector check (CN7) Board check Parts to be replaced Remark Exit transport sensor (S41) Finisher control PC board (FIN) Saddle control PC board (SDL) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 30...
Page 242 (S41) [9]. If there is, reinstall the sensor correctly or replace it. Move the bracket [10] in the direction of the arrow and secure it with the screw © 2016-2019 Toshiba Tec Corporation All rights reserved MJ-1110 TROUBLESHOOTING 6-30a...
Page 243: Finisher Related Service Call
Check if the conductor pattern on the LGC board is open circuited or short circuited. Replace the LGC board. Parts to be replaced Remark Finisher control PC board (FIN) LGC board (LGC) © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 31...
Page 244 Motor check Connector check (CN15) Harness check Finisher control PC board (FIN) Connector check (CN15) Board check Parts to be replaced Remark Exit motor (M11) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 32...
Page 245 Check item Measures Catching motor (M21) Is there any mechanical problem when the catching motor is rotated? If there is any mechanical problem, fix its mechanism. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 33...
Page 246 Check if the connector (CN22) on the finisher controller PC board is disconnected from the movable tray paper-full sensor (S16) and the harnesses are open circuited. Correct if so. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 34...
Page 247 [EAFB] Stapler movement error (paper jam) Classification Error content Finisher related service call Stapler shift home position error: The stapler is not at the home position. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 35...
Page 248 Check item Measures Main power switch Turn OFF the main power switch, then back ON. Parts to be replaced Remark Finisher control PC board (FIN) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 36...
Page 249 3 times. Check item Measures Additional folding carrier Is there any mechanical problem when the additional folding carrier is moved? Correct if so. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 37...
Page 250 Harness check Saddle control PC board (SDL) Connector check (CN8) Board check Parts to be replaced Remark Stacker motor (M14) Saddle control PC board (SDL) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 38...
Page 251 Connector check (CN4) Saddle control PC board (SDL) Connector check (CN4) Board check Parts to be replaced Remark Side alignment motor (M15) Saddle control PC board (SDL) © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 39...
Page 252 Error content Finisher related service call Stack transport motor abnormality: The stack transport motor is not rotating or the stack transport belt is not moving normally. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 40...
Page 253 (S6) and the harnesses are open circuited. Correct if so. Parts to be replaced Remark Paper holder home position sensor (S6) Finisher control PC board (FIN) © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 41...
Page 254 Harness check Connector check (CN10) Parts to be replaced Remark Skew home position sensor (S2) Skew adjustment motor (M1) Hole punch control PC board (HP) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 42...
Page 255 PC board is detected when the power is turned on. Check item Measures Hole punch control PC board (HP) Board check Parts to be replaced Remark Hole punch control PC board (HP) © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 43...
Page 256 Check the connectors and harnesses between the paddle motor (M3) and the finisher control PC board (CN16). Parts to be replaced Remark Paddle motor (M3) Finisher control PC board (FIN) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 44...
Page 257 Check if the conductor pattern on the LGC board is open circuited or short circuited. Parts to be replaced Remark Finisher control PC board (FIN) LGC board © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 45...
Page 258: Other Errors
If the returning of the ejectors is not sufficient, latches, which output the paper from the standby position to the movable tray, strongly contact the paper upper surface (trailing edge side), resulting in damage to dents folding tears Fig.6-13 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 46...
Page 259 Clean both the back and front sides of the pulled out ejectors with alcohol. If Molykote oil has adhered to the ejectors or the metal guide, wipe it all off. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110...
Page 260 1. Put your hand on the holder at the end of the ejectors and then pull them out toward you until they stop. Fig.6-16 2. Release your hand from the holder and check that the ejectors are quickly returned to their home position. Fig.6-17 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 48...
Page 261 If the problem at the trailing edge of the paper still persists even after steps (1) to (3) have been performed, replace the finishing tray unit. Finishing tray unit: ASYB-SHEAF-FEED-RBT3 (P-I: 10-48) © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING...
Page 262: Self-Diagnostic Modes
Press [Button2] once. (To enter the number of Test No. 1) Check the test list and press [Button1] as many times as noted for Test No. 2 whose operation you want to check. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 50...
Page 263: Checking Operational Status
Drives the entrance motor of the Finisher. Outputs a mechanical initial command to the Hole Punch unit in every 4 seconds. Continues the operation until it is canceled. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 51...
Page 264 Front stapler motor Starts stapling. Rear stapler motor Before you start this test, be sure to place paper in order not to waste staples. (Unused) MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 52...
Page 265 (home position detection). If it is already at its home position, it is temporarily removed and then the home position is detected. Turns the paper holding clutch OFF. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 53...
Page 266 The status of the sensor is indicated with the position sensor LED1 in real time as follows: LED1 ON: 1 LED1 OFF: 0 Continues the operation until it is canceled. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 54...
Page 267 The status of the sensor is indicated with the LED1 in real time as follows: LED1 ON: 1 LED1 OFF: 0 Continues the operation until it is canceled. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 55...
Page 268 The status of the sensor is indicated with the LED1 in real time as follows: LED1 ON: 1 LED1 OFF: 0 Continues the operation until it is canceled. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 56...
Page 269 The status of the sensor is indicated with the sensor LED1 in real time as follows: LED1 ON: 1 LED1 OFF: 0 Continues the operation until it is canceled. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 57...
Page 270 The status of the sensor is indicated with the LED1 in real time as follows: LED1 ON: 1 LED1 OFF: 0 Continues the operation until it is canceled. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 58...
Page 271 The status of the sensor is indicated with the LED1 in real time as follows: LED1 ON: 1 LED1 OFF: 0 Continues the operation until it is canceled. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 59...
Page 272: Error Indications
Paper transport jam in Saddle Stitch Finisher EAB0 Saddle stitch unit open error EA90 Stack exit belt home position error EA70 Early arrival jam EA60 Buffer tray home position error ED16 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 60...
Page 273 Movable tray ascending position detection error EAFD Assist guide motor home position detection error EAFE Catching motor home position detection error EAFA Stapler shift abnormality EAFB © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 61...
Page 274 Saddle Stitch Finisher stacker motor (M14) abnormality CB95 (Unused) (Unused) Exit motor (M11) abnormality CB13 Assist guide motor (M10) abnormality CB14 Finisher main program error CB82 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 6 - 62...
Page 275 The punched scrap box is full. (Unused) The staple cartridge for the finisher section is empty. The staple cartridge for the saddle stitch section is empty. © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 TROUBLESHOOTING 6 - 63...
Page 277: Preventive Maintenance (Pm) / Firmware Update
* Perform preventive maintenance for the Finisher at the same interval as for the main equipment to which the Finisher is connected. [Front side] [Rear side] Fig. 7-1 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 PREVENTIVE MAINTENANCE (PM) / FIRMWARE UPDATE 7 - 1...
Page 278: Preventive Maintenance Checklist
17 Rack gear (Aligning plate) 18 Finishing tray shaft 19 Movable tray drive gear 20 Additional folding unit carrier shaft 21 Grate-shaped guide MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved PREVENTIVE MAINTENANCE (PM) / FIRMWARE UPDATE 7 - 2...
Page 279 Apply an adequate amount of white grease (Molykote EM-30L) to the entire shaft [3]. [ 1 ] [ 2 ] [ 3 ] Fig. 7-2 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 PREVENTIVE MAINTENANCE (PM) / FIRMWARE UPDATE 7 - 3...
Page 280 Apply an adequate amount of white grease (Molykote EM-30L) to the entire stapler carrier shaft [1]. [ 1 ] Fig. 7-4 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved PREVENTIVE MAINTENANCE (PM) / FIRMWARE UPDATE 7 - 4...
Page 281 Apply an adequate amount of white grease (Molykote HP-300) to the gear teeth of the movable tray drive gear [1]. [ 1 ] Fig. 7-6 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 PREVENTIVE MAINTENANCE (PM) / FIRMWARE UPDATE 7 - 5...
Page 282 Apply an adequate amount of white grease (Molykote EM-30L) to the entire Additional folding unit carrier shaft [1]. [ 1 ] Fig. 7-7 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved PREVENTIVE MAINTENANCE (PM) / FIRMWARE UPDATE 7 - 6...
Page 283 * The brush with which the coating agent (SANKOL CFD-409M) was applied must be exclusive for coating. Do not use it to clean other areas. Fig. 7-8 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 PREVENTIVE MAINTENANCE (PM) / FIRMWARE UPDATE...
Page 284: Firmware Update
Firmware Update Notes: For updating firmware of the finisher, refer to " FIRMWARE UPDATING" in the Service Manual for MFP. MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved PREVENTIVE MAINTENANCE (PM) / FIRMWARE UPDATE 7 - 8...
Page 285: Electric Circuit
Front alignment motor MOT5 - A MOT5 - A# CLT2-IN Paper exit guide clutch CN19 CLT2 CLT2-OUT DM1-R Movable tray DM1-F shift motor Fig.8-1 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ELECTRIC CIRCUIT 8 - 1...
Page 286 PNC board ORI-MTR-EN TRMT-STEP SDL-PWM TRMT-CUR 2ND-FOLD-EN TRMT-MD0 TRMT-MD1 P24V P24V VM(24V) P24V VM(24V) VM(24V) VM(24V) VM(24V) CN26 Saddle stitch Unit SDL-SW opening/closing switch Fig.8-2 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ELECTRIC CIRCUIT 8 - 2...
Page 287 Paper holding home position sensor SDL-PWM 2ND-FOLD-EN CN13 5VPC VM(24V) ORI-EN Folding motor encoder sensor VM(24V) VM(24V) VM(24V) CL3-IN VM(24V) Folding blade clutch CLT3 CL3-OUT Fig.8-3 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ELECTRIC CIRCUIT 8 - 3...
Page 288: Circuit Diagram
8:7E MOT9-DIR 8:7E MOT9-MD0 8:7E R186 R187 10K/C/1005 10K/C/1005 R188 R146 10K/C/1005 10K/C/1005 R189 R147 10K/C/1005 10K/C/1005 R191 R149 10K/C/1005 10K/C/1005 13R/JE/LF/SN B08B/CZHK/B/1/LF/SN/V Fig.8-4 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ELECTRIC CIRCUIT 8 - 4...
Page 290 0.1^/B/1005 0.01^/B/1005 0.01^/B/1005 0.01^/B/1005 1000P/B/1005 1000P/B/1005 0.1^/B/1005 0.1^/B/1005 0.01^/B/1005 0.01^/B/1005 10K/C/1005 10K/C/1005 10K/C/1005 10K/C/1005 10K/C/1005 10K/C/1005 10K/C/1005 10K/C/1005 0.01^/B/1005 0.01^/B/1005 0.01^/B/1005 0.01^/B/1005 0.01^/B/1005 Fig.8-6 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ELECTRIC CIRCUIT 8 - 6...
Page 291 0.01^/B/1005 292161/8 C207 1000P/B/1005 FCC32152ADTP/C C206 0.1^/B/1005 C205 R308 R306 R305 0.01^/B/1005 3.3K/C/1005 3.3K/C/1005 3.3K/C/1005 R247 10K/C/1005 R246 10K/C/1005 C303 0.1^/B/1005 C302 0.1^/B/1005 Fig.8-7 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ELECTRIC CIRCUIT 8 - 7...
Page 292 0.2̀1/2W/F/C/3225 0.2̀1/2W/F/C/3225 0.2̀1/2W/F/C/3225 0.2̀1/2W/F/C/3225 C161 C164 C145 R324 R520 R363 R384 0.2̀1/2W/F/C/3225 0.2̀1/2W/F/C/3225 0.2̀1/2W/F/C/3225 0.2̀1/2W/F/C/3225 100^35V/CE-10 100^35V/CE-10 100^35V/CE-10 100^35V/CE-10 B13B/CZHK/B/1/LF/SN/V CN16 CN10 292161/4 Fig.8-8 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ELECTRIC CIRCUIT 8 - 8...
Page 293 4.7K1/16W/F/C/1005-1 15K1/16W/F/C/1005-1 4.7K1/16W/F/C/1005-1 15K1/16W/F/C/1005-1 C107 1000P/B/1005 1000P/B/1005 C108 R476 R506 0.1^/B/1005 0.1^/B/1005 0.2̀1/2W/F/C/3225 0.2̀1/2W/F/C/3225 C105 R459 R493 0.2̀1/2W/F/C/3225 0.2̀1/2W/F/C/3225 100^35V/CE-10 100^35V/CE-10 B16B/CZHK/B/1/LF/SN/V CN18 Fig.8-9 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ELECTRIC CIRCUIT 8 - 9...
Page 294 4.7K1/16W/F/C/1005-1 15K1/16W/F/C/1005-1 15K1/16W/F/C/1005-1 C184 1000P/B/1005 C126 1000P/B/1005 C185 C137 R355 R426 0.1^/B/1005 0.1^/B/1005 0.2̀1/2W/F/C/3225 0.2̀1/2W/F/C/3225 C183 C125 R333 R406 0.2̀1/2W/F/C/3225 0.2̀1/2W/F/C/3225 100^35V/CE-10 100^35V/CE-10 Fig.8-10 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ELECTRIC CIRCUIT 8 - 10...
Page 295 0.01^/B/1005 C376 1000P/B/1005 R552 C375 R531 4.7K/C/1005 10̀/C/1005 0.1^/B/1005 C378 0.01^/B/1005 10̀/C/1005 R551 0.1^/B/1005 10K/C/1005 10̀/C/1005 0.1^/B/1005 1000P/B/1005 0.1^/B/1005 0.01^/B/1005 100^35V/CE-10 10K/C/1005 CN19 Fig.8-11 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ELECTRIC CIRCUIT 8 - 11...
Page 296 10̀/C/1005 0.1^/B/1005 4.7K/C/1005 C389 10̀/C/1005 0.01^/B/1005 0.1^/B/1005 R565 10K/C/1005 10K/C/1005 1000P/B/1005 0.1^/B/1005 0.01^/B/1005 0.01^/B/1005 0.01^/B/1005 0.01^/B/1005 0.01^/B/1005 10K/C/1005 10K/C/1005 10K/C/1005 10K/C/1005 15FE/BT/VK/N CN23 Fig.8-12 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ELECTRIC CIRCUIT 8 - 12...
Page 297 IC30 TC7WH08FK/TE85L/F/F C132 0.01^/B/1005 IC22 74VHCT14AFT R121 3.3K/C/1005 NOT MOUNT R222 4.7K/C/1005 R115 4.7K/C/1005 C124 100^35V/CE-10 NOT MOUNT RR264MM/400TR/C-E RR264MM/400TR/C-E RR264MM/400TR/C-E RR264MM/400TR/C-E RR264MM/400TR/C-E RR264MM/400TR/C-E RR264MM/400TR/C-E Fig.8-13 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ELECTRIC CIRCUIT 8 - 13...
Page 298 10^10V/B/1608 C340 10^10V/B/1608 C341 NOT MOUNT NOT MOUNT 0.1^/B/1005 R132 R143 470̀/C/1005 0̀/OT/C/1005 R122 R144 C144 470̀/C/1005 0̀/OT/C/1005 47^10V/CE-1 NOT MOUNT R511 10K/C/1005 R497 10K/C/1005 0.01^/B/1005 Fig.8-14 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ELECTRIC CIRCUIT 8 - 14...
Page 299 UDZV/TE/17/18B/C-E 47K1/16W/F/C/1005-2 47K1/16W/F/C/1005-2 ZD302 R415 C120 10K/C/1005 1000P/B/1005 R161 R160 13K1/16W/F/C/1005-1 R159 22K1/16W/F/C/1005-1 47K1/16W/F/C/1005-2 C155 100^35V/CE-10 C154 NOT MOUNT NOT MOUNT 0.01^/B/1005 R192 100̀/C/1005 UDZV/TE/17/30B/C-E Fig.8-15 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ELECTRIC CIRCUIT 8 - 15...
Page 301 R362 10K1/16W/C/1005-2 10K1/16W/C/1005-2 10K1/16W/C/1005-2 10K1/16W/C/1005-2 10K1/16W/C/1005-2 10K1/16W/C/1005-2 10K1/16W/C/1005-2 C133 C127 1000P/B/1005 1000P/B/1005 C132 C129 0.1^/B/1005 0.1^/B/1005 C131 C130 0.01^/B/1005 0.01^/B/1005 B12B/CZHK/B/1/LF/SN/V CN12 CN11 Fig.8-17 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ELECTRIC CIRCUIT 8 - 17...
Page 303 0.2̀1/2W/F/C/3225 R309 R319 0.2̀1/2W/F/C/3225 0.2̀1/2W/F/C/3225 100^35V/CE-10 100^35V/CE-10 1000P/B/1005 1000P/B/1005 0.1^/B/1005 0.1^/B/1005 0.01^/B/1005 0.01^/B/1005 R348 R327 10K1/16W/C/1005-2 10K1/16W/C/1005-2 B11B/CZHK/B/1/LF/SN/V B08B/CZHK/B/1/LF/SN/V C322 0.01^/B/1005 C310 0.01^/B/1005 Fig.8-19 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ELECTRIC CIRCUIT 8 - 19...
Page 304 0.01^/B/1005 C119 R404 10̀1/16W/C/1005-1 0.1^/B/1005 10K1/16W/C/1005-2 10K1/16W/C/1005-2 C116 1000P/B/1005 10̀1/16W/C/1005-1 0.1^/B/1005 C117 0.1^/B/1005 C118 10̀1/16W/C/1005-1 0.1^/B/1005 0.01^/B/1005 R357 10K1/16W/C/1005-2 1000P/B/1005 0.1^/B/1005 0.01^/B/1005 B09B/CZHK/B/1/LF/SN/V Fig.8-20 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ELECTRIC CIRCUIT 8 - 20...
Page 305 C125 R101 R402 10̀1/16W/C/1005-1 0.1^/B/1005 10K1/16W/C/1005-2 10K1/16W/C/1005-2 C123 1000P/B/1005 10̀1/16W/C/1005-1 0.1^/B/1005 C122 0.1^/B/1005 C121 10̀1/16W/C/1005-1 0.1^/B/1005 0.01^/B/1005 R361 10K1/16W/C/1005-2 1000P/B/1005 0.1^/B/1005 0.01^/B/1005 B10B/CZHK/B/1/LF/SN/V Fig.8-21 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ELECTRIC CIRCUIT 8 - 21...
Page 306 7. Circuit Diagram (7) C335 0.01^/B/1005 0.01^/B/1005 0.01^/B/1005 390K1/16W/C/1005 390K1/16W/C/1005 4.7K1/16W/C/1005-2 10K1/16W/C/1005-2 NOT MOUNT 100̀1/16W/C/1005-1 100^35V/CE-10 D302 RR264MM/400TR/C-E D301 RR264MM/400TR/C-E RR264MM/400TR/C-E Fig.8-22 MJ-1110 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved ELECTRIC CIRCUIT 8 - 22...
Page 307 0.1^/B/1005 NOT MOUNT NOT MOUNT 0̀1/16W/OT/C/1005-1 0̀1/16W/OT/C/1005-1 0.1^/B/1005 0̀1/16W/OT/C/1005-1 0̀1/16W/OT/C/1005-1 10^10V/B/1608 NOT MOUNT NOT MOUNT 100^10V/CE-7 NOT MOUNT R369 10K1/16W/C/1005-2 10K1/16W/C/1005-2 3.3K1/16W/C/1005-1 NOT MOUNT NOT MOUNT ZD301 R353 100̀1/16W/C/1005-1 UDZV/TE/17/30B/C-E Fig.8-23 © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 ELECTRIC CIRCUIT 8 - 23...
Page 309: Revision Record
Information for reused paper has been added. Information for reused paper has been added. 6-13 The troubleshooting for the EA31 error has been changed. Ver.00 Ver00<2015.03.11> Page Contents Initial release © 2016 - 2018 TOSHIBA TEC CORPORATION All rights reserved MJ-1110 REVISION RECORD...
Page 312 1-11-1, OSAKI, SHINAGAWA-KU, TOKYO, 141-8562, JAPAN...

Toshiba MJ-1110 Service Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toshiba MJ-1110

Summary of Contents for Toshiba MJ-1110

Table of Contents
