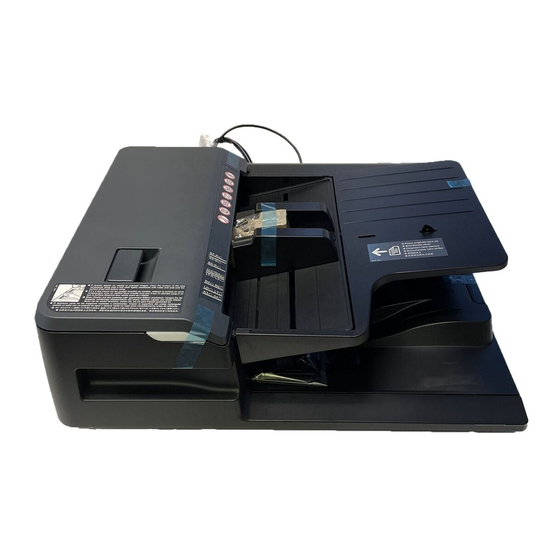

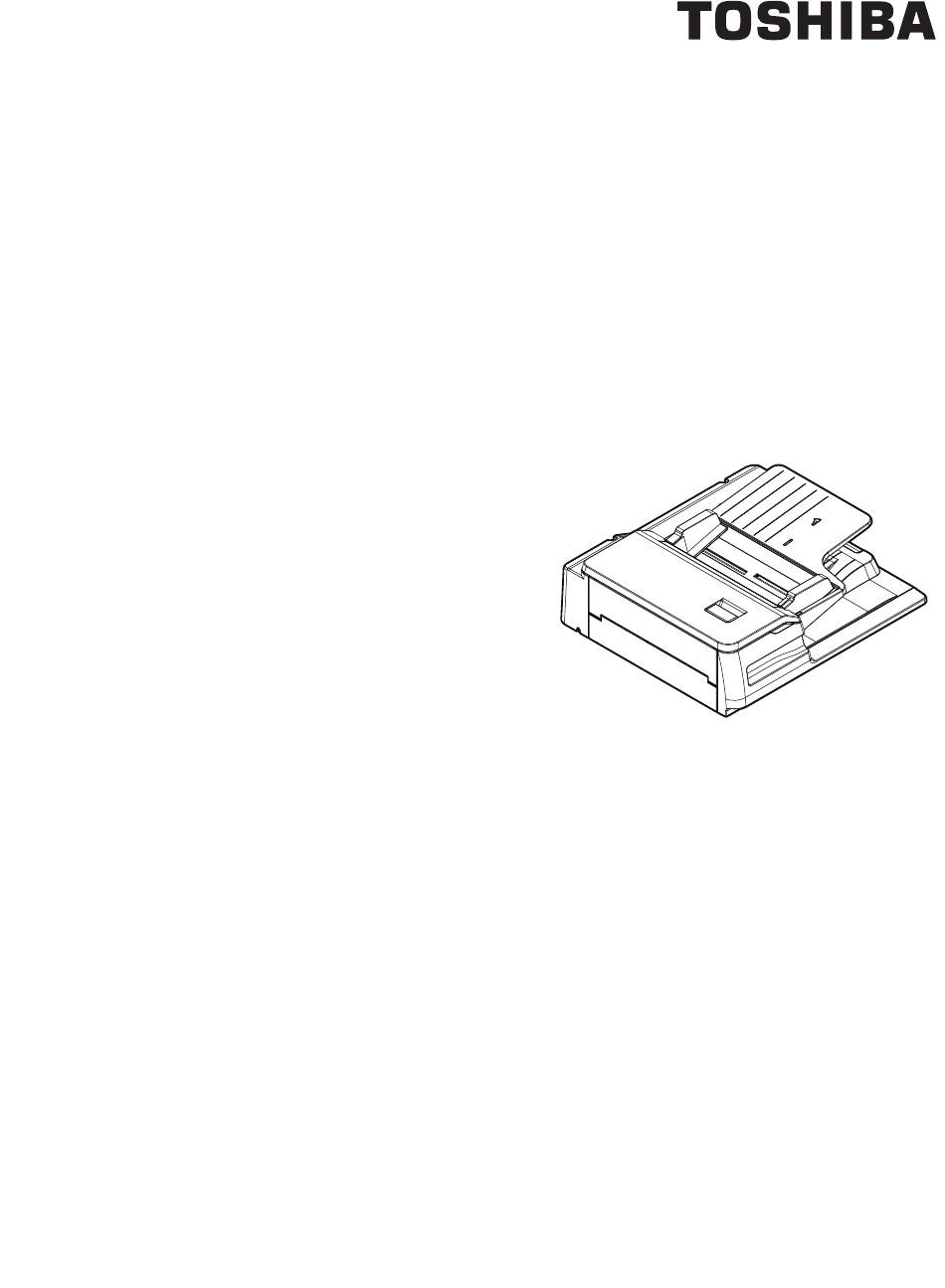

Page 1 SERVICE MANUAL DUAL SCAN DOCUMENT FEEDER MR-4000 Model: MR-4000Publish Date: March 2016File No. SME150014C0 R150521Q3603-TTEC Ver03b...
Page 2 Other company names and product names in this manual are the trademarks of their respective companies. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved Under the copyright laws, this manual cannot be reproduced in any form without prior written permission...
Page 3 GENERAL PRECAUTIONS REGARDING THE SERVICE FOR THIS DSDF The installation and service shall be done by a qualified service technician. 1. When installing the DSDF to the Equipment, be sure to follow the instructions described in the “Unpacking/Set-Up Procedure for the DSDF” booklet which comes with each unit of the DSDF. 2.
Page 4 19.There is a risk of an electric shock or fire resulting from the damage to the harness covering or conduction blockage. To avoid this, be sure to wire the harness in the same way as that before disassembling when the equipment is assembled/disassembled. 20.After completing installation, servicing and maintenance of the DSDF, return the DSDF to its original state, and check operation.
Page 5: Table Of Contents
DSDF feed sensor (SD5) / DSDF tray lift upper limit sensor (SD9)....4-23 4.5.2 DSDF original width detection sensor-1 (SD7) / DSDF original width detection sensor-2 (SD8) ....................4-25 4.5.3 DSDF registration sensor (SD6) ..............4-27 Drive Section........................4-30 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 CONTENTS...
Page 6 Intermediate transport unit ................5-39 5.7.2 DSDF read-in sensor-1 (SD11) / DSDF read-in sensor-2 (SD12) ....5-41 5.7.3 DSDF exit sensor (SD13) / DSDF tray lift lower limit sensor (SD10)....5-42 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved CONTENTS...
Page 7 9. FIRMWARE UPDATING ....................9-1 10. CIRCUIT DIAGRAM / HARNESS DIAGRAM ............. 10-1 10.1 Harness Diagram ......................10-1 10.2 Control PC Board Circuit Diagram .................. 10-3 REVISION RECORD....................... 1 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 CONTENTS...
Page 9: Specifications
DSDF I/F board fixing screw (2 pcs) Lock support (1 pc) Hinge cover (1 pc) Positioning pins (2 pcs) Washer (2 pcs) Label (1 pc) Remarks © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 SPECIFICATIONS 1 - 1...
Page 10 Black dot mark and “-B” applied <for identification> The 2nd digit of the serial number differs Fig. 1-1 Notes Purchasing this is not possible after June, 2019. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved SPECIFICATIONS 1 - 2...
Page 11: General Description
DSDF upper cover interlock switch Original Scanning CCDD DSDF-CCD module DSDF shading sheet Section SD14 DSDF shading sheet HP sensor Original exit tray section © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 GENERAL DESCRIPTION 2 - 1...
Page 12 DSDF read motor DSDF exit motor DSDF cooling fan motor DSDF control PC board cooling fan motor DSDF tray-up clutch DLGD DSDF control PC board MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved GENERAL DESCRIPTION 2 - 2...
Page 13: Sectional View
SD10 [10] [13] Fig. 2-2 MR-4000-B [12] [11] SD6 SD16 LEDD SD11 SD12 SD14 SD13 CCDD SD15 SD10 [10] DFRLY DLGD [13] Fig. 2-3 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 GENERAL DESCRIPTION 2 - 3...
Page 14 Original tray lift SD15 DSDF lower cover opening/closing detection Original exit tray sensor SD16 DSDF upper cover opening/closing DFRLY DSDF Relay board detection sensor MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved GENERAL DESCRIPTION 2 - 4...
Page 16 MR-4000 / MR-4000-B SWD2 SD16 SWD1 SD12 SD11 SD10 SD13 SD14 SD15 Fig. 2-6 MR-4000 DLGD DSDF-I/F CCDD LEDD Fig. 2-7 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved GENERAL DESCRIPTION 2 - 6...
Page 18: Symbols And Functions Of Various Components
DSDF read-in sensor- Detecting the original leading edge position at the Fig. 2-6 14 - 15 CCD module original scanning section of the DSDF MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved GENERAL DESCRIPTION 2 - 8...
Page 19: Pc Board
Symbol Name Function Remarks CCDD DSDF-CCD module Scanning the back side of the original in the DSDF Fig. 2-7 5 - 22 Fig. 2-8 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 GENERAL DESCRIPTION 2 - 9...
Page 20: Diagram Of Signal Blocks
DSDF upper cover interlock switch ( SWD2 ) DSDF Relay DSDF-CCD module board EEPROM DC 15V DC 5V Fig. 2-9 *1 MR-4000 only *2 MR-4000-B only MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved GENERAL DESCRIPTION 2 - 10...
Page 23: Description Of Operations
[1] Transport path [2] DSDF-CCD module [3] Front side scanning section (DF original glass section) [4] Back side scanning section (DSDF-CCD module scanning section) © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DESCRIPTION OF OPERATIONS 3 - 1...
Page 24: Drive Section
Fig. 3-2 Name Name DSDF feed motor DSDF feed roller DSDF pickup roller DSDF separation roller MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 2...
Page 25: Dsdf Separation Motor
DSDF separation motor DSDF tray-up clutch DSDF separation roller DSDF pickup roller Original tray lift DSDF feed roller DSDF tray lift lower limit sensor © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DESCRIPTION OF OPERATIONS 3 - 3...
Page 26: Dsdf Registration Motor
The DSDF registration roller aligns the paper and transports it to the pre-read roller-1. Fig. 3-4 Name Name DSDF registration motor DSDF registration roller MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 4...
Page 27: Dsdf Read Motor
The pre-read roller-2 and the post-read roller-2 perform paper transporting at the scanning section of the DSDF-CCD module. Fig. 3-5 Name Name DSDF read motor Pre-read roller-2 Pre-read roller-1 Post-read roller-2 Post-read roller-1 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DESCRIPTION OF OPERATIONS 3 - 5...
Page 28: Dsdf Exit Motor
The DSDF shading sheet is used to correct the values of the background peak of the DSDF-CCD module. Fig. 3-6 Name Name DSDF exit motor DSDF shading sheet HP sensor DSDF exit roller One-way clutch DSDF shading sheet MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 6...
Page 29: Original Size Detection
DSDF tray original length sensor-1 DSDF original width detection sensor-1 DSDF tray original length sensor-2 DSDF original width detection sensor-2 DSDF tray original width sensor © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DESCRIPTION OF OPERATIONS 3 - 7...
Page 30: Dsdf Tray Original Width Sensor, Dsdf Tray Original Length Sensor-1 / -2
8.5” x 8.5” A4-R LT-R FOLIO COMPUTER H (= high level): Open, L (= low level): Short *: Not related to the ON/OFF status MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 8...
Page 31: Dsdf Original Width Sensor-1 And -2 / Dsdf Registration Sensor
A4 size paper transportation B5-R period or longer Less than B5-R size paper transportation period Less than A4 size paper A5-R transportation period © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DESCRIPTION OF OPERATIONS 3 - 9...
Page 32 Less than A4 size paper A5-R transportation period A5-R A5-R * Not related to the ON/OFF status ** Not related to the transportation period MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DESCRIPTION OF OPERATIONS 3 - 10...
Page 33 Less than LT size paper 8.5”SQ transportation period ST-R ST-R ST-R * Not related to the ON/OFF status ** Not related to the transportation period © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DESCRIPTION OF OPERATIONS 3 - 11...
Page 35: Disassembly And Assembly (Mr-4000)
Open the original jam access cover [1]. Fig. 4-1 Turn the lever [2] and take off the DSDF pickup unit [3]. Fig. 4-2 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 1...
Page 37: Dsdf Separation Roller
Turn the arm [5] to release the lock. Fig. 4-6 Fig. 4-7 Turn the lever [6] of the front side to align the protrusion to the groove. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 3...
Page 38 Fig. 4-8 Fig. 4-9 Turn the lever [7] of the rear side to align the protrusion to the groove. Fig. 4-10 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 4...
Page 39 Slide the DSDF separation roller unit [8] to the front side to take it off. Fig. 4-12 DSDF separation roller unit Fig. 4-13 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 5...
Page 40 Take off the lever [7] of the rear side from the DSDF separation roller unit [8]. Release the latch and take off the DSDF separation roller [9]. Fig. 4-14 DSDF separation roller Fig. 4-15 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 6...
Page 41: Dsdf Pickup Roller
( P. 4-1 "4.1.1 DSDF pickup unit") Take off the DSDF pickup roller [10]. [ 10 ] Fig. 4-16 DSDF pickup roller Fig. 4-17 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 7...
Page 42: Dsdf Feed Roller
[ 11 ] Fig. 4-18 Take off the DSDF feed roller [13]. [ 13 ] Fig. 4-19 DSDF feed roller Fig. 4-20 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 8...
Page 43: Covers
Open the original jam access cover and remove 2 screws [1][2]. Remarks: [1] Screw for the metal part (paper feed side) [2] Screw for the plastic part (paper exit side) © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 9...
Page 44: Dsdf Front Cover
Remove 2 screws [1] for the plastic part and another 2 screws [2] for the metal part. Remarks: [1] Screws for the metal part (paper feed side) [2] Screws for the plastic part (paper exit side) Fig. 4-24 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 10...
Page 45: Original Jam Access Cover
( P. 4-10 "4.2.2 DSDF front cover") Disconnect 1 connector. Remove 1 screw and the hinge pin [6] of the rear side. Fig. 4-26 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 11...
Page 46 When installing and taking off the original jam access cover, be careful not to damage it or the transport guide of the DSDF left cover. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 12...
Page 47: Dsdf Left Cover
[1] Screws for the metal part (front side) [2] Screws for the plastic part (rear side) Take off the DSDF left cover [9] upward. Fig. 4-29 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 13...
Page 48: Pc Boards
Release 1 harness clamp [1] and disconnect 1 connector. Remove 2 screws [3] and take off the DSDF control PC board cooling fan motor [4]. Fig. 4-31 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 14...
Page 49: Dsdf Control Pc Board (Dlgd)
Disconnect 13 connectors and 1 HDMI cable. Release the lock and disconnect 1 flat cable. Remove 2 screws and take off the DSDF control PC board [13]. Fig. 4-33 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000)
Page 50 Do not apply pressure to or damage the edge of the flat cable. • When installing a flat cable, make sure that the conductor side will be the upper side. Fig. 4-34 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 16...
Page 51: Original Tray Section
Remove 1 screw and then take off the original tray bracket [2] and the original tray holder [3]. [ 1 ] [ 3 ] [ 2 ] Fig. 4-36 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 17...
Page 52: Dsdf Tray Original Length Sensor-1 (Sd1) / Dsdf Tray Original Length Sensor-2 (Sd2)
Take off the original tray. ( P. 4-17 "4.4.1 Original tray") Remove 1 screw and take off the sensor cover [14]. Fig. 4-38 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 18...
Page 53 Release the latch from each sensor. Take off the DSDF tray original length sensor-1 [15] and the DSDF tray original length sensor-2 [16]. [ 15 ] [ 16 ] Fig. 4-39 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 19...
Page 54: Dsdf Tray Original Width Sensor (Sd3)
When installing the tray holder, be careful not to catch the harness. Remove 1 screw and take off the original width sensor cover [19]. Fig. 4-41 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 20...
Page 55 Pay attention not to remove the washer and the wave washer of the pinion. Fig. 4-42 Disconnect 1 connector and take off the DSDF tray original width sensor [20]. Fig. 4-43 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 21...
Page 56: Dsdf Original Empty Sensor (Sd4)
When installing the tray holder, be careful not to catch the harness. Disconnect 1 connector. Release the latch and take off the DSDF original empty sensor [21]. Fig. 4-45 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 22...
Page 57: Original Feeding Section
( P. 4-11 "4.2.3 Original jam access cover") Remove 4 screws. Fig. 4-46 While pulling the lever, take off the top cover [1]. Fig. 4-47 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 23...
Page 58 Disconnect 1 connector. Release the latch and take off the DSDF feed sensor [2]. Fig. 4-48 Disconnect 1 connector. Release the latch and take off the DSDF tray lift upper limit sensor [3]. Fig. 4-49 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 24...
Page 59: Dsdf Original Width Detection Sensor-1 (Sd7) / Dsdf Original Width Detection Sensor-2 (Sd8)
( P. 4-11 "4.2.3 Original jam access cover") Remove 4 screws. Fig. 4-50 While pulling the lever, take off the top cover [1]. Fig. 4-51 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 25...
Page 60 Disconnect 1 connector. Release the latch and take off the DSDF original width detection sensor- 1 [5]. Disconnect 1 connector. Release the latch and take off the DSDF original width detection sensor- 2 [6]. Fig. 4-53 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 26...
Page 61: Dsdf Registration Sensor (Sd6)
( P. 4-11 "4.2.3 Original jam access cover") Remove 4 screws. Fig. 4-54 While pulling the lever, take off the top cover [1]. Fig. 4-55 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 27...
Page 62 Be careful not to drop any of the 6 springs. Fig. 4-58 Disconnect 1 connector and take off the DSDF registration sensor [8]. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 28...
Page 64: Drive Section
Fig. 4-60 Remove 2 screws and take off the DSDF cooling fan motor [3] from the bracket. [ 3 ] Fig. 4-61 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 30...
Page 65: Dsdf Upper Cover Interlock Switch (Swd2)
Disconnect 3 connectors. Remove 1 screw and take off the DSDF upper cover interlock switch [4]. Fig. 4-62 Notes: The color of all 3 harnesses for the DSDF upper cover interlock switch: Orange © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 31...
Page 66: Dsdf Upper Cover Opening/Closing Detection Sensor (Sd16)
Release the harness [4] from the clamp [2] and the actuator [3]. Release 2 hooks [5] and take off the actuator [3]. Fig. 4-64 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 32...
Page 67 Release 3 hooks [6]. Fig. 4-65 Disconnect 1 connector [7] and then take off the DSDF upper cover opening/closing detection sensor [8]. Fig. 4-66 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 33...
Page 68: Dsdf Registration Motor (Md3)
When installing the DSDF registration motor bracket, be sure to hook the pulley to the timing belt. • The harness color of the DSDF registration motor is gray, be sure to check the harness color at installing. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 34...
Page 69: Dsdf Read Motor (Md4)
Disconnect the connectors [7] for the DSDF upper cover interlock switch and the DSDF lower cover interlock switch. Remove 2 screws and take off the harness guide [5]. Fig. 4-70 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 35...
Page 70 When installing, temporarily tighten 2 screws, hook the tension spring and then securely tighten them. Remove 2 screws and take off the DSDF read motor [25] from the DSDF read motor bracket [24]. Fig. 4-72 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 36...
Page 71: Dsdf Exit Motor (Md5)
When installing the DSDF exit motor bracket, be sure to hook the pulley to the timing belt. • When installing, temporarily tighten 2 screws, hook the tension spring and then securely tighten them. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000)
Page 72: Dsdf Lower Cover Interlock Switch (Swd1)
Disconnect 3 connectors. Remove 1 screw and take off the DSDF lower cover interlock switch [19]. Fig. 4-76 Notes: The color of 3 harnesses for the DSDF lower cover interlock switch: Orange (1) and white (2). MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 38...
Page 73: Dsdf Feed Motor (Md1)
Disconnect 1 connector [22]. Remove 2 screws. Turn the DSDF separation motor [23] clockwise and slide it to the upper right to take it off. Fig. 4-78 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000)
Page 74: Original Transport Section
Take off the DSDF cooling fan motor (FD1). ( P. 4-30 "4.6.1 DSDF cooling fan motor (FD1)") Disconnect 5 connectors. Fig. 4-79 Disconnect 2 connectors. Fig. 4-80 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 40...
Page 75 Remove 1 screw and take off the pulley bracket [14] toward the front side. Remove 1 screw. [ 14 ] Fig. 4-81 Remove 2 screws. Fig. 4-82 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 41...
Page 76 Take off the intermediate transport unit [1]. Fig. 4-83 Intermediate transport unit Fig. 4-84 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 42...
Page 77: Dsdf Read-In Sensor-1 (Sd11) / Dsdf Read-In Sensor-2 (Sd12)
Release the latch and take off the DSDF read-in sensor-1 [3] from the sensor bracket. Release the latch and take off the DSDF read-in sensor-2 [4] from the sensor bracket. Fig. 4-86 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000)
Page 78: Dsdf Exit Sensor (Sd13) / Dsdf Tray Lift Lower Limit Sensor (Sd10)
Remove 1 screw. Remove the pin [6] at the front of the sensor stay [5] and release the latch [7] at the center. Take off the sensor stay. [ 5 ] [ 7 ] [ 6 ] Fig. 4-88 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 44...
Page 79 Disconnect 1 connector. Release the latch and take off the DSDF exit sensor [8]. Fig. 4-89 Disconnect 1 connector. Release the latch and take off the DSDF tray lift lower limit sensor [9]. Fig. 4-90 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 45...
Page 80: Lower Transport Unit
Remove 2 screws and take off the harness guide [5]. Fig. 4-91 Remove 8 screws and take off the lower transport unit [10]. Fig. 4-92 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 46...
Page 83: Dsdf Shading Sheet Hp Sensor (Sd14) / Dsdf Lower Cover Opening/Closing Detection Sensor (Sd15)
Disconnect the connector. Release the latch and take off the DSDF lower cover opening/closing detection sensor [13] from the sensor bracket. Fig. 4-100 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 49...
Page 84: Original Scanning Section
( P. 4-40 "4.7.1 Intermediate transport unit") Disconnect 1 flat harness and 1 connector. Fig. 4-101 Take off the DSDF-CCD module [1]. Fig. 4-102 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 50...
Page 85 2. Pay close attention not to cause any impact or vibration to the DSDF-CCD module because it is a precision apparatus. Fig. 4-104 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000) 4 - 51...
Page 87: Disassembly And Assembly (Mr-4000-B)
DSDF pickup unit Open the original jam access cover [1]. Fig.5-1 Turn the lever [2] and take off the DSDF pickup unit [3]. Fig.5-2 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 1...
Page 89: Dsdf Separation Roller
( P. 5-1 "5.1.1 DSDF pickup unit") Open the DSDF separation roller cover [4]. Fig.5-5 Turn the arm [5] to release the lock. Fig.5-6 Fig.5-7 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 3...
Page 90 Turn the lever [6] of the front side to align the protrusion to the groove. Fig.5-8 Fig.5-9 Turn the lever [7] of the rear side to align the protrusion to the groove. Fig.5-10 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 4...
Page 91 Fig.5-11 Slide the DSDF separation roller unit [8] to the front side to take it off. Fig.5-12 DSDF separation roller unit Fig.5-13 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 5...
Page 92 Take off the lever [7] of the rear side from the DSDF separation roller unit [8]. Release the latch and take off the DSDF separation roller [9]. Fig.5-14 DSDF separation roller Fig.5-15 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 6...
Page 93: Dsdf Pickup Roller
( P. 5-1 "5.1.1 DSDF pickup unit") Take off the DSDF pickup roller [10]. [ 10 ] Fig.5-16 DSDF pickup roller Fig.5-17 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 7...
Page 94: Dsdf Feed Roller
[ 12 ] [ 11 ] Fig.5-18 Take off the DSDF feed roller [13]. [ 13 ] Fig.5-19 DSDF feed roller Fig.5-20 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 8...
Page 95: Covers
[ 2 ] Fig.5-22 Remarks: [1] Screw for the metal part (paper feed side) [2] Screw for the plastic part (paper exit side) © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 9...
Page 96: Dsdf Front Cover
[1] Screw for the metal part (paper feed side) [2] Screw for the plastic part (paper exit side) Remove 1 screw and take off the DSDF front cover [5]. Fig.5-25 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 10...
Page 97: Original Jam Access Cover
Remove 1 screw and the hinge pin [7] of the front side. Remove 1 screw of the original jam access cover stopper. Fig.5-27 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 11...
Page 98: Dsdf Left Cover
[1] Screw for the metal part (front side) [2] Screw for the plastic part (rear side) Take off the DSDF left cover [9] upward. Fig.5-29 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 12...
Page 99: Pc Boards
( P. 5-9 "5.2.1 DSDF rear cover") Disconnect 12 connectors. Remove 2 screws and take off the DSDF control PC board [13]. [ 13 ] Fig.5-31 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 13...
Page 100: Dsdf Relay Board (Dfrly)
Remove 2 screws and take off the harness guide [5]. [ 7 ] [ 6 ] [ 5 ] [ 7 ] Fig.5-33 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 14...
Page 101 Release the harness from the clamp of the harness guide [5]. Fig.5-34 Take off the DSDF relay board [14] from the harness guide. [ 14 ] Fig.5-35 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 15...
Page 102: Original Tray Section
Remove 1 screw and then take off the original tray bracket [2] and the original tray holder [3]. [ 1 ] [ 3 ] [ 2 ] Fig.5-37 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 16...
Page 104: Dsdf Tray Original Length Sensor-1 (Sd1) / Dsdf Tray Original Length Sensor-2 (Sd2)
Release the latch from each sensor. Take off the DSDF tray original length sensor-1 [15] and the DSDF tray original length sensor-2 [16]. [ 15 ] [ 16 ] Fig.5-40 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 18...
Page 105: Dsdf Tray Original Width Sensor (Sd3)
Remove 1 screw and take off the original width sensor cover [19]. Fig.5-42 Notes: Pay attention not to remove the washer and the wave washer of the pinion. Fig.5-43 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 19...
Page 106: Dsdf Original Empty Sensor (Sd4)
Remove 1 screw and take off the tray holder [17]. Take off the movable tray [18]. Fig.5-45 Notes: When installing the tray holder, be careful not to catch the harness. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 20...
Page 107 Disconnect 1 connector. Release the latch and take off the DSDF original empty sensor [21]. Fig.5-46 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 21...
Page 108: Original Feeding Section
While pulling the lever, take off the top cover [1]. Fig.5-48 Disconnect 1 connector. Release the latch and take off the DSDF feed sensor [2]. Fig.5-49 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 22...
Page 109: Dsdf Original Width Detection Sensor-1 (Sd7) / Dsdf Original Width Detection Sensor-2 (Sd8)
( P. 5-11 "5.2.3 Original jam access cover") Remove 4 screws. Fig.5-51 While pulling the lever, take off the top cover [1]. Fig.5-52 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 23...
Page 110: Dsdf Registration Sensor (Sd6)
DSDF registration sensor (SD6) Take off the original jam access cover. ( P. 5-11 "5.2.3 Original jam access cover") Remove 4 screws. Fig.5-55 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 24...
Page 111 Disconnect 2 connectors [9]. Remove 8 screws and take off the stay [7]. [ 7 ] [ 9 ] [ 9 ] Fig.5-58 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 25...
Page 112 Be careful not to drop any of the 6 springs. Fig.5-59 Disconnect 1 connector and take off the DSDF registration sensor [8]. Fig.5-60 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 26...
Page 113: Drive Section
[ 1 ] Fig.5-61 Remove 2 screws and take off the DSDF cooling fan motor [3] from the bracket. [ 3 ] Fig.5-62 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 27...
Page 114: Dsdf Upper Cover Interlock Switch (Swd2)
Take off the DSDF rear cover. ( P. 5-9 "5.2.1 DSDF rear cover") Remove 2 screws and take off the sensor bracket [1]. Fig.5-64 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 28...
Page 115 Release 3 hooks [6]. Fig.5-66 Disconnect 1 connector [7] and then take off the DSDF upper cover opening/closing detection sensor [8]. Fig.5-67 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 29...
Page 116: Dsdf Registration Motor (Md3)
Remove 2 screws and take off the harness guide [5]. [ 7 ] [ 6 ] [ 5 ] [ 7 ] Fig.5-69 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 30...
Page 117 When installing the DSDF registration motor bracket, be sure to hook the pulley to the timing belt. • The harness color of the DSDF registration motor is gray, be sure to check the harness color at installing. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 31...
Page 118: Dsdf Read Motor (Md4)
Do not apply pressure to or damage the edge of the flat cable. • When installing a flat cable, make sure that the conductor side will be the upper side. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 32...
Page 119 [ 6 ] [ 5 ] [ 7 ] Fig.5-74 Notes: Release the harness from the clamp of the harness guide [5]. Fig.5-75 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 33...
Page 120 When installing, temporarily tighten 2 screws, hook the tension spring and then securely tighten them. Remove 2 screws and take off the DSDF read motor [25] from the DSDF read motor bracket [24]. Fig.5-77 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 34...
Page 121: Dsdf Exit Motor (Md5)
Remove 2 screws and take off the harness guide [5]. [ 7 ] [ 6 ] [ 5 ] [ 7 ] Fig.5-79 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 35...
Page 122 When installing the DSDF exit motor bracket, be sure to hook the pulley to the timing belt. • When installing, temporarily tighten 2 screws, hook the tension spring and then securely tighten them. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 36...
Page 123: Dsdf Lower Cover Interlock Switch (Swd1)
Disconnect 3 connectors. Remove 1 screw and take off the DSDF lower cover interlock switch [19]. Fig.5-83 Notes: The color of 3 harnesses for the DSDF lower cover interlock switch: Orange (1) and white (2) © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 37...
Page 124: Dsdf Feed Motor (Md1)
Disconnect 1 connector [22]. Remove 2 screws. Turn the DSDF separation motor [23] clockwise and slide it to the upper right to take it off. Fig.5-85 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 38...
Page 125: Original Transport Section
Take off the DSDF cooling fan motor (FD1).  P. 5-27 "5.6.1 DSDF cooling fan motor (FD1)" Disconnect 5 connectors. Fig.5-86 Disconnect 2 connectors. Fig.5-87 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 39...
Page 126 Remove 1 screw and take off the pulley bracket [14] toward the front side. Remove 1 screw. [ 14 ] Fig.5-88 Remove 2 screws. Fig.5-89 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 40...
Page 127: Dsdf Read-In Sensor-1 (Sd11) / Dsdf Read-In Sensor-2 (Sd12)
Take off the DSDF-CCD module. ( P. 5-47 "5.8.1 DSDF-CCD module (CCDD)") Disconnect 2 connectors and remove 1 screw. Take off the sensor bracket [2]. Fig.5-92 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 41...
Page 128: Dsdf Exit Sensor (Sd13) / Dsdf Tray Lift Lower Limit Sensor (Sd10)
Remove 1 screw. Remove the pin [6] at the front of the sensor stay [5] and release the latch [7] at the center. Take off the sensor stay. [ 5 ] [ 7 ] [ 6 ] Fig.5-95 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 42...
Page 129 Disconnect 1 connector. Release the latch and take off the DSDF exit sensor [8]. Fig.5-96 Disconnect 1 connector. Release the latch and take off the DSDF tray lift lower limit sensor [9]. Fig.5-97 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 43...
Page 130: Lower Transport Unit
Take off the DSDF left cover.  P. 5-12 "5.2.4 DSDF left cover" Remove 8 screws and take off the lower transport unit [10]. Fig.5-98 Fig.5-99 Fig.5-100 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 44...
Page 132: Dsdf Shading Sheet Hp Sensor (Sd14) / Dsdf Lower Cover Opening/Closing Detection Sensor (Sd15)
Disconnect the connector. Release the latch and take off the DSDF lower cover opening/closing detection sensor [13] from the sensor bracket. Fig.5-106 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 46...
Page 133: Original Scanning Section
( P. 5-39 "5.7.1 Intermediate transport unit") Disconnect 1 flat harness and 1 connector. Fig.5-107 Take off the DSDF-CCD module [1]. Fig.5-108 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 47...
Page 134 • Pay close attention not to cause any impact or vibration to the DSDF-CCD module because it is a precision apparatus. Fig.5-110 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 48...
Page 135: Film Attachment Reference
Attach them as shown in the figure below. 0~0.5mm 0~0.5mm [ 1 ] [ 2 ] Fig.5-112 [1] Registration films R [2] Registration films F © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 49...
Page 136: Films With A Spacer
Attach them as shown in the figure below. [ 2 ] [ 1 ] [ 2 ] [ 1 ] 0~0.5mm Fig.5-114 [1] Film [2] Films with a spacer MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved DISASSEMBLY AND ASSEMBLY (MR-4000-B) 5 - 50...
Page 137: Adjustment
DSDF. (See the Service Manual of the applicable equipment.) 6.1.1 Checking Open the DSDF and install 2 positioning pins. Fig.6-1 Remove the platen sheet. Fig.6-2 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 ADJUSTMENT 6 - 1...
Page 138 Place the platen sheet on the original glass and align it to the top left corner. Close the DSDF gently and open it to check if the platen sheet is attached properly. Fig.6-4 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENT 6 - 2...
Page 139 Position the pins with the holes on the DSDF by moving it so that the pins fit into the holes when the DSDF is closed. Fig.6-7 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 ADJUSTMENT 6 - 3...
Page 140 Tighten the fixing screws of the rear side. Fig.6-8 Tighten the fixing screws of the front side. Fig.6-9 Install the brackets on the hinges. Fig.6-10 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENT 6 - 4...
Page 141 Place the platen sheet on the original glass and align it to the top left corner. Close the DSDF gently and open it to check if the platen sheet is attached properly. Fig.6-11 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 ADJUSTMENT...
Page 142: Adjustment Of Height
If the value is not within the tolerance, perform the adjustment according to the following procedure. [Tolerance of the gap] Rear side: 0 - 0.5 mm Front side: 0 mm Fig.6-12 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENT 6 - 6...
Page 143: Adjustment
Adjust the gap on the front side by means of the screw on the hinge on the exit side of the DSDF. Turn it clockwise: Lowered Turn it counterclockwise: Heightened Fig.6-14 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 ADJUSTMENT 6 - 7...
Page 144: Adjustment Of Skew
[Sort mode] and [2 Sided -> 2 Sided] and then press the [START] button. Superimpose the chart on the copy and check the inclination of the copy image. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENT 6 - 8...
Page 145: Adjustment
Shift the aligning plate in the direction of "-". Shift the aligning plate in the direction of "+". Check the skew of the copy image by using a chart. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 ADJUSTMENT...
Page 146 Remove the DSDF front side cover.  P. 4-10 "4.2.2 DSDF front cover" Clarify the attachment position of the plate by drawing a marking-off line. Fig.6-21 Loosen 1 screw. Fig.6-22 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENT 6 - 10...
Page 147 Fig.6-25 Tighten the screw loosened in step (3). Check the skew of the copy image by using a chart. Install the DSDF front side cover. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 ADJUSTMENT 6 - 11...
Page 148: Adjustment Of The Leading Edge Position
Superimpose the chart on the copy and check the leading edge E of the chart and F of the copy. Fig.6-28 Chart (Original) Fig.6-29 Copy MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENT 6 - 12...
Page 149: Adjustment
If the leading edge (F) margin of the copy image is smaller than the (E) margin of the chart, enter a value larger than the current one. Notes: Changing one value shifts the copy image by 0.1 mm. Press [OK]. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 ADJUSTMENT 6 - 13...
Page 150: Adjustment Of Horizontal Position
If the center line of the copy image is shifted to the rear side of the equipment, enter a value smaller than the current one. Notes: Changing one value shifts the copy image by 0.0423 mm. Fig.6-31 Press [OK]. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENT 6 - 14...
Page 151: Back Side
If the center line of the copy image is shifted to the left side to the feeding direction (K), enter a value smaller than the current one. Notes: Changing one value shifts the copy image by 0.0423mm. Press [OK]. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 ADJUSTMENT 6 - 15...
Page 152: Adjustment Of Copy Ratio
• If the copy image dimension “I” is smaller than the chart dimension, enter a value larger than the current one. Fig.6-34 Press [OK]. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENT 6 - 16...
Page 153: Dsdf Read-In Sensor-1 Adjustment
If you do so, the adjustment value will be reset. In this case, repeat the adjustment from step (2). Loosen 1 prism adjustment screw. Fig.6-35 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 ADJUSTMENT 6 - 17...
Page 154 Perform automatic adjustment (FS-05-3210). Notes: After the manual adjustment is performed, be sure to do the automatic one. Turn the power OFF and install the cover. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved ADJUSTMENT 6 - 18...
Page 155: Platen Sheet
Place the platen sheet on the original glass and align it to the top left corner. Close the DSDF gently and open it to check if the platen sheet is attached properly. Fig.6-40 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 ADJUSTMENT...
Page 156: Dsdf Separation Roller Pressure Force
Remove the DSDF pickup unit [1]. Open the DSDF separation roller cover [1]. [ 1 ] Fig.6-41 Turn the arm [2] to release the lock. [ 2 ] Fig.6-42 MR-4000 © 2016-2019 Toshiba Tec Corporation All rights reserved ADJUSTMENT 6 - 20...
Page 157 (but multiple feeding may occur frequently). • Move to the direction R: Multiple feeding will be suppressed (but the roller life may become shorter). [ 4 ] Fig.6-112 MR-4000 © 2016-2019 Toshiba Tec Corporation All rights reserved ADJUSTMENT 6 - 21...
Page 159: Troubleshooting
DSDF registration sensor jam turned ON. E769 Paper Original remaining at the The DSDF original feed sensor remains P. 7-13 remaining jam DSDF original feed sensor turned ON. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 1...
Page 160 ON within a specified time. E870 Cover open DSDF open jam The DSDF has become open during DSDF P. 7-17 operation. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 2...
Page 161: Service Call
P. 7-24 signal time-out error normally. S-VDEN OFF (back side) The scanning job has not finished F118 Time-out error P. 7-24 signal time-out error normally. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 3...
Page 162: Diagnosis And Prescription For Each Error Code
Replace the PC board. Parts to be replaced Remarks DSDF pickup roller DSDF original feed roller DSDF separation roller DSDF registration sensor DSDF control PC board MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 4...
Page 163 • Harness check • Replace the PC board. Parts to be replaced Remarks DSDF original feed sensor DSDF original feed motor DSDF control PC board © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 5...
Page 164 Parts to be replaced Remarks DSDF tray lift upper limit sensor DSDF tray lift lower limit sensor DSDF tray-up clutch DSDF separation motor MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 6...
Page 165 DSDF original exit sensor • Sensor check Input check: FS-03-[F2]ON/[7]/[E] • Actuator check • Connector check (J985, J957, CN75) • Harness check • Replace the sensor. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 7...
Page 166 DSDF registration sensor DSDF tray original length sensor-1 DSDF tray original length sensor-2 DSDF tray original width sensor-1 DSDF tray original width sensor-2 DSDF control PC board MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 8...
Page 167 Connector check • Harness check • Fuse check • Replace the switching regulator. Parts to be replaced Remarks DSDF control PC board SYS board Switching regulator © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 9...
Page 168 Connector check (CN75) • Harness check • Replace the PC board. Parts to be replaced Remarks Post-read roller-1 DSDF read-in sensor-2 DSDF control PC board MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 10...
Page 169 Preparation of the page memory has not been completed within a specified time. Check item Measures Reproducing ability Release the paper jam and reattempt copying or scanning. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 11...
Page 170 PC board check • Connector check (CN74) • Harness check • Replace the PC board. Parts to be replaced Remarks DSDF registration sensor DSDF control PC board MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 12...
Page 171 Harness check • Replace the sensor. DSDF control PC board • PC board check • Connector check (CN74) • Harness check • Replace the PC board. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 13...
Page 172 PC board check • Connector check (CN74) • Harness check • Replace the PC board. Parts to be replaced Remarks DSDF read-in sensor-1 DSDF control PC board MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 14...
Page 173 • Harness check • Replace the PC board. Parts to be replaced Remarks DSDF original exit roller DSDF original exit sensor DSDF control PC board © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 15...
Page 174 • Sensor check closing detection sensor Input check: FS-03-[F2]ON/[7]/[C] • Actuator check • Connector check (J981, J954, CN75) • Harness check • Replace the sensor. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 16...
Page 175 The DSDF has become open during DSDF operation. Check item Measures Platen sensor-1 • Sensor check Input check: FS-03-[F2]ON/[5]/[C] • Actuator check • Connector check • Harness check • Replace the sensor. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 17...
Page 176 PC board check • Connector check • Harness check • Replace the PC board. Parts to be replaced Remarks Platen sensor-1 Platen sensor-2 DSDF control PC board MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 18...
Page 177: Service Call
PC board check • Connector check • Harness check • Replace the PC board. Parts to be replaced Remarks DSDF DSDF I/F board SYS board © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 19...
Page 178 Check if there is any abnormality in the DSDF-CCD module. Parts to be replaced Remarks DSDF I/F board DSDF control PC board SYS board DSDF original exit motor DSDF-CCD module MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 20...
Page 179 DSDF-CCD module • Check if the connectors of the DSDF-CCD module are connected properly. • Check if there is any abnormality in the DSDF-CCD module. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 21...
Page 180 • PC board check • Connector check (CN75) • Harness check • Replace the PC board. Parts to be replaced Remarks DSDF control PC board MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 22...
Page 181 • Harness check • Replace the PC board. SYS board • PC board check • Connector check • Harness check • Replace the PC board. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 23...
Page 182 DSDF control PC board • PC board check • Connector check (CN71) • Harness check • Replace the PC board. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 24...
Page 183 PC board check • Connector check • Harness check • Replace the PC board. Parts to be replaced Remarks Harness DSDF control PC board SYS board © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 25...
Page 184: Other Errors
DSDF tray original length sensor- DSDF tray original length sensor- DSDF tray original width sensor Contact point leaf spring of the DSDF tray original width sensor MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 26...
Page 185 Replace the DSDF separation roller. DSDF pickup roller, DSDF pickup Take off the pickup roller. Clean it and its shaft holes in the DSDF pickup unit unit. Fig. 7-4 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 27...
Page 186 DSDF pickup roller in the DSDF pickup unit. Notes: Pay attention not to apply grease to the tooth surface of the gears. Fig. 7-6 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 28...
Page 187 1 mm or. Loosen the screw [1] and move the elevator shaft [2]. Tighten the screw [1]. [ 2 ] [ 1 ] Fig. 7-8 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 29...
Page 188 Check if the springs of the pinch rollers facing each transport roller have come off. Check the installation of the pinch roller. If it is not installed properly, correct this. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 30...
Page 189 DSDF lower cover interlock switch • Check if the DSDF lower cover interlock switch is working properly. • Replace the DSDF lower cover interlock switch. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 31...
Page 190 DSDF lower cover opening/closing detection sensor DSDF lower cover interlock switch DSDF upper cover opening/closing detection sensor DSDF upper cover interlock switch Platen sensor-1 Platen sensor-2 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 32...
Page 191 The image distortion (dogleg image) shown upper occur on the leading or trailing edge at the back side of the copied or scanned paper while the DSDF was used. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000...
Page 192 When this adjustment is performed, an entire image may be tilted. • Even if this adjustment is performed, a dogleg image will not be resolved completely. MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved TROUBLESHOOTING 7 - 34...
Page 193 Fig. 7-13 3. If stains cannot be removed completely, replace the shading plate. DSDF-CCD module Check if the DSDF-CCD module is abnormal. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 TROUBLESHOOTING 7 - 35...
Page 196 *1: Perform cleaning / lubrication for the DSDF at the same interval as for the main equipment to which the DSDF is connected. *2: When the DSDF pickup roller is replaced, clean its shaft holes in the DSDF pickup unit. Fig.8-3 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MAINTENANCE 8 - 2...
Page 197 *3: Remove the DSDF pickup unit. Release the hook. Remove the lever from the DSDF pickup unit. Apply grease (Molykote EM-30L) by 0.01 cc to the edge of the shaft. (See the figure below.) Fig.8-4 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 MAINTENANCE...
Page 198: Maintenance Part List
Take off the front cover of the scanner section in the equipment. Install the stopper jig. Fig.8-5 Remarks: 1. Insert the upper side of the stopper jig into the hole of the DSDF. Fig.8-6 MR-4000 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MAINTENANCE 8 - 4...
Page 201: Firmware Updating
FIRMWARE UPDATING For updating firmware, refer to "FIRMWARE UPDATING" in the Service Manual for MFP. © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 FIRMWARE UPDATING 9 - 1...
Page 203: 10. Circuit Diagram / Harness Diagram
10. CIRCUIT DIAGRAM / HARNESS DIAGRAM 10.1 Harness Diagram MR-4000 Fig.10-1 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 CIRCUIT DIAGRAM / HARNESS DIAGRAM 10 - 1...
Page 205: 10.2 Control Pc Board Circuit Diagram
10.2 Control PC Board Circuit Diagram 1. DSDF-I/F board (MR-4000 / MR-4000-B) Fig.10-3 © 2016 - 2019 TOSHIBA TEC CORPORATION All rights reserved MR-4000 CIRCUIT DIAGRAM / HARNESS DIAGRAM 10 - 3...
Page 232: Revision Record
Ver.03 Ver.03 <2019.01.31> Page Contents Descriptions have been added. A figure has been changed. Descriptions (MR-4000-B) have been added. A part name (DSDF relay board) has been added. 2-5 to 2-7 Descriptions (MR-4000-B) have been added. 2-8 to 2-9 Remarks has been changed. A part name (DSDF relay board) has been added.
Page 233 9-9 to 9-18 Circuit diagram (DSDF control PC board) has been added. Ver.01 Ver.01 <2016.07.29> Page Contents General precaution A note has been added. The wrong description has been corrected. Ver.01 <2016.07.29> Page Contents 4-13 The notes has been added. 4-14 The wrong procedure has been corrected.
Page 235 1-11-1, OSAKI, SHINAGAWA-KU, TOKYO, 141-8562, JAPAN...

Toshiba MR-4000 Service Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toshiba MR-4000

Summary of Contents for Toshiba MR-4000

Table of Contents
