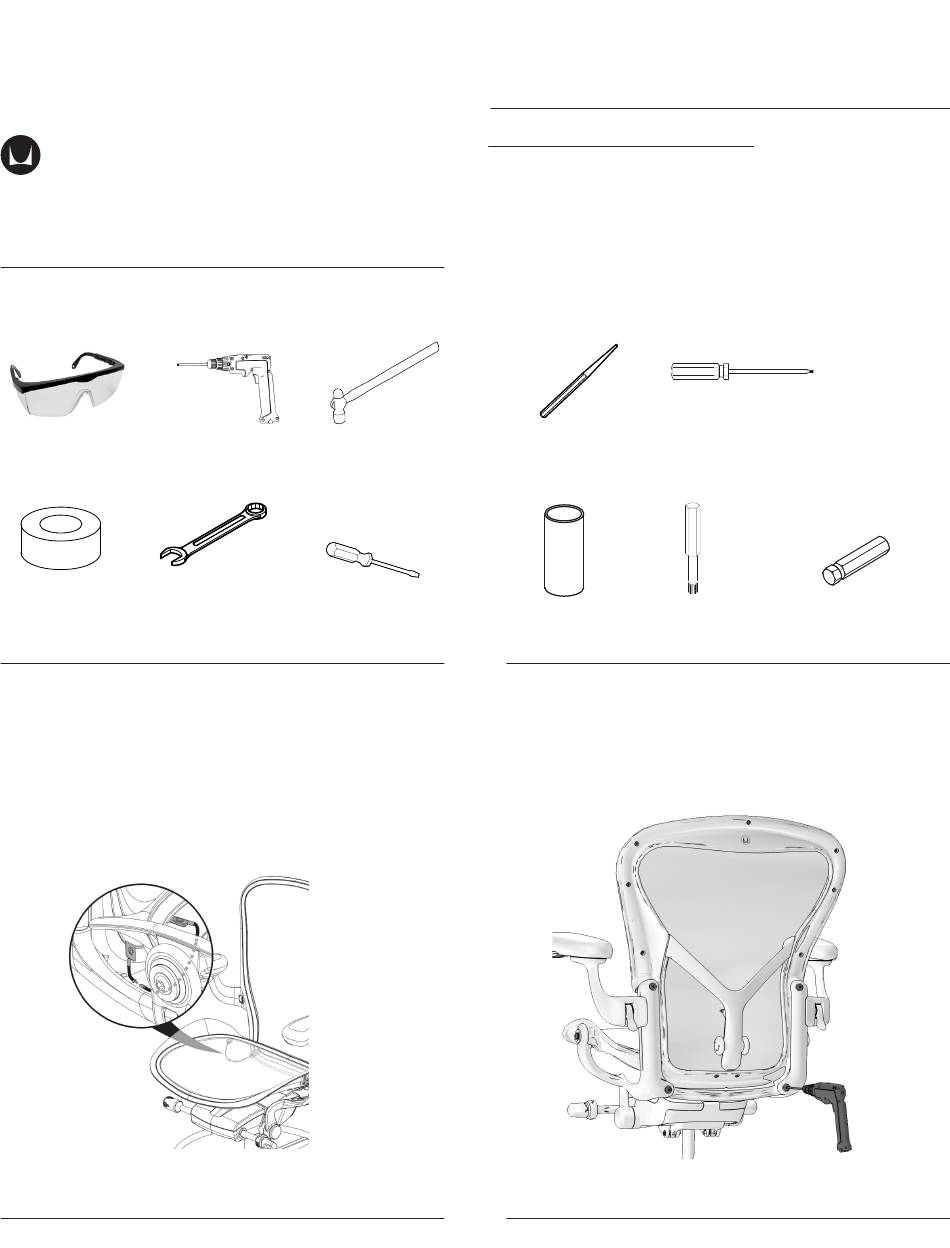

Tools Required
Safety Glasses
Nylon cap
Wrench 10 mm
Step 1
1. Disconnect wire connector from swing arm separate connector between
seat and back.
HermanMiller Aeron
ESD Chair
®
Electric Drill
Hammer
Flat screw driver
Aeron ESD Disassembly for Recycling
Materials Identification and Segregation:
Where possible, plastic components are marked with ASTM recycling codes.
Use these codes to identify material type for recycling. Non marked compo-
nents should be treated as mixed plastic. Ferrous metals can be identified
using a small magnet for recycling. Non-ferrous metals should be separated
and recycled separately.
Punch
Special punch with recess
T40, T25 Torx bit
1.1 Remove the four back bolts using 5mm Hex bit.
1
T27 Torx driver
5mm, 6mm Hex bit
Part no. 1BXGFF rev A.
