NetMedia NM-MM70S Quick Start Manual

NM-MM70S
The NetMedia MM70S Stereo Modulator converts composite video and stereo audio to an MTS Stereo
television signal. The selectable channel is viewed with a standard television (SDTV) tuner. Once modu-
lated, the signal is no longer bound to a single monitor or TV; it can be combined with antenna, cable, or
satellite signals for distribution to multiple TV's throughout the location. This provides convenient view-
ing access to security cameras, DVR's, or other audio/video (A/V) sources such as DVD's and VCR's.
Product Includes:

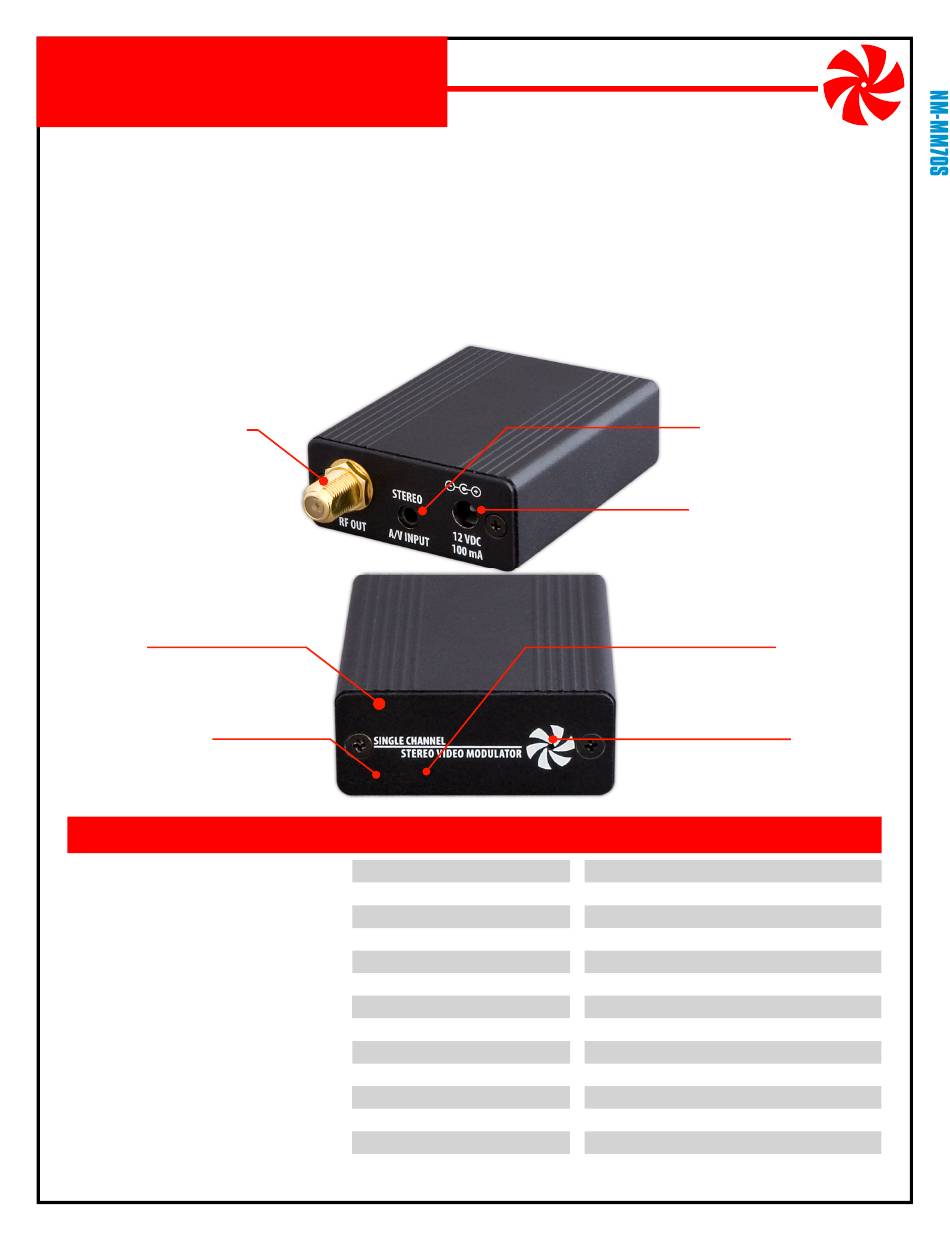

1. Modulator Assembly (A/V Input Connector, RF Output Connector,
Power Input Connector, End Plate, Switch Bank, Gain Adjustment, Power LED).
2. 12V DC 100mA Power Transformer (Center Conductor Positive).
3. 3.5mm to 3 RCA A/V Cable.
RF Output Connector
Connects modulated stereo output
channel to video distribution
system and televisions.
End Plate
Remove to access Switch Bank
and Gain Adjustment.
Gain Adjustment
Behind End Plate -
turn clockwise to increase
output level to over +30dBmV.
FEATURES
Stereo audio input and output
Digital PLL locked audio & video - no drift
Combines with existing TV channels
Viewable on multiple televisions
UHF & Cable channel coverage
Channel retained during power outage
Tough aluminum housing
Includes power supply
5 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
Single Channel Stereo Modulator
Baseband A/V to SDTV Converter
SPECIFICATIONS
Modulation Method:
Output Channel:
Output Level:
Output Connector:
Input Connector:
Video Input Signal:
Audio Input Signal:
Audio Output:
Cable Type:
Power Requirement:
Power Connector:
Housing Size:
Weight:
A/V Input Connector
Composite video and stereo audio input
for A/V sources such as cameras, quads,
Power Input Connector
12V DC 100mA, center positive.
Switch Bank
Behind End Plate -
Sets output channel:
CABLE 70-94, 100-125.
Indicates that unit is on.
Digital Crystal PLL
SDTV: UHF 14-69, CABLE 70-94, 100-125
Selectable, 0 to +30dBmV
Female F, 75 Ohm
3.5mm A/V jack
Baseband, 75 Ohm, 1 Vp-p
Stereo, 75,000 Ohm, 1 Vp-p
MTS Stereo
RG59, RG6 or better
12V DC, 100mA
5.5mm OD, 2.1mm ID, center positive
3.2" long x 2.2" wide x 0.9" high
4.0 oz.
(subject to change without notice)
DVR's, DVD's, etc.
UHF 14-69
Power LED
MAN-MM70S REV0708A
