Connecting the NetMedia MM70 MicroModulato r™
AUDIO
VIDEO
LEFT
RIGHT
AUDIO/VIDEO SOURCES
VCR/LASERDISC PLAYERS
SURVEILLANCE/VIDEO CAMS
SATELLITE SYSTEMS
See Figure 1:
1.) Insert the male RCA connector from the video source into
the MM70 RCA connector.
2.) Insert the 3.5mm stereo jack from the audio source into
the MM70 stereo audio input.
3.) Use a male "F" connector cable to output the MM70 modulated
signal to a splitter/combiner.
4.) Plug the provided 12V DC, 100 mA power supply into the
Power line and the MM70.
MM70DGA-2page.cdr
MM70 MICROMODULATOR
AC POWER SOURCE

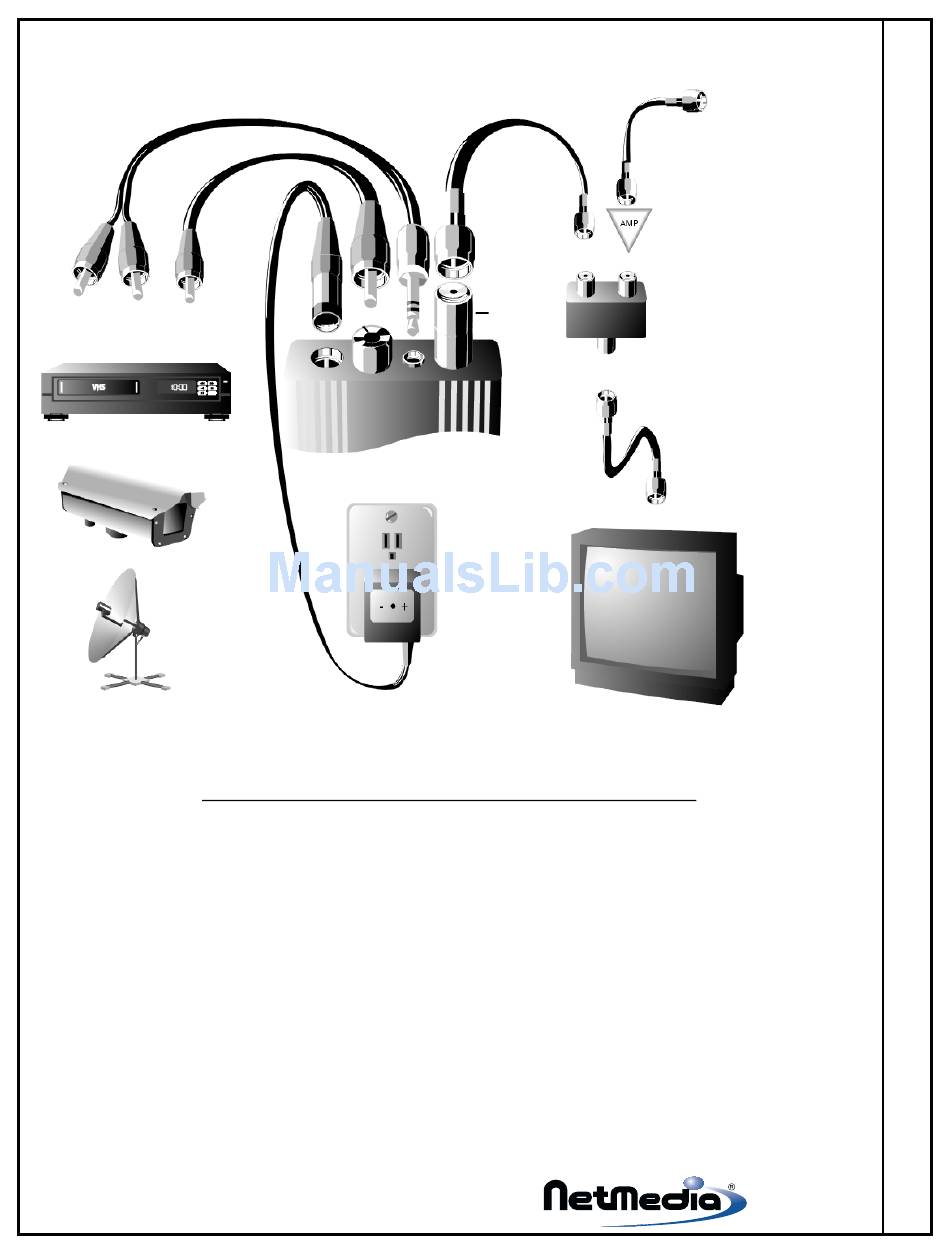

Figure 1: Connecting MM70
How To Connect The MM70 MicroModulator:
CABLE MAIN OR
OTHER TV SIGNAL
SPLITTER/COMBINER
MM70
OUTPUT
HEAD END OF HOME
CABLE DISTRIBUTION
ANTENNA/CABLE IN
TELEVISION
NetMedia, Inc.
10940 N. Stallard Place, Tucson, Arizona 85737
(520) 544-4567 Fax: (520) 544-0800
Email: info@netmedia.com
www.netmedia.com
*
*
If you combine input from an
antenna with output from the
MM70, NetMedia strongly
suggests that you place an in-
line amplifier between the
antenna and the splitter/
combiner.
