NetMedia TriplePlay MM73 Specifications

V
I
Use the NetMedia TriplePlay™ to modulate three audio/video sources onto three separate TV
channels simultaneously. Great for security surveillance, audio/video distribution and video
D
monitoring. View cameras, VCRs, laserdiscs, DVDs or satellite receivers on the TV channels
you choose and distribute them through all the TVs in the home.
E
O

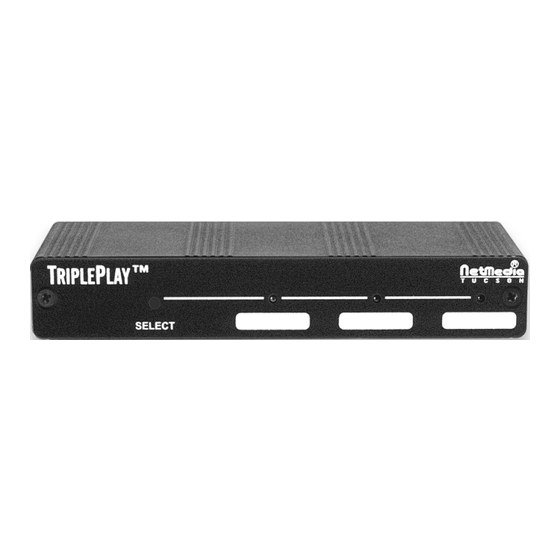

3 Channel TriplePlay
Make Your Own TV Channels
Features:
3 TV channel audio/video modulation
Combines with existing TV channels
UHF & Cable coverage
One button setup
Precise digital channel control
Internally generated test pattern
Memory retained during power outages
Rugged aluminum enclosure
Includes Wall Transformer
5 Year Limited Warranty
™ Modulator

Specifications

Output Frequency Range:
Modulation Method:
Output Level:
Video Output Connector:
Video Input Connectors:
Audio Input Connectors:
Power Requirement:
Size:
Weight:
10940 North Stallard Place, Tucson, Arizona 85737
(520) 544-4567 Fax: (520) 544-0800
www.netmedia.com
M
M
M
Ch. 14-69 UHF
Ch. 70-94 CATV
O
Ch. 100-125 CATV
D
Digital
Crystal Stabilized PLL
U
+25 dBmV
1- F-connector, 75 Ohm
3- RCA, 75 Ohm, 1 Vp-p
3-3.5mm Stereo Jacks
75,000 Ohm, 1 Vp-p
O
12V DC, 300mA
CL2, UL Approved
R
Indoor Use Only
3.9" x 5.5" x 0.9"
9.0 oz
7
3
L
A
T
S
Rev. 0310A
