Medisana TM 705 Operating Instructions

GB
Intended use
The TM 705 Thermometer is intended to measure the human body temperature in regular mode; orally (by placing
the thermometer sensor tip under the tongue) or rectally (by inserting the thermometer sensor tip into the rectum),
or under the armpit.
The TM 705 Thermometer is designed for clinical or home use on people of all ages to measure body temperature.
SAFETY INFORMATION
• Important Information! Retain for future use! Read the instruction manual carefully before using this device, es-
pecially the safety instructions, and keep the instruction manual for future use. Should you give this device to another
person, it is vital that you also pass on these instructions for use.
• The thermometer contains small parts that could be swallowed by children. Do not let children handle the thermometer
without adult supervision.
• Only use the thermometer for measuring body temperature under the tongue (oral), in the armpit (axillary) or in the
anus (rectal). Do not use the the thermometer in the ear.
• Do not place the thermometer near extreme heat. There is a danger of explosion of the battery!
• The device must be tested for accuracy (calibrated) after 2 years. Please send the complete device to the service
centre.
• If the thermomter is not going to be used for a long period, remove the battery.
• Do not shake, bend or tap the thermometer. Do not drop it. It is not shock-resistant.
• Protect the device from direct sunlight, extremely high or low temperatures, high humidity, dirt and dust.
• Do not open up the device. If a fault occurs, please do not try to repair the unit yourself. Discontinue further use of the
unit. Contact your dealer and only have repairs carried out by the service.
• The device complies with the EN 60601-1-2 standard for electromagnetic compatibility. It is subject to particular pre-
cautions in regard to electromagnetic compatibility. Please note, that portable and mobile HF communication systems
may interfere with this unit. Please check the appendix for more details on this.
• WARNING! Please ensure that polythene packing is kept away from the reach of children! Risk of suffocation!
Inserting / removing battery
The medisana digital thermometer TM 705 is ready to use right away, as the battery is already installed in the unit.
However, if the " " symbol should appear on the display after the unit has been in operation for some time, you
need to replace the battery. To do this, remove the battery compartment cover and lift the compartment approx. 1
cm out of the thermometer. Use a suitable tool, e.g. the tip of a ballpoint pen, to carefully lever out the battery. Insert
the new battery with the „+" sign facing upwards. Push the battery compartment back into the thermometer and
replace the compartment cover.
Change the unit of measure
You can measure the temperature in ° Celsius or in ° Fahrenheit.
Please proceed as follows to select the unit of measure:
1. The device has to be switched off.
2. Press and hold the ON/OFF-button for approx. 4 seconds
to change the current setting.
3. The actual selected unit of measure (°C or °F) appears in
the upper right corner of the display.
Use
Press the ON/OFF-button to switch the unit on. All display symbols will appear shortly and a signal tone will be emitted,
followed by the last measured temperature. If the temperature is below 32°C (90°F), "Lo" is displayed - if the tempera-
ture is above 42,9°C (109.9°F), "Hi" is displayed. The medisana digital thermometer TM 705 is now ready to take a
temperature reading. Position the sensor tip in oral, axillary or rectal position:
ORAL READINGS:
Place the sensor tip of the thermometer under the tongue and close your mouth. Breathe through your nose while taking
the reading in order to avoid inaccurate results.
RECTAL READINGS:
Many patients find rectal measurement uncomfortable, but it delivers precise results. To quickly and reliably determine
body temperature, carefully insert the sensor tip approx. 1 cm into the rectum.
ARMPIT READINGS:
Wash the armpit before taking a reading. Insert the tip of the thermometer into the armpit. Lower the arm and press it
lightly against the body while the reading is being taken.
FEVERLINE INDICATING TECHNOLOGIE
At the completion of each measurement, the triangular arrow on the display will indicate according to different temperature
range.
Triangular arrow explain:
T ≥ 37.8 °C (T ≥ 100.0 °F)
37.2 °C ≤ T < 37.8 °C (99.0 °F ≤ T < 100.0 °F)
35.8 °C ≤ T < 37.2 °C (96.5 °F ≤ T < 99.0 °F)
Note: If the the displayed temperature is below 35,8°C ( 96,4°F), the triangle arrow will not be displayed.

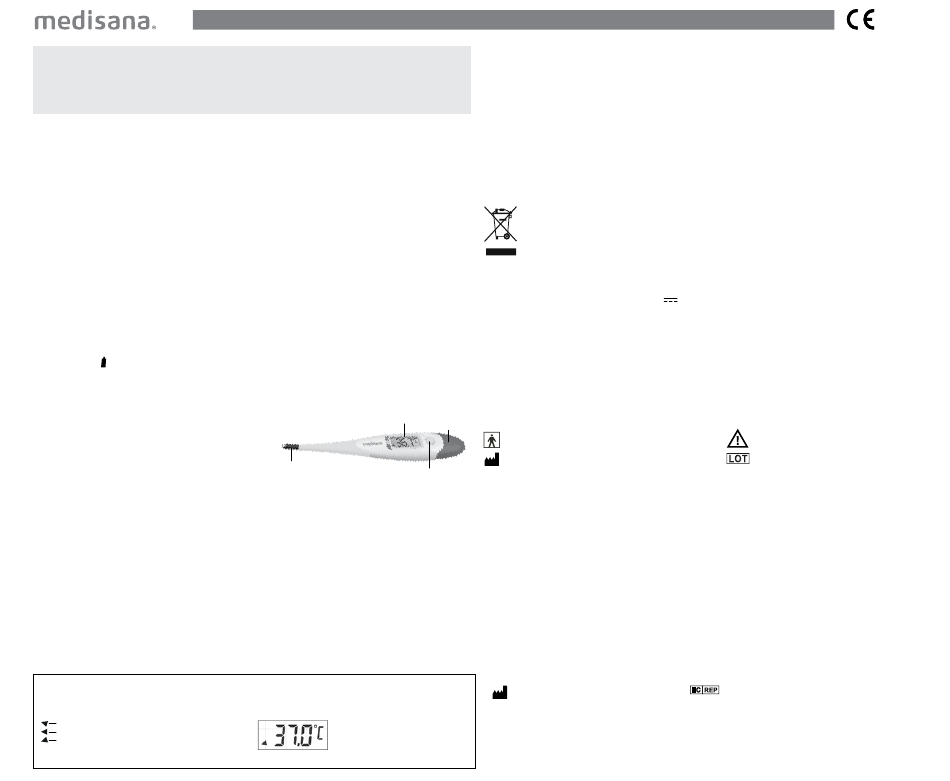

Digital Thermometer TM 705
Battery
LC-
compartment
Display
Sensor
ON/OFF-
tip
button
Example:
Operating Instructions. Please read carefully!
The thermometer will now automatically begin to take a reading. During the reading, the "°"-sign flashes constantly. After
the reading, you multiple tones will be emitted for approx. 10 seconds and the measurement result will be displayed.
If you continue to measure even after the signal tones have been emitted, the readings will get more accurate. If you
measure the body temperature on the armpit, the measurement duration should be at least 10 minutes in order to get a
reliable result. If the reading is > 37,8°C (100°F), the thermometer will indicate fever alarm by announcing mutiple beep
sounds (short beeps).
The thermometer will switch off automatically ten minutes after taking the reading. To prolong the life of the battery,
however, you should switch off the thermometer manually by pressing the ON/OFF-button.
Cleaning and Disinfection
The medisana digital thermometer TM 705 is waterproof, making it easy to clean and disinfect. Clean the thermom-eter
before and after each use using a cloth moistened in a mild solution containing alcohol. You may also soak the
thermometer in a suitable disinfectant solution. Your dealer will be happy to recommend suitable cleaning products and
give you advice on their use. The thermometer must never be boiled to disinfect!
Disposal
This product must not be disposed of together with domestic waste. All users are obliged to hand in all electri-
cal or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or com-
mercial collection point so that they can be disposed of in an environmentally acceptable manner.
Please remove the batteries before disposing of the device/unit. Do not dispose of old batteries with your
household waste, but at a battery collection station at a recycling site or in a shop. Consult your municipal
authority or your dealer for information about disposal.
Technical Specifications
medisana digital thermometer TM 705
Name and model:
Button cell 1,5V
Power supply:
approx. 200 hours
Battery service life:
32,0°C - 42,9°C (90.0°F - 109.9°F)
Measuring range:
± 0,1°C / 0.2°F in the region of 35,5°C - 42°C / 95.9°F - 107.6°F;
Measuring accuracy:
outside the above region: ± 0,2°C / 0.4°F (deviation from actual body temperature at
ambient temperature 18°C - 28°C / 64.4°F - 82.4°F)
The last measured value will automatically be saved
Memory:
5°C - 40°C (41°F - 104°F), rel. humidity < 85 %
Operating conditions:
-10°C - 55°C (14°F - 131°F), rel. humidity < 95 %
Storage / transport conditions:
approx. 13,9 x 2,2 x 1,3 cm
Dimensions (L x W x H):
Weight: approx. 13 g (incl. battery)
Article No.: 48796
EAN Code: 40 15588 48796 5
cover
Classification: Type BF applied part
Manufacturer
The CE-mark refers to the EC-directive 93/42/EEC. The product was designed and manufactured in conformance with
the following European norms: EN 80601-2-56 (Medical thermometers), EN ISO 15223, EN 60601-1 (Electrical safety for
medical items). In accordance with our policy of continual product improvement, we reserve the right to make technical
and optical changes without notice.
Warranty and repair terms
Please contact your dealer or the service centre in case of a claim under the warranty. If you have to return the unit,
please enclose a copy of your receipt and state what the defect is.
The following warranty terms apply:
1. The warranty period for medisana products is 3 years from date of purchase. In case of a warranty claim, the date
of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be removed free of charge within the warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.
4. The following is excluded under the warranty:
a. All damage which has arisen due to improper treatment, e.g. nonobservance of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the
service centre.
d. Accessories which are subject to normal wear and tear.
5. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is
accepted as a warranty claim.
JOYTECH HEALTHCARE CO., LTD.
No.365, Wuzhou Road, 311100
Hangzhou, Zhejiang Province,
PEOPLE'S REPUBLIC OF CHINA
(type GP-192 or LR 41)
Read the instructions carefully
LOT number
Shanghai International Holding Corp. GmbH (Europe)
Address: Eiffestrasse 80, 20537 Hamburg, German
48796_TM 705_manual_GB_MS_202410_L1
0123
