Time Tested • Time Proven
ROADMASTER, Inc.
Kit descriptions and parts

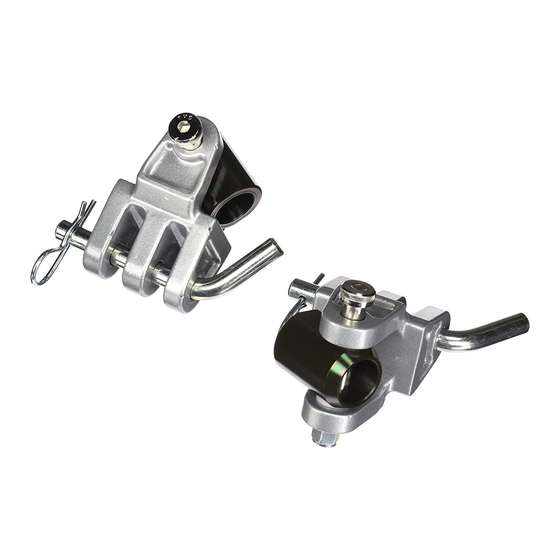

Description — adapts all ROADMASTER Sterling tow
bars (with serial numbers above 14,500) and BlackHawk
All-Terrain tow bars (with serial numbers above 16,500)
to Blue Ox brackets.
Parts list — (2) swivel ears; (2) round nuts; (2) base
pins; (2) hairpin clips; (2) Allen head shoulder bolts; (4)
plastic washers; (2) metal washers; (2) lock nuts.
Description — adapts all ROADMASTER Sterling tow
bars (with serial numbers above 14,500) and BlackHawk
All-Terrain tow bars (with serial numbers above 16,500)
to Demco brackets.
Parts list — (2) swivel ears; (2) round nuts; (2) safety
pins with chains and linch pins; (2) Allen head shoulder
bolts; (4) plastic washers; (2) lock nuts.
Required tools
¼" Allen wrench, 9/16" wrench.
Installation instructions
Read all instructions before installing
either of the kits. Failure to understand
how to properly install the kits could re-
sult in property damage, personal injury
or even death.
1. Remove the 3/8" lock nut from the bottom of the Allen
These instructions contain information that is very important to know and understand. This information is provided for
safety and to prevent equipment problems. To help recognize this information, observe the following symbols:
WARNING indicates a potentially hazardous situ-
ation which, if not avoided, could result in property
damage, serious personal injury or even death.
CAUTION indicates a potentially hazardous situa-
tion which, if not avoided, may result in property dam-
age, or minor or moderate personal injury.
854421-01
11.15
6110 NE 127th Ave.
Vancouver, WA 98682
031-5
034-5
continued on next page
IMPORTANT NOTICE!
Installation Instructions
All specifications are subject to change without notice.
800-669-9690
034-5
Figure 1
Safety Definitions
CAUTION used without the safety alert symbol indi-
cates a potentially hazardous situation which, if not
avoided, may result in property damage.
Refers to important information and is placed in italic
type. It is recommended that you take special notice of
these items.
Tow bar adaptor kits
part numbers 031-5 and 034-5
Fax 360-735-9300
www.roadmasterinc.com
031-5
CAUTION
NOTE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Roadmaster 031-5
Summary of Contents for Roadmaster 031-5
- Page 1 800-669-9690 Fax 360-735-9300 www.roadmasterinc.com Kit descriptions and parts 031-5 Description — adapts all ROADMASTER Sterling tow 031-5 bars (with serial numbers above 14,500) and BlackHawk All-Terrain tow bars (with serial numbers above 16,500) to Blue Ox brackets. Parts list — (2) swivel ears; (2) round nuts; (2) base pins;...
- Page 2 (one against either side of the round nut), and one lock nut, as shown in Figures 3 and 4. Note: for 031-5 adaptors ONLY — insert one of the metal washers against the lock nut, as shown in Figure 3.
