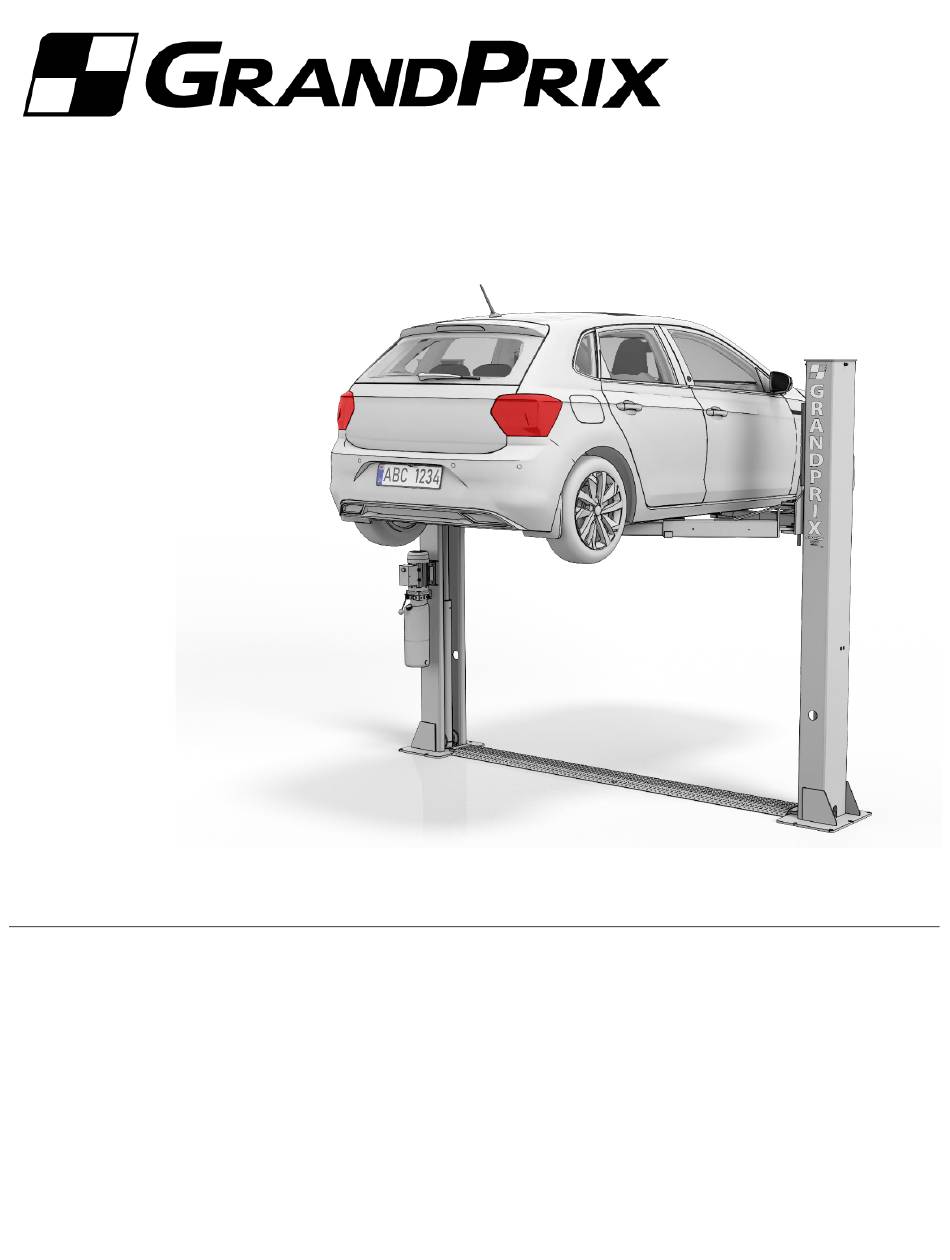

Installation and Operation Manual

Models:

• GP-9LC

Original Instructions in

the English language.

MPORTANT

AFETY

of this manual before using this product. Failure to follow the instructions and safety precautions in this

manual can result in serious injury or death. Make sure all other operators also read this manual. Keep

the manual near the product for future reference.

agree that you fully understand the contents of this manual and assume full responsibility

for product use

GP-9LC Two-Post Vehicle Lift

Manual P/N 5900419— Manual Revision A — April 2025

⚠

, S

NSTRUCTIONS

DANGER

AVE

HESE

NSTRUCTIONS

By proceeding with setup and operation, you

30440 Agoura Road

Agoura Hills, CA 91301 USA

Toll Free: (800) 253-2363

Telephone: (805) 933-9970

! Read the entire contents

bendpak.com

Table of Contents

Need help?

Do you have a question about the GrandPrix GP-9LC and is the answer not in the manual?

Questions and answers

Summary of Contents for BendPak GrandPrix GP-9LC

Page 1 30440 Agoura Road Agoura Hills, CA 91301 USA Toll Free: (800) 253-2363 Telephone: (805) 933-9970 bendpak.com GP-9LC Two-Post Vehicle Lift Installation and Operation Manual Manual P/N 5900419— Manual Revision A — April 2025 Models: • GP-9LC Original Instructions in the English language.
Page 2 Copyright. Copyright © 2025 by BendPak Inc. All rights reserved. You may make copies of this document if you agree that: full attribution goes to BendPak Inc., you are not authorized to make changes to the content, you do not gain any rights to this content, and you will not use the copies for commercial purposes.
Page 3 Number, and the Date of Manufacture from the ID label on your unit. This information is required for part or warranty issues. Model: Serial: Date of Manufacture: Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.
Page 4: Table Of Contents
Installation Introduction This manual describes the installation and operation of the Grand Prix GP-9LC Two-Post Vehicle Lift. More information about the full line of BendPak products is available at bendpak.com. ⚠ DANGER Be very careful when installing, operating, maintaining, or repairing this equipment;...
Page 5: Shipping Information
⚠ WARNING BendPak does not supply hydraulic fluid or lubricants with this lift. Always refer to the Material Safety Data Sheet (MSDS) for safe handling and disposal information. MSDS are available from the hydraulic fluid or lubricant’s supplier or manufacturer.
Page 6 24. Make a thorough inspection of the Lift at least once a year. Replace any damaged or severely worn parts, decals, or warning labels. Replace worn or damaged parts with BendPak or BendPak approved parts and assemblies only. 25. BendPak recommends referring to the ANSI/ALI ALIS Standard Safety Requirements for Installation and Service for more information about safely installing, using, and servicing your Lift.
Page 7: Liability Information
32. Make an inspection of the Lift before using it. Check for damaged, worn, or missing parts. Do not use it if you find any of these issues. Instead, take it out of service, then contact an authorized repair facility, your dealer, or BendPak at (800) 253-2363, then follow the prompts. support@BendPak.com.
Page 8: Frequently Asked Questions
Lift on cracked or defective concrete. Do not install on asphalt or any surface other than concrete. Q: Can I install my Lift outside? A: No. All BendPak Two-Post Lifts are approved for indoor installation and use only. Outdoor installation is prohibited. Q: How many Safety Lock positions does my Lift have? A: The GP-9LC has 19 Safety Lock Positions spaced roughly 2.99 in.
Page 9: Components
Components GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
Page 10 Lift Components include: • Power Side Post — The power side post holds the power unit, one safety lock release lanyard, and the lowering handle (as a part of the power unit). • Off Side Post — The lift post without the power unit mounting bracket; has one safety lock release lanyard.
Page 11 GP-9LC Specifications GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
Page 12: Specifications
Specifications Specification Value Lifting Capacity 9,000 lbs. (4,082 kg) Maximum Capacity – Front Axle 4,500 lbs. (2,041 kg) Maximum Capacity – Rear Axle 4,500 lbs. (2,041 kg) Maximum Capacity per Lift Arm 2,250 lbs. (1,021 kg) A – Width Overall 137 in.
Page 13: Installation Checklist
Installation Checklist These are the steps required to install the GP-9LC Two-Post Vehicle Lift; install in this order. ☐ 1. Review the safety rules and information in this Manual. ☐ 2. Plan for electrical work. ☐ 3. Make sure the necessary tools are available. ☐...
Page 14: Installation
Only fully trained personnel should be involved in installing this equipment. Always pay attention. Use appropriate tools and lifting equipment. Stay clear of moving parts. BendPak recommends referring to the current version of the ANSI/ALI ALIS Standard Safety Requirements for Installation and Service for more information about safely installing, using, and servicing the Lift.
Page 15: Planning For Electrical Work
Planning for Electrical Work A licensed Electrician must be available at some point during the installation. There are many legitimate variations in wiring, local codes, and downright dangerous errors out in the real world that cannot be addressed in this manual. A licensed electrician has the proper equipment and training to ensure a safe installation.
Page 16: Checking Clearances
Checking Clearances For safety purposes, clear space around and above the Lift is required. Drawings are not to scale. GP-9LC Lift Clearances GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
Page 17 Lubricants and Hydraulic Fluid Required The following hydraulic fluid and lubricants are required, but not supplied with the Lift. • Any general-purpose ISO-32, ISO-46, or ISO-68 hydraulic oil • White Lithium Multi-Purpose Lubricant • Red Lithium Grease • ALMASOL Wire Rope Lubricant or 90W Gear Oil GP9-LC Two-Post Vehicle Lift P/N 5900419—...
Page 18: Selecting A Location
Never install the Lift on hand-mixed concrete. • Do not install the Lift on a secondary floor level or on any ground floor with a basement beneath without written authorization from the building Architect and prior approval of BendPak Inc. ⚠ WARNING Installing your Lift on a surface with more than three degrees of slope could lead to injury or even death.
Page 19 28 days. ⚠ CAUTION BendPak lifts are supplied with installation instructions and concrete anchors that meet the criteria set by the current version of the American National Standard “Automotive Lifts – Safety Requirements for Construction, Testing, and Validation,”...
Page 20: Creating Chalk Line Guides
Creating Chalk Line Guides Create Chalk Line Guides on the ground for the two Posts prior to moving them into position. Use the Width Overall value for your Lift model to determine where to place the Chalk Line Guides. The Width Overall value is the distance from the back of one base plate to the back of the other base plate.
Page 21 Attaching and adjusting equalizing cables It is much easier to fix both Equalizing Cable Ends into position before you stand up the Lift Posts. The Equalizing Cables keep the Lift Heads synchronized. If one Lift Head lowers or raises faster than the other Lift Head;...
Page 22 ⚠ CAUTION BendPak recommends wearing gloves while handling the Equalizing Cables. To install the Equalizing Cables in the GP-9LC Lift: 1. Using a forklift or equivalent, move the Posts near the Chalk Lines. 2. Place both Posts either flat on the ground or with their tops elevated on a sawhorse or similar; the insides of the Posts need to be accessible, facing up.
Page 23 5. Ensure that the threaded rod end pre-installed at the Carriage Lock Plate located inside each Lift Head is well secured. ⚠ CAUTION Failure to secure end properly may result in Lifting Chain failure or Lift malfunction. 6. Route the Cable upwards to the Top Plate Sheave. 7.
Page 24 9. Route the Cable around the bottom Sheave and up to the Lift Head. Re-install the Restrain Plate. 10. Insert the threaded end of the cable into the Lift Head. Use the Washer and Nut to loosely secure the cable end to the Lift Head – at this stage leave a lot of slack. 11.
Page 25: Anchoring The Posts
Make sure the shorter threaded rod ends of both the Equalizing Cables are securely fastened, tightening both nuts in place. Leave lots of slack for adjustment on the longer threaded rod end, as this will aide in final adjustment and decrease the need for to-and-fro. 12.
Page 26 Anchor Bolts do not meet these specifications, it could lead to product damage, Vehicle damage, personal injury, or even loss of life. BendPak Lifts are supplied with installation instructions and concrete fasteners meeting the criteria as prescribed by the latest version of the American National Standard “Automotive Lifts –...
Page 27 Effective Embedment is the location in the Hole where the Expansion Sleeve presses into the concrete. This is where the Anchor Bolts get their holding strength, the further down into the Hole, the greater the holding strength. Nominal Embedment is how far down into the Hole the bottom of the Anchor Bolt is, which does not tell you anything about the holding strength.
Page 28 Vacuum to Clear diameter drill bit. 3/4 in. Dia. Hole (19 mm) Masonry 5. Vacuum each hole clean. BendPak recommends using Drill Bit a Vacuum to get the hole very clean. ⚠ WARNING You must use the appropriate safety Base Plate...
Page 29 9. Wrench each Nut clockwise to the recommended installation torque, 85 to 95 ft. lbs., using a Torque Wrench. Do not use an impact wrench to torque Important: the Anchor Bolts. GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
Page 30 Safeties and Safety Lanyards The GP-9LC Lift’s Safety system uses Safety Ladders and Safety Stop mechanisms to provide solid gravity-driven positive lock positions for the lift arms: there are 19 of these spaced every 3 in. (76 mm) and as the Lift Arms pass each position, the Safety Stops will make an audible sound as they engage, then rachet past them as you continue lifting.
Page 31 Your Lift is shipped with clean components; however, BendPak strongly recommends that you take secondary precautions and clean all loose Hydraulic Hoses and Fittings prior to making connections. It is better and less costly to take these extra steps now so that you do not need to take your Lift out of service later to fix issues that could have been prevented at the time of installation.
Page 32 Hydraulic System Safety Warnings Before applying power to the Hydraulic System note the following Safety Warnings: ⚠ DANGER Failure to observe these warnings can result in serious personal injury including, in rare cases, death. ⚠ DANGER The Power Unit is a Hydraulic Pump capable of developing pressures in excess of 5,000 psi (345 BAR).
Page 33: Hydraulic System
Hydraulic System This illustration depicts the GP-9LC Hydraulic System, from the Power Unit all the way to the Hydraulic Cylinders. Not to Scale. Components removed or ghosted for clarity. GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
Page 34: Hydraulic Connections
Hydraulic Connections Hydraulic Hoses move Hydraulic Fluid to and from the Hydraulic Cylinders at the bottom of each Post. Refer to the next illustration when preparing to connect the Long Hydraulic Hose to the Hydraulic Cylinders on the GP-9LC. Installation of the Lift requires the making of four Hydraulic Connections: One at the base of each Cylinder, and the two subsequent connections for the Power Unit.
Page 35: Mounting The Power Unit
⚠ CAUTION The Power Unit is heavy. BendPak recommends having one person hold the Power Unit while a second person bolts it into place. 3. Position the Power Unit into place next to the Mounting Bracket on the Power Side Post.
Page 36: About Arm Restraint Gears
About Arm Restraint Gears Arm Restraint Gears are mounted at the rear of each Lift Arm, just behind the Arm Head Pin. Not to Scale. Components removed or ghosted for clarity. The Arm Restraint Gears hold the Lift Arms in place laterally, by meshing with the Gear Stops as the Lift Arm rises from the ground towards where the Lift Pads contact the manufacturer’s recommended Lifting Points.
Page 37: Installing The Lift Arms
Installing the Lift Arms The Lift Arms and the Lift Pads attached to them are what contact the Vehicle to raise it off the ground. The GP-9LC Lift comes with four Lift Arms. There are several rules that govern which Lift Arms go where on a particular Lift. To determine the Front and Rear of the Lift: •...
Page 38 Preparation 1. Retrieve the four Lift Arm Assemblies and Pivot Pins. Position one short and one long Lift Arm Assembly near each Post. Refer to the Installing the Lift Arms discussion for correct placement or Lift Arms in preparation for installation. 2.
Page 39 Installation Steps 1. Insert the first Lift Arm into the Lift Head assembly, aligning and meshing the gear on the Lift Arm with the corresponding gear on the Lift Head. Illustrations not to scale. Some components removed for clarity. 2. Insert the Pivot Pin through both the Lift Head and Lift Arm. 3.
Page 40: Contact The Electrician
Contact the Electrician Following are installation tasks that require a licensed Electrician. DANGER A licensed Electrician must perform all wiring, in accordance with national and local electrical codes. The Electrician needs to: • Connect to power. The Power Unit comes with a pigtail for wiring to a power source. Have your Electrician connect a power cord with plug to the electrical box on the Lift (for connection to a power outlet) or have them wire it directly into the electrical system at the Lift location.
Page 41: Connecting The Power Unit
Connecting the Power Unit The Power Unit must be connected to an appropriate power source. ⚠ DANGER A licensed Electrician must perform all wiring in accordance with local and national electrical codes. Do not perform any maintenance or installation on the Lift without first making sure that main electrical power has been disconnected from the Lift and cannot be re-energized until all procedures are complete.
Page 42: Important Electrical Information
To prepare the Power Unit: 1. Have the Electrician locate the Pigtail exiting the Electrical Box on the Power Unit. 2. Open the Electrical Box, remove the Pigtail, and then either: – Wire the Power Unit directly into the facility’s electrical system. –...
Page 43: Installing A Power Disconnect Switch
Lift without first verifying that main electrical power has been disconnected from the Lift and cannot be re-energized until all procedures are complete. BendPak strongly recommends you not exceed the rated duty cycle of the Lift motor. GP9-LC Two-Post Vehicle Lift...
Page 44 Leveling Before operating your Lift, verify the Lift Posts are perpendicular to the ground and the Lift Arms are level: • Lift Posts: The Posts must be the same distance apart at the top and at the bottom. To make sure the Posts are straight, measure the distance between the posts at one foot off the ground (First move the Lift Arms out of the way) and near the top of the posts.
Page 45 Perform an Operational Test Before putting the Lift into normal operation, we recommend raising and lowering it several times with a typical Vehicle on the Lift. This will help you get a feel for how to operate the controls and help get any residual air out of the Hydraulic System (sometimes called “bleeding”...
Page 46: Review Final Checklist Before Operation
Follow the instructions in Raising a Vehicle Lowering a Vehicle to safely raise and lower a Vehicle on the Lift, including engaging it on its Safety Locks. 10. If the Lift is working without shaking, moving erratically, or squeaking, there is no need to repeat the procedure.
Page 47: Operation
Check the Lift. Check the Lift for any missing, heavily worn, or damaged parts. Do not operate the Lift if you find any issues; instead, take it out of service, contact your dealer, email support@bendpak.com, or call (800) 253-2363, then follow the prompts. •...
Page 48: About Lifting Points, Adapters, And Auxiliary Adapters
About Lifting Points, Adapters, and Auxiliary Adapters An important concern when using a frame-engaging Lift is that the raised Vehicle must be balanced on the four Lift Arms. If the Vehicle is not balanced, it is more likely to become unstable and slide off the Lift, possibly damaging the Lift, the Vehicle, and anything under the Lift, including injuring people.
Page 49: Optional Accessories
Optional Accessories Visit bendpak.com for additional Adapters and Auxiliary Adapters (also called height adapters or extenders) available adapters currently include the following: • SUV and Van Adapters — Recommended for Trucks, SUVs, and Vans that require additional lifting height. 63 mm (5746192) 125 mm (5746193) •...
Page 50: Raising A Vehicle
Raising a Vehicle This section describes how to raise a Vehicle on your Lift. ⚠ WARNING Never raise a Vehicle whose weight exceeds the rated capacity of the Lift. Do not leave the controls until the Lift is engaged on a Safety Lock position or fully lowered. Only trained personnel should raise and lower the Lift.
Page 51 ⚠ WARNING Many specialty or modified Vehicles or Vehicles with unusually short or long wheelbases cannot be on raised on a Two-Post Frame Engaging Lift. Contact the Vehicle’s manufacturer for Lifting or Jacking guidance. The following illustration shows typical lifting points based on Vehicle Frame type. Typical Lifting Points Not to Scale.
Page 52 7. Adjust the Lift Arms under the Vehicle so the Adapters are directly under the Lifting Points for the Vehicle you are raising. If necessary, use optional Auxiliary Adapters for extra height. 8. Raise the Lift until just before the Adapters contact the Lifting Points. 9.
Page 53 To raise Lift: To lower Lift: 1. Press and hold Up Button 1. Press and hold Up Button. for two to three seconds. 2. When Lift is just past desired This moves Lift off its Safety height, release Up Button. Locks.
Page 54: About Safety Locks
About Safety Locks Your Lift has nineteen (19) Safety Lock positions, allowing you to lock the Lift at the best height for what you need to do. A Safety Lock position is defined as when the Lift is engaged on both of the Lift’s Safety Locks at the same height on both Posts.
Page 55: Maintenance
Replace worn, damaged or broken parts with original BendPak or BendPak approved parts or with parts that meet or exceed the original specifications.
Page 56: Monthly Maintenance
⚠ WARNING Always wear proper Personal Protective Equipment when working with hydraulics. Gloves and Safety Glasses are a minimum requirement. Keep your body away from suspected leaks. Use a clean piece of sheet metal (or new paper towel) to rub along hoses and fittings to detect leaks.
Page 57: Lubrication Procedure
Lubrication Procedure ⚠ DANGER Always refer to the lubricant and hydraulic fluid manufacturer’s Material Safety Data Sheet (MSDS) for information on the proper handling and disposal of chemicals. To Lubricate 1. Raise or lower the Lift Head to rest on the first Safety Lock.
Page 58 GP-9LC Wire Rope Inspection and Maintenance The GP-9LC wire ropes should be inspected regularly: • Equalizing cables should be replaced when there are visible signs of damage or extreme wear. Do not use the Lift if it has damaged or worn cables. •...
Page 59 • How do you find broken wires? a. Relax your rope to a stationary position and move the pick-up points off the sheaves. Clean the surface of the rope with a cloth — a wire brush, if necessary — so you can see any breaks. b.
Page 60: Torque Chart
Torque Chart GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
Page 61: Troubleshooting
Lubricate hinge points using white lithium grease. If you continue to have issues with your Lift, take the Lift out of service, then contact your dealer or BendPak Support at bendpak.com/support, via email at support@bendpak.com, or by phone at (800) 253-2363 then follow prompts.
Page 62 Disposing of Used Hydraulic Fluid Used Hydraulic Fluid must not be disposed of by dropping it into the trash or dumping it into the street. It has toxic ingredients that are harmful to the environment. Instead, you are required to either recycle it or drop it off at a hazardous waste collection facility. If you are unable to find an appropriate facility, the website earth911.com has resources that may...
Page 63: Wiring Diagrams
Wiring Diagrams GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
Page 64: Labels
Labels GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
Page 65 GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
Page 66 GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
Page 67: Automotive Lift Institute (Ali) Store
Automotive Lift Institute (ALI) Store You probably checked the ALI’s Directory of Certified Lifts (www.autolift.org/ali-directory-of- certified-lifts/) before making your most recent Lift purchase, but did you know the ALI Store (www.autolift.org/ali-store/) offers a wide variety of professional, easy-to-use, and reasonably priced training and safety materials that will make your garage a safer place to work? The ALI Store is your trusted source for workplace safety! Visit today and get the training and materials you need to work safely:...
Page 68: Maintenance Log
Maintenance Log GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
Page 69 Maintenance Log GP9-LC Two-Post Vehicle Lift P/N 5900419— Rev. A— April 2025...
