NRS APPROACH 138 Assembly Instructions

APPROACH ASSEMBLY INSTRUCTIONS
Thank you for purchasing an Approach raft, purpose-built for adventure anglers.
APPROACH 138
RAFT
- (1) Approach 138 Raft
(1) Approach 138 Dropstitch Floor
(2) Floor Straps
- (1) NRS Super 2 HP Pump
- (1) Repair Kit
- (1) Owner's Manual

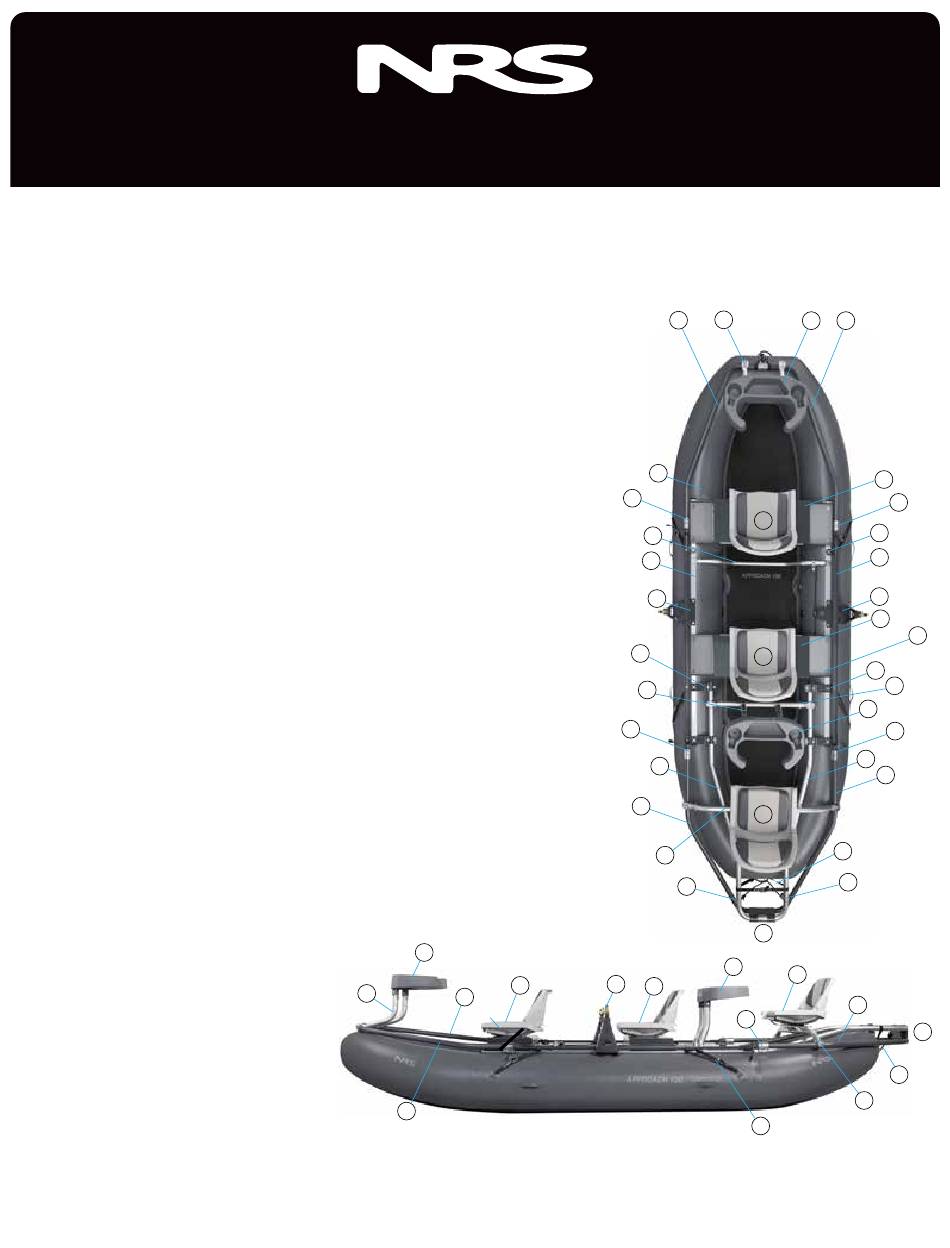

STANDARD FRAME
1. (2) Slot Rail
2. (1) 34" Approach Foot Bar (2) T-Slot Nuts + (2) 3/4" Bolts + (2) Washers
2.1 Intermediate Pulley
3. (2) Dry Box + (8) 5/8" Bolts + (8) T-Slot Nuts + (8) 1-1/4" Washers (large)
4. (2) Folding Seat + (12) Bolts (included on seats)
5. (2) Straight Rod Tube
6. (2) Bow Rod Tube Bracket (2) 3/4" Bolts + (2) T-Slot Nuts + (2) Washers + (2) 1/2" Screws
7. (4) Stern Rod Tube Combo Bracket (4) 3/4" Bolts + (4) T-Slot Nuts + (8) Washers + (8) 1/2" Screws
8. (7) Frame Coupler
9. (1) Bow Rod Tube - Left
10. (1) Bow Rod Tube- Right
11. (2) Stern Rod Tube
12. (1) Anchor Tube - Right + (1) U-Bolt + (2) Nuts + (2) Washers
12.1 (1) Pulley Bracket
13. (1) Anchor Tube - Left + (1) U-Bolt + (2) Nuts + (2) Washers
13.1 (1) Anchor Eye Bolt
14. (1) Motor Mount + (2) Mounting Plate + (1) Connector Plate + (2) 1-1/2" Screws
15. (1) Molded Thigh Hook +(4) Bail Pins
15.1 (2) Front Hook Support + (2) U-Bolt + (4) Nuts + (4) Washers
15.2 (2) Rear Hook Support + (2) U-Bolts + (4) Nuts + (4) Washers
16. (1) Oar Mount w/ SpinLock + (2) 5/8" Bolts + (2) T-Slot Nuts + (2) Washers
17. (1) Oar Mount + (2) 5/8" Bolts + (2) T-Slot Nuts + (2) Washers
18. (2) NRS Atomic Oar Locks + Springs + Washers + Split Rings
19. (1) Stern Cross Bar
20. (1) Stern Seat Bar
20.1 (1) Universal Seat Mount w/ Swivel +
(4) 1/4" Bolts + (8) Washers + (4) Nuts
21. (40') 3/8" Anchor Rope
22. (4) 1" NRS Straps - 3' Length
23. (2) 1" NRS Straps - 4' Length
TOOLS REQUIRED
- Socket Wrench
- 7/16" Socket
- 3/8" Socket
- 1/2" Socket (included on provided NRS Frame Wrench)
- 7/16" Open-End Wrench
15
4
15.1
10
9
- #3 Phillips Screwdriver (included on provided NRS Frame Wrench)
- Tape Measure
- Thread Lock (provided)
- Aquaseal (provided)
15.1
9
6
8
4
2
1
17
7
4
15.2
8
13
11
4
20
13.1
14
15
18
4
8
22
15 10
3
8
6
5
16
3
19
7
19
15
8
12
11
21
12.1
4
11
14
21
20
