SLIPSTREAM ASSEMBLY INSTRUCTIONS
Thank you for purchasing a Slipstream raft, purpose-built for adventure anglers.
SLIPSTREAM 129

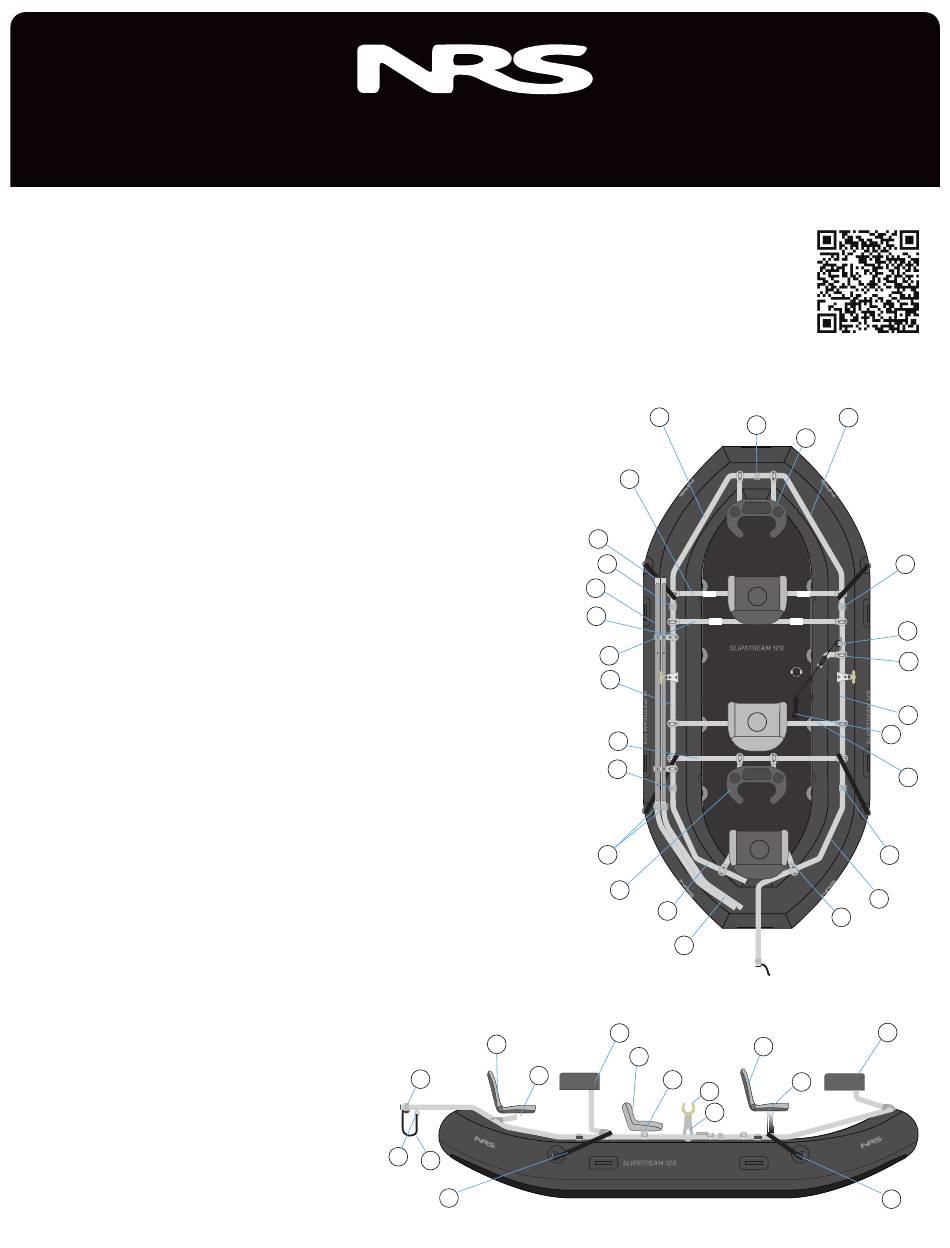

Standard Package Parts
1. Side Rail – Right
1.1 Pulley Bracket
1.2 Remote Bracket with Anchor Cam Cleat + (1) LoPro + (1) U-Bolts + (2) 5/16" Washers + (2) 5/16" Lock Nuts
2. Side Rail – Left
3. Foot Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
4. Rower Cross Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
5. Front Rail – Right
6. Front Rail – Left
7. (5) Frame Couplers + (10) 5/16"-18 x 1" Bolts + Washers
8. (2) Angler Thigh Hooks + (4) LoPros + (8) 5/16" Washers + (8) 5/16" Lock Nuts + (4) Lock Pins
9. Front Angler Seat Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
10. Back Rail – Right
10.1 Pulley Bracket
10.2 Anchor Eye Bolt
11. Back Rail - Left
12. Back Angler Seat Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
13. Back Thigh Hook Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
14. (2) 8" Oar Mounts + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
15. (2) Atomic Oar Locks + (4) Washers + (2) Springs + (2) Split Rings
16. (3) Universal Seat Mounts + (6) U-Bolts + (12) 5/16" Washers + (12) 5/16" Lock Nuts
17. (2) Folding Swivel Angler Seat + (8) ¼"-20 x 1" Bolts + (8) ¼" Lock Nuts + (16) ¼" Washers
18. Low Back Rower Seat + (4) 5/16"-18 x 1 ¼" Bolts & (4) 5/16" Lock Washers
19. Rod Holder
19.1 Straight Rod Tubed
19.1.1 (2) Rod Holder Pegs + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
19.2 (2) Bent Rod Tubes
19.3 (2) Frame Couplers + (4) 5/16"-18 x 1" Bolts + Washers
20. (40') 3/8" Anchor Rope
21. (4) NRS 4' HD Tie Down Straps
Also included:
(1) NRS Super 2 HP Pump
(1) Repair Kit
(1) 1/4" drive ratchet with 1/2" socket
TOOLS REQUIRED
7/16" Socket
7/16" Open End Wrench
5mm Allen Wrench
Phillips Screwdriver
Tape Measure
Bubble Level
17
16
10.1
10.2
20
21
Scan this code to find video
assembly instructions as
well as added tips how-tos.
6
7
9
19
7
19.1
17
19.1.1
3
2
18
13
7
17
19.3
8
11
19.2
8
17
18
16
15
14
5
8
7
1.1
1.2
1
20
4
7
10
12
8
16
21
