SLIPSTREAM ASSEMBLY INSTRUCTIONS
Thank you for purchasing a Slipstream raft, purpose-built for adventure anglers.
SLIPSTREAM 106

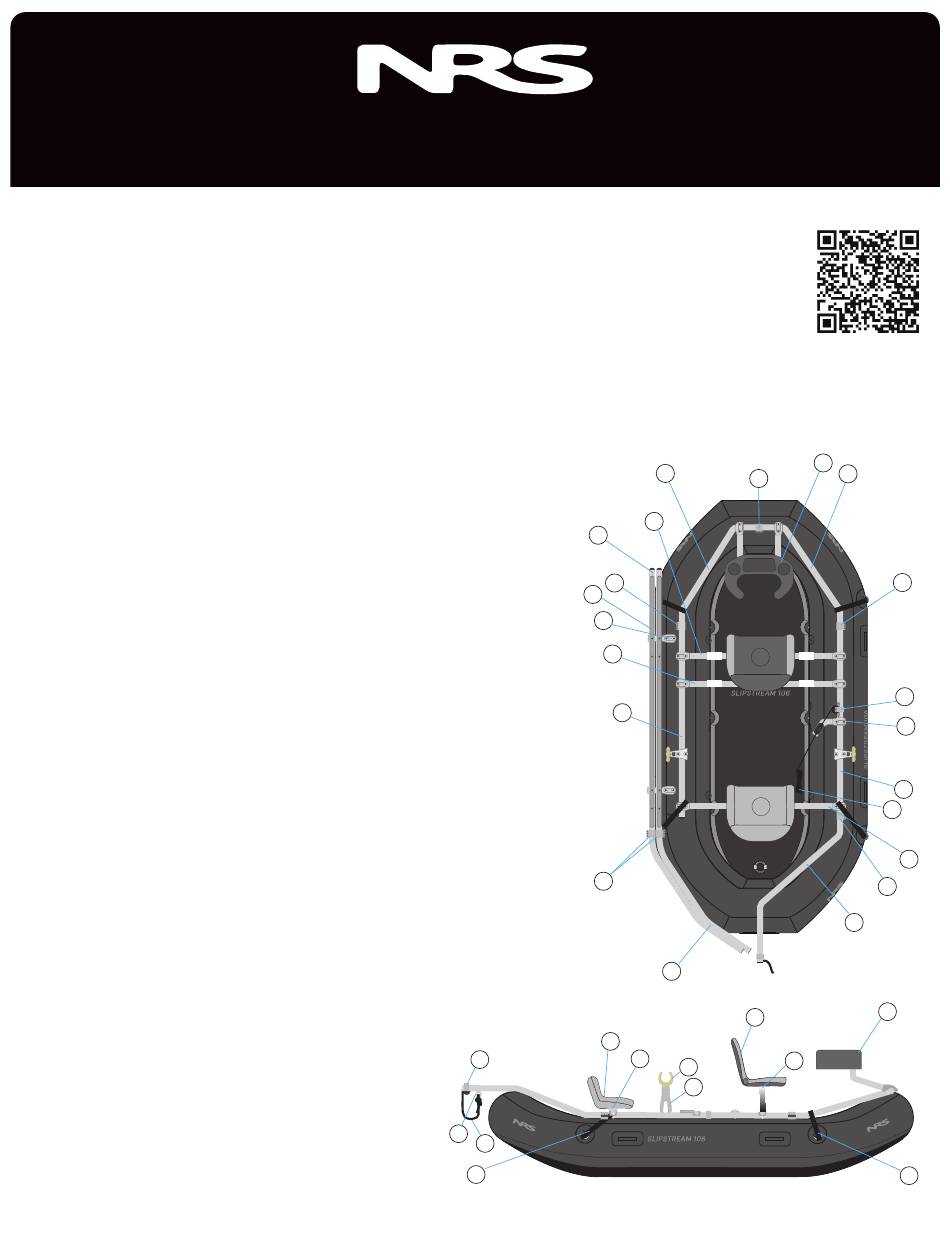

Standard Package Parts

1. Side Rail – Right
1.1 Pulley Bracket
1.2 Remote Bracket with Anchor Cleat + (1) LoPro + (1) U-Bolt + (2) 5/16" Washers + (2) 5/16" Lock Nuts
2. Side Rail – Left
3. Foot Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
4. Rower Cross Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
5. Front Rail – Right + (1) LoPro + (1) U-Bolt + (2) 5/16" Washers + (2) 5/16" Lock Nuts
6. Front Rail – Left + (1) LoPro + (1) U-Bolt + (2) 5/16" Washers + (2) 5/16" Lock Nuts
7. (4) Frame Couplers + (8) 5/16"-18 x 1" Bolts + Washers
8. (1) Angler Thigh Hooks + (2) LoPros + (4) 5/16" Washers + (4) 5/16" Lock Nuts + (2) Lock Pins
9. Front Angler Seat Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
10. Back Rail – Right
10.1 Pulley Bracket
10.2 Anchor Eye Bolt
11. (2) 8" Oar Mounts + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
12. (2) Atomic Oar Locks + (4) Washers + (2) Springs + (2) Split Rings
13. (3) Universal Seat Mounts + (6) U-Bolts + (12) 5/16" Washers + (12) 5/16" Lock Nuts
14. (1) Folding Swivel Angler Seat + (4) ¼"-20 x 1" Bolts + (4) ¼" Lock Nuts + (8) ¼" Washers
15. Low Back Rower Seat + (4) 5/16"-18 x 1 ¼" Bolts & (4) 5/16" Lock Washers
16. Rod Holder
16.1 Straight Rod Tubed
16.1.1 (2) Rod Holder Pegs + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
16.2 (2) Bent Rod Tubes
16.3 (2) Frame Couplers + (4) 5/16"-18 x 1" Bolts + Washers
17. (40') 3/8" Anchor Rope
18. (4) NRS 4' HD Tie Down Straps
Also included:
(1) NRS Super 2 HP Pump
(1) Repair Kit
(1) 1/4" drive ratchet with 1/2" socket

TOOLS REQUIRED

7/16" Socket
7/16" Open End Wrench
5mm Allen Wrench
Phillips Screwdriver
Tape Measure
Bubble Level
16
7
16.1
16.1.1
3
2
16.3
15
10.1
10.2
17
18
Scan this code to find video
well as added tips how-tos.
6
7
9
14
15
16.2
14
13
13
12
11
8
5
7
1.1
1.2
1
17
4
7
10
8
18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLIPSTREAM 106 and is the answer not in the manual?

Questions and answers

Related Manuals for NRS SLIPSTREAM 106

Summary of Contents for NRS SLIPSTREAM 106

  • Page 1 16.2 (2) Bent Rod Tubes 16.3 (2) Frame Couplers + (4) 5/16”-18 x 1” Bolts + Washers 16.3 17. (40’) 3/8” Anchor Rope 18. (4) NRS 4’ HD Tie Down Straps Also included: (1) NRS Super 2 HP Pump 16.2 (1) Repair Kit (1) 1/4”...
  • Page 2 ASSEMBLY INSTRUCTIONS b. Connect the Front Rail – Left to the Side Rail – Left using the Frame Coupler. i. Orient the Front Rail so the bend follows the raft tube. 1. Assemble Side Rail – Right ii. Use the slotted window in the Frame Coupler to position the a.
  • Page 3 straight frame pipe section. 12. Attach Rower Cross Bar ii. Assemble the Angler Thigh Hook with the U-Bolts on the front The Rower Cross Bar should be a straight bar connecting both Side Rails. straight frame pipe section. a. Place the Rower Cross Bar on top of the Side Rails positioning the iii.
  • Page 4 The frame should be centered on top of the tubes. suggest positioning the front Rod Holder Peg approximately 4” behind the front Coupler on the Side Rail. 1638 South Blaine St., Moscow ID 83843 | p: 800.677.4327 | f: 208.883.4787 | e: service@nrs.com | nrs.com...
