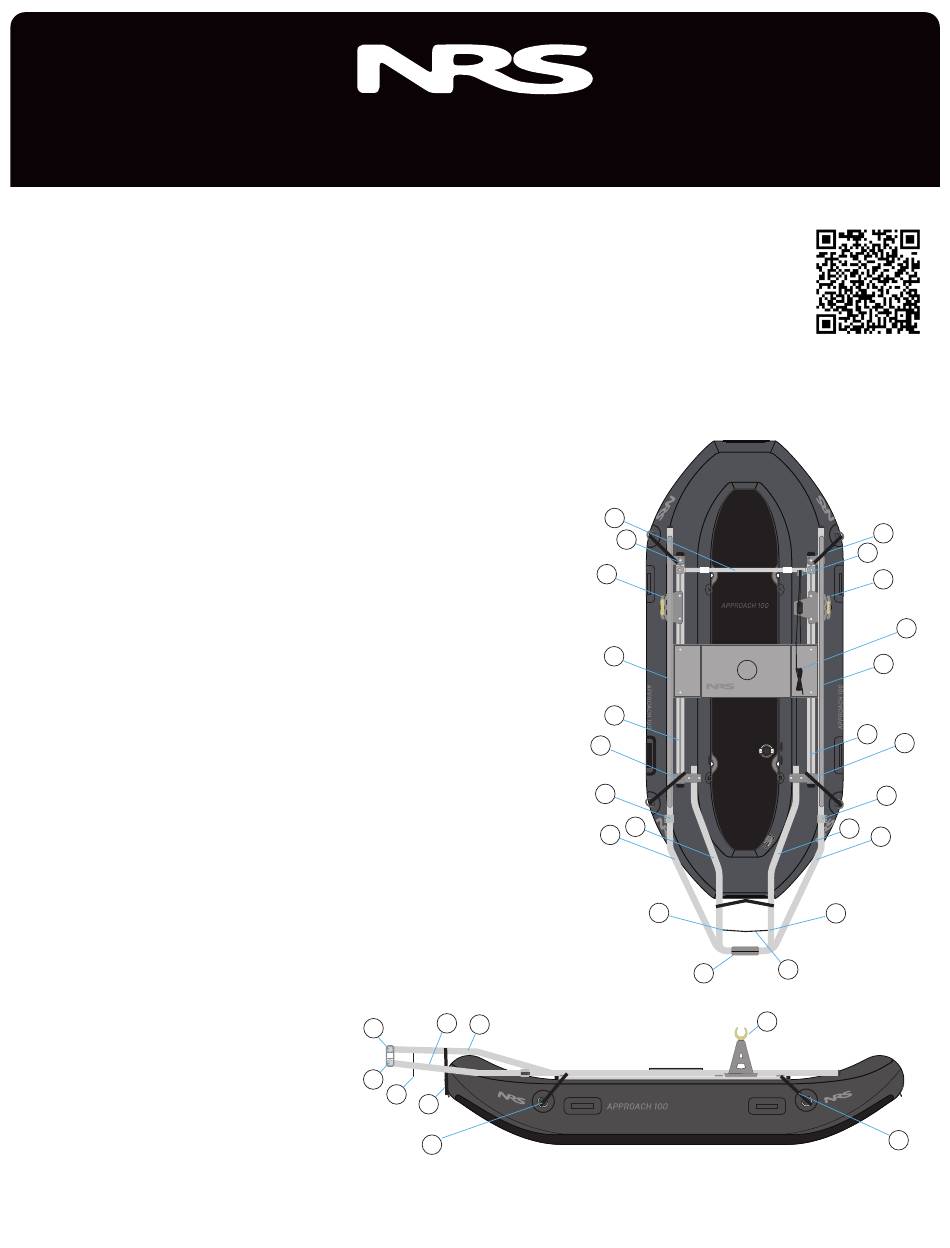

NRS APPROACH 100 Assembly Instructions

APPROACH ASSEMBLY INSTRUCTIONS
Thank you for purchasing an Approach raft, purpose-built for adventure anglers.

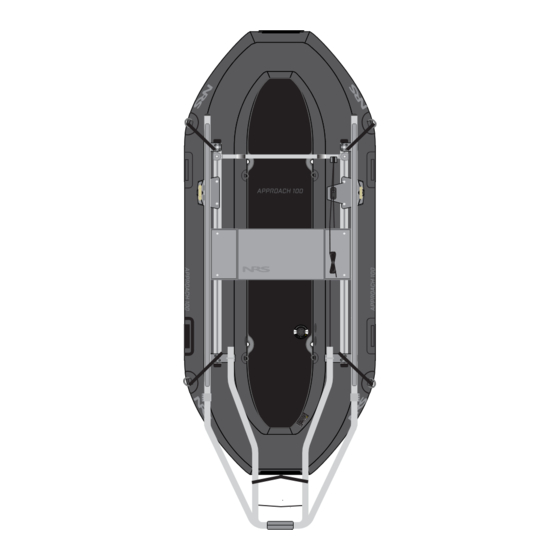

APPROACH 100
RAFT
- (1) Approach 100 Raft
(1) Approach 100 Dropstitch Floor
(2) Floor Straps
- (1) NRS Super 2 HP Pump
- (1) Repair Kit
- (1) Owner's Manual
STANDARD FRAME
1. (2) Slot Rail
2. (1) 34" Approach Foot Bar w/ (2) T-Slot Nuts + (2) 3/4" Bolts + (2) Washers
2.1 Intermediate Pulley
3. (1) Dry Box + (4) 5/8" Bolts + (4) T-Slot Nuts + (4) 1-1/4" Washers (large)
4. (2) Straight Rod Tube
5. (2) Bow Rod Tube Bracket + (2) 3/4"Bolts + (2) T-Slot Nuts + (2) Washers + (2) Screws
6. (2) Stern Rod Tube Combo Bracket + (2) 3/4" Bolts + (2) T-Slot Nuts + (2) Screws + (2) Washers
7. (4) Frame Coupler
8. (2) Stern Rod Tube
9. (1) Anchor Tube - Right + (1) U-Bolt + (2) Nuts + (2) Washers
9.1 (1) Pulley Bracket
10. (1) Anchor Tube - Left + (1) U-Bolt + (2) Nuts + (2) Washers
10.1 (1) Anchor Eye Bolt
11. (1) Motor Mount + (2) Mounting Plates + (1) Connector Plate + (2) 1-1/2" Screws
12. (1) Oar Mount w/ SpinLock + (2) 3/4"Bolts + (2) T-Slot Nuts + (2) Washers
13. (1) Oar Mount + (2) 3/4"Bolts + (2) T-Slot Nuts + (2) Washers
14. (2) NRS Atomic Oar Locks + Springs + Washers + Split Ring
15. (40') 3/8" Anchor Rope
16. (4) 1" NRS Straps - 3' Length
17. (1) 1" NRS Strap - 4'
TOOLS REQUIRED
- Socket Wrench
- 1/2" Socket (included on provided NRS Frame Tool)
- 3/8" Socket
- #3 Phillips Screwdriver
- Tape Measure
8
9
7
7
15
17
16
Scan this code to find video
Assembly Instructions as
well as added tips how-tos.
2
5
13
4
3
1
6
7
10
8
10.1
11
14
5
2.1
12
16
4
1
6
7
9
8
9.1
15
16
