Thank you for purchasing a Slipstream raft, purpose-built for adventure anglers.

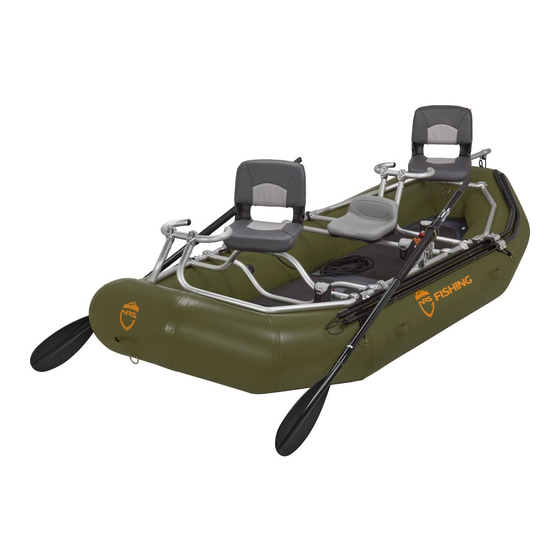

SLIPSTREAM 120

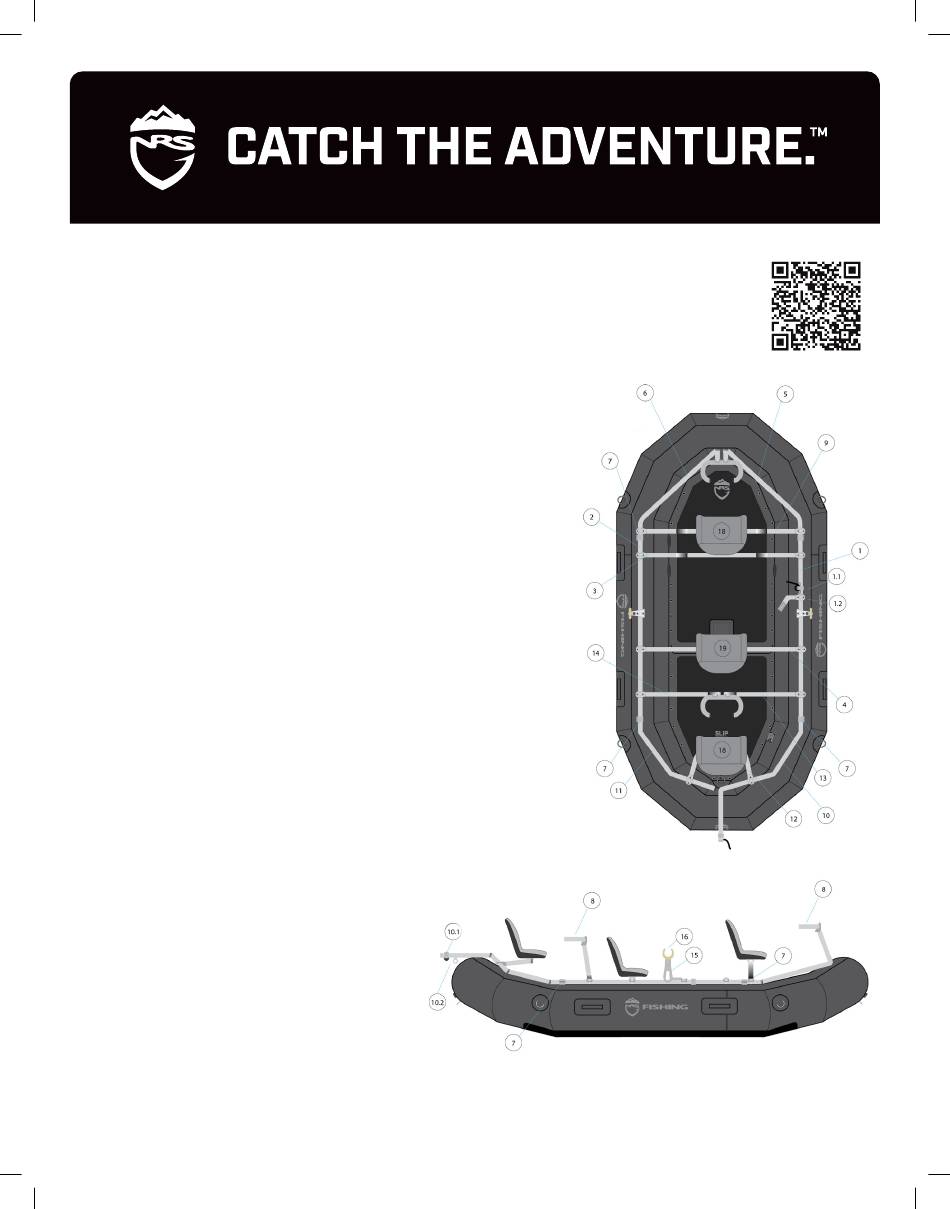

STANDARD PACKAGE PARTS
1. Side Rail – Right
1.1 Pulley Bracket
1.2 Remote Bracket with Anchor Cleat + (1) LoPro + (1) U-Bolt + (2) 5/16" Washers +
(2) 5/16" Lock Nuts
2. Side Rail – Left
3. Foot Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
4. Rower Cross Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
5. Front Rail – Right + (1) LoPro + (1) U-Bolt + (2) 5/16" Washers + (2) 5/16" Lock Nuts
6. Front Rail – Left + (1) LoPro + (1) U-Bolt + (2) 5/16" Washers + (2) 5/16" Lock Nuts
7. (4) Frame Couplers + (8) 5/16"-18 x 1" Bolts + Washers
8. (2) Angler Thigh Hooks
9. Front Angler Seat Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
10. Back Thigh Hook Bar – Right + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
11. Back Thigh Hook Bar – Left + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
12. Back Rail – Right
10.1 Pulley Bracket
10.2 Anchor Eye Bolt
13. Back Rail – Left
14. Back Angler Seat Bar + (2) LoPros + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
15. (2) 8" Oar Mounts + (2) U-Bolts + (4) 5/16" Washers + (4) 5/16" Lock Nuts
16. (2) Atomic Oar Locks + (4) Washers + (2) Springs + (2) Split Rings
17. (3) Universal Seat Mounts + (6) U-Bolts + (12) 5/16" Washers + (12) 5/16" Lock Nuts
18. (2) Folding Swivel Angler Seat + (8) 1/4"-20 x 1" Bolts + (8) 1/4" Lock Nuts + (16) 1/4" Washers
19. Low Back Rower Seat + (4) 5/16"-18 x 1-1/4" Bolts & (4) 5/16" Lock Washers
Also included:
(4) NRS 4' HD Tie Down Straps
(1) NRS Super 2 HP Pump
(1) Repair Kit
TOOLS REQUIRED
Socket Wrench
7/16" Open End Wrench
1/2" Socket
Allen Wrench
7/16" Socket
Phillips Screwdriver
Tape Measure
Bubble Level
Scan this code to
find video assembly
instructions as well as
added tips how-tos.
