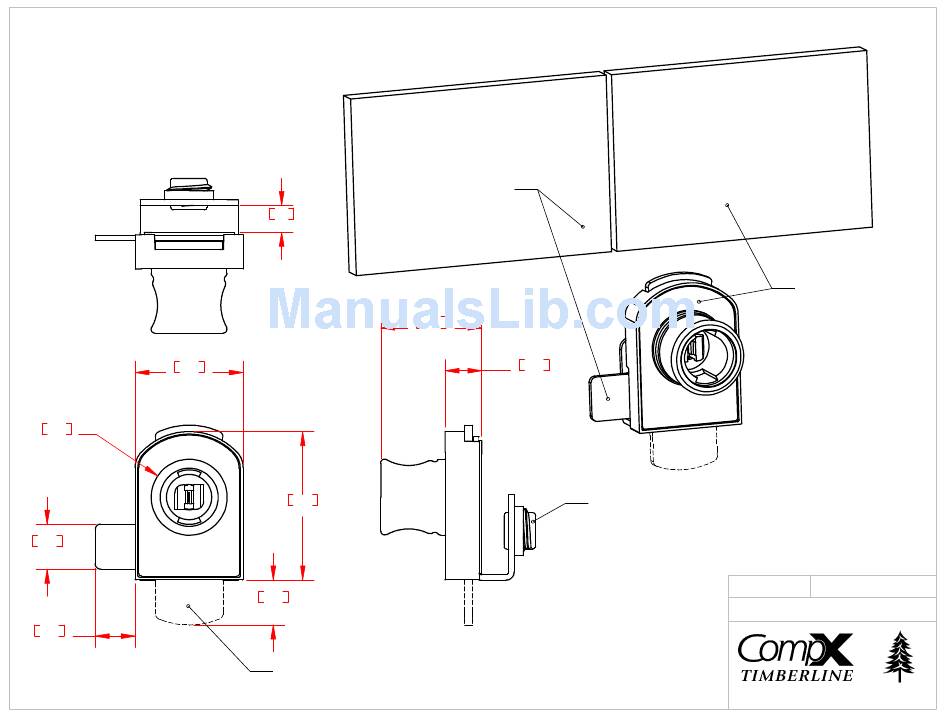

COMPX TYPE370 Dimensional Drawing

PART NUMBERS:

CB-371 NICKEL FINISH
CB-375 BRASS FINISH
CB-377 SATIN NICKEL FINISH
30.5
1.20
21.5
.85
12.7
.50
11.3
.45
TAB PROVIDES LOCK
FOR OPPOSING DOOR
7.6
.30
28.5
1.12
41.9
1.65
12.7
.50

CAM IN LOCKED POSITION

10.4
.41
SET SCREW
TIGHTENS LOCK
TO GLASS DOOR
LOCK SLIPS ON TO
EDGE OF GLASS DOOR
NEAR EDGE OF DOOR
NO BORING REQUIRED
DATE
DRAWING#
03/24/03
CB-37X
TYPE 370 GLASS DOOR DEADBOLT LOCK
