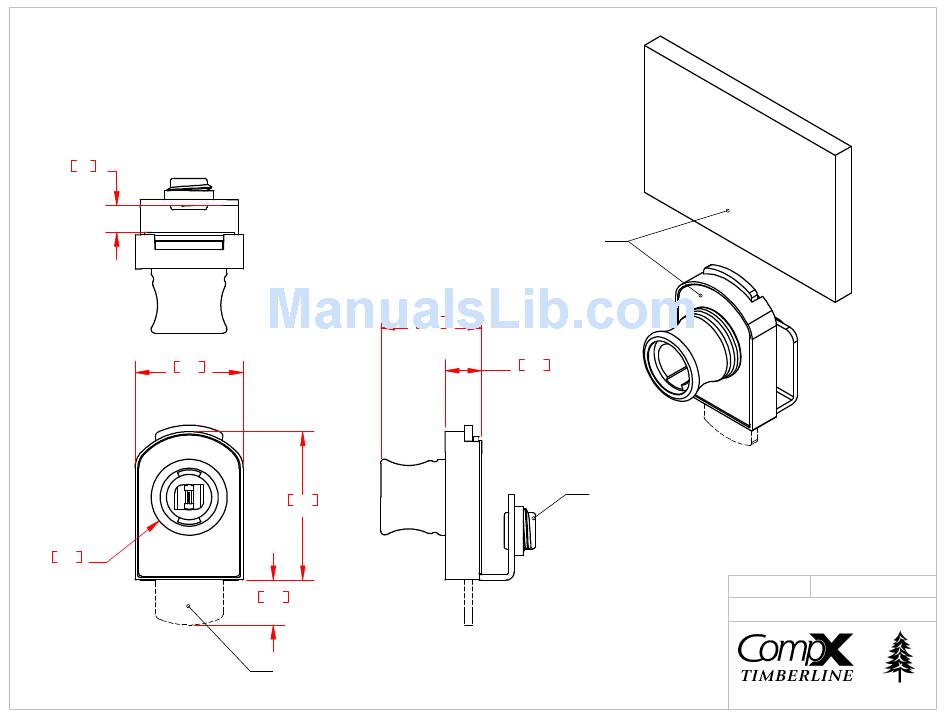

COMPX TYPE360 Dimensional Drawing

PART NUMBERS:

CB-361 NICKEL FINISH
CB-365 BRASS FINISH
CB-367 SATIN NICKEL FINISH
7.6
.30
30.5
1.20
21.5
.85
28.5
1.12
41.9
1.65
12.7
.50

CAM IN LOCKED POSITION

LOCK SLIPS ON TO

EDGE OF GLASS DOOR
AT ANY LOCATION

NO BORING REQUIRED

10.4
.41

SET SCREW

TIGHTENS LOCK

TO GLASS DOOR
DATE
DRAWING#
03/24/03
CB-36X
TYPE 360 GLASS DOOR DEADBOLT LOCK
