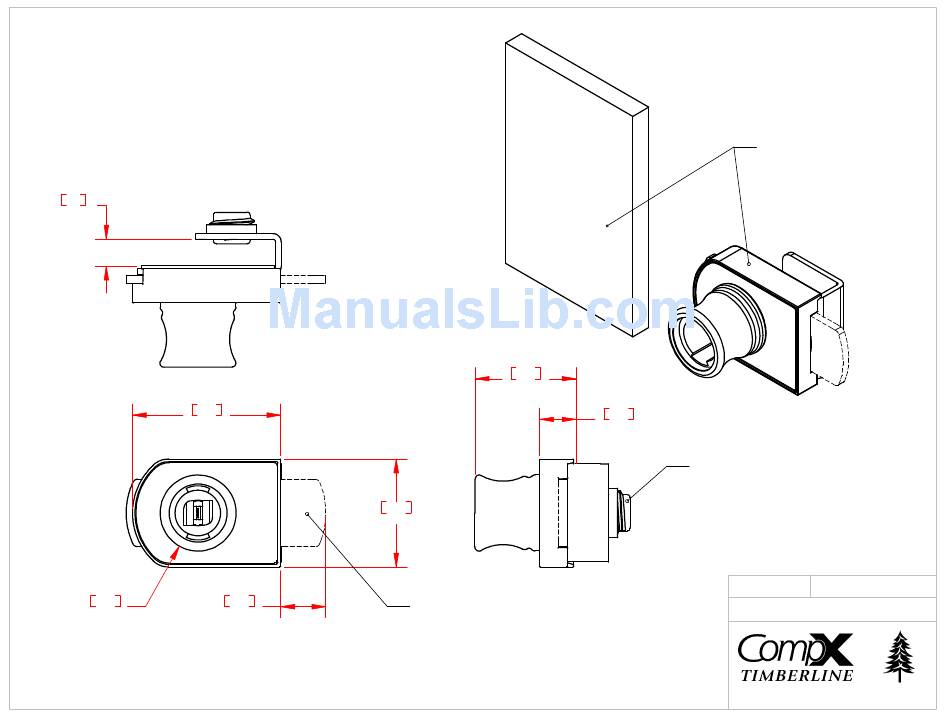

COMPX TYPE350 Dimensional Drawing

PART NUMBERS:

CB-351 NICKEL FINISH
CB-355 BRASS FINISH
CB-357 SATIN NICKEL FINISH
7.6
.30
41.9
1.65
21.5 12.7
.85 .50
28.5
1.12
30.5
1.20

CAM IN LOCKED POSITION

LOCK SLIPS ON TO
EDGE OF GLASS DOOR
AT ANY LOCATION

NO BORING REQUIRED

10.4
.41
SET SCREW
TIGHTENS LOCK
TO GLASS DOOR
DATE
03/24/03

TYPE 350 GLASS DOOR DEADBOLT LOCK
