Daikin H Series Service Manual

Non-inverter pair wall mounted type

Hide thumbs Also See for H Series:

Service manual (202 pages)

Engineeiring data (124 pages)

Engineering data (108 pages)

page of 56

/ 56
Bookmarks

Quick Links

Download this manual

Non-Inverter Pair

Wall Mounted Type H-Series

[Applied Models]

Non-Inverter Pair : Cooling Only

Non-Inverter Pair : Heat Pump

SiK011002

Draft

Need help?

Do you have a question about the H Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Daikin H Series

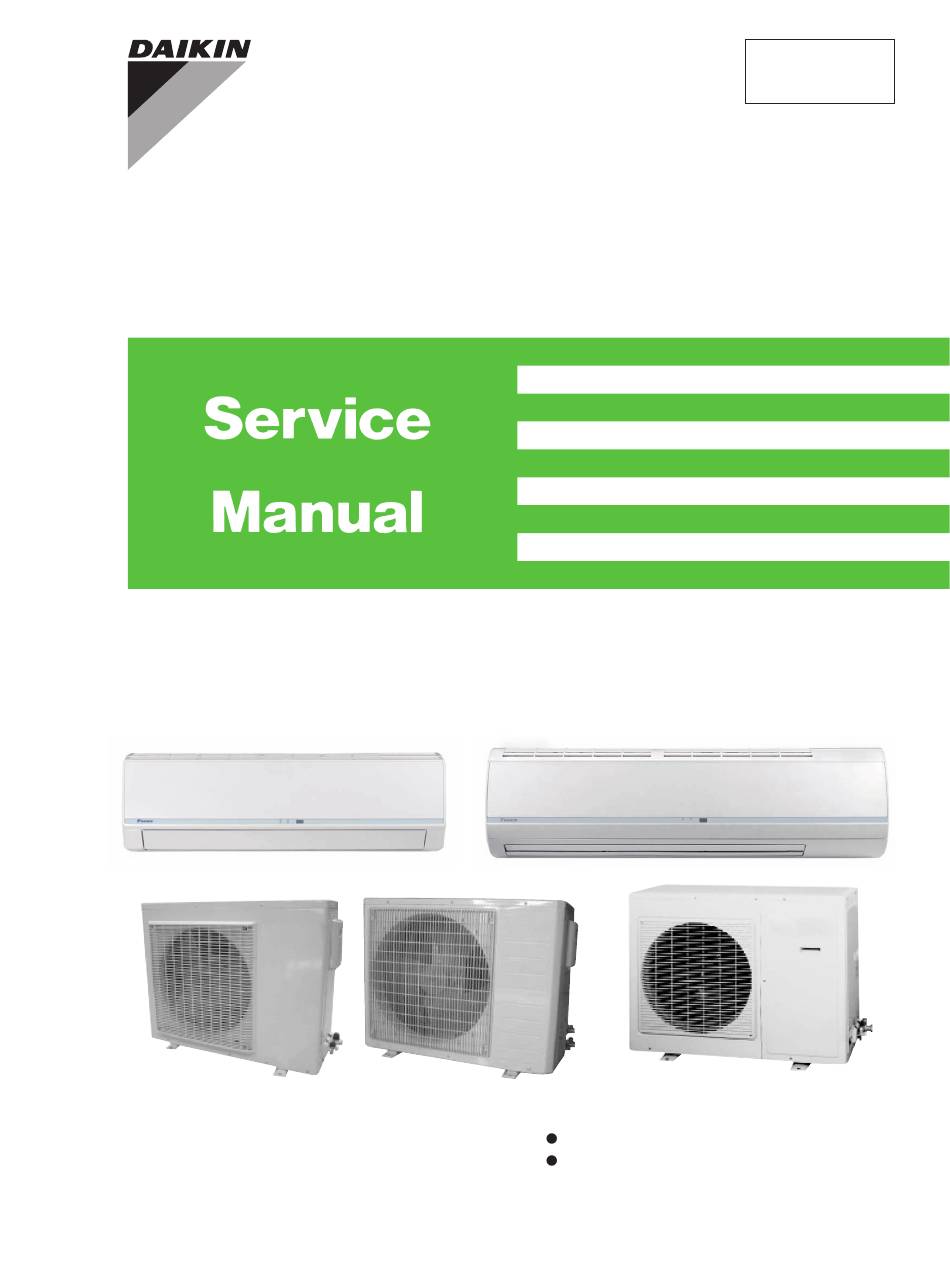

Page 1 SiK011002 Draft Non-Inverter Pair Wall Mounted Type H-Series [Applied Models] Non-Inverter Pair : Cooling Only Non-Inverter Pair : Heat Pump...
Page 2 SiK011002 Non-Inverter Pair Non-Inverter Pair Wall Mounted Type Wall Mounted Type H-Series H-Series Cooling Only Indoor Unit FT18HEVLK FT24HEVLK FT30HEVLK Outdoor Unit R18HEVLK R24HEVLK R30HEVLK Heat Pump Indoor Unit FTY18HEVLK FTY24HEVLK FTY30HEVLK Outdoor Unit RY18HEVLK RY24HEVLK RY30HEVLK Table of Contents...
Page 3 SiK011002 1. Introduction .................... iii 1.1 Safety Cautions ..................iii 1.2 Used Icons ..................... vii Part 1 Specifications ..............1 1. Specifications ..................2 1.1 18 Class ....................2 1.2 24 Class ....................4 1.3 30 Class ....................6 Part 2 Part Outline and Installation Dimension ......8 1.
Page 4 Introduction SiK011002 1. Introduction Safety Cautions Cautions and Be sure to read the following safety cautions before conducting repair work. Warnings The caution items are classified into “ Warning” and “ Caution”. The “ Warning” items are especially important since they can lead to death or serious injury if they are not followed closely.
Page 5 SiK011002 Introduction Warning Be sure to wear a safety helmet, gloves, and a safety belt when working at a high place (more than 2 m). Insufficient safety measures may cause a fall accident. In case of R-410A refrigerant models, be sure to use pipes, flare nuts and tools for the exclusive use of the R-410A refrigerant.
Page 6 Introduction SiK011002 1.1.2 Cautions Regarding Safety of Users Warning Be sure to use parts listed in the service parts list of the applicable model and appropriate tools to conduct repair work. Never attempt to modify the equipment. The use of inappropriate parts or tools may cause an electrical shock, excessive heat generation or fire.
Page 7 SiK011002 Introduction Warning Check to make sure that the power cable plug is not dirty or loose, then insert the plug into a power outlet securely. If the plug has dust or loose connection, it may cause an electrical shock or fire. Be sure to install the product correctly by using the provided standard For unitary type installation frame.
Page 8 Introduction SiK011002 Caution Be sure to measure the insulation resistance after the repair, and make sure that the resistance is 1 MΩ or higher. Faulty insulation may cause an electrical shock. Be sure to check the drainage of the indoor unit after the repair. Faulty drainage may cause the water to enter the room and wet the furniture and floor.
Page 9 SiK011002 Part 1 Specifications 1. Specifications ..................2 1.1 18 Class ....................2 1.2 24 Class ....................4 1.3 30 Class ....................6 Specifications...
Page 10 Specifications SiK011002 1. Specifications 18 Class Model FT18HEVLK FTY18HEVLK Function COOLING COOLING HEATING Rated Voltage (V) Rated Frequency (Hz) Total Capacity (W) 5,300 5,300 5,700 Power Input (W) 2,250 2,400 2,250 Rated Input (W) 3,000 3,200 2,900 Rated Current (A) 13.6 16.2 14.6...
Page 11 SiK011002 Specifications Model R18HEVLK RY18HEVLK Compressor Manufacturer / Shanghai Hitachi Electrical Shanghai Hitachi Electrical trademark Appliances Co., Ltd Appliances Co., Ltd Compressor Model SH307DG-C7HU SH336DG-C8LU Compressor Type Rotary compressor Rotary compressor L.R.A. (A) Compressor RLA (A) 9.45 10.7 Compressor Power Input (W) 2,080 2,275 Overload Protector...
Page 12 Specifications SiK011002 24 Class Model FT24HEVLK FTY24HEVLK Function COOLING COOLING HEATING Rated Voltage (V) Rated Frequency (Hz) Total Capacity (W ) 6,300 6,300 7,000 Power Input (W) 2,500 2,500 2,600 Rated Input (W) 3,500 3,500 3,600 Rated Current (A) 17.7 17.7 18.2 (SH/H/M/L)
Page 13 SiK011002 Specifications Model R24HEVLK RY24HEVLK Compressor Manufacturer / MITSUBISHI MITSUBISHI trademark ELECTRIC (Guangzhou) ELECTRIC (Guangzhou) Compressor Model TST33NDAC TST33NDAC Compressor Type Rotary Rotary L.R.A. (A) Compressor RLA (A) 11.2 11.2 Compressor Power Input (W) 2,300 2,300 Overload Protector Built in Built in Throttling Method Capillary...
Page 14 Specifications SiK011002 30 Class Model FT30HEVLK FTY30HEVLK Function COOLING COOLING HEATING Rated Voltage (V) Rated Frequency (Hz) Total Capacity (W / Btu/h) 8,200 / 28,000 8,200 / 28,000 9,000 / 30,700 Power Input (W) 3,200 3,200 3,200 Rated Input (W) 4,300 4,300 3,900...
Page 15 SiK011002 Specifications Model R30HEVLK RY30HEVLK Compressor Manufacturer / MITSUBISHI MITSUBISHI trademark ELECTRIC (Guangzhou) ELECTRIC (Guangzhou) Compressor Model LHT48NBDC LHT48NBDC Compressor Type Rotary Rotary L.R.A. (A) Compressor RLA (A) 14.8 14.8 Compressor Power Input (W) 3,250 3,250 Overload Protector PUT-IN PUT-IN Throttling Method Capillary Capillary...
Page 16 SiK011002 Part 2 Part Outline and Installation Dimension 1. Part Name ....................9 2. Outline and Installation Dimension............10 2.1 Outline and Installation Dimensions of Indoor Unit ........10 2.2 Outline and Installation Dimensions of Outdoor Unit......11 Part Outline and Installation Dimension...
Page 17 Part Name SiK011002 1. Part Name Indoor Unit Air in Front Panel Filter Guide louver Wrapping Tape Air out Wall Pipe Wireless remote control Indicator light Timer Receive window Outdoor Unit Air in Drainage hose Air out Part Outline and Installation Dimension...
Page 18 Outline and Installation Dimension SiK011002 2. Outline and Installation Dimension Outline and Installation Dimensions of Indoor Unit Air inlet Tube exit 18 Class: 24 Class: Rear View 30 Class: Ceiling Over 7 cm Over 17 cm Left Over 20 cm Right Wall-Mounting Plate MODEL...
Page 19 Outline and Installation Dimension SiK011002 Outline and Installation Dimensions of Outdoor Unit 2.2.1 18 Class Unit: mm Over 60 cm Bolt Wrench Part Outline and Installation Dimension...
Page 20 Outline and Installation Dimension SiK011002 2.2.2 24 Class Unit: mm Over 60 cm Over 60 cm Bolt Wrench Part Outline and Installation Dimension...
Page 21 SiK011002 Outline and Installation Dimension 2.2.3 30 Class 1018 Unit: mm Over 60 cm Bolt Wrench Part Outline and Installation Dimension...
Page 22 SiK011002 Part 3 Printed Circuit Board Connector Wiring Diagram 1. Printed Circuit Board Connector Wiring Diagram........15 1.1 FT(Y)18/24HEVLK..................15 1.2 FT(Y)30HEVLK R(Y)30HEVLK............... 17 Printed Circuit Board Connector Wiring Diagram...
Page 23 Printed Circuit Board Connector Wiring Diagram SiK011002 1. Printed Circuit Board Connector Wiring Diagram FT(Y)18/24HEVLK Connectors ROOM Connector for Room temperature thermistor TUBE Connector for Tube temperature thermistor TR-OUT1,TR-IN Connector for Transformer DISP1/DISP2 Connector for Signal Receiver PCB SWING-UD Connector for swing motor(horizontal blades) SWING-LR Connector for swing motor (vertical blades) Connector for Indoor fan motor...
Page 24 SiK011002 Printed Circuit Board Connector Wiring Diagram Control PCB PCB Detail PCB : OFAN TR-IN SWING-LR HEAT-N SWING-UD ROOM DISP1 TUBE TR-OUT1 DISP2 Printed Circuit Board Connector Wiring Diagram...
Page 25 Printed Circuit Board Connector Wiring Diagram SiK011002 FT(Y)30HEVLK R(Y)30HEVLK Connectors FANC1/FANC2 Connector for fan motor capacitor DISP1/DISP2 Connector for Signal Receiver PCB Connector for Tube temperature thermistor(Intdoor unit ) TUBE ROOM Connector for Room temperature thermistor heat exchanger) SWING-UD Connector for swing motor(horizontal blades) FAN-L/FAN-M/FAN-H Connector for fan motor TR-OUT,TR-IN...
Page 26 SiK011002 Printed Circuit Board Connector Wiring Diagram PCB: Contr ol PCB(FT(Y)30HEVLK) PCB Detail COM-OUT FAN-L/FAN-M/FAN-H AC-L SWING-UD Control PCB FANC1/FANC2 ROOM TUBE DISP1/DISP2 Printed Circuit Board Connector Wiring Diagram...
Page 27 SiK011002 Printed Circuit Board Connector Wiring Diagram Control PCB(R(Y)30HEVLK) PCB Detail PCB : TR-IN OFAN-L/OFAN-H COMP TR-OUT OUT TUBE OUT ROOM Printed Circuit Board Connector Wiring Diagram...
Page 28 SiK011002 Part 4 Function and Control 1. Function and Control................21 1.1 Basic Functions ..................21 1.2 Other Control..................22 1.3 Special Functions ...................23 Function and Control...
Page 29 SiK011002 Function and Control 1. Function and Control Note: Basic functions (the centigrade is used in the following function manual. If there will be Fahrenheit degree, that will be Tf = Tc × 1.8 + 32). Temperature Parameters Indoor preset temperature (Tpreset) Indoor ambient temperature (Tamb.) Basic Functions Once energized, the compressor shall never be restarted except 3-min interval at least.
Page 30 Function and Control SiK011002 Overcurrent Protection (Applicable to some models) If it is detected that the system amperage exceeds the specified value in 3 s successively, the outdoor unit will enter into the state that only the fan is running. If the overcurrent protection is released, the complete unit will resume its previous running state.
Page 31 SiK011002 Function and Control 1.1.3 Heating Mode (Cooling only unit is not available) Heating Conditions and Process When Tamb. ≤ Tpreset + 2 °C, the unit will run in heating mode. In this case, the four-way valve, the compressor and the outdoor fan will run simultaneously. The indoor fan will delay at most 2 mins to run.
Page 32 Function and Control SiK011002 Other Control 1.2.1 Timer Function The mainboard combines general timer and clock timer functions. Timer functions are selected by equipping remote controller with different functions. General Timer Timer ON can be set under off state of unit. If timer ON reaches, the controller will run under previous setting mode.
Page 33 SiK011002 Function and Control 1.2.8 Up & Down Swing After energization, up & Down swing motor will rotate guide louver anticlockwise to position 0 to close air outlet. After turning on the unit, if swing function has not been set, up & down guide louver will clockwise turn to position D in heating mode, or clockwise turn to level position L in other modes.
Page 34 Function and Control SiK011002 1.2.11 Power-Off Memory Memory content includes mode, up & down swing, light, setting temp and setting fan speed. Upon power failure, the unit after power recovery will automatically start to run according to memory content. The system, last remote-control command without timer setting, will memorize the last remote-control signal and run according to it.
Page 35 SiK011002 Part 5 Operation Manual 1. System Configuration................28 2. Operation Manual..................28 2.1 Operation of Wireless Remote Control...........29 Operation Manual...
Page 36 System Configuration SiK011002 1. System Configuration After the installation and test operation of the room air conditioner have been completed, it should be operated and handled as described below. Every user would like to know the correct method of operation of the room air conditioner, to check if it is capable of cooling (or heating) well, and to know a clever method of using it.
Page 37 SiK011002 Operation Manual 2. Operation Manual Operation of Wireless Remote Control 2.1.1 Names and Functions of Wireless Remote Control Note: Be sure that there is no obstruction between receiver and remote control; Don't drop or throw the remote control; Don't let any liquid flow into the remote control and put it directly under the sunlight or hot place.
Page 38 Operation Manual SiK011002 Note:This wireless remote control is universal, and it could be used for many units. Some buttons on this control are not applicable to the unit. + button Press the button to increase the indoor temperature setting. Remote control TEMP TEMP button When pressing "TEMP"...
Page 39 SiK011002 Operation Manual Note:This wireless remote control is universal, and it could be used for many units. Some buttons on this control are not applicable to the unit. TIMER ON TIMER ON BUTTON Press this button to initiate the auto-on timer. To cancel the auto-timer program, simply press this button again.
Page 40 Operation Manual SiK011002 2.1.2 Guide for Operation - General Operation 1. Press ON/Off button to start or stop operation.(Note:When it is powered off, the guide louver of main unit will close automatically.) 2. Press MODE button to select desired running mode, or press COOL or HEAT button into the corresponding operation directly.
Page 41 SiK011002 Operation Manual ★ About switch between Fahrenheit and Centigrade Under status of unit off, press "MODE" and "- "buttons simultaneously to switch °C and °F. ★ About new function of defrosting It indicates after starting this function by remote controller and the unit has been under defrost status, if turning off the unit by remote controller, the unit will not stop until defrosting is finished;...
Page 42 SiK011002 Part 6 Troubleshooting 1. Troubleshooting ..................34 1.1 Malfunction Display ................34 1.2 Common Section..................36 Troubleshooting...
Page 43 SiK011002 Troubleshooting 1. Troubleshooting Malfunction Display If malfunction occurs, corresponding code will display and the will resume normal until protection or malfunction disappears. 1.1.1 Trouble C5 Dual-8 screen displays C5 and running LED blinks 15 times and pauses 3 s. Troubleshooting Jumper cap is not firmly connected with the controller.
Page 44 SiK011002 Troubleshooting 1.1.8 Trouble E2 Dual-8 screen on display board will display E2 and running LED blinks twice and pauses 3 s. Troubleshooting It is normal, at this time, the AC is in Antifreezing status. Troubleshooting...
Page 45 SiK011002 Troubleshooting Common Section Note: Before analysis, check the unit according to the indicator display on outdoor unit. Measure insulation resistance The breaker trips at once when it to ground to see if there is any is set to “ON”. leakage.
Page 46 SiK011002 Troubleshooting Improper set of temperature Adjust set temperature If cooling (heating) load Check the forecasted load of cooling (heating) is proper Check and fill the leakage, then The refrigerant has leakage or is vacuumize it and supplement the insufficient refrigerant as required Leakage between the high pres- Replace the compressor...
Page 47 SiK011002 Troubleshooting The indoor fan motor is burned or breaks or has the heat protector Replace the fan motor or the defective part. malfunction. The built-in heat protector of the The fan does not motor breaks frequently because the Replace the fan motor run when it is set motor is abnormal.
Page 48 SiK011002 Troubleshooting The torque of the swing motor is not enough First, check whether the connection is Wrong connection The swing fan wrong. If no, replace the parts does not run. The Main board is damaged The Main board malfunction Change the Main board In cool, heat mode, the...
Page 49 SiK011002 Part 7 Appendix 1. Wiring Diagram ..................41 1.1 18 Class ....................41 1.2 24 Class ....................43 1.3 30 Class ....................45 Appendix...
Page 50 SiK011002 Wiring Diagram 1. Wiring Diagram 18 Class FT18HEVLK, R18HEVLK Appendix...
Page 51 SiK011002 Wiring Diagram FTY18HEVLK, RY18HEVLK Appendix...
Page 52 SiK011002 Wiring Diagram 24 Class FT24HEVLK, R24HEVLK Appendix...
Page 53 SiK011002 Wiring Diagram FTY24HEVLK, RY24HEVLK Appendix...
Page 54 SiK011002 Wiring Diagram 30 Class FT30HEVLK, R30HEVLK Appendix...
Page 55 SiK011002 Wiring Diagram FTY30HEVLK, RY30HEVLK Appendix...
Page 56 Daikin Industries, Ltd.’s products are manufactured for export to numerous countries throughout the Warning world. Daikin Industries, Ltd. does not have control over which products are exported to and used in a particular country. Prior to purchase, please therefore confirm with your local authorised importer, distributor and/or retailer whether this product conforms to the applicable standards, and is suitable for use, in the region where the product will be used.
